China CNC Lathe Machine With Ball Screw

  • 1 - 2 Sets
    $19,456.00
  • >=3 Sets
    $18,000.00
Model Number:
DMTC
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
CNC LATHE
CNC or Not:
CNC
Automatic Grade:
Semi-automatic
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC numturn
Voltage:
380V 50-60HZ
Power(W):
3/4.5kW
Dimension(L*W*H):
2300*1480*1520
Weight:
1000KG
Certification:
ISO9001&CE
Max. Swing Diameter:
260(300)mm
product type:
China mini block diagram ball screw for CNC machine
Max swing diameter over bed:
260(300)mm
Max swing diameter over knife rest:
145mm
Max workpiece length:
600mm
voltage:
can according to customer's requirment
Payment:
T/T L/C Western Union Sell on Credit and so on
technology:
can discuss
C axis:
can add
technology documents:
english
design:
we have design team
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
40 Set/Sets per Month CNC lathe machine
Packaging & Delivery
Packaging Details
Plastic cloth for the first layer, canvas for the second layer,
and packing with wooden case at last for CKA6126 cheap cnc lathe machine price
together with pallet on the bottom of wooden box for CKA6126 cheap cnc lathe machine price
Port
DALIAN PORT
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(day) 68 To be negotiated
Product Description

Product Application

The machine for the vertical (Z), horizontal (X) two coordinates control CNC horizontal lathe. It can finish machining of inner and outer cylindrical surface, conical surface, circular surface, end face, slotting and chamfering of various shafts and disc parts, and can cut metric straight thread, end thread and inch straight thread and Taper thread and other turning. CKA6150 use FANUC, Siemens, Guangzhou NC, Central China Star and other well-known domestic and foreign companies CNC system, the workpiece can be repeated repeated cycle processing. Suitable for multi-species, small and medium-volume production of products, complex, high-precision parts can show superiority.

item
unit
CKA6150
Max. swing over bed
mm
500
Max. swing over carrige
mm
280
Max. work piece length
mm
750/1000/1500/2000
Max. turning length
mm
680/930/1430/1930
Max. turning diameter
mm
500(vertical 4 station )
Width of guideway
mm
400
Height of spindle center
mm
250
Max. weight of work piece
kg
400
Main motor (double speed)
kw
6.5/8
Dia. of spindle bore
mm
82
Taper of spindle bore
mm
90
Spindle head
D8
Range of spindle speed
r/min
45-2000
If you want to know more parameters , contact with me please. Such as tailstock,
feeding system,accuracy of machine,carrige and others. My Whatsapp: +86 157 1236 9282, Skype: dmtc-rita.
Detailed Images



Machine Bed

Bed with resin sand casting, artificial aging treatment, therefore, have good rigidity and shock absorption, can ensure high precision machining



Automatic centralized lubrication system

With a centralized lubricator on the ball screw and guide rail for automatic lubrication, which can effectively improve the dynamic response characteristics of the machine and the life of the screw guide rail.




ELECTRIC TOOL POST

Horizontal six-station tool rest

PRECISION, FAST TO THE DRIVER

Longitudinal and lateral movement axis machine adopts servo motor drive, high precision ball screw pair, rigid precision composite bearing transmission, position detection pulse encoder feedback of half closed loop control system. Guide the use of international popular high frequency quenching (hard rail) and "model" process, each motion shaft fast response, high precision, long service life.

manaul chuck

hydraulic chuck

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
2760×1910×2180mm
Weight
2550 kg



Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

(The work piece length is 750mm)
Related Products

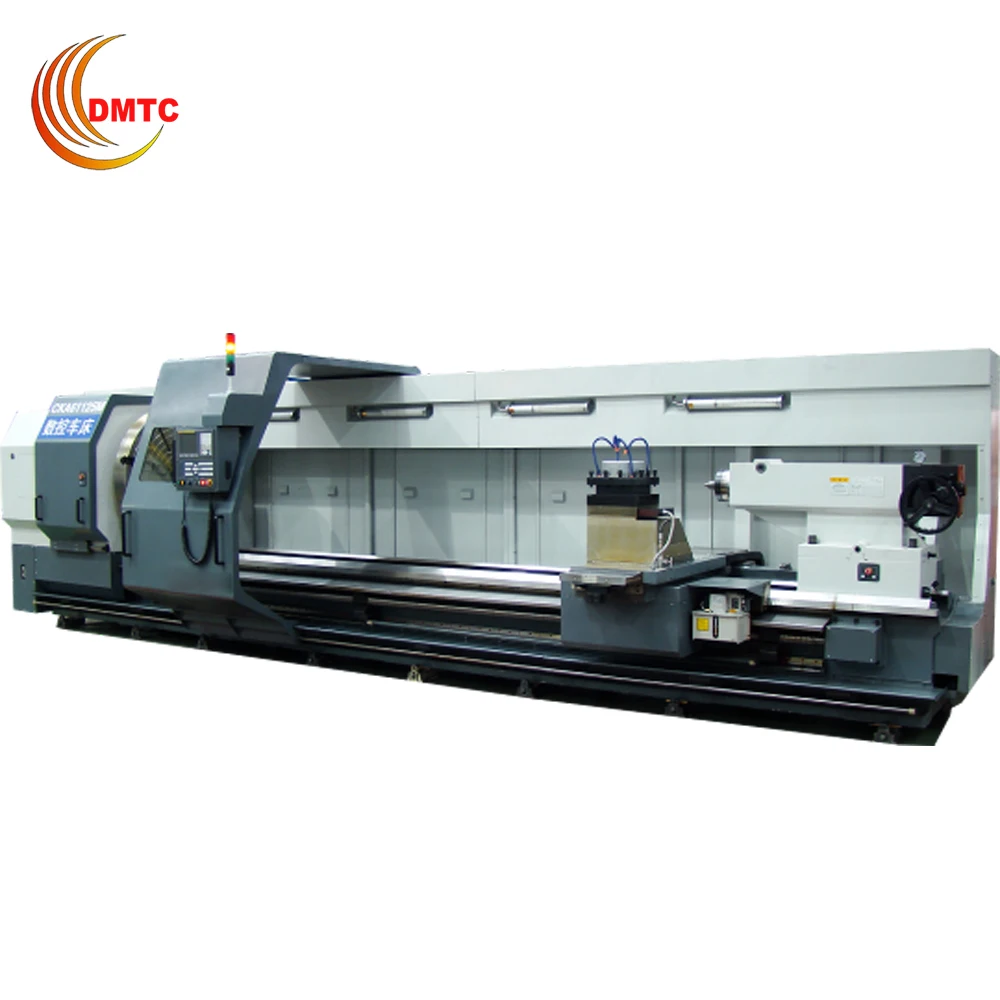

heavy duty cnc lathe

91.8% Response Rate

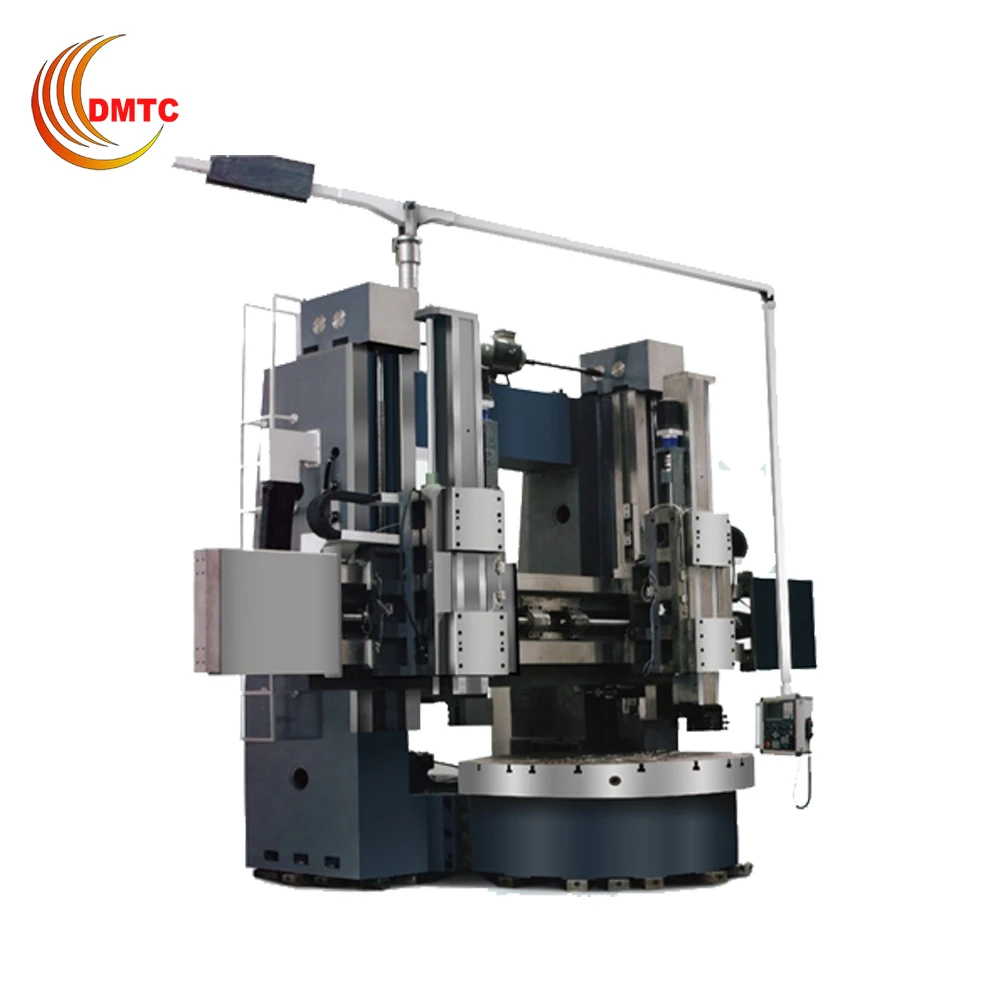

double column vertical lathe

91.8% Response Rate

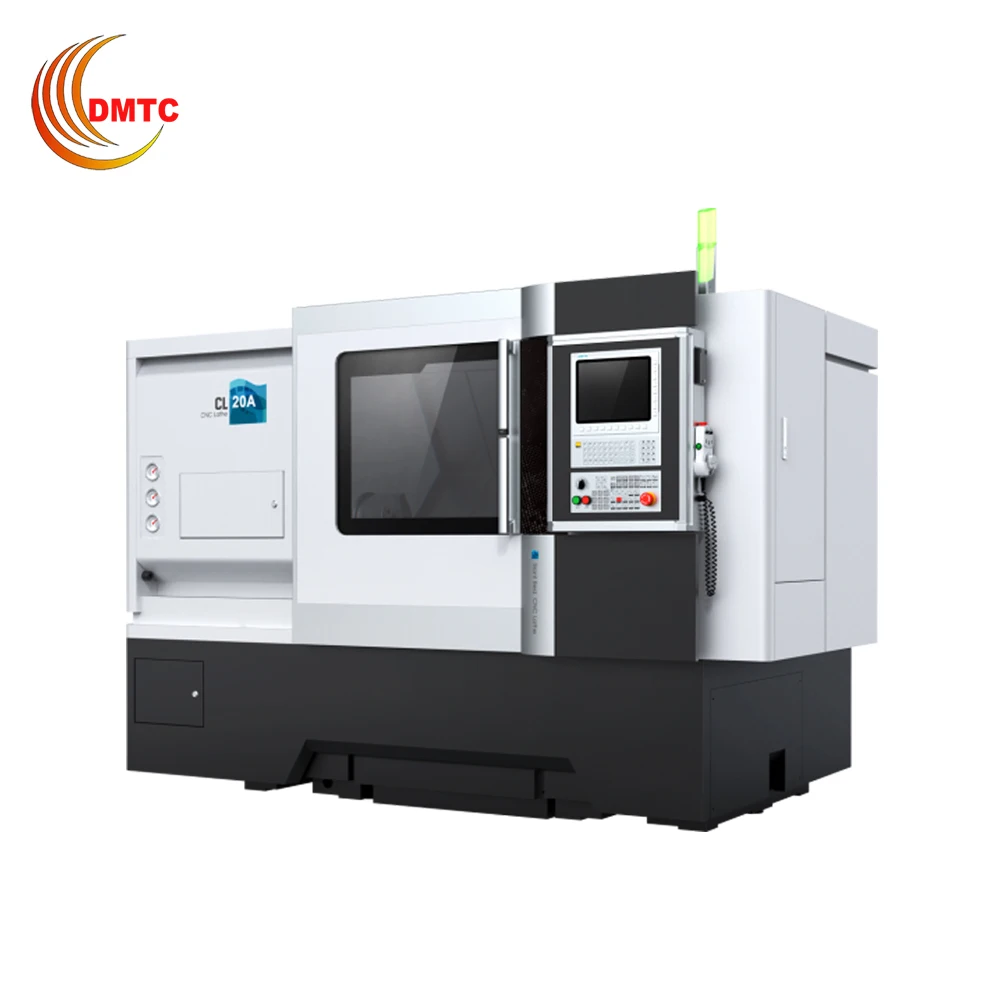

slant bed cnc lathe
