CNC Lathe Machine CNC Metal Turning Lathe for Sale

  • 1 - 1 Sets
    $12,654.00
  • >=2 Sets
    $12,000.00
Model Number:
CKA6150
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Automatic Grade:
Automatic
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC
Voltage:
220V/380V
Power(W):
7.5kw
Dimension(L*W*H):
2300*1480*1520mm
Weight:
1800
Certification:
ISO/CE/BV
Max. Swing Diameter:
400
product type:
CNC lathe machine
max swing diameter over bed:
500mm
max swing diameter over knife rest:
200mm
max workpiece length:
750mm
max machining length:
620mm
spindle bore diameter:
52mm
horizonal quick feed:
4000mm/min
vertical quick feed:
5000mm/min
location accurancy:
x 0.03 z0.04
shape:
cnc lathe machine
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
30 Set/Sets per Month CNC lathe machine
Packaging & Delivery
Packaging Details
1.woodproof and safety,suitable for sea transport
2.Plastic cloth for the first layer, canvas for the second layer, and packing with wooden case at last, together with pallet on the bottom of wooden box.
Port
Dalian
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Product Description

Product Application

The machine for the vertical (Z), horizontal (X) two coordinates control CNC horizontal lathe. It can finish machining of inner and outer cylindrical surface, conical surface, circular surface, end face, slotting and chamfering of various shafts and disc parts, and can cut metric straight thread, end thread and inch straight thread and Taper thread and other turning. CKA6150 use FANUC, Siemens, Guangzhou NC, Central China Star and other well-known domestic and foreign companies CNC system, the workpiece can be repeated repeated cycle processing. Suitable for multi-species, small and medium-volume production of products, complex, high-precision parts can show superiority.

SPECIFICATIONS FOR CKA6150 CNC LATHE MACHINE





Techniacal specifications
Max. swing over bed
mm
500
Max. swing over carrige
mm
280
Max. work piece length
mm
750/1000/1500/2000
Max. turning length
mm
680/930/1430/1930
Max. turning diameter
mm
500(vertical 4 station )
Width of guideway
mm
400
Height of spindle center
mm
250
Max. weight of work piece
kg
400



Main drive
Double speed motor drive: manual 3 gears, step speed change in the gear
Main motor (double speed)
kw
6.5/8
Dia. of spindle bore
mm
82
Taper of spindle bore
mm
90
Spindle head
D8
Range of spindle speed
r/min
45-2000
If you want to know more parameters , contact  with me please. Such as tailstock,
feeding system,accuracy of machine,carrige and others. My Whatsapp: +86 157 1236 9282, Skype: dmtc-rita.

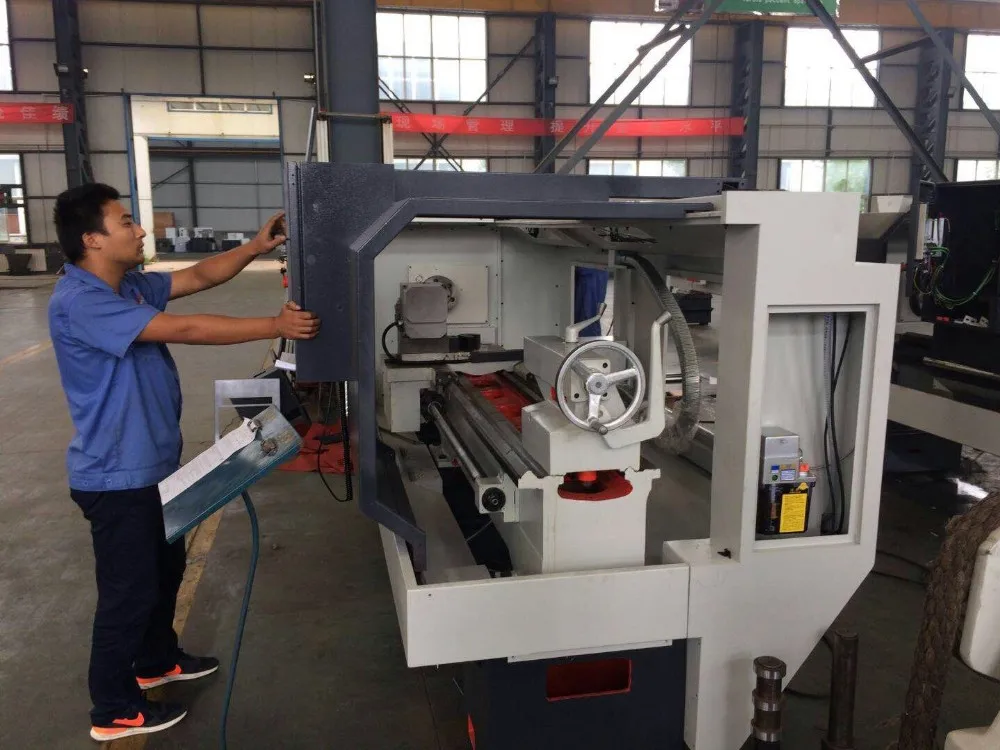

Machine before dilivery, our worker is texting it.

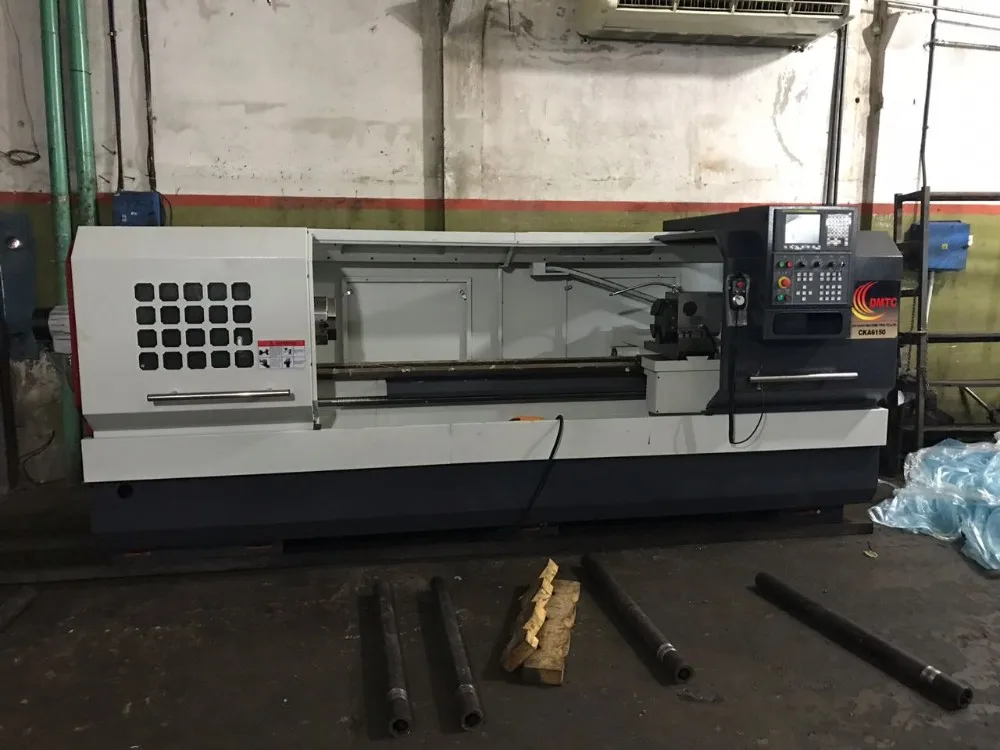

CKA 6150 CNC lathe in customer's factory.

Related Products

CKA61100M CNC Lathe Machine..

91.8% Response Rate

DL20M Slat Bed CNC Lathe Machine....

91.8% Response Rate

DL25M Slat Bed CNC Lathe Machine....

91.8% Response Rate

Certifications
Detailed Images

Machine Bed

Bed with resin sand casting, artificial aging treatment, therefore, have good rigidity and shock absorption, can ensure high precision machining

Automatic centralized lubrication system

With a centralized lubricator on the ball screw and guide rail for automatic lubrication, which can effectively improve the dynamic response characteristics of the machine and the life of the screw guide rail.

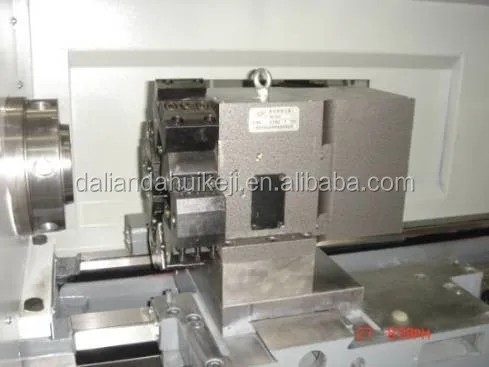

ELECTRIC TOOL POST

Horizontal six-station tool rest

PRECISION, FAST TO THE DRIVER

Longitudinal and lateral movement axis machine adopts servo motor drive, high precision ball screw pair, rigid precision composite bearing transmission, position detection pulse encoder feedback of half closed loop control system. Guide the use of international popular high frequency quenching (hard rail) and "model" process, each motion shaft fast response, high precision, long service life.

CHUCK

Hydraulic chuck

Our Company
Our office is located in Trade free zone, 20 munites driving time to the factory. Following is our staffs with custmer in the office.

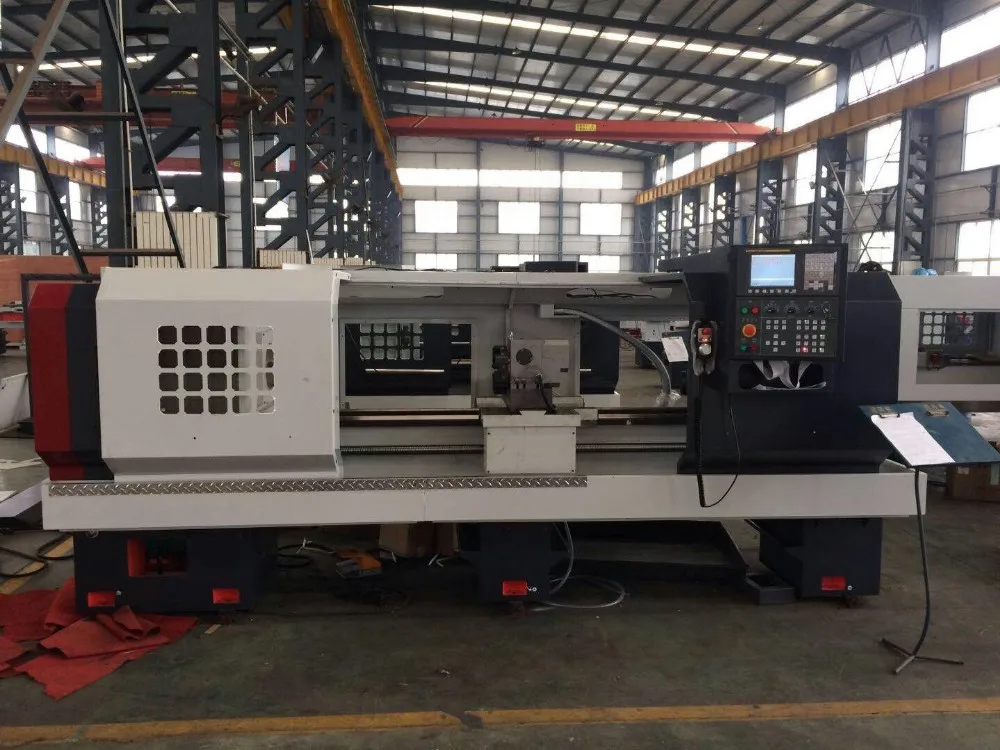

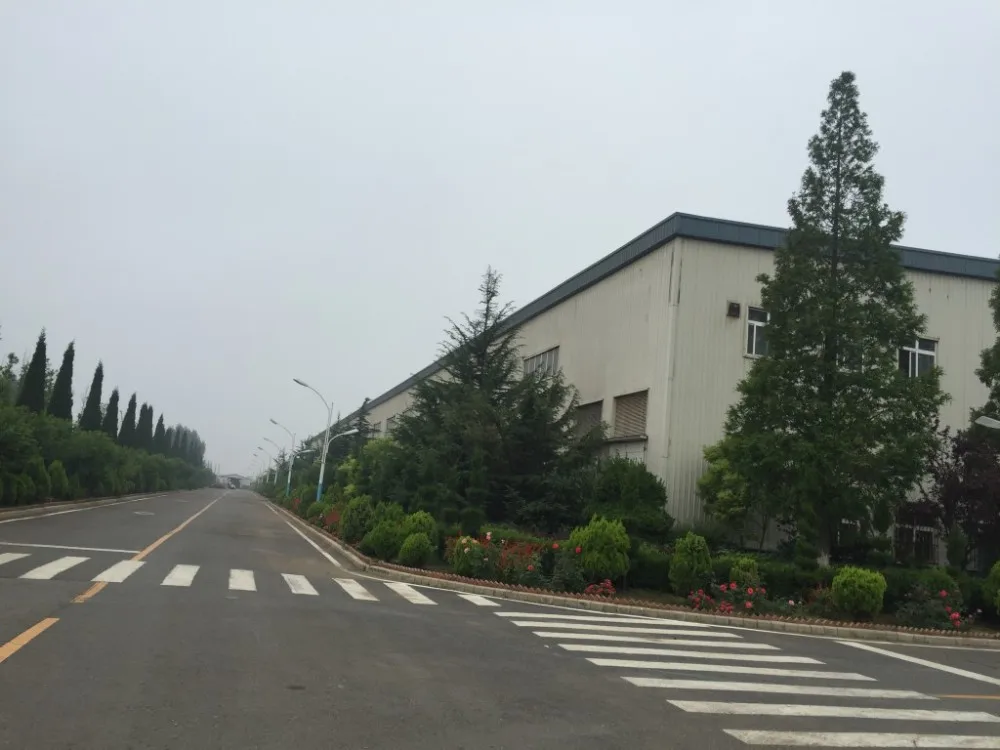

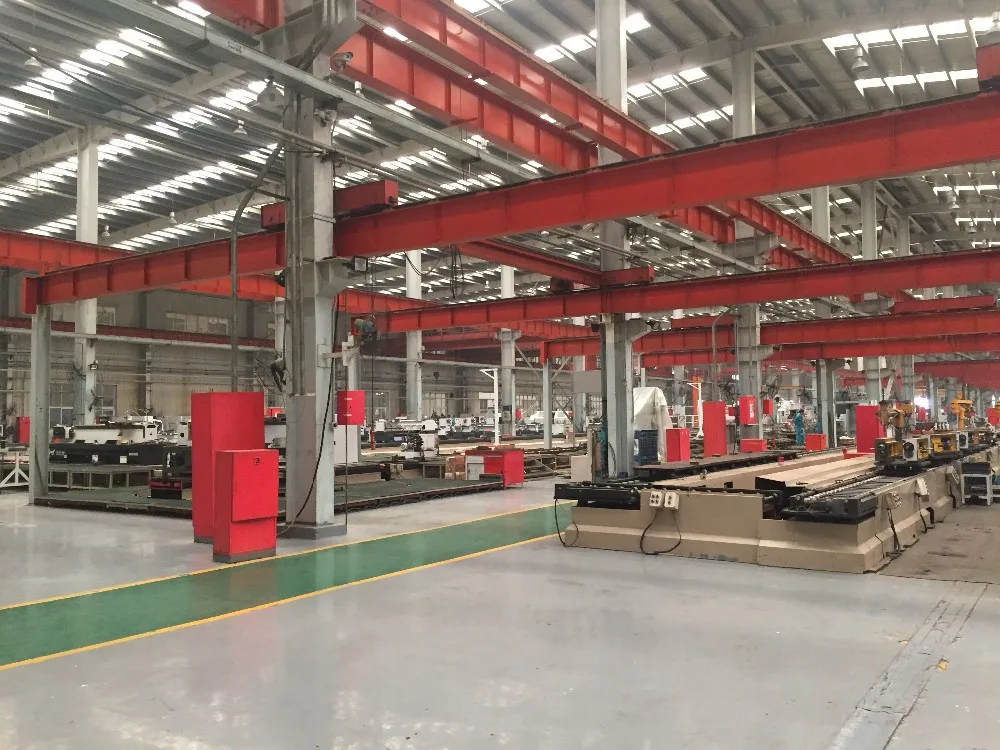

This is outside view of our factory. Below is inner view of our factory.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Exhibition Show

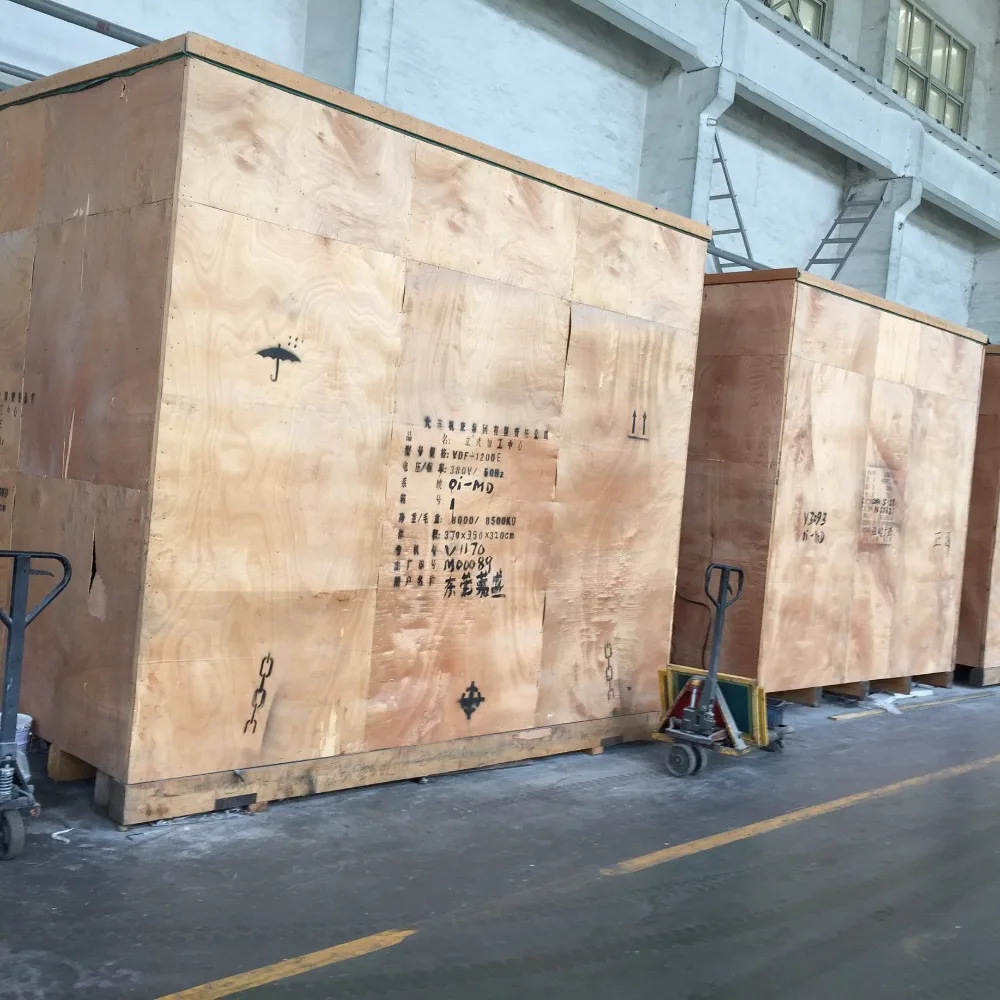

Packing & Delivery
Packaging
Size
2760×1910×2180mm
Weight
2550 kg



Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

(The work piece length is 750mm)
