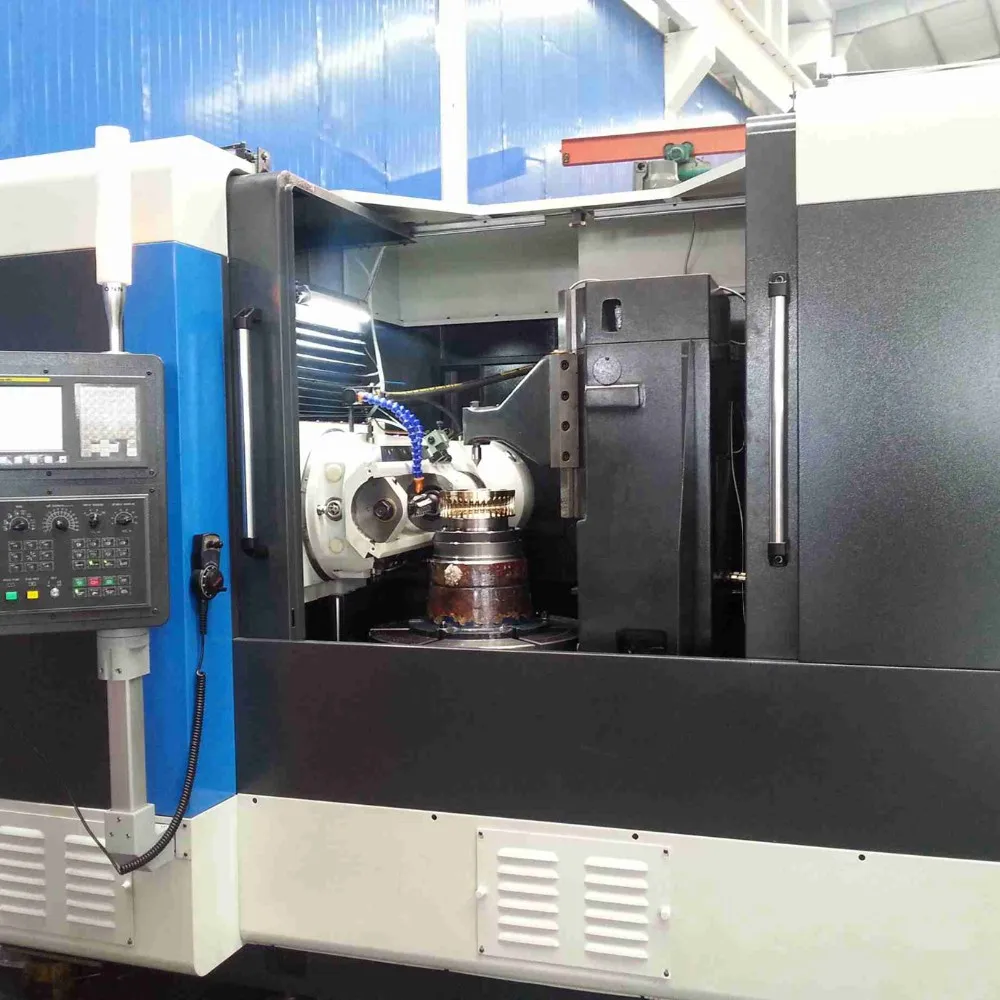

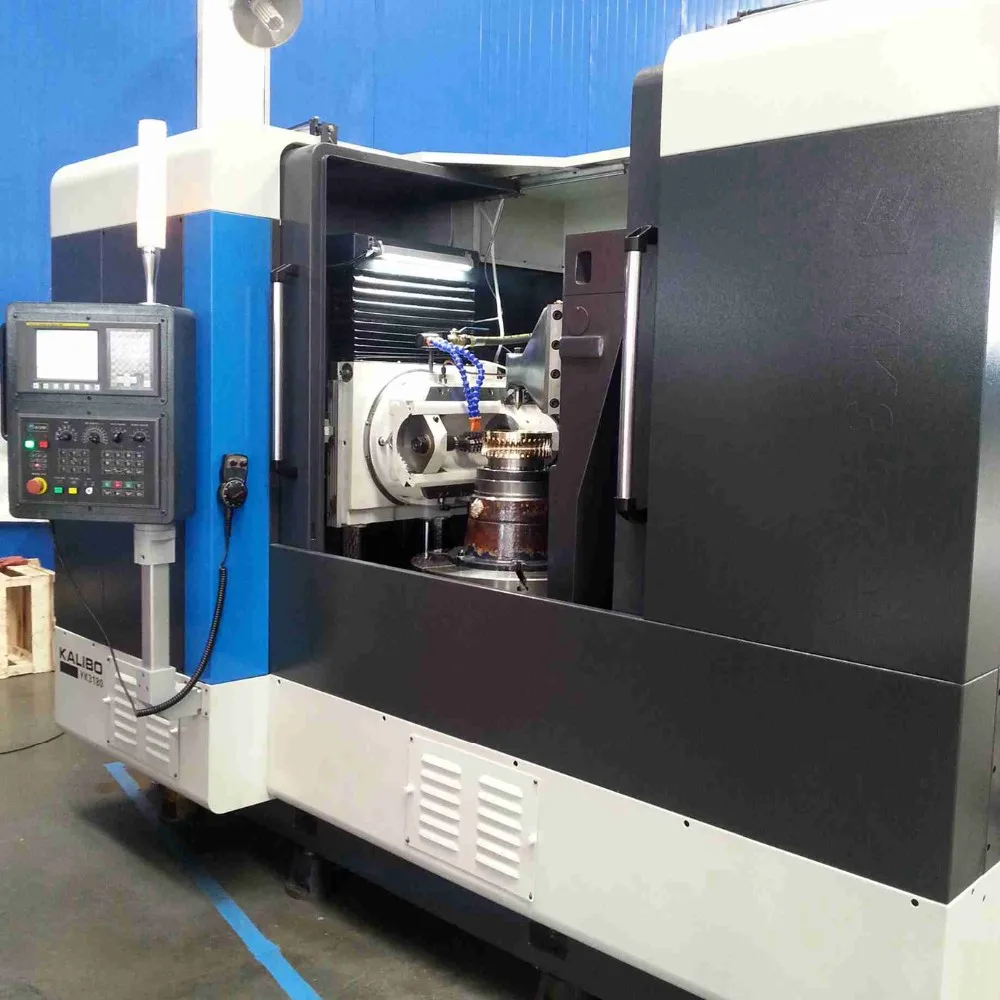

YK3180 Vertical CNC Gear Hobbing Machine for Sale

FOB Reference Price:Get Latest Price
$60,000.00 - $80,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
YK3180
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 60 75 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Gear Hobbing Machine
CNC or Not:
CNC
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC
Voltage:
220/380/440
Power(W):
5.5kw
Dimension(L*W*H):
2960*2200*1990
Certification:
ISO9001 CE BV
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Overseas service center available
Warranty:
1 Year
product type:
Gear Hobbing Machine
max module:
10mm
max speed of worktable:
36r/min
bob shifting distance:
100/120mm
main motor power:
7.5kw
max size of bob(D*L):
160*160mm
technology:
can discuss
Max. helix angle:
±45°
CNC controller:
Fanuc/Siemens
Weight:
6500/7500
Supply Ability
Supply Ability:
40 Set/Sets per Month Gear Hobbing Machine
Packaging & Delivery
Packaging Details
Plastic cloth for the first layer,
canvas for the second layer,
and packing with wooden case at last,
together with pallet on the bottom of wooden box for High Quality Advanced Gear Cutting Machine YK3180
Port
DALIAN
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 60 75 To be negotiated
Product Description

Product Application

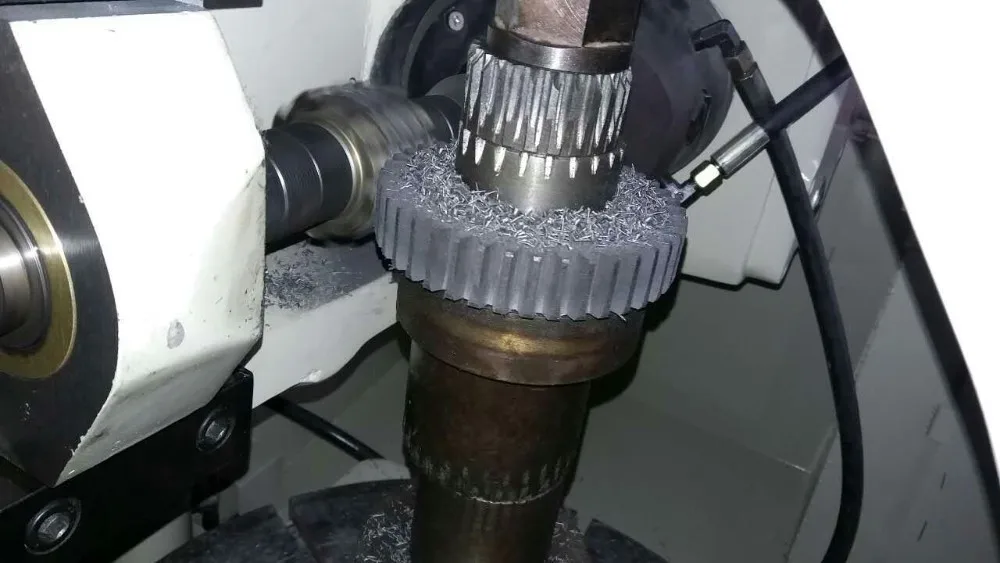

YK series gear hobbing machine is capable of processing spur Gear, helical gear, spline, drum-shaped gear, small taper gear, worm gear, sprocket etc. Suitable for automobile, motorcycle, reducer, agriculture machinery, Textile machinery, hoisting machinery, sprocket, elevator and mining machinery, industry gear processing.

SPECIFICATIONS FOR YK3180 CNC GEAR HOBBING MACHINE
Max. diameter of workpiece
mm
800
Max. module
mm
10
Max. helix angle
°
±45
Max. speed of worktable
r/min
5.2(10.4)
Speed of spindle
rpm
40~200
Z axis rapid feed rate
mm/min
900
X axis rapid feed rate
mm/min
900
Y axis rapid feed rate
mm/min
5000
Distance from the hob center to worktable center
mm
50~55
Distance from the hob center to worktable surface
mm
235~585
Distance from the tailstock center to worktable surface
mm
336~566
Max. size of hob (D×L)
mm
160*160/180*180
Hob shifting distance
mm
55/ 150
Main motor power
kW
5.5
Total motor power
kW
11.6/12.6
Overall dimension (L×W×H)
mm
2960*2200*1990
Net weight/ gross weight
kg
6500/7500
CNC System
Mitsubishi System

Main Features

1. CNC axes: X+Y+Z Axes
2. CNC control system; Mitsubishi CNC control system; Optional accessories for Fanuc or Siemens easy operating and reliable running.
3. Machine bed, column with double-wall structure and heavier design as well to ensure high rigidity, stable precision
4. Capable of clockwise or anti-clockwise milling in gear processing
5. Designing automatic lubricating device, save time and more convenient in machine maintaining
6. High accuracy indexing worm wheel pair utilized on worktable, reliable indexing with high indexing precision
7. Constant temperature control in electrical box to ensure reliable operation.

Detailed Images

Machine Parts

Name: Worktable

High precision worm worm gear pair, the realization of the workbench no clearance transmission, meet the accuracy requirement of the teeth.
Table adopts integral structure, good rigidity structure. Workbench structure stability, to better absorb, cutting force and transfer it directly to the base of the machine tool. Has a good damping effect of cutting force and strong rigidity.

Main Features

Name: CNC Controller
CNC control system; Mitsubishi CNC control system; Optional accessories for Fanuc or Siemens easy operating and reliable running.

Machine Parts

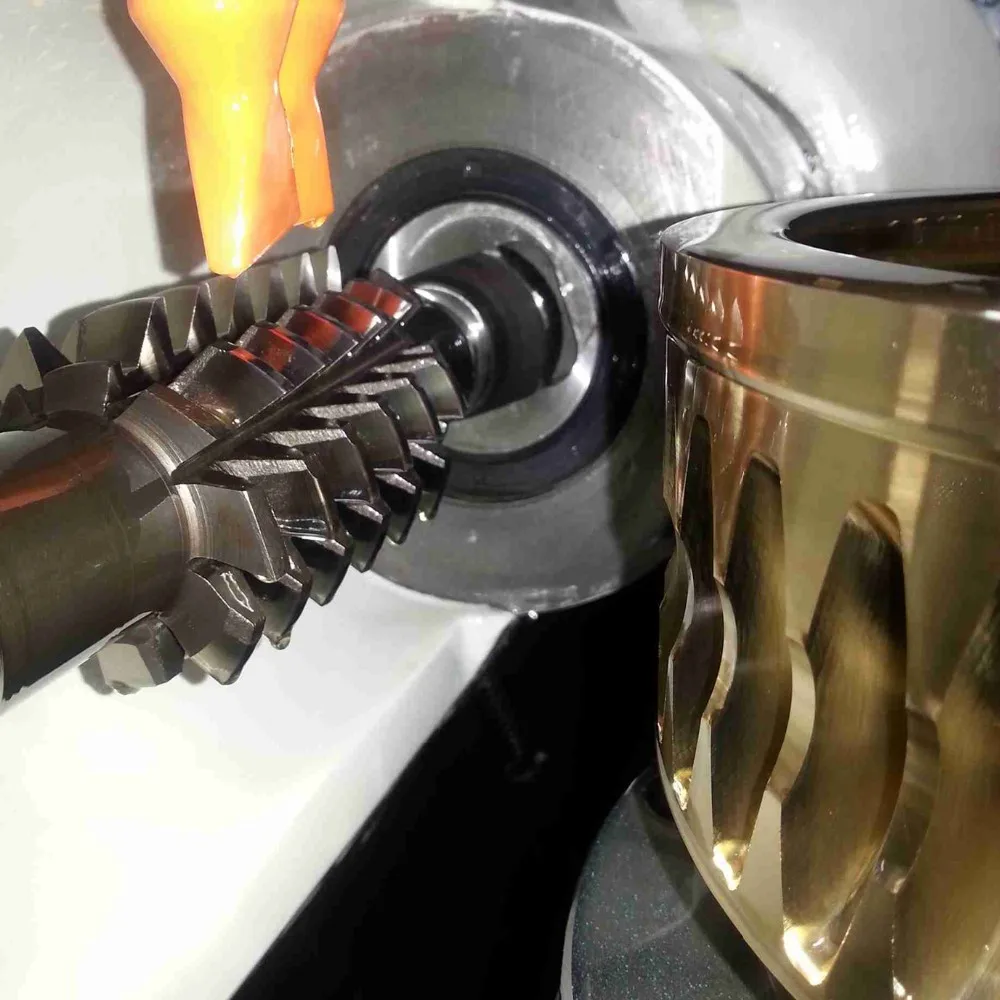

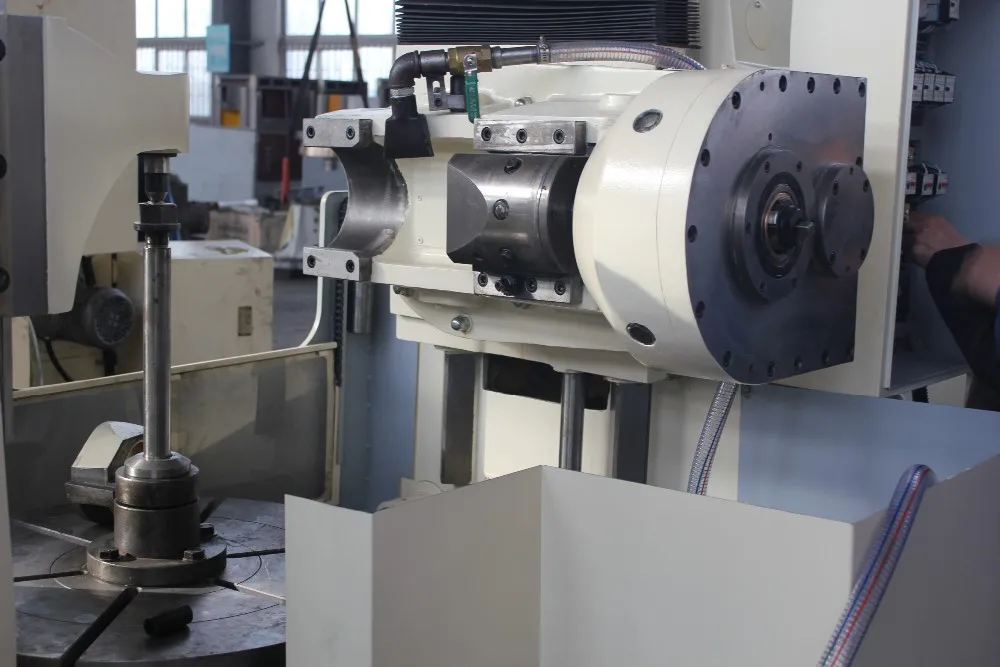

Name: Arbor
X, Y, Z feed drive adopts Siemens AC servo feed motor driver, ball screw drive, high precision ball screw bearing group.

Main Features

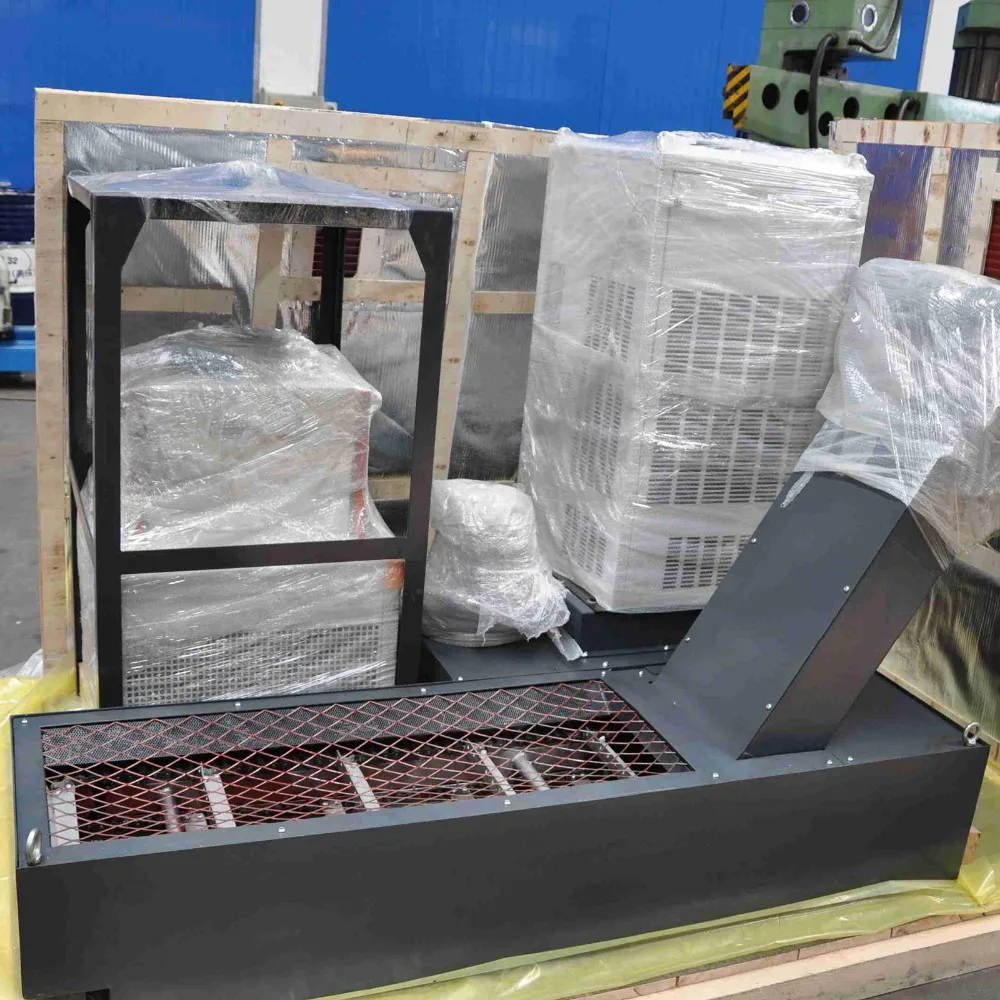

Name: COOLANT CHIP SYSTEM
Cooling machine adopts two sets of large flow, high head cooling pump, can be used independently, also can be used at the same time. Coolant recovery system is stable and reliable. Equipped with coolant, refrigeration equipment to keep machine tool thermal equilibrium. Equipped with oil mist collection device. Equipped with automatic chip removal unit, automatic separation of the chip side by side, including the scrap car.

You may concerned

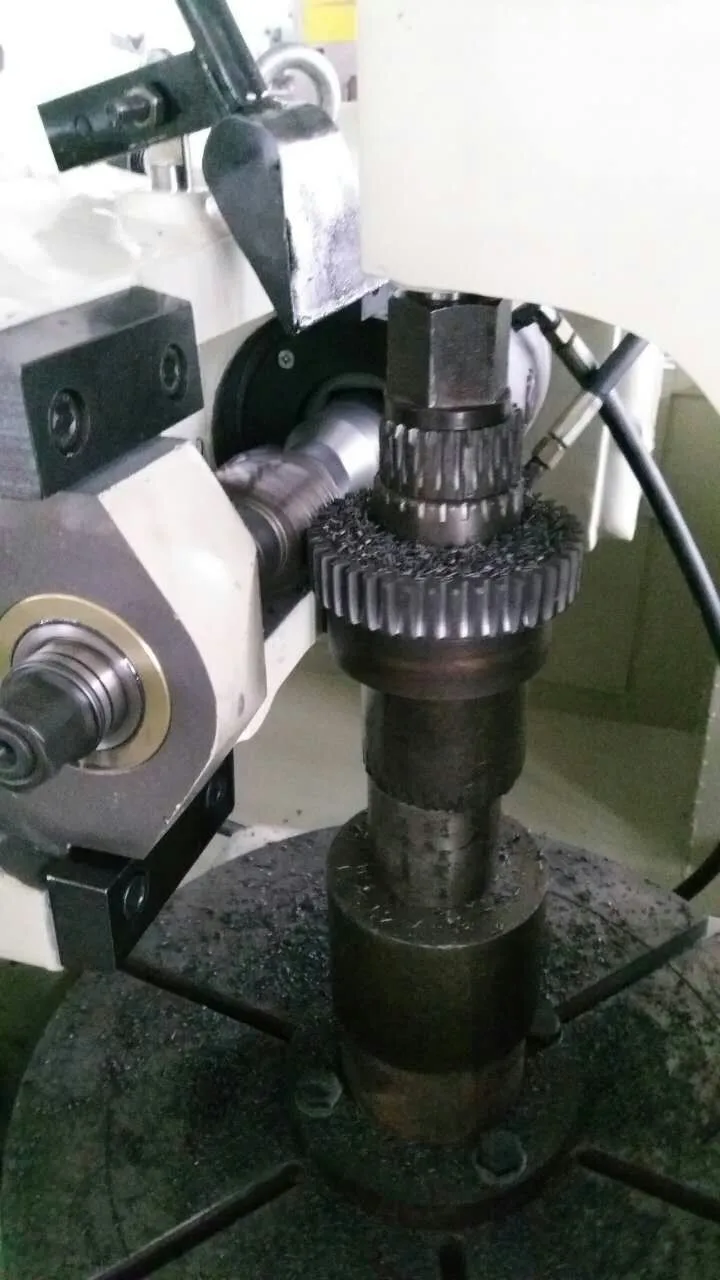

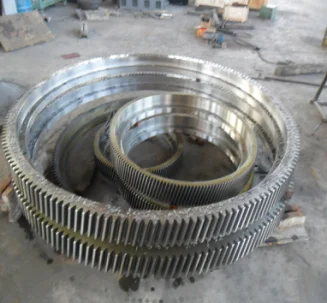

Our machine can process straight teeth, oblique teeth, bevel gear, worm wheel, drum teeth.
Your drawings or workpiece will be welcomed for us to recommend you the best machine model.

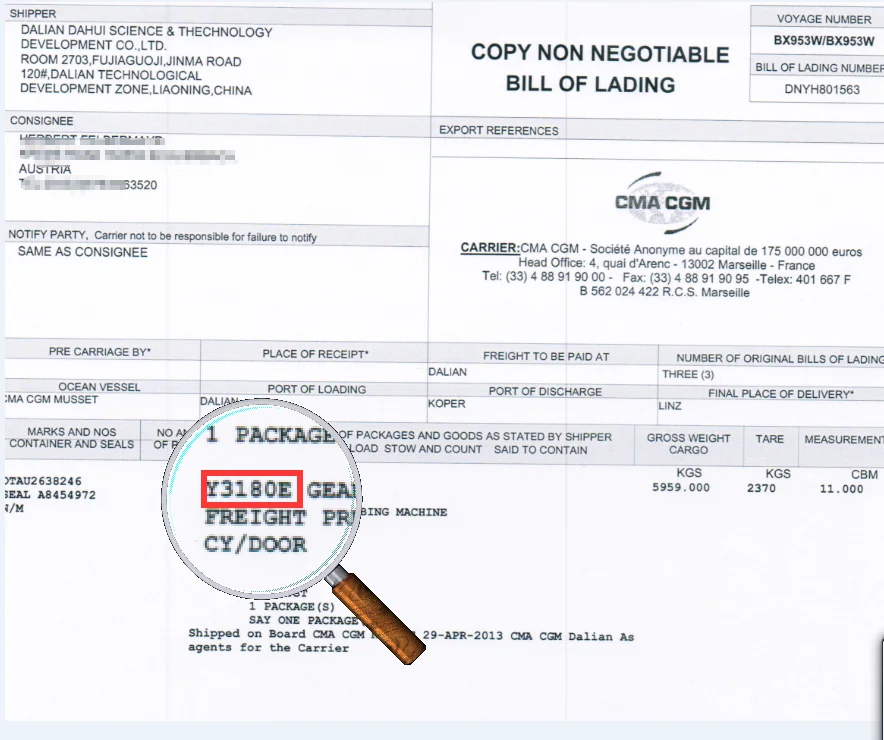

Order Model
Y3180E
Conventional Gear Hobbing mahcine
Order Country
Slovenia
Order Date
2015.04.03
Payment Term
T/T (30% advanced payment, 70% before shipping)
Trade Term
CFR Koper
Main Parmeters of the Machine
Machining diameter: 800mm
Modulus: 8mm
Order Model
Y3150E
Universal Gear Hobbing Machine
Order Country
Dominica
Order Date
2016. 05.12
Payment Term
T/T (30% advanced payment, 70% before shipping)
Trade Term
FOB Dalian
Main Parmeters of the Machine
Machining Diameter: 500mm
Modulus: 6mm
Our Service

CUSTOMER VISITING

* SWEDEN CUSTOMER

BUSINESS CARD

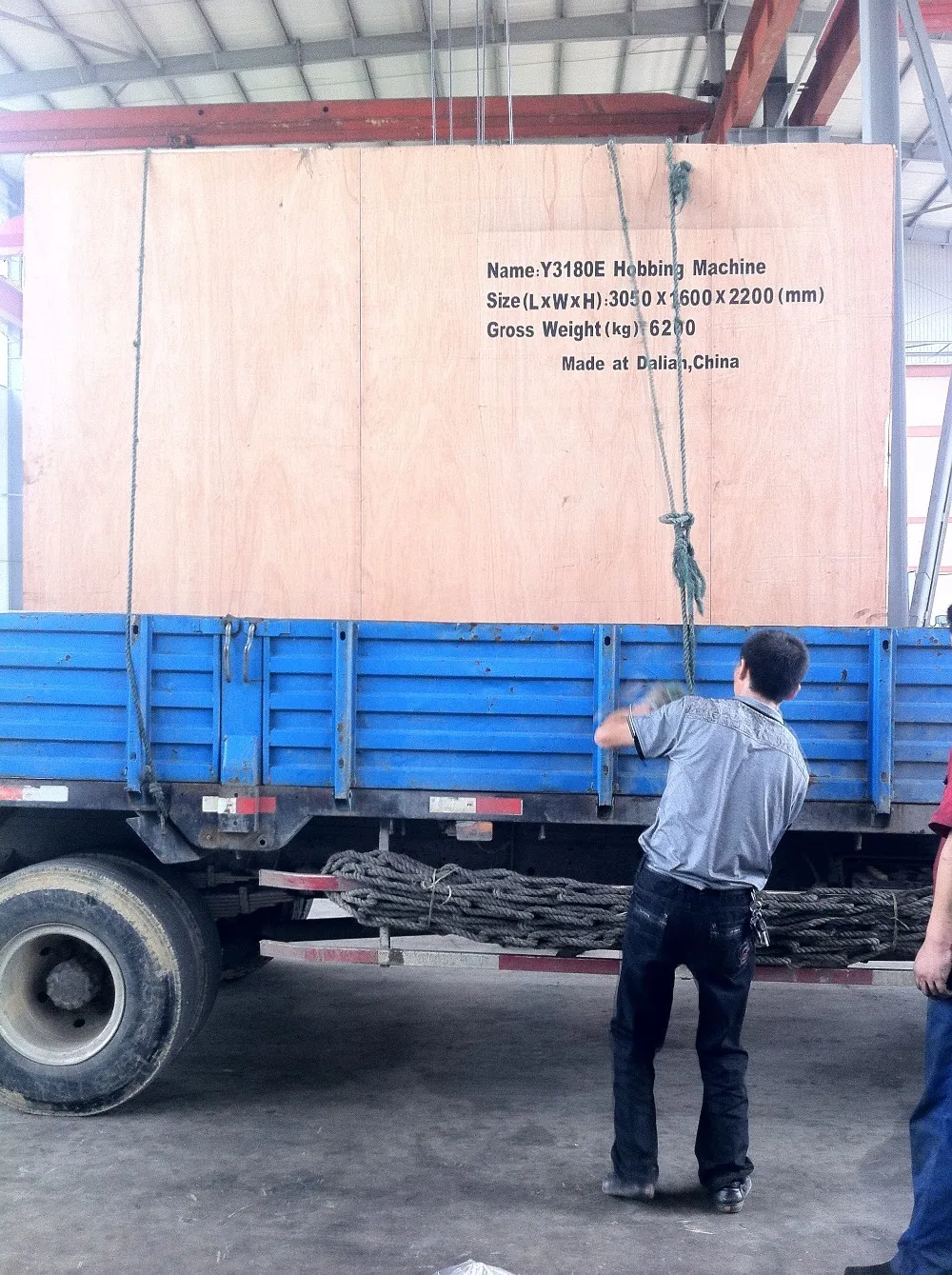

Packing & Delivery
Packaging
Package Size
2960*2200*1990mm
Weight
8T

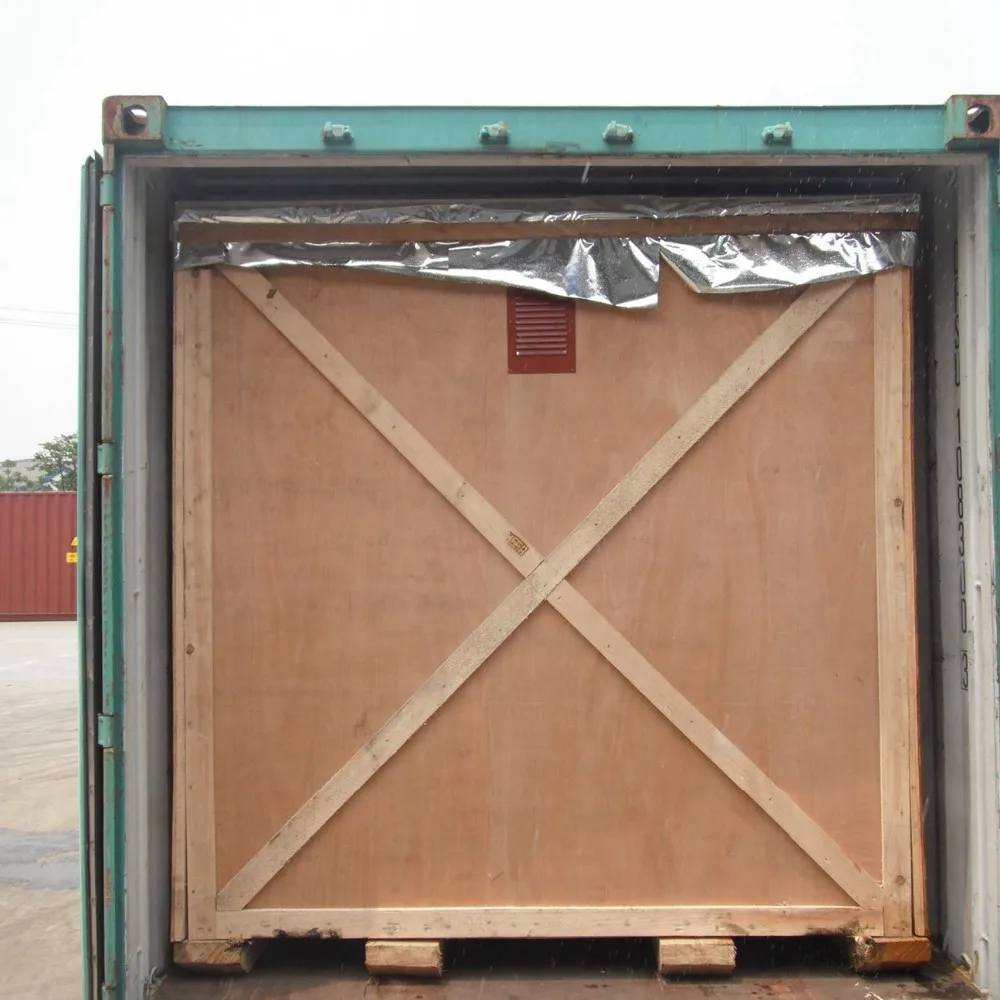

Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
