CW61125M Heavy Duty Universal Lathe Machine

  • 1 - 1 Sets
    $39,845.00
  • >=2 Sets
    $38,657.00
Model Number:
CW61125M
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 75 105 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Automatic Grade:
manual
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC Lathe Machine
Voltage:
380V 50HZ
Power(W):
22KW
Dimension(L*W*H):
7130*1470*1830mm
Weight:
12t
Certification:
ISO9001 BV CE
After-sales Service Provided:
Online support
Warranty:
1 Year
Max. Swing Diameter:
1000mm
Swing Over Bed:
1000mm
Max.swing over carriage:
710
Main motor power:
11(1460rpm)
voltage:
380V 50-60HZ
Width of guideway:
550mm
Spindle bore diameter:
130mm/150mm
Workpiece Length:
1500-10000mm
Name:
CW61125M Lathe Machine
Usage:
Metal Shaping
Supply Ability
Supply Ability:
40 Set/Sets per Month Lathe Machine
Packaging & Delivery

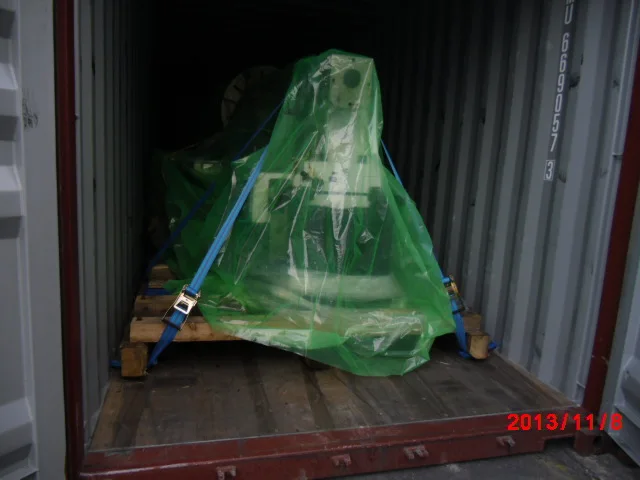

Packaging Details
1. Plastic cloth for the first layer, canvas for the second layer, and packing with wooden case at last, together with pallet on the bottom of wooden box.
2. This lathe machine is suitable for long shipping.
3. The way of packing in this lathe machine is according to our customer.
Port
DALIAN CHINA PORT
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 75 105 To be negotiated
Product Description

Product Application

These lathes can perform to turn end-faces, cylindrical surfaces and internal holes of various parts as well metric, inch, modules and pitch threads. The slides can be operated individually by power for cutting taper surface. Long taper surface can be turned automatically through the compound movement combining longitudinal feed with the top slide feed; moreover, the machines may be used for drilling, boring and trepanning.

They are characteristics of power, high spindle speed, highly rigidity. The various ferrous and non-ferrous metals parts may be turned through the heavy cutting by carbon alloy tools.

ITEM
CW61125M
Max work piece diameter over bed
1250 mm
Max work piece length
1500/2000/3000/4000/5000/6000/8000mm
Max turning length
1300/1800/2800/3800/4800/5800/7800mm
Max workpiece capacity
6Tons
Max work piece diameter over support
880mm
Bed width
755mm
Guide way type
V Type-flat guide way
Spindle through hole diameter
130mm
Bar through diameter
128mm
Main spindle taper
Metric 140
Spindle turning grade
21(reversal 12)
Spindle turning range
3.15-315(Reversal 4.5-390 r/min)
Max spindle torque
10.5 kNm (22kW)
Vertical and horizontal feed kinds
56 kinds
Feed range of knife rest
 (longudinal /horizontal/up knife rest)
0.1-12/0.05-6/0.025-3mm
Metric thread range
1-120 mm 44 kinds
Inch thread range
28-1/4 31 kinds
Modulus thread range
0.5-60 mm 45 kinds
Diametral pitch range
1/2-56DP 38 kinds
Tool section
45×45mm
Toolpost rotation degree
±90°
Max horizontal travel of slide board
670mm
Tailstock center sleeve diameter
160 mm
Max travel of tailstock center
300mm
Sleeve taper
Metric 80/ Morse 6
Hydraulic and lubricant oil pump model
CB~B10
Hydraulic and lubricant oil pump oil capacity
10 L/min
Hydraulic and lubricant oil pump working pressure
1.8 MPa
Hydraulic and lubricant oil pump rotary speed
1450 r/min
Hydraulic and lubricant oil tank capacity
60L
Main motor power
22 kw
Voltage
380V, 50HZ

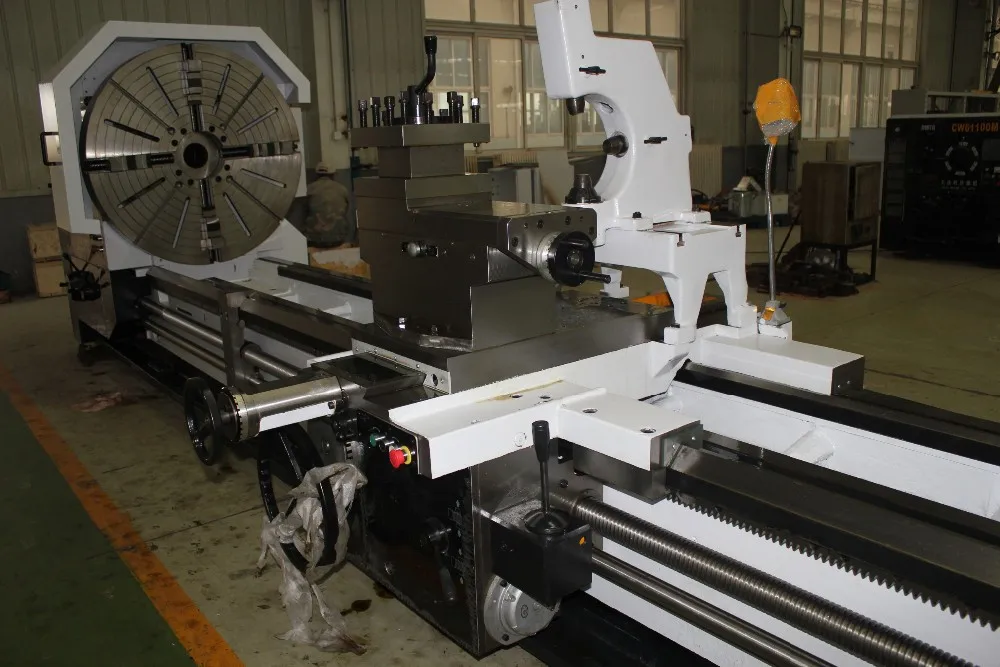

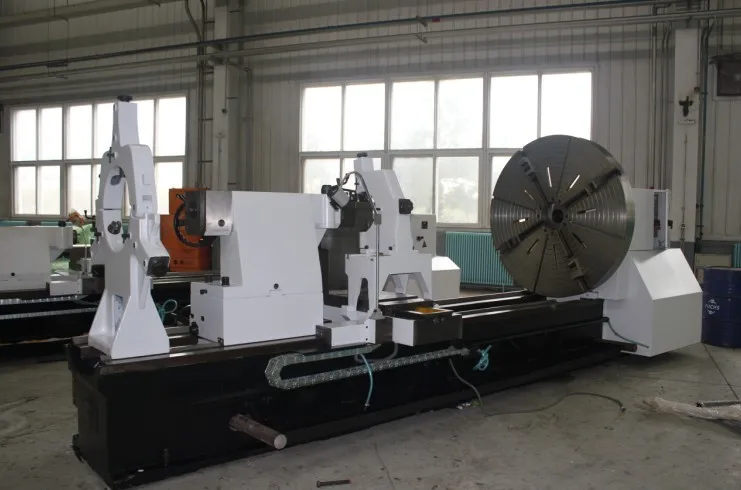

Detailed Images

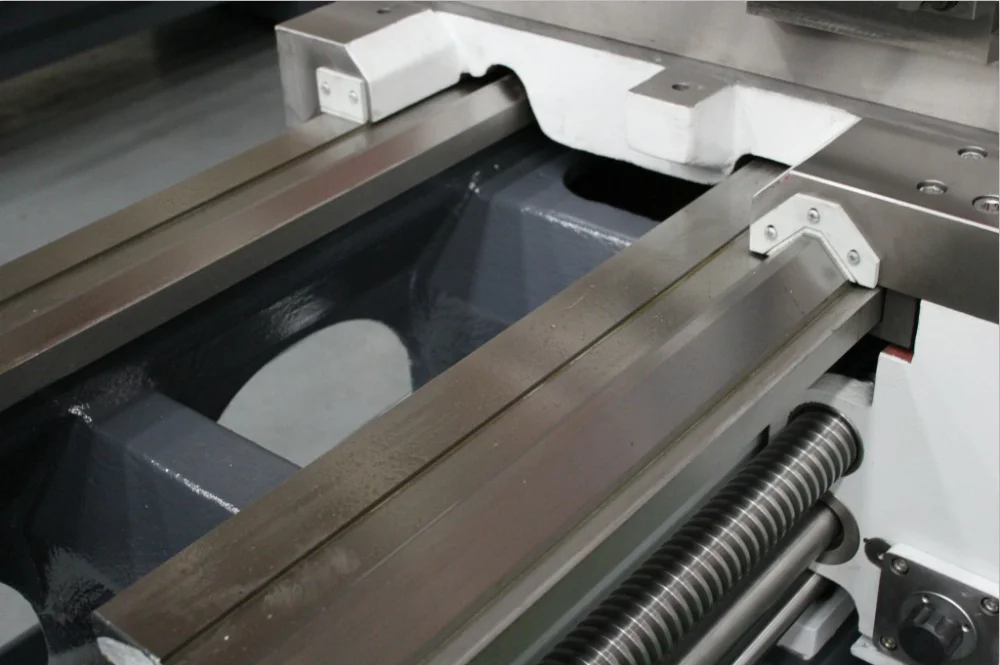

HIGH RIGID STRUCTURE DESIGN

The main basic parts of bed and head of the bed are all cast in resin sand, the artificial aging treatment and the stability of the whole machine are superior.

The bed body adopts HT300 material, the guide rail of the bed is hardened by high frequency, the guide rail is G50, and guide track life is improved.

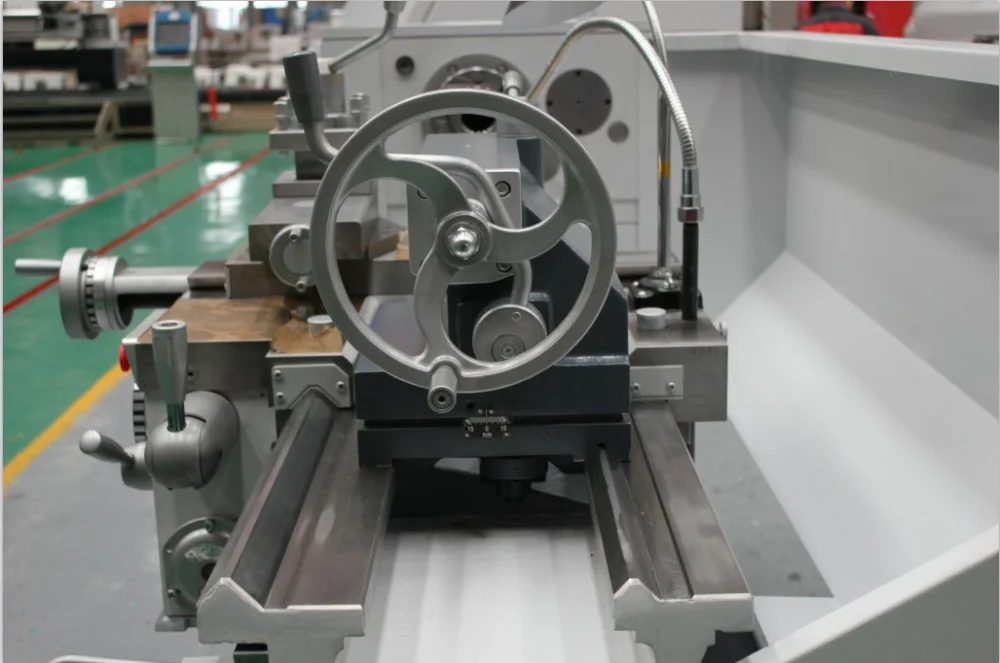

HIGH EFFICIENCY, MULTI-PURPOSE DESIGN

Classes can be done for a variety of shaft and disc parts inside and outside the cylinder, cone surface and face, cutting and chamfering, drilling and tapping process of machining, and can process commonly used metric thread, imperial thread and thread, the modulus pitches, the taper thread (special thread must consulting).

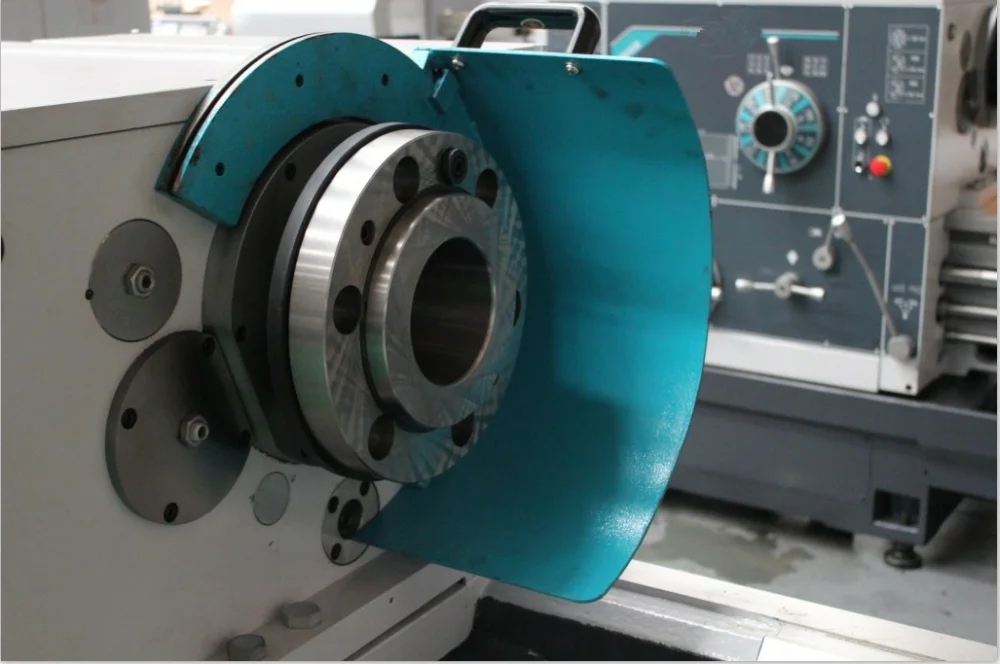

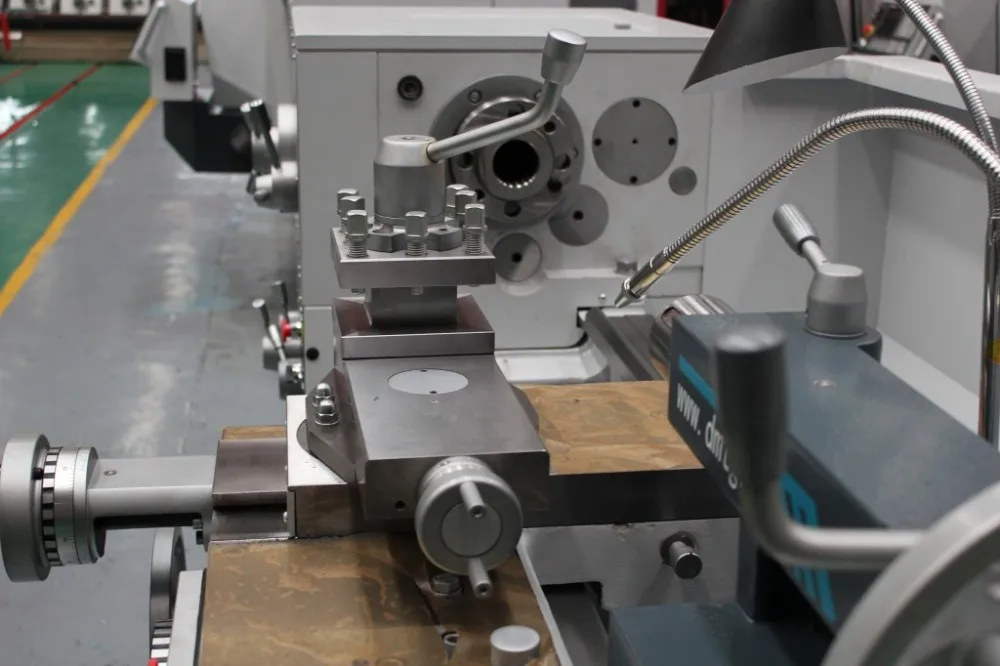

HIGH RIGIDITY SPINDLE

Machine tool headstock control handle adopts centralized operation, convenient and flexible manipulation, using three bearing spindle system, front and rear bearing of high precision, high rigidity and main shaft brake and the positive and negative changes is the hydraulic control

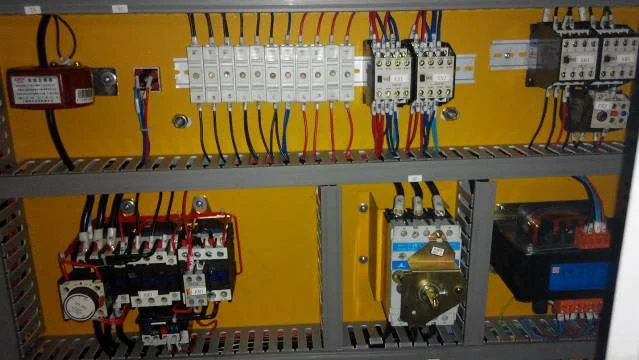

ELECTRIC CABINET

A simple and neat electric cabinet.

FAQ
Related Products

CW-E series lathe

97.8% Response Rate

CDE-A series lathe

90.8% Response Rate

CDS-B/C series lathe

88.8% Response Rate

Our Company
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
630cm × 220cm× 241cm
Weight
12.740t



Packaging Details


The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.

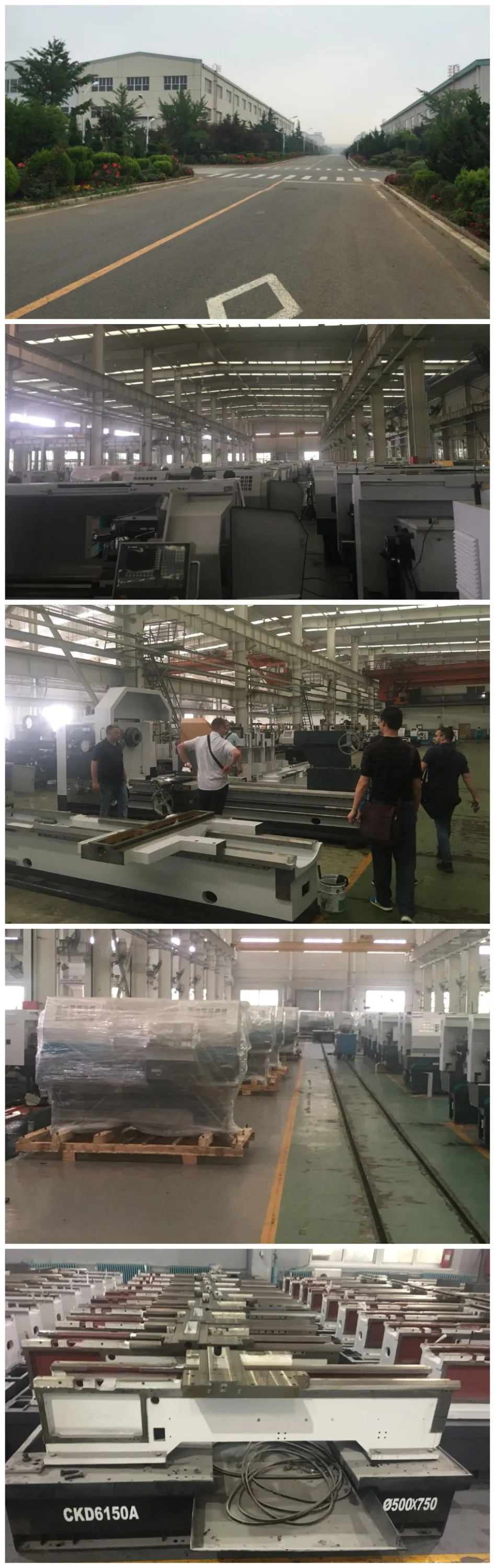

Factory view
