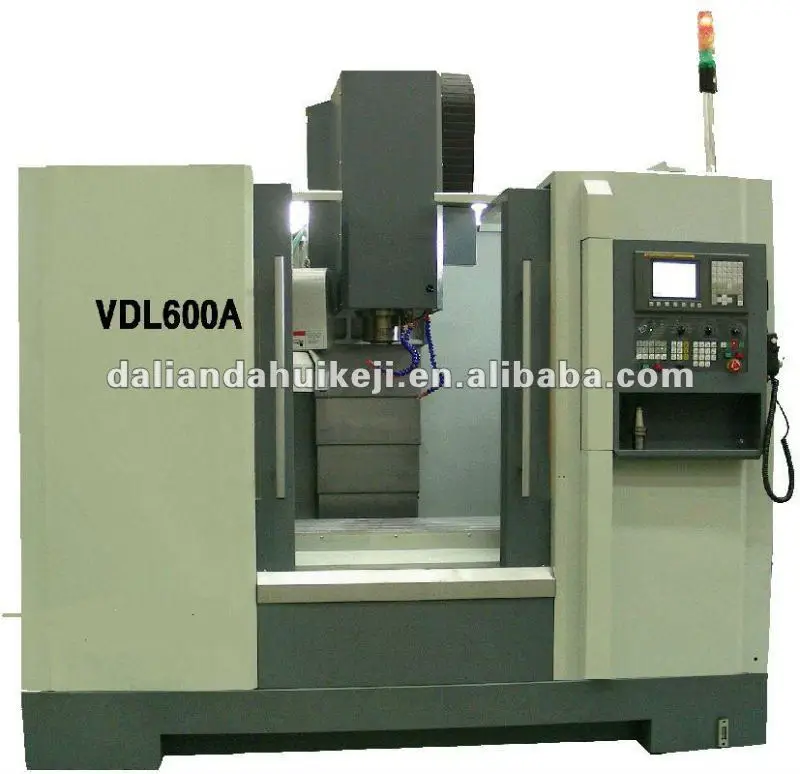

VDL600A High Precision Machining Center Vertical from China Supplier

  • 1 - 1 Sets
    $39,421.00
  • >=2 Sets
    $3,807.00
Max. Swing Diameter (mm):
620
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 90 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vertical
CNC or Not:
CNC
Automatic Grade:
Automatic
Place of Origin:
Liaoning, China
Brand Name:
DMTG
Model Number:
VDL600A
Voltage:
380V,50HZ
Dimension(L*W*H):
2413*2451*2549mm
Certification:
CE ISO9001 BV
After-sales Service Provided:
Online support
Warranty:
1 Year
Worktable size (L*W):
800*420
Max. weight capacity of worktable:
500kg
X travel:
620
Y travel:
440
Z travel:
540
Time of changing tool:
6-8
Max. weight of tool:
7KG
CNC system:
SIEMENS 0 I Mate - MD
Machine weight:
4600
Package size(L*W*H):
2900*2300*2574
Power(W):
11kw
Weight:
4600kg
Max. Swing Diameter:
800*420
Supply Ability
Supply Ability:
40 Set/Sets per Month cnc vertical lathe
Packaging & Delivery
Packaging Details
suitable for sea transportation
Port
Dalian
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 90 90 To be negotiated
Video Description

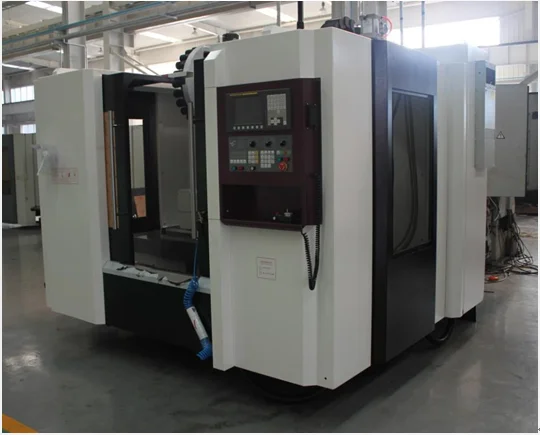

Product Description

Product Application

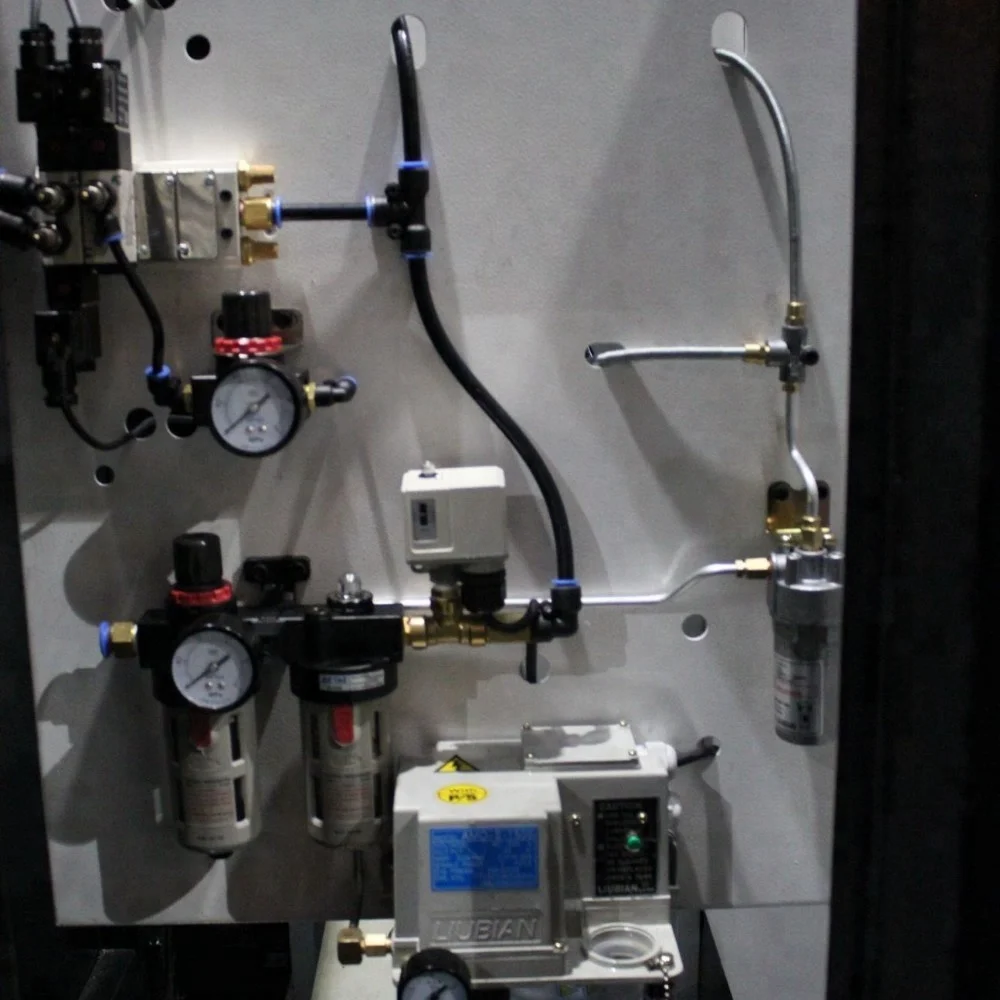

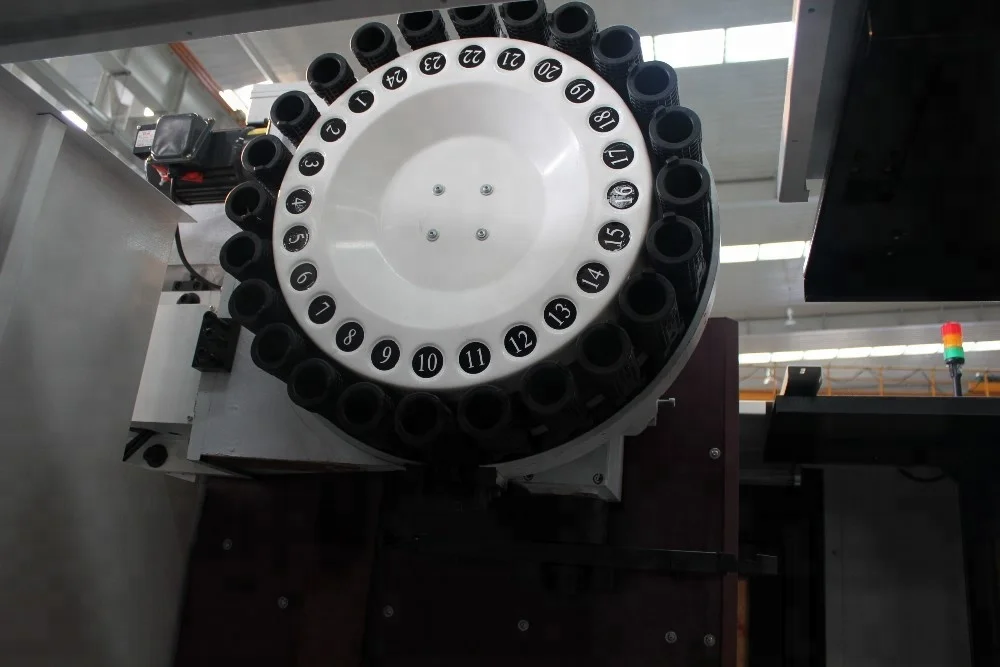

The unique design of the linear rolling guide vice machine widely used in the military-industrial complex, automotive, mold, machinery manufacturing industries such as body parts, shell parts, disc parts processing. Parts can be finished after a clamping milling, boring, drilling, expanding, reaming, tapping process, high precision, high automation, high reliability, high degree of mechanical and electrical integration, simple operation, overall modelling beautiful generous, etc. Machine equipped with automatic tool change system (ATC), automatic lubrication system, cooling system and portable manual device (MPG), the overall protective cover.

INDEX
UNIT
VDL600A

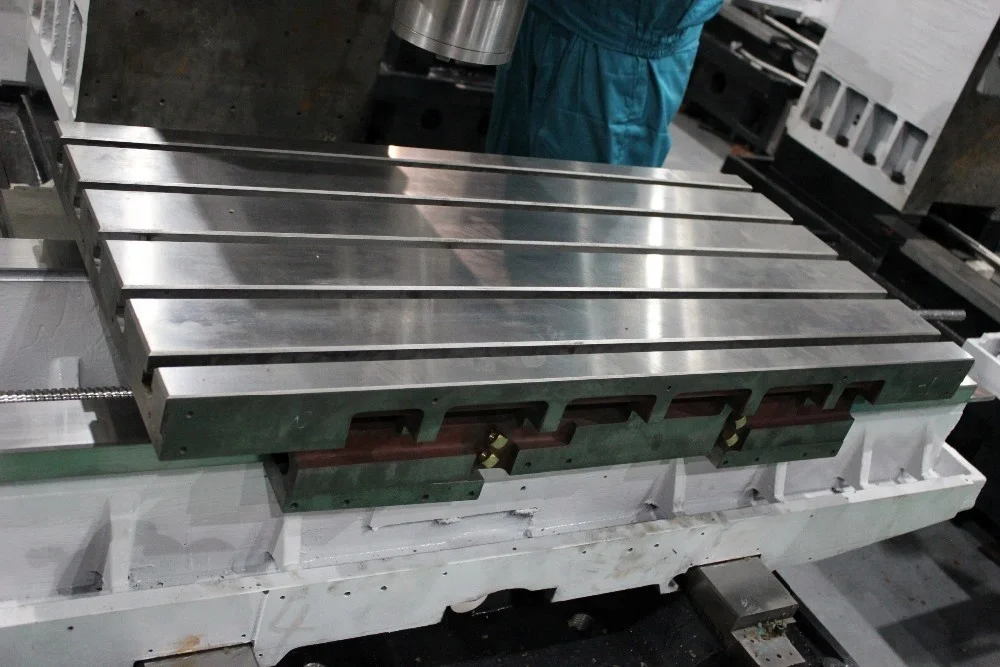

Worktable size (L*W)
mm
800*420
Max. weight capacity of worktable
kg
500
X travel
mm
620
Y travel
mm
440
Z travel
mm
540
Distance from spindle center line to column front face
mm
550
Distance from spindle end face to worktable face
mm
140~680
X,Y,Z cutting speed
mm/min
0-10000
X,Y,Z quick feed speed
m/min
24/ 24/ 20
Spindle speed range
r/min
60-8000
Location accuracy
mm
X/ Y/Z: 0.020/0.016/0.020
Repeat location accuracy
mm
X/ Y/Z:0.008/0.006/0.006
Air pressure
Mpa
0.6-0.8
CNC system

SIEMENS 0 I Mate - MD
Machine size(L*W*H)
mm
2412*2451*2483
Package size(L*W*H)
mm
2900*2300*2574
Machine weight
kg
4600
Our Service



Send an email to me if you have any interests .
Thank you !
