4station Tool rest, Universal Lathe Machine CDE6166A

  • 1 - 2 Sets
    $12,345.00
  • >=3 Sets
    $11,540.00
Model Number:
CDE6166A
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vertical
CNC or Not:
Normal
Automatic Grade:
Manual
Place of Origin:
Liaoning, China
Brand Name:
DMTC
Voltage:
380V 50HZ
Dimension(L*W*H):
2395kg
Certification:
ISO
Spindle bore:
big
Inner structure:
Very steady
Basis parts:
High steel
Spindle:
Hight speed and precision
Spindle Bearing:
High-performance
Module thread:
0.25-120(57)mm
Main body:
High steel performance
Spindle type:
Gear transmisson structure
Diametrical pitch thread:
160-7-16DP(50)mm
Guideways:
Hardened
After-sales Service Provided:
Overseas service center available
Max. Swing Diameter:
660mm
Power(W):
7.5kw
Weight:
3650*1223*1545mm
Supply Ability
Supply Ability:
40 Roll/Rolls per Month Negotiable
Packaging & Delivery
Packaging Details
Plastic cloth for the first layer, canvas for the second layer, and packing with wooden case at last, together with pallet on the bottom of wooden box.
Port
Dalian
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 60 To be negotiated
Product Description

Product Application

Turning workpiece on the machine can be cylindrical parts, inner hole and end face, and can drilling, reaming, process all kinds of the metric threads, the inch thread, modulus, diametric pitch, users put forward special orders can also pitch screw thread processing, this machine is particularly suitable for small batch production and processing workshop and machine repair workshop use.
The machine can processing steel, cast iron, non-ferrous metals, non-metallic materials, etc.
In the dimensional accuracy of parts on the machine can achieve IT7 level, the surface roughness can reach 1.6.

specification for lathe machine CDE6266A
Max. swing over bed
660mm
Max. diameter swing over carriage
430mm(16 15/16〃)
Max work piece length
750mm;1000mm;1500mm;2000mm;3000mm
Max. turning length
700mm;950mm;1450mm;1950mm;2950mm
Distance from spindle center to bed guiderail surface
325mm
Diameter of spindle bore
52mm
Taper of center sleeve
Morse No.6
Spindle speed range
11~1400rpm
The spindle torque
1586Nm
FEED BOX(METRIC SYSTEM OF SCREW)
The spindle and the feed box ratio
48:96
Lateral feeding series
63
Longitudinal feed
0.035-2.842mm/rev
Cross feed
0.009-0.804mm/rev
Turning metric thread species
66
Metric thread
0.5-240mm
Turning module thread species
57
Scope of modulus of thread
0.25~120mm
Turning inch thread species
49
Inch thread
80-1/4 TPI
Turning diameter section thread species
50
Diametric pitch screw thread
160~7/16DP
Turning circular pitch screw species
31
Circular pitch screw
5~1/16CP
FEED BOX (THE BRITISH SYSTEM OF SCREW)
The spindle and the feed box ratio
x
Lateral feeding series
63
Range of longitudinal feeds
0.0013~0.1057in/r
Range of cross feeds
0.0003~0.0304in/r
Turning metric thread species
43
Range of metric threads
0.5~160mm
Turning module threads species
38
Scope of modulus of thread
0.25~80mm
Turning inch thread species
47
Range of Imperial Threads
80~1/4
Turning diameter section thread species
48
Diametral pitch screw thread
160~7/16DP
KNIFE REST
Spindle center distance to the cutting tool supporting surface
27mm
The maximum size of the tool bar
25x25
Max travel of top knife rest
150mm
rotation angle of little knife rest
±45°
Head lateral movement of the pitch
5mm
THE TAILSTOCK
Top sleeve diameter
75mm
Top sleeve trip
150mm
A taper sleeve top cone hole
Morse 5
The tailstock horizontal maximum mobile
±15mm
Main motor power
7.5kW(50Hz)/5.5kW(60Hz)
Voltage
380V, 50HZ

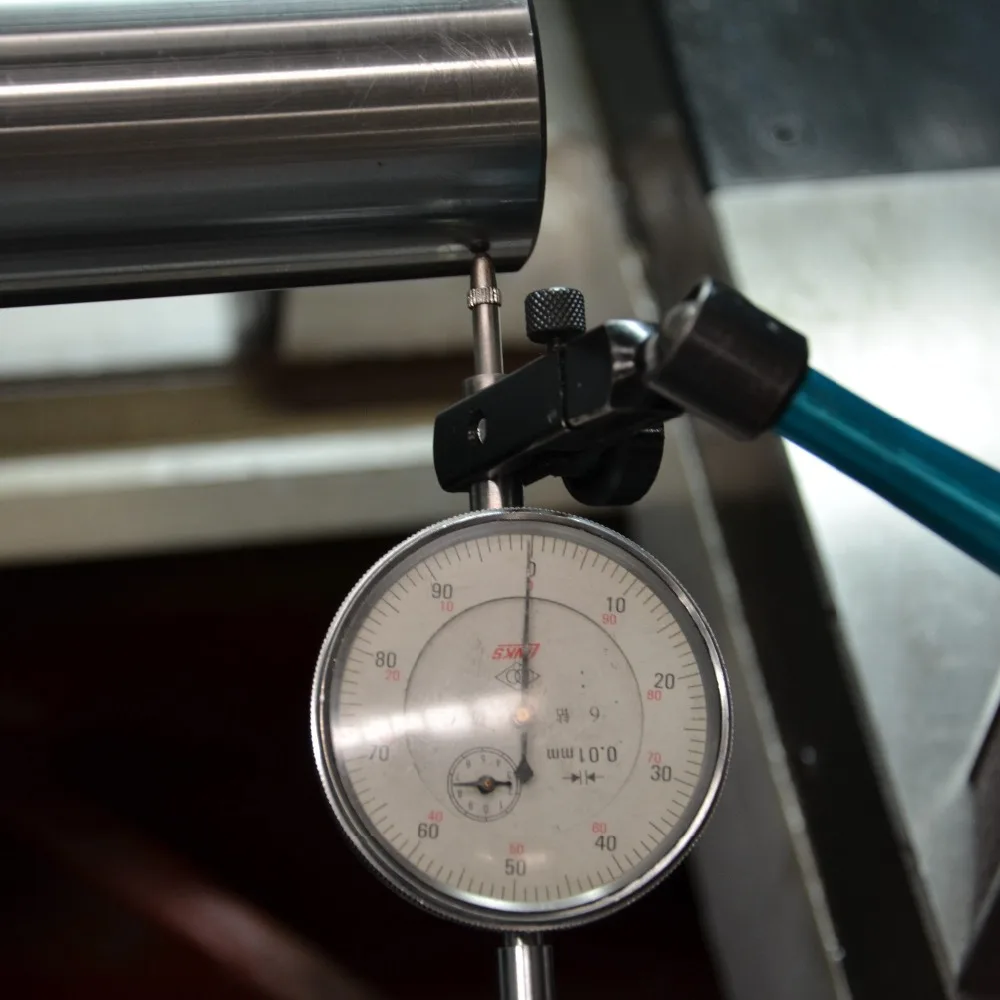

Detailed Images

Machine Parts

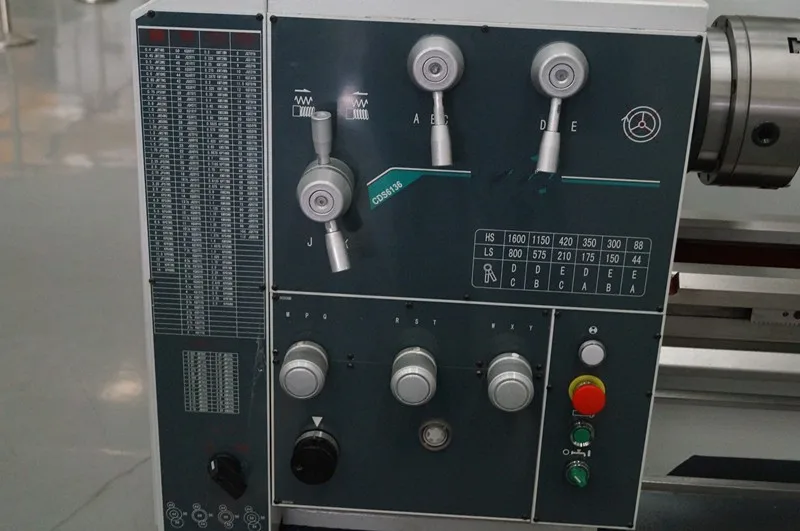

Machine adopts mechanical friction piece of clutch without changing the speed of the motor and stop the main motor can realize of spindle speed, stop, reversing.

Turning to cylindrical parts, inner hole, end face, drilling, reaming, oil groove.
Without replacement wheels can be processed metric, inch, module, thread diametral pitch.

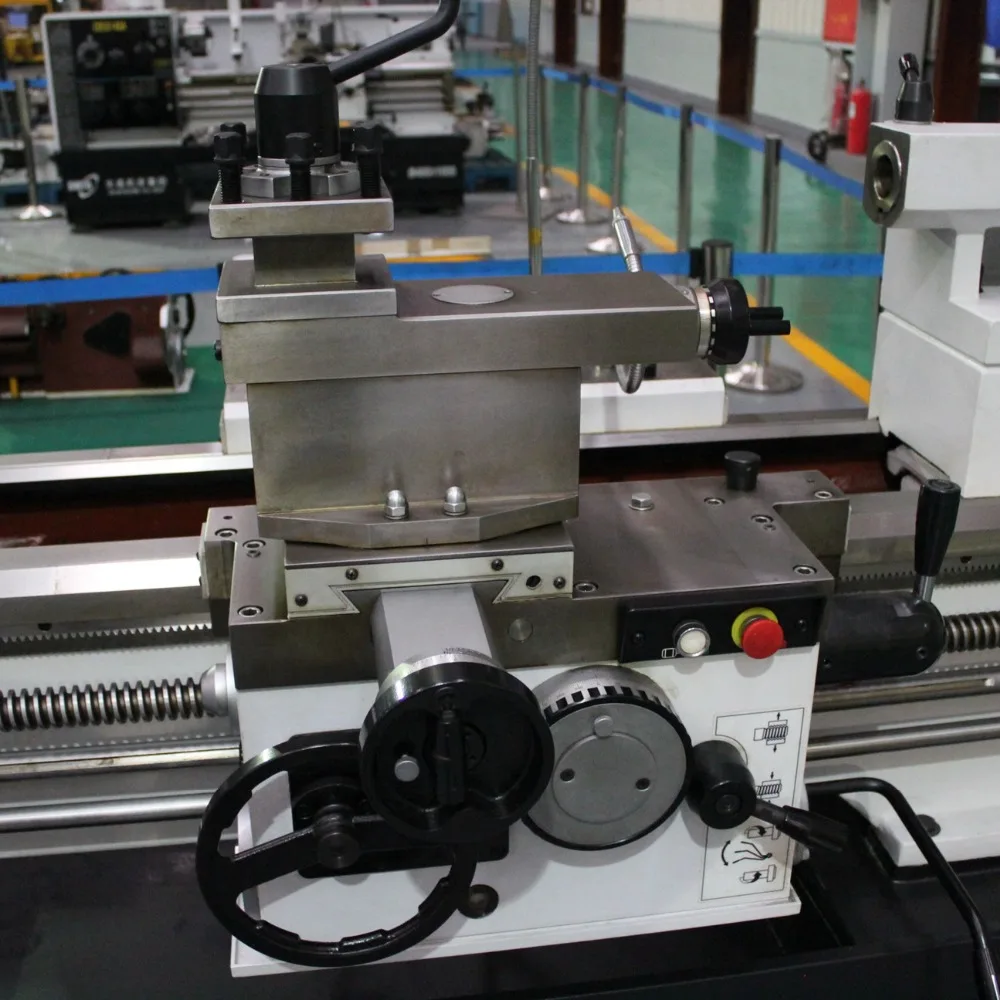

High reliability of Tool rest

High rigid mechanical tool carrier, has high reliability and high repeat positioning accuracy.

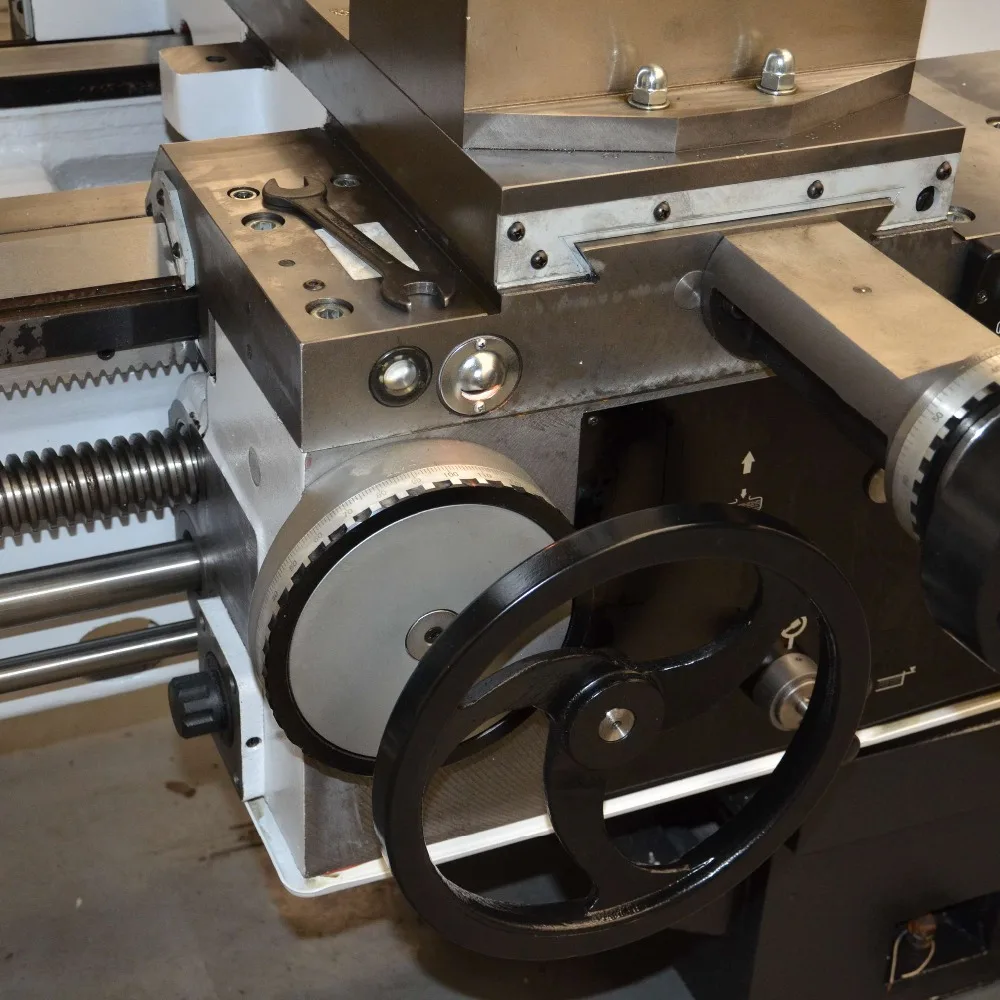

Slide box

Slide box is equipped with fast moving device of machine and horizontal can quickly moved to the desired location.Has the light poles and interlock protection function of a ball screw, guarantee normal trouble-free feeding system.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
4910mm * 1155mm* 2710mm
Weight
3165kg



Packaging Details


The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
