Z3050 Manual Mechanical Radial Drilling Machine

FOB Reference Price:Get Latest Price
$5,000.00 - $8,000.00 / Sets | 1 Set/Sets (Min. Order)
Drilling Capacity:
50mm Z3050
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
Normal
Drilling Speed:
25-2000min/mm
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC
Model Number:
Z3050
Voltage:
380V 50HZ
Power(W):
4 KW
Dimension(L*W*H):
2170*950*2450MM
Weight:
2800KG
Certification:
CE ISO9001
After-sales Service Provided:
Field installation, commissioning and training, Overseas service center available
Warranty:
1 Year
type:
New
Range of Spindle Speed(r.p.m):
78,135,240,350,590,1100
Product type:
Radial Drilling Machine
Max. drilling diameter:
50MM
Spindle:
High precision
Machine Feature:
International standard
Use life:
longtime
Functions:
Drilling Boring Spotting Tapping
Machine parts:
Pefect
Type:
Mechanical
Color:
Customizable
Supply Ability
Supply Ability:
40 Set/Sets per Month Radial Drilling Machine
Packaging & Delivery
Packaging Details
Plastic cloth for the first layer, canvas for the second layer, and packing with wooden case at last, together with pallet on the bottom of wooden box.
Port
DALIAN
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 45 To be negotiated
Product Description

Product Application

(1) the hydraulic primary variable speed, can save auxiliary time.all control handle centered laid him in a very convenient place.
(2) the main positive &negative, parking (brake), variable speed, gap, a handle to control, easy to use.
(3) the spindle box, rocker arm, both inside and outside column adopts hydraulic drive lingxingkuai clamping mechanism, clamping and reliable.

SPECIFICATIONS FOR Z3050*16 RADIAL DRILLING MACHINE
Max. drilling diameter
mm
50
Distance from spindle center to column surface
mm
360-1600
Distance from spindle nose to base surface
mm
260-1150
Spindle travel
mm
220
Spindle cone
5
Spindle speed range
r/min
78,135,240,350,590,1100
Spindle speed series
Step
6
Spindle feed range
rpm
0.10-0.56
Spindle feed step
Step
6
Rocker rotary range
360
Main power
kw
4
Movements motor power
kw
1.5
Voltage and Main power
kW
380V, 50Hz
Net weight
kg
2800
Dimensions
mm
2170*950*2450

Main Features

1. Optimum design conforming to international standard
2. Key precisely machined parts precision machining
3. Flexible reliable; perfect feature.
4. High precision; high strength.
5. Economical cutting; long life.
6. Drilling, counter boring, reaming, boring, spotting, tapping
7. Mechanical transmission
8. Mechanical clamping
9. Mechanical speed
10. Automatic take-off and landing
11. Automatic feed

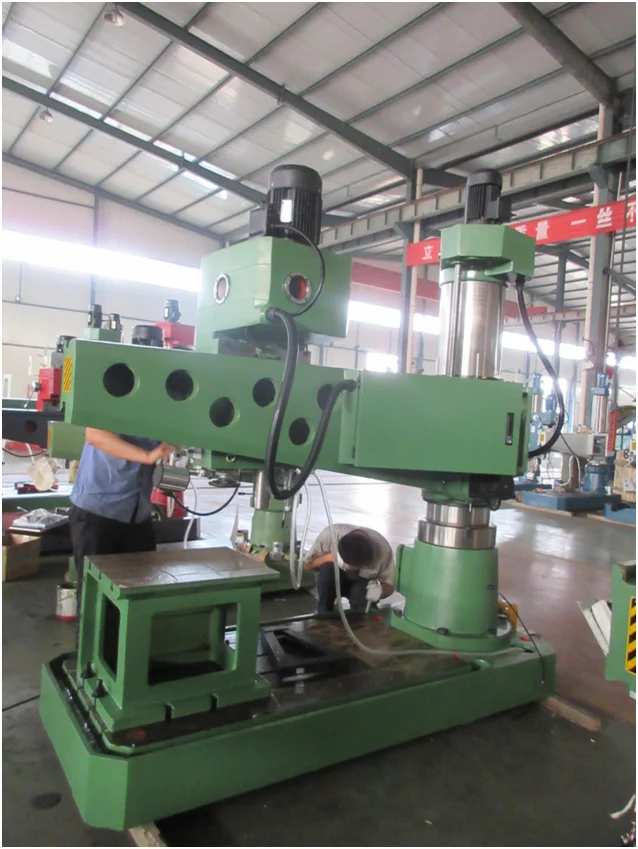

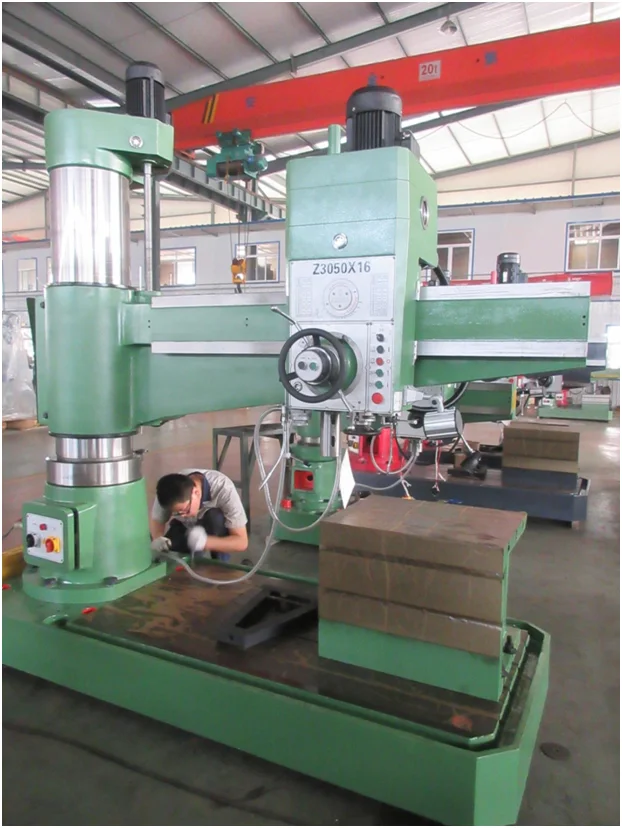

Detailed Images

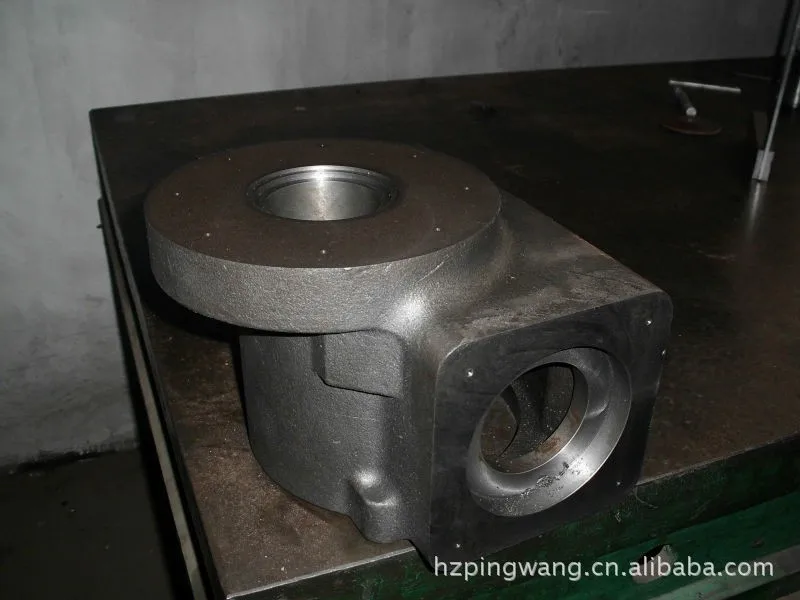

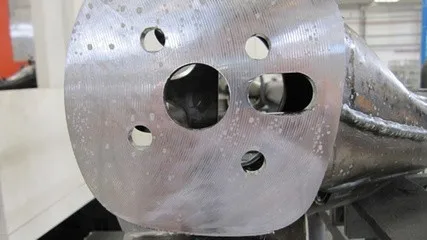

Rock arm

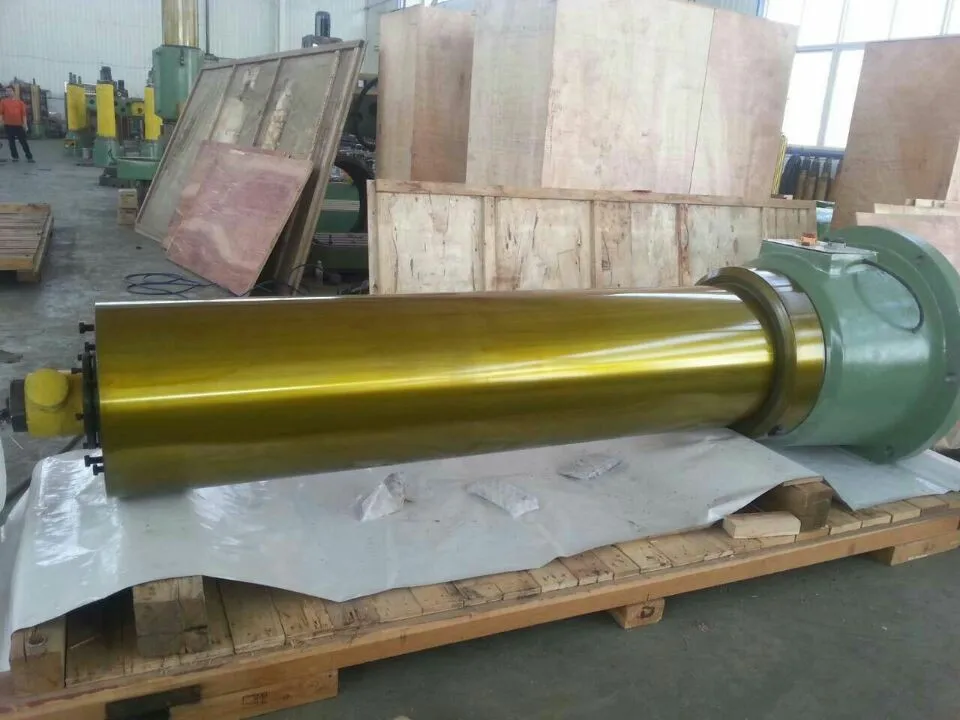

Column

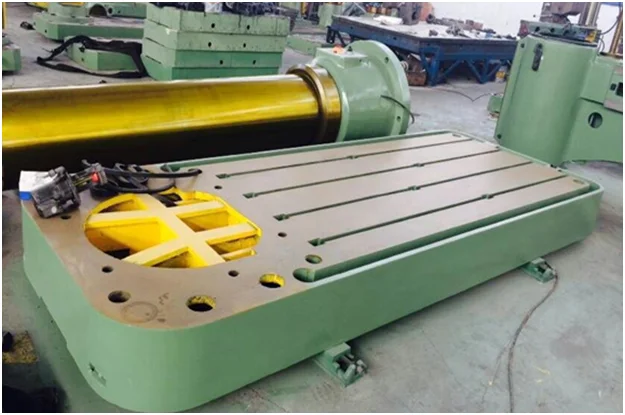

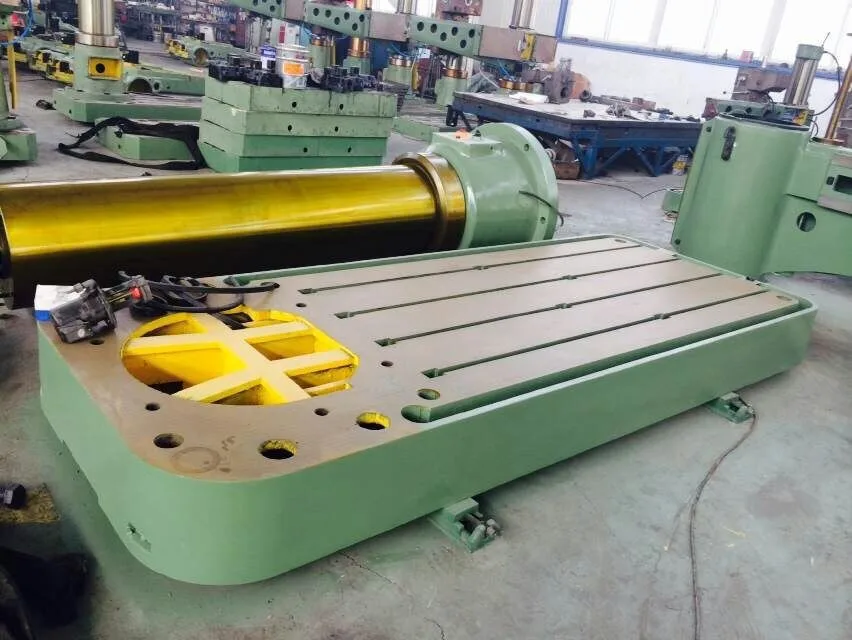

Base


You may concerned

Radial Drilling machine is one of our main product, we provide two types as per customer's request, hydraulic type and mechanical type, besides, meanwhile, color can be painted as customer's preference.

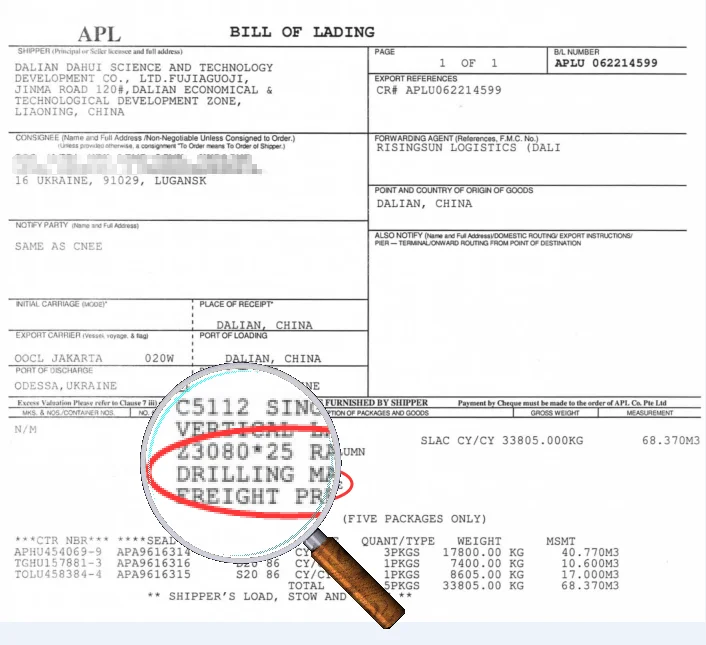

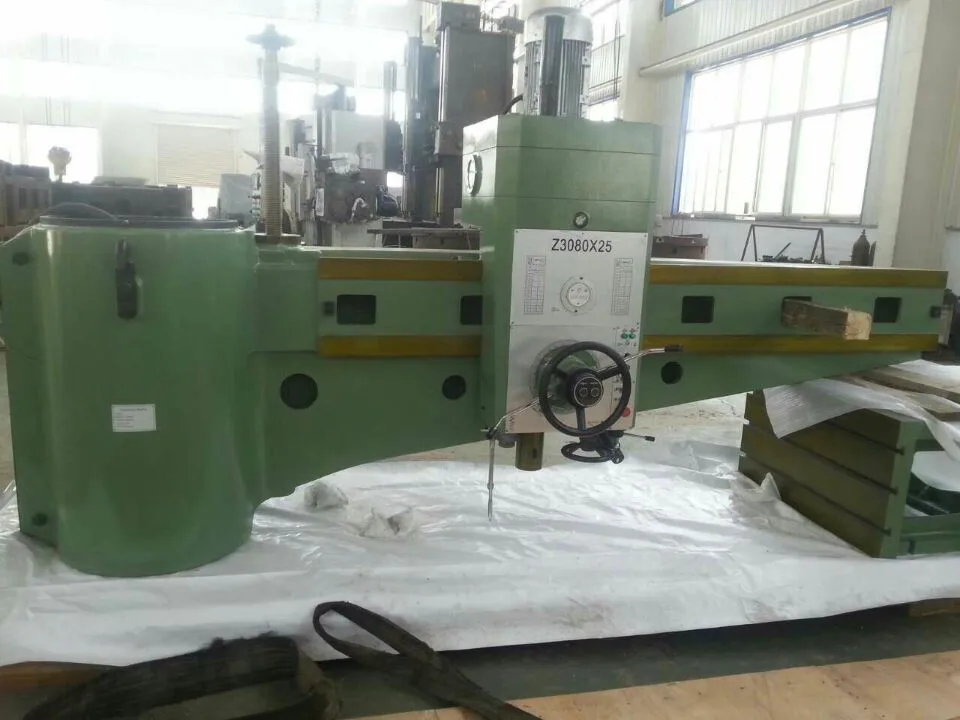

Order Model
Z3080x25
Hydraulic Radial Drilling Machine
Order Country
Ukraine
Order Date
2015.06.30
Payment Term
T/T (30% advanced payment, 70% before shipping)
Trade Term
CFR Odessa
Main Parmeters of the Machine
Max drilling diameter: 80mm
Spindle to column:2500mm
Drive Type: Hydraulic Type
Order Model
Z3040x213
Mechanical Radial Drilling Machine
Order Country
Indonesia
Order Date
2016.06.11
Payment Term
T/T (30% advanced payment, 70% before shipping)
Trade Term
CFR Jakarta
Main Parmeters of the Machine
Max drilling diameter: 40mm
Spindle to column:1300mm
Drive Type: Mechanical Type
Our Service

CUSTOMER VISITING


BUSINESS CARD

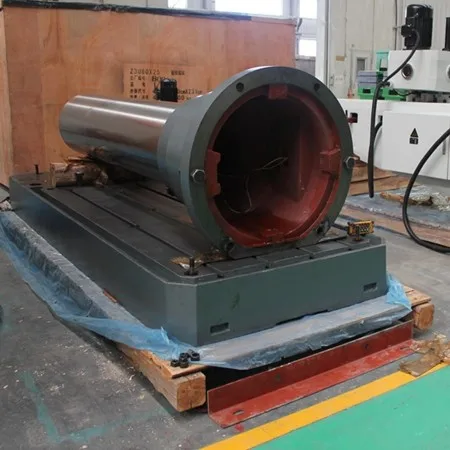

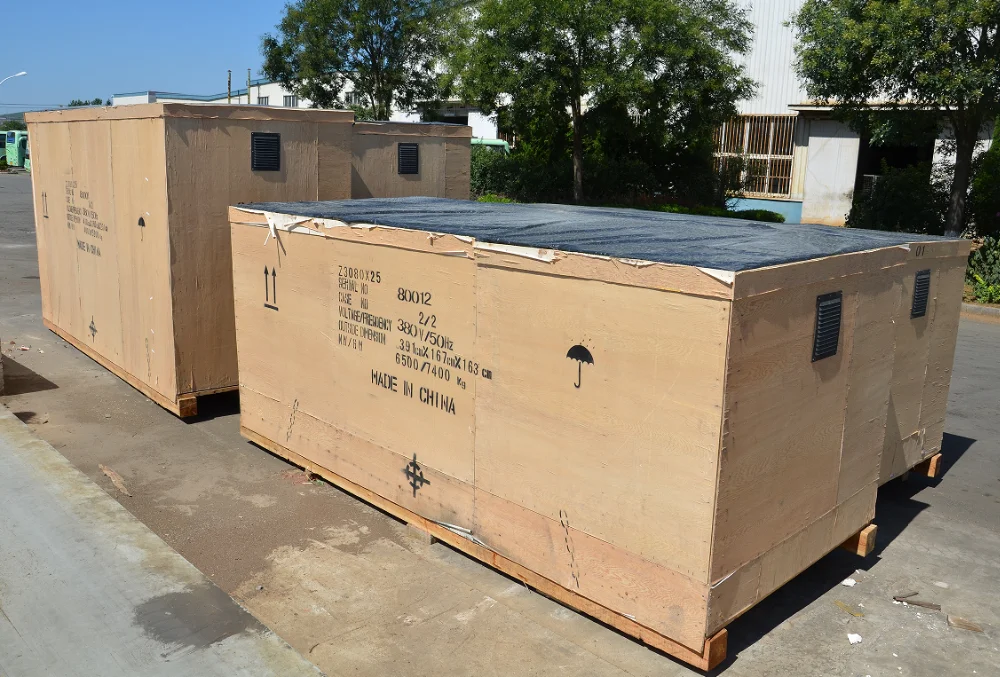

Packing & Delivery
Packaging
Size
2170*950*2450MM
Weight
2.8T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
