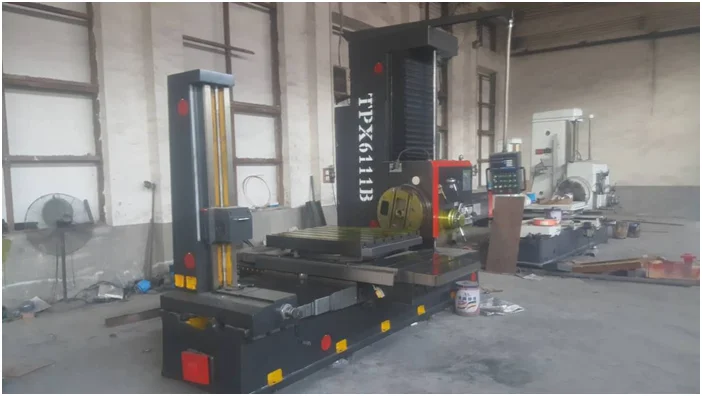

TPX6111B Horizontal Boring Machine

  • 1 - 1 Sets
    $45,000.00
  • >=2 Sets
    $40,000.00
Model Number:
TPX6111B
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 60 75 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
Normal
Production Capacity:
40
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC
Voltage:
380V, 50HZ
Power(W):
7.5KW
Dimension(L*W*H):
4910*2454*2750mm
Weight:
13500KG
Certification:
ISO9001 & CE
After-sales Service Provided:
Field installation, commissioning and training
Warranty:
1 Year
product type:
Horizontal Boring Machine
Spindle diameter:
110mm
Spindle taper hole:
morse 6
Spindle max. torque:
1225N.m
Grade of spindle rotate speed:
22
Spindle rotate speed range:
8-1000r/min
Main motor power:
7.5kw
Facing head diameter:
600mm
Payment:
T/T L/C Western Union Sell on Credit and so on
Technology:
can discuss
Supply Ability
Supply Ability:
40 Set/Sets per Month Horizontal Boring Machine
Packaging & Delivery
Packaging Details
Plastic cloth for the first layer,
canvas for the second layer and packing with wooden case at last,
together with pallet on the bottom of woode box for TPX6111 cylinder boring machine
Port
Dalian
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 60 75 To be negotiated
Product Description

Product Features

 Spindle system -- strong rigidity
 Bed, column and upper slider, all using rectangular guide
 At the end of the spindle box, there is flat spin dish radial the frame which can be used as radial processing.
 Moving components are able to move fast
 The safety device will be off automatically when the machine is overload feeding in order to avoid destroying the workpiece and tools.

SPECIFICATIONS FOR TPX6111 SERIES HORIZONTAL BORING MACHINE
ITEM
TPX6111B
TPX6111B/2
TPX6111B/3
Spindle diameter
Φ110mm
Spindle taper
Morse No6
Grade of spindle rotate speed
22
Spindle rotate speed range
8-1000r/min
Facing head diameter
600mm
Facing head Slider travel
180mm
Grade of facing head rotate speed
18
Facing head rotate speed range
4-200r/mm
W axis travel(spindle travel)
600mm
Spindle max. torque
1225N.m
Spindle max force
12250N
Spindle Box vertical, spindle axis feed series
18
Spindle Box vertical, spindle axis feed speed range
0.01-1.88/0.04-6
The Min. distance from spindle center line to worktable surface
0
Worktable cross travel
X axis (mm)
900
1250
1600
Worktable Horizontal travel
Z axis travel (mm)

1400
1400
1400
Spindle Box Vertical travel
Y axis (mm)

900
900
1200
Spindle Vertical fast move speed
2500mm/min
Worktable Size(mm)
960*1100
960*1100
1250*1100
Worktable Cross fast move speed
2500mm/min
Worktable Cross move feed speed series
12 step
Worktable turning angle
360°(Four degree optical positioning)
Worktable rotary speed range
0.01-1.5r
Worktable Cross move feed speed range
6.4-268mm/min
Max. weight on the workbench
5000KG
Main motor power
7.5 kW(Manual AC Motor )
Fast Box Drive Motor
2.2kw
Spindle Box lubrication motor
0.75kw
Worktable hydraulic pump motor
0.75kw
Machine net weight
12000
14000kg
16000kg
Voltage
3 Phase 380V 50HZ
Detailed Images

Machine Parts

Name: Facing Head


Main Features

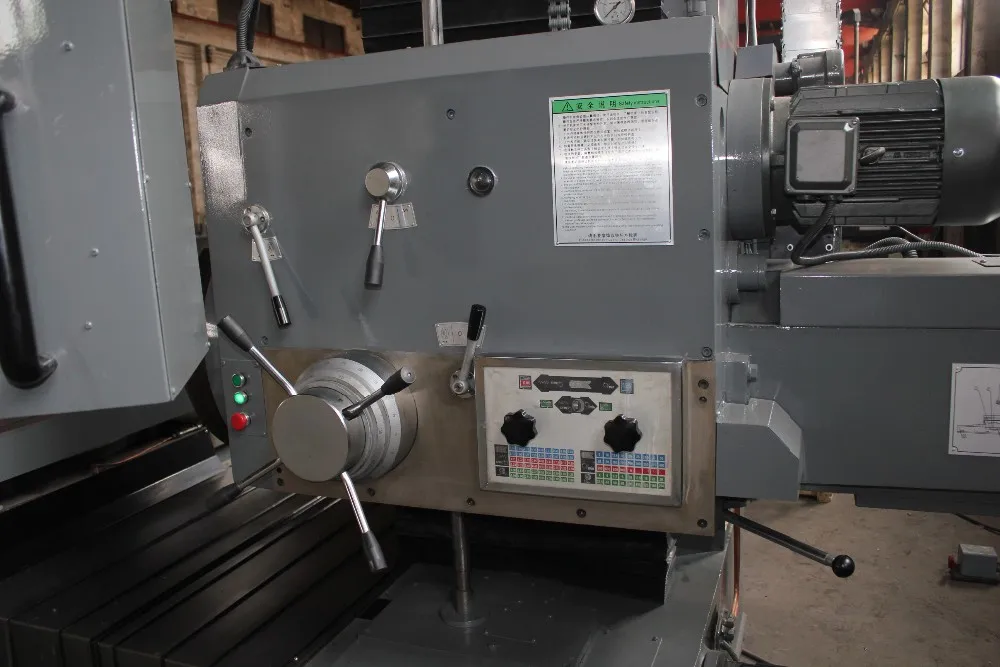

Name: Spindle Box

Machine Parts

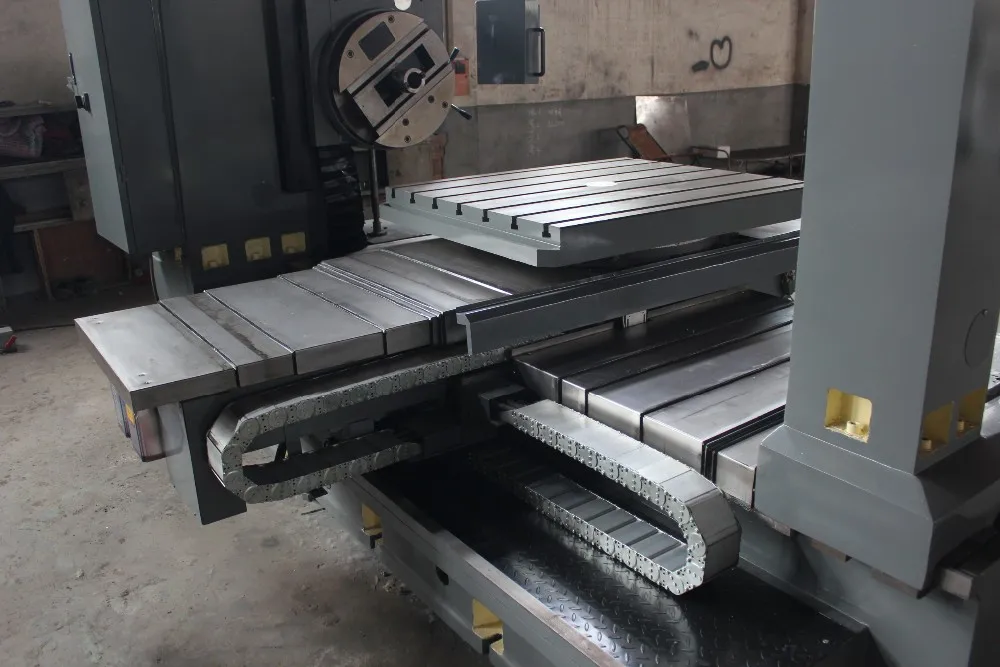

Name: Worktable

Main Features

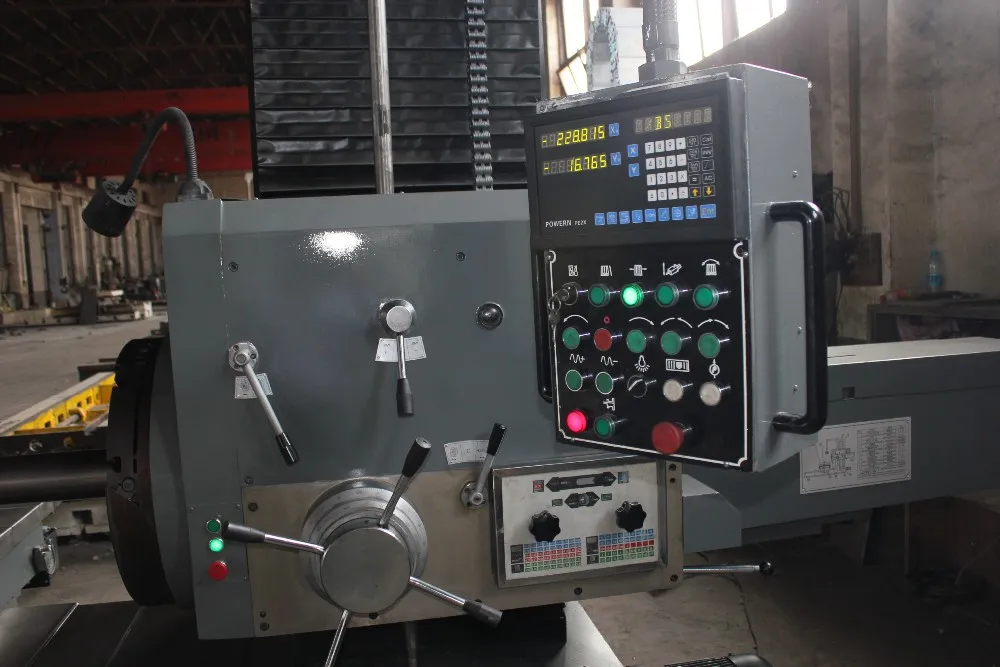

Name: Digital Read-out

Our Service

CUSTOMER VISITING

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

CONTACT INFO

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
4800*2560*3600MM
Weight
12 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
