TPX6113/2 Horizontal Boring Machine Price from China

  • 1 - 2 Sets
    $80,000.00
  • >=3 Sets
    $75,000.00
Model Number:
TPX6113/2
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 60 75 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
Normal
Production Capacity:
40
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC
Voltage:
380V/50Hz/3Ph
Power(W):
15KW
Dimension(L*W*H):
7030*4665*3800mm
Weight:
30T
Certification:
ISO9001 BV CE
After-sales Service Provided:
Field installation, commissioning and training
Warranty:
1 Year
Product type:
Manual Boring Machine
CNC or not:
Not
Fuction:
Turning taping curving ```
Thread:
Metric or inch
Spindle:
High speed
Spindle taper hole:
metric 80
Main motor:
30kw
Trade terms:
Mutual Discussion
Material:
Metal```
Max load of worktable:
28000kg
Supply Ability
Supply Ability:
40 Set/Sets per Month Boring Machine
Packaging & Delivery
Packaging Details
Plastic cloth for the first layer, canvas for the second layer, and packing with wooden case at last, together with pallet on the bottom of wooden box
Port
Dalian Port
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 60 75 To be negotiated
Product Description

Product Application

TPX series of Horizontal Boring Machine in the basis of the traditional boring to optimize the design, machine tool can be widely used in the Box Body, Shell, Engine Base... large parts processing Drilling, Boring , Broaching, Reaming, Spot-facing, Milling flat, Turning thread cutting , etc. Especially suitable for large medium-sized of box parts and rough boring, Finished boring, milling and other machining process.

SPECIFICATIONS FOR TPX6113/2 HORIZONTAL BORING MACHINE
TPX6113/2 HORIZONTAL BORING MACHINE
Spindle bore diameter
mm
130
Spindle taper
                      Metric 80--Standard                                   ISO 50 7:24--Optional
Speed number of spindle

24
Speed range of spindle
r/min
4-800
Facing head diameter
mm
800
Max. torque of facing head
N.m
4900
U-axis travel (Slide of facing head travel)
mm
250
Speed number of facing head

18
Speed range of facing head
r/mm
2.5-125
Spindle Travel --W-axis
mm
900
Max. spindle torque
N.m
3136
Max. axis resistance of spindle
N
31360
Min. distance between spindle axis and table surface
mm
0
Worktable crosswise travel --X-axis
mm
2000
Worktable longitudinal travel --Z-axis
mm
2000
Spindle Box vertical travel--Y-axis
mm
1800
Spindle box vertical rapid moving speed
mm/min
2500
Table size (L*W)
mm
1600*1800
Worktable crosswise rapid moving speed
Mm/min
2500
Worktable rotating degree
°
360
Worktable rotating speed range
r/min
0.01-1.5
Max. load of table
kg
10000
Power of main motor
kW
15
Rapid box drive motor
kW
5.5
Spindle change gear lubrication motor
kW
0.75
Worktable hydraulic pump motor
kw
0.75
Dimensions (L*W*H)
mm
About 7203*4665*3650
Weight
kg
About 29300

Main Features

1) The main movement, machine tool in the movement speed is using hydraulic primary focus manipulation, save the assistant time, improve efficiency. In the process of variable speed, the indicator button can be signal.

2) The machine moving parts-spindle box, the vertical and horizontal and rotating the distribution of the movement and the moving parts of clamping, loosen all use-hydraulic automatic interlock, a high degree of automation.

Detailed Images

Machine Parts

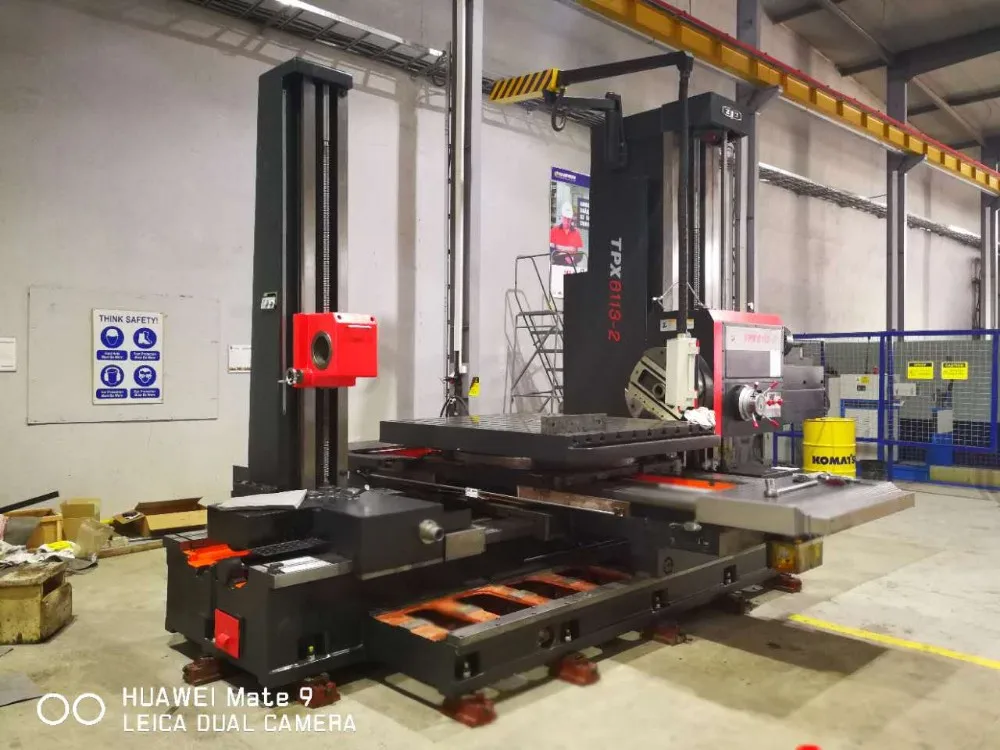

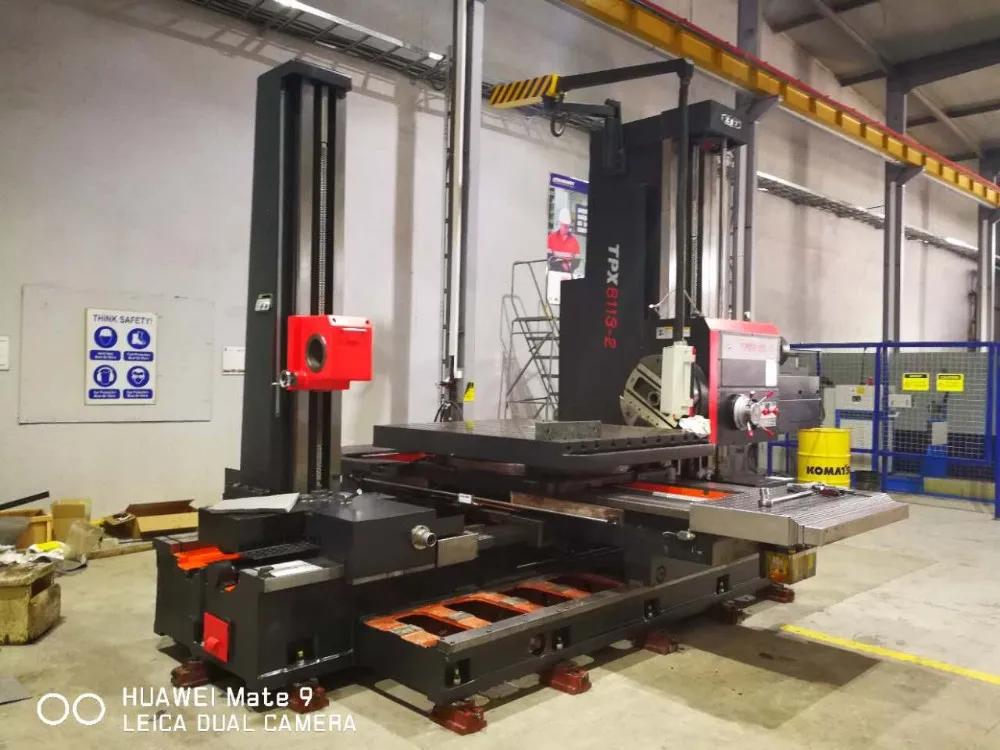

 Machine tools for general layout is single column, Side bin, Fixed Facing Head. Worktable on the Machine bed guideway make longitudinal & crosswise movement, can archive 360°rotary movement. The casting structure has good rigidity

Main Features

The spindle box of internal gear and bearing lubrication oil pump from the tail box' gear pump.

Machine Parts

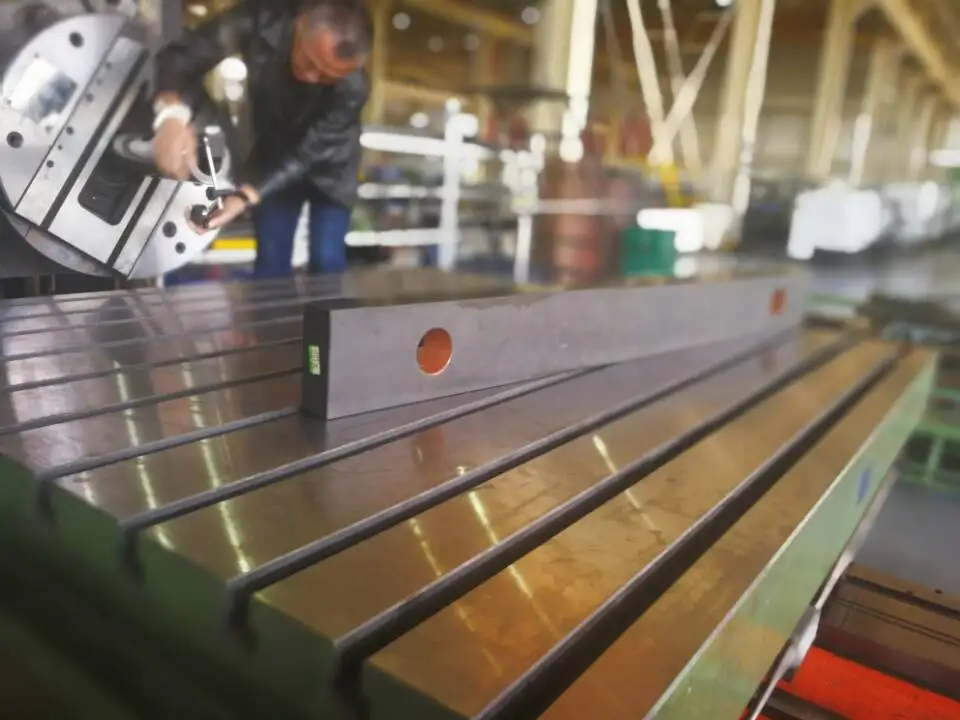

Bedway slide rail adopts fully enclosed stainless steel board protection , prolongthe service life of guide rail.

Main Features

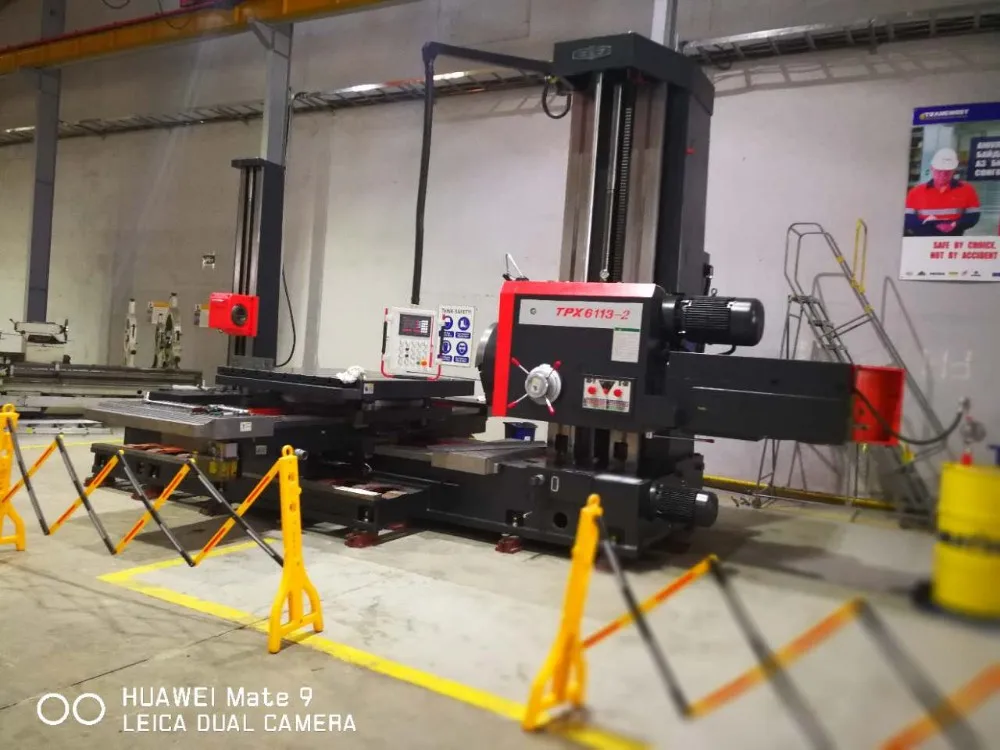

Spindle support by three points, realize the spindle rigidity good & accuracy stable good.

Our Service

Customer Visiting

       Business Card

Packing & Delivery
Packaging
Size
7203*4665*3650mm
Weight
29T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
