JRT50 Heavy Equipment repair Conventional Portable Line bore

FOB Reference Price:Get Latest Price
$1,400.00 - $1,680.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
Normal
Production Capacity:
50-100 Sets/month
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC
Model Number:
JRT40/50/60
Voltage:
380V50HZ
Power(W):
1.5kw
Dimension(L*W*H):
Depend
Weight:
120kg
Certification:
ISO9001 BV CE
product type:
Promotional Price Line boring machine
Boring bar diameter:
40/50/60mm
Bore diameter:
45-200mm
Boring stroke:
390mm
Machine weight:
120kg
Motor power(feed drive):
90w
Feed rate:
0-100mm/min
warranty period:
12 MONTHES
color:
be available to meet customer's requirement
payment:
T/T L/C Western Union and so on
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
200 Set/Sets per Month Heavy Equipment repair Conventional Portable Line bore
Packaging & Delivery
Packaging Details
Plastic cloth for the first layer,
canvas for the second layer,
and packing with iron case at last,
together with pallet on the bottom of wooden box
Port
DALIAN PORT
Lead Time :
Shipped in 10 days after payment
Product Description

Main Features

The most powerful boring machine in its class,you will be amazed at the power and flexibility of the potrable boring machine.

1. The driver:1.5Kw Dc motor provide enough torque,ensure that cutting process powerful and stable.
2. Feed forward and reverse can be achieved with a 90w motor in the electric control box.
3. Induction hardened boring bar has high wear resistance and good toughness properties.
4. You can fasten the tool holder anywhere along the boring bar.
5. Modular components make setup quick and easy.
6. Motor controller has the function of delay stopping,so when you stop,the tool will not be demaged easily.
7. With the powerful facing head,you can handle the facing jobs with ease.(Optional)

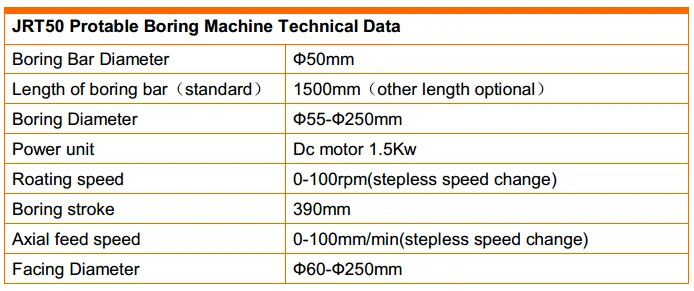

Machine Parameters


Other Type for your reference:

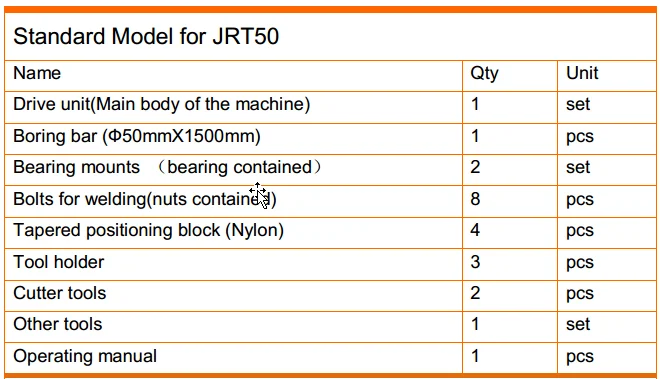

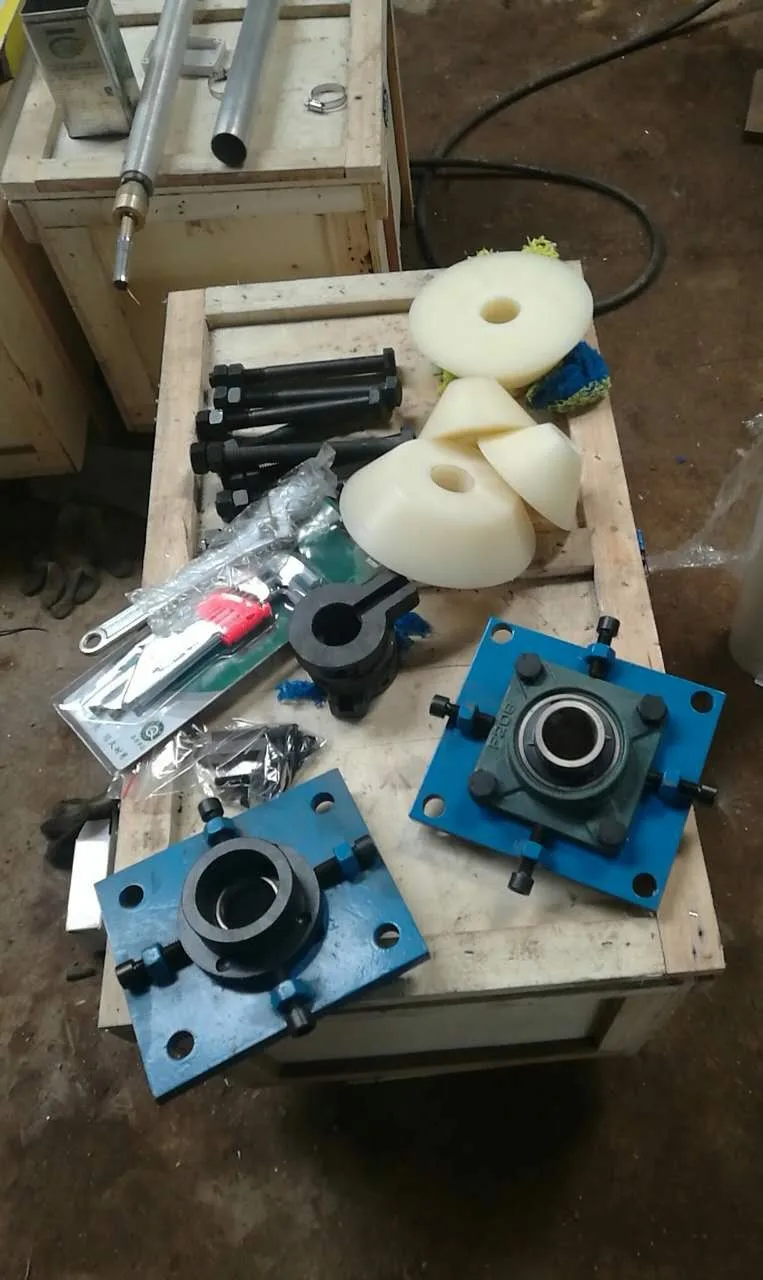

Standard Components Package:

Optional Accessories


1. Facer tools:


To machining the flang faces on the sides of the holes,installed on the boring bar to finish the facing work.


2. Bore welder:


With this machine you can weld the inner surfacer of hole automatically.


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

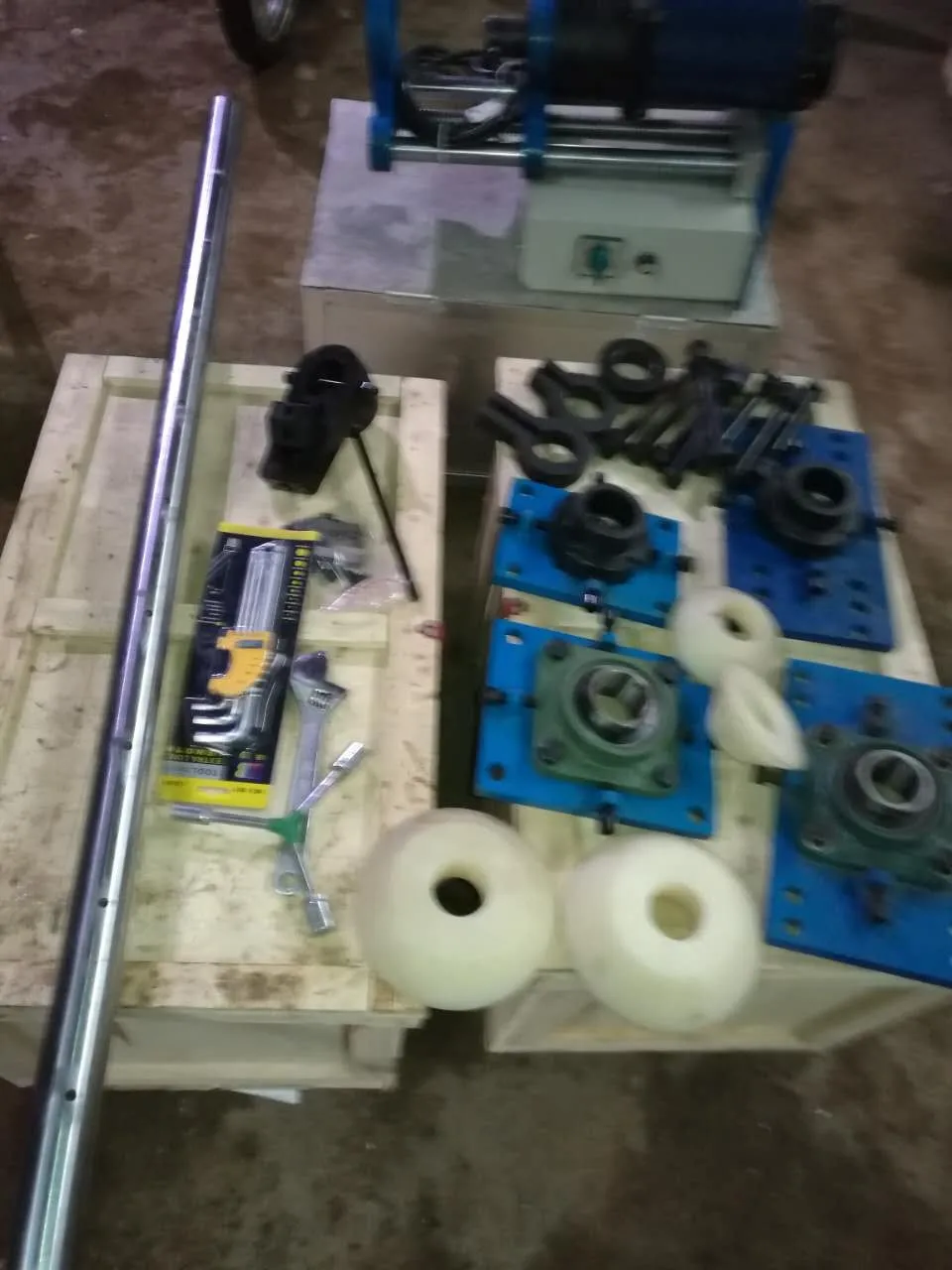

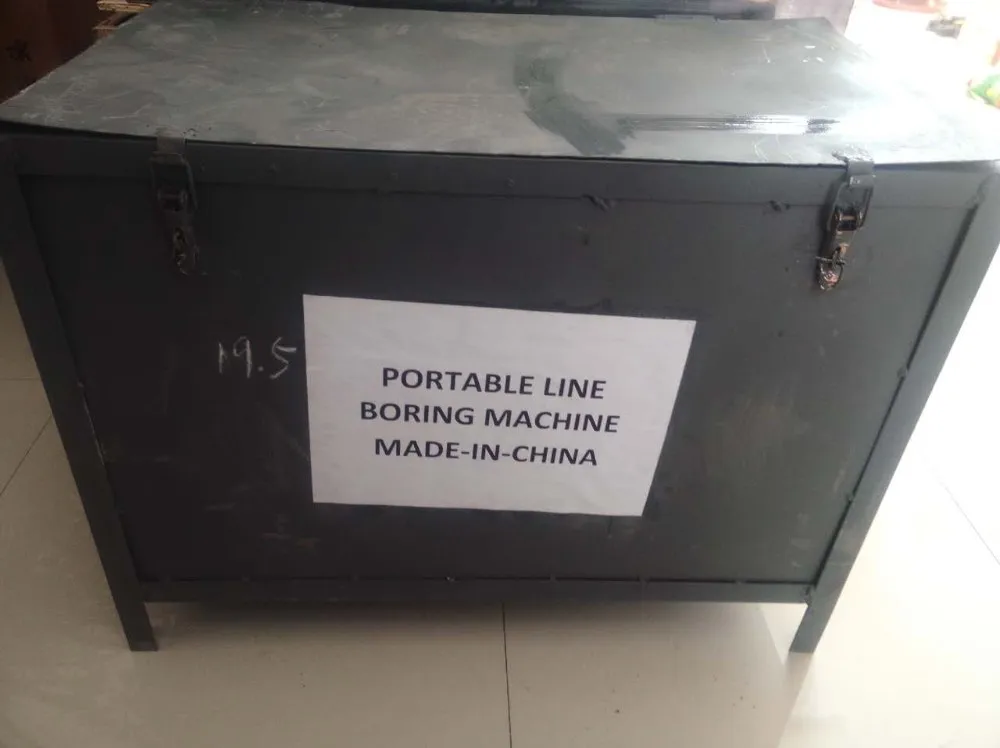

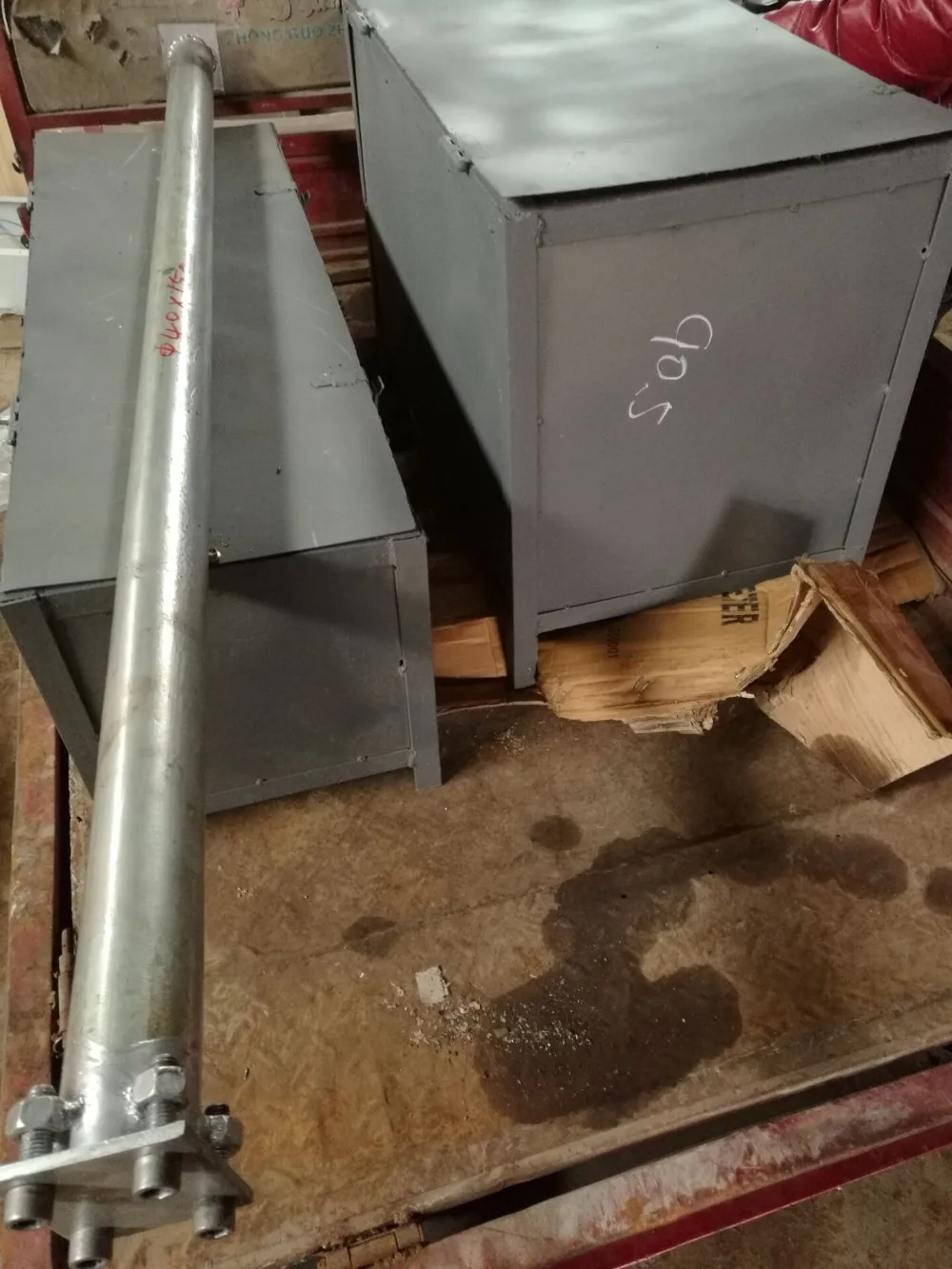

Packing & Delivery
