TPX6113/2 Horizontal Boring Machine from China Supplier

  • 1 - 1 Sets
    $54,154.00
  • >=2 Sets
    $52,185.00
Model Number:
TPX6113/2
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 60 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
Normal
Production Capacity:
40
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC
Voltage:
380V, 50HZ
Power(W):
37KW
Dimension(L*W*H):
7030*4665*3800mm
Weight:
28/31.7t
Certification:
ISO9001 & CE
After-sales Service Provided:
Online support
Warranty:
1 Year
Product type:
Horizontal Boring Milling Machine
Spindle diameter:
130mm
Spindle taper hole:
ISO50 7:24
Spindle max. torque:
1225N.m
Grade of spindle rotate speed:
22
Spindle rotate speed range:
8-1000r/min
Main motor power:
7.5kw
Facing head diameter:
600mm
COLOR:
Meet Customer's Requirement
Name:
High Quality Horizontal Boring Milling Machine
Supply Ability
Supply Ability:
40 Set/Sets per Month Horizontal Boring Milling Machine
Packaging & Delivery
Packaging Details
Plastic cloth for the first layer,
canvas for the second layer and packing with wooden case at last,
together with pallet on the bottom of woode box for TPX6111 cylinder boring machine
Port
Dalian Port
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 60 60 To be negotiated
Product Description

Taladradora horizontal y fresadora.

Máy phay ngang và phay
Mesin bor dan penggilingan horisontal
Alesatrice orizzontale e fresatrice
Горизонтальний розточувальний і фрезерний верстат
Landshaft zerikarli va freze mashinasi
Οριζόντια διάτρηση και φρεζάρισμα
Хэвтээ уйтгартай, тээрэмдэх машин нийлүүлэгч
অনুভূমিক বিরক্তিকর এবং মিলিং মেশিন সরবরাহকারী
Pahalang na pagbubutas at nagpapaikut-ikot machine supplier
Fournisseur de machines à aléser et à fraiser horizontales
Поставщик горизонтально-расточного и фрезерного станка


Product Application

TPX series of Horizontal Boring Machine in the basis of the traditional boring to optimize the design, machine tool can be widely used in the Box Body, Shell, Engine Base... large parts processing Drilling, Boring , Broaching, Reaming, Spot-facing, Milling flat, Turning thread cutting , etc. Especially suitable for large medium-sized of box parts and rough boring, Finished boring, milling and other machining process.

SPECIFICATIONS FOR TPX6113/2 HORIZONTAL BORING MACHINE



















Horizontal Boring Machine
ITEM
UNIT
PARAMETER
Spindle bore diameter
mm
φ130
Max. spindle torque
Nm
3136
Max torque for facing head
Nm
4900
Max. axial force of spindle
N
31360
Spindle Taper
Metric 80
OP: ISO50  7:24
Longitudinal (Z-axis)
mm
2000
Crosswise (X-axis)
mm
2000
Spindle box travel (Y-axis)
mm
1800
The distance from spindle center line to worktable surface
mm
1800
Max travel of Spindle
mm
900
Max travel of Facing head Radial Tool rest
mm
250
Max. Worktable Load
kg
10000
Spindle speed step

24
Spindle Speed range
rpm
4-800
Facing Head Speed Range
rpm
2.5-125
Worktable Size (LxW)
mm
1600*1800
Fast moving speed of Spindle, Spindle box, Worktable Longitudinal & Crosswise movement
mm/min
2500
Fast rotary speed of worktable
rpm
1.2
Spindle, Spindle Box, Wortable feeding step
step
18
Facing Head, facing head sliding block, spindle box, worktable Longitudinal & Crosswise feeding step
step
18
Facing head speed range
r/min
2.5-125
Facing Head, facing head sliding block, spindle box, worktable Longitudinal & Crosswise feeding range
mm
0.08-12.5
Accuracy of DRO
mm
0.005
Accuracy of Boring hole

IT7
Surface roughness of Boring hole
μ
3.2-1.6
Machine dimension(LxWxH)
mm
7030*4665*3800
Machine weight (about)
kg
28000
Electrical total capacity
KVA
25

Main Features

1) Machine tools for general layout is single column, Side bin, Fixed Facing Head. Worktable on the Machine bed guideway make longitudinal & crosswise movement, can archive 360°rotary movement. The casting structure has good rigidity

2) Spindle support by three points, realize the spindle rigidity good & accuracy stable good.

3) Machine tools main drive system consists of a single speed of 15 kw AC motor drive, through the hydraulic primary four variable speed rotary valve control cylinder , promote four groups of sliding gears and achieve 4-800r/min, 24 step.

4) Spindle up and down movement, worktable Longitudinal & Crosswise movement controlled by Electromagnetic clutch, Clamping loosen the hydraulic control, After clamping with mechanical self-locking Clamping reliably , reduce the operator labor intensity , improves the automation of machine tools.

5) The clamping of spindle up and down movement, worktable Longitudinal & Crosswise movement and worktable rotary movement adopt LingXingKuai clamping mechanism, safe and reliable automatic control.

Certifications

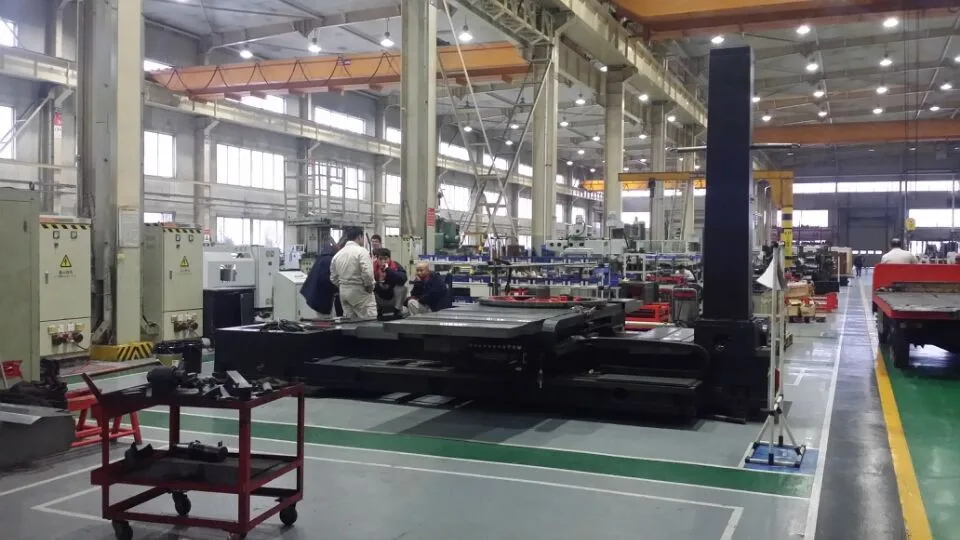

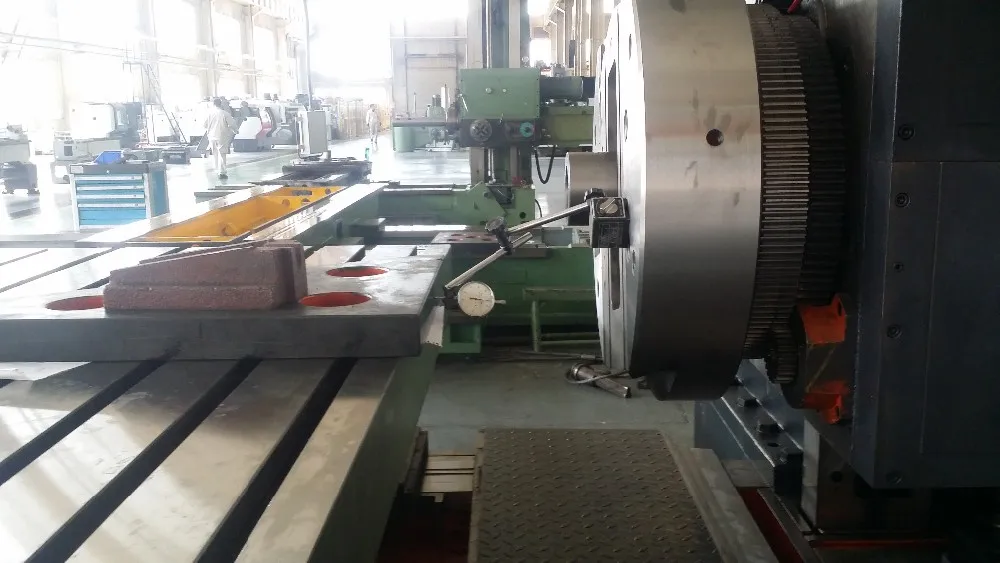

Detailed Images

Machine Parts

Name: TPX6113/2 Manual Boring Machine



Main Features

Name: Machine Frame

Machine Parts

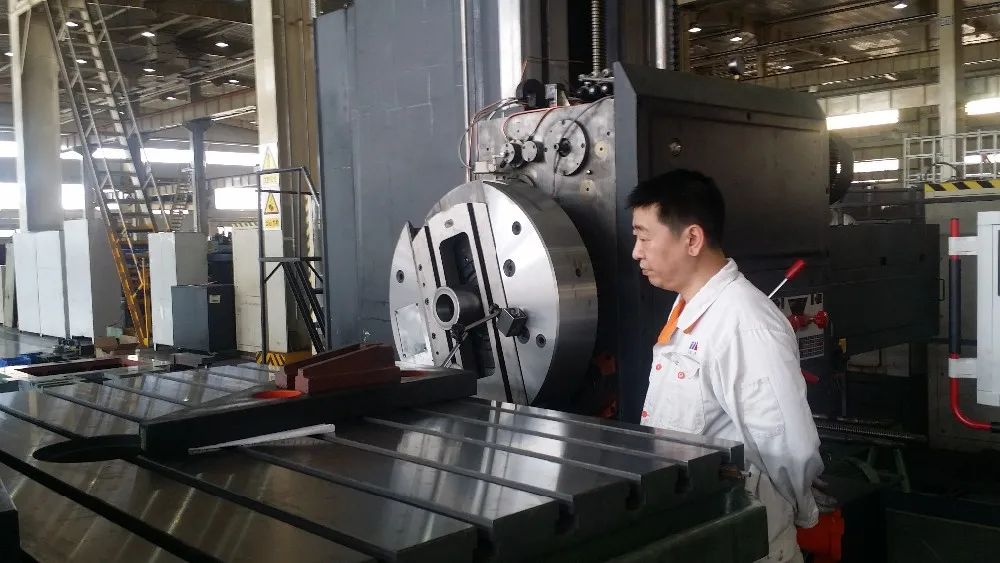

Name: Facing head

Main Features

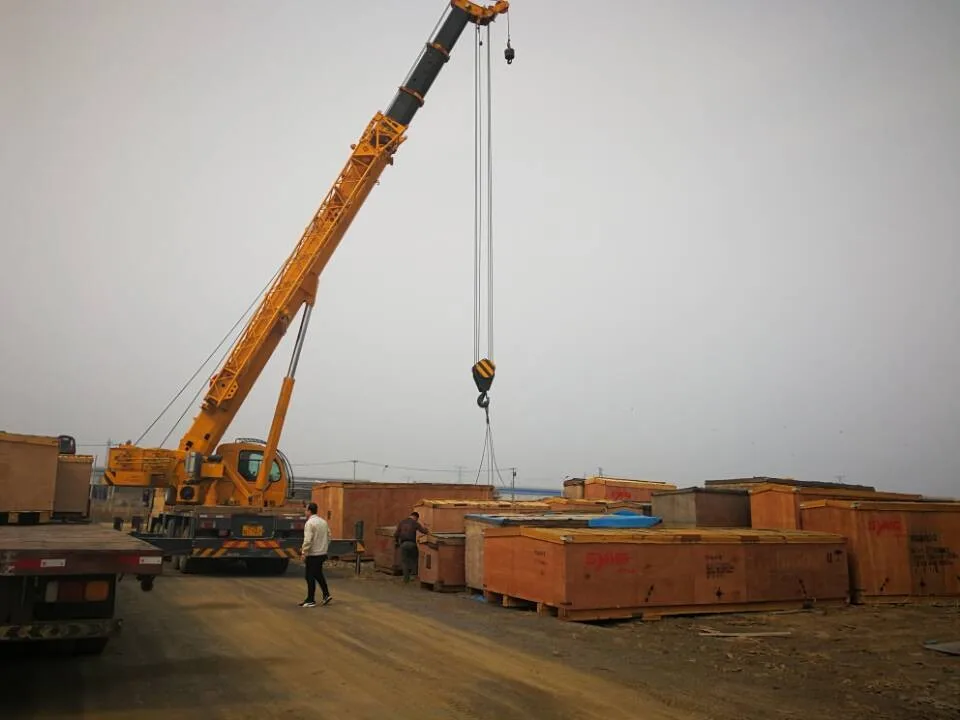

Name: Lading Picture

Packing & Delivery
Packaging
Total
6 Cases
Weight
31.7 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Total
6 Cases
Weight
31.7 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
