TPX6113 Hot Sale Horizontal Boring Machine with Low Price

FOB Reference Price:Get Latest Price
US $64,000-70,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
TPX6113
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
Normal
Production Capacity:
40
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC
Voltage:
380V, 50HZ
Power(W):
15KW
Dimension(L*W*H):
6903*4265*3400mm
Weight:
24.3t
Certification:
ISO9001 & CE
After-sales Service Provided:
Field installation, commissioning and training
Warranty:
1 Year
Product type:
Horizontal Boring Machine
Spindle diameter:
130mm
Spindle taper hole:
ISO50 7:24
Spindle max. torque:
3136N.m
Grade of spindle rotate speed:
24
Spindle rotate speed range:
4-800r/min
Main motor power:
30kw
Facing head diameter:
800mm
COLOR:
Meet Customer's Requirement
Name:
Horizontal Boring Machine
Supply Ability
Supply Ability:
40 Set/Sets per Month Boring Machine
Packaging & Delivery
Packaging Details
Plastic cloth for the first layer, canvas for the second layer, and packing with wooden case at last, together with pallet on the bottom of wooden box
Port
Dalian Port
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(day) 60 75 To be negotiated
Product Description

Product Application

TPX series of Horizontal Boring Machine in the basis of the traditional boring to optimize the design, machine tool can be widely used in the Box Body, Shell, Engine Base... large parts processing Drilling, Boring , Broaching, Reaming, Spot-facing, Milling flat, Turning thread cutting , etc. Especially suitable for large medium-sized of box parts and rough boring, Finished boring, milling and other machining process.

SPECIFICATIONS FOR TPX6113 HORIZONTAL BORING MACHINE
TPX6113
Spindle diameter
mm
Φ130mm
Spindle taper

ISO50 7:24
Spindle max. torque
Nm
3136N.m
TPX6113 Boring Machine
Spindle max force
N
31360N
Spindle rotate speed

24
Spindle rotate speed range
mm
4-800r/min
Main motor power
mm
15 kW
FACING HEAD
Facing head max. torque
N.m
4900N.m
Facing head diameter
800
800mm
Facing head rotate speed range
r/min
2.5-125r/mm
Grade of facing head rotate speed

18
TPX6113 Horiozntal Boring Machine
TABLE
Worktable size
mm
1400*1600mm
Max. weight on the workbench
kg
7000kg
WORK RANGE
TPX6113 Boring and Milling Machine
X axis travel(Worktable Longitudinal travel)
mm
1600mm
Y axis travel (Spindle Vertical travel)
mm
2000mm
Z axis travel(Worktable Cross travel)
mm
1400mm
W axis travel(spindle travel)
mm
900mm
U axis travel(Facing head slide stroke)
mm
250mm
Worktable rotary angle

360°
Worktable rotary speed range
r/min
0.01-1.5r/min
SPEED AND FEED
Rapid travel (X/Y/Z)
mm/min
2500mm/min
Fast box drive motor
kw
5.5kw
Spindle Box lubrication motor
kw
0.75kw
Worktable hydraulic pump motor
kw
0.75kw
DIMENSION AND WEIGHT
Overall dimension
mm
6903*4265*3400mm
Machine net weight
kgs
24300kgs

Main Features

1) Machine tools for general layout is single column, Side bin, Fixed Facing Head. Worktable on the Machine bed guideway make longitudinal & crosswise movement, can archive 360°rotary movement. The casting structure has good rigidity

2) Spindle support by three points, realize the spindle rigidity good & accuracy stable good.

3) Machine tools main drive system consists of a single speed of 15 kw AC motor drive, through the hydraulic primary four variable speed rotary valve control cylinder , promote four groups of sliding gears and achieve 4-800r/min, 24 step.

4) Spindle up and down movement, worktable Longitudinal & Crosswise movement controlled by Electromagnetic clutch, Clamping loosen the hydraulic control, After clamping with mechanical self-locking Clamping reliably , reduce the operator labor intensity , improves the automation of machine tools.

5) The clamping of spindle up and down movement, worktable Longitudinal & Crosswise movement and worktable rotary movement adopt LingXingKuai clamping mechanism, safe and reliable automatic control.

Detailed Images

Machine Parts

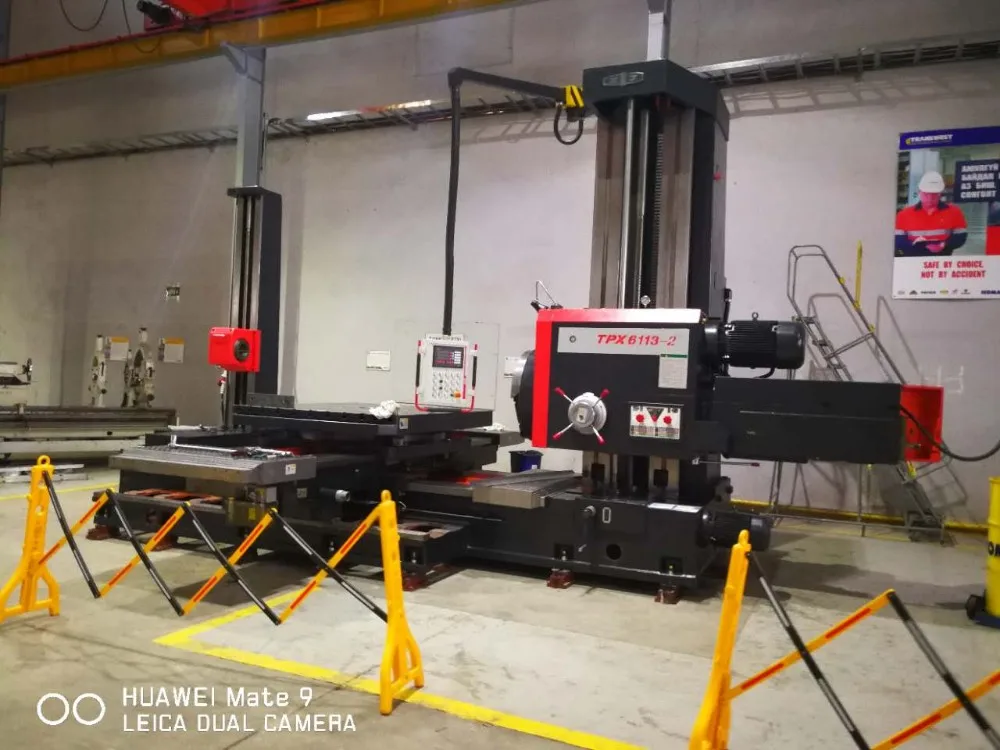

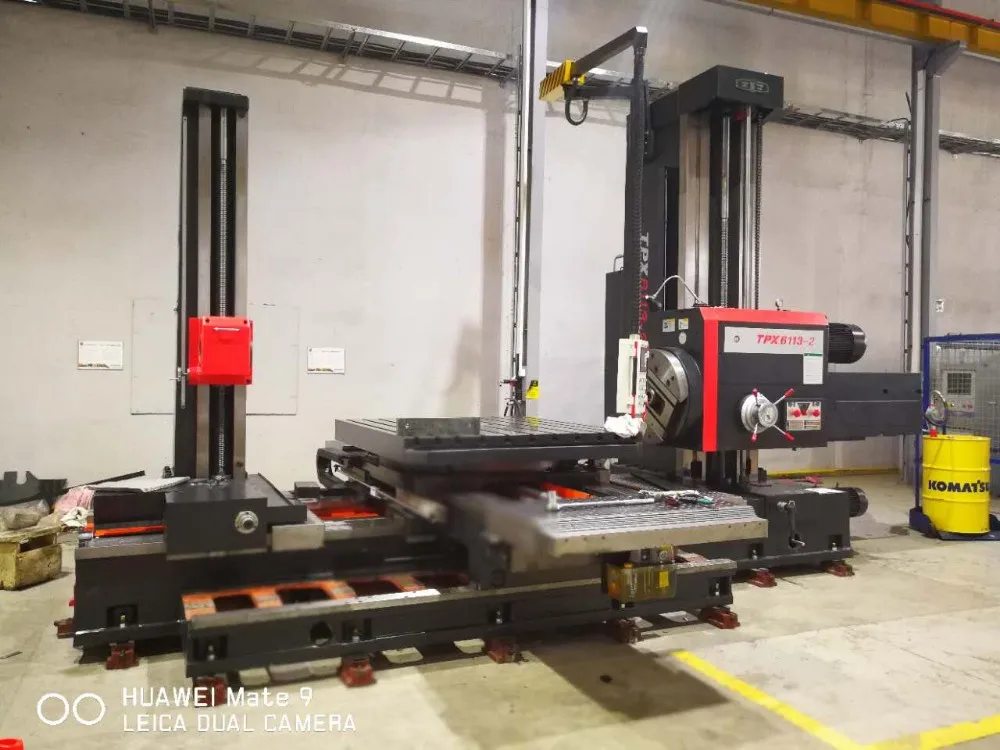

Name: TPX6113/2 Manual Boring Machine


Main Features

Name: Machine Frame

Machine Parts

Name: Facing head

Main Features

Name: Worktable

Our Service

Lexi Wang

* Tel :+86-156-4083-5699

* Skype: lucy101012


After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Total
6 Cases
Weight
31.7 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
