TPX6111 TPX China CNC Type Table Type Boring Mills Machine With CE Certificate

FOB Reference Price:Get Latest Price
US $31,000-52,380 / Sets | 1 Set/Sets Heavy Type Boring Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
Normal
Production Capacity:
15-20 Sets/month
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC
Model Number:
TPX6111
Voltage:
380V, 50HZ
Power(W):
37KW
Dimension(L*W*H):
4910*2454*2950mm
Weight:
13300KG
Certification:
ISO9001 BV CE
product type:
Heavy Type Boring Machine
Spindle diameter:
110mm
Spindle taper hole:
morse 6
Spindle max. torque:
1225N.m
Grade of spindle rotate speed:
22
Spindle rotate speed range:
8-1000r/min
Main motor power:
7.5kw
Facing head diameter:
600mm
Payment:
T/T L/C Western Union Sell on Credit and so on
Technology:
our boring and milling machine can discuss
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
40 Set/Sets per Month Heavy Type Boring Machine
Packaging & Delivery
Packaging Details
Plastic cloth for the first layer,
canvas for the second layer and packing with wooden case at last,
together with pallet on the bottom of woode box for TPX6111 cylinder boring machine
Port
Dalian Port
Product Description

Product Application

This series of machine tools is optimized on the basis of traditional boring machine design, machine tool in a clamping can be carried out under the condition of drilling, reaming, boring, reaming, thread milling and turning, etc. Swing plate rotating machine tool with at the same time, the swing plate sliding block during swing rotating radial feed, larger can boring hole, cylindrical, flat car, cutting and other processing.

SPECIFICATIONS FOR TPX6111 series horizontal boring machine
Model
TPX6111
TPX6113
TPX6113A/2
Unit
Spindle

Spindle bore diameter
φ110
φ130
mm
Max. torque
1225
3136
Nm
Max. axis resistance of spindle
12250
31360
N
Spindle taper
Morse 6(Op: ISO 7:24)
Metric 80

Worktable
Table Size
1140*1000
1600*1400
1800*1600
Mm*mm
Max. load of table
2500
8500
10000
Kg
T-slot size
22*7
28*9
Mm*piece
Processing range
Max. travel of spindle
600
900
mm
Max. Travel of facing plate radial head
180
250
mm
Distance from spindle center line to worktable surface(Max)

1000

1500

2000
mm
Worktable travel
Horizontal/Longitudinal

1000/1000

1600/1500

2000/1500

mm
measurement system reading accuracy
0.005
Boring accuracy
IT7
weight
13300
25500
29500
kg
Dimensions(L*W*H)
4900*2554*2850

6995*3730*3535

7050*4270*3950

mm

Main Features

1. Spindle system -- strong rigidity
2. Bed, column and upper slider, all using rectangular guide
3. At the end of the spindle box, there is flat spin dish radial the frame which can be used as radial processing.
4. Moving components are able to move fast
5. The safety device will be off automatically when the machine is overload feeding in order to avoid destroying the workpiece and tools.

Certifications
Detailed Images



Spindle Box Motor

For spindle box motor, standard motor from Dandong which is the best motor brand in China, which has large torque, Good heat dissipation, according to customers requests, siemens motor can be added.

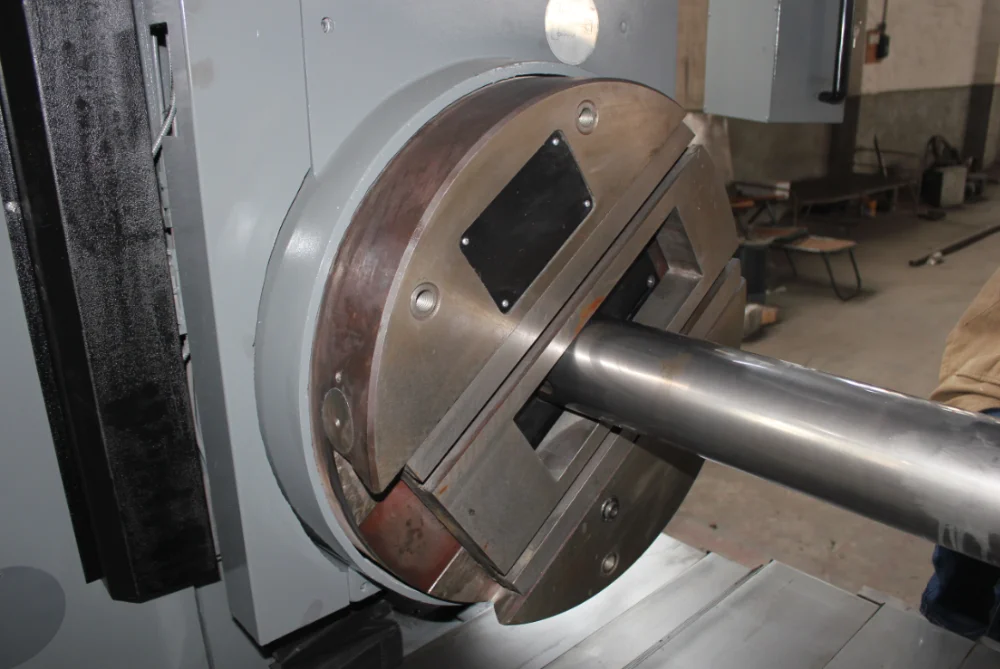

Spindle

Herewith two options for spindle, one is 110mm, the other one is 130mm, face plate will be a standard accessory for speciual machining requests.

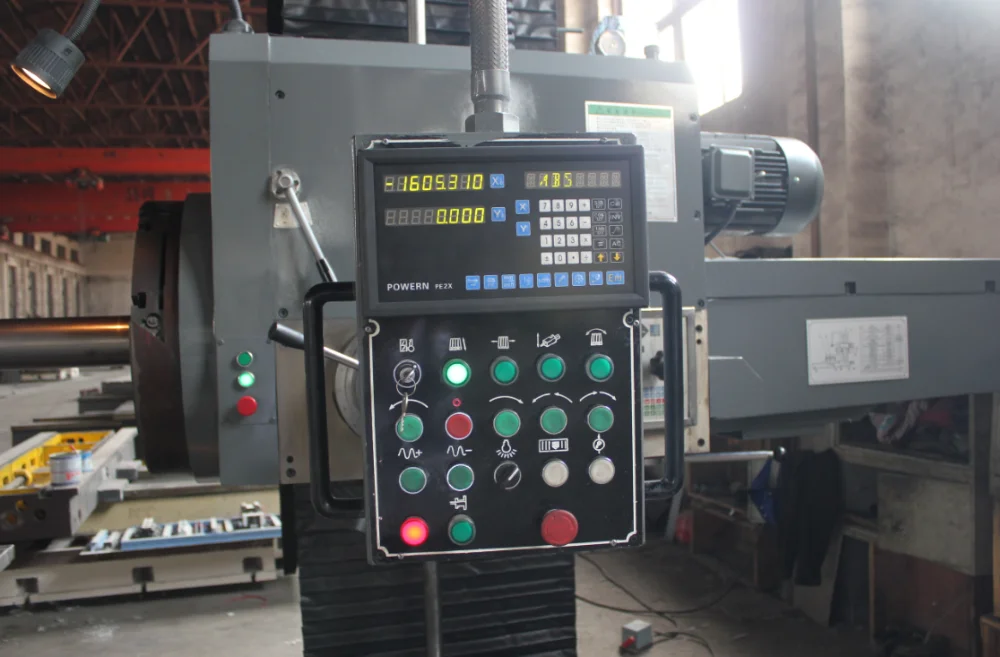

DRO and Assemebled Button Station

Operational panel and DRO assembled on one board, with beautiful appearance, Lubrication Button, Water Pump Button, Emergency Button etc al together which help users quick and accurate to operate.

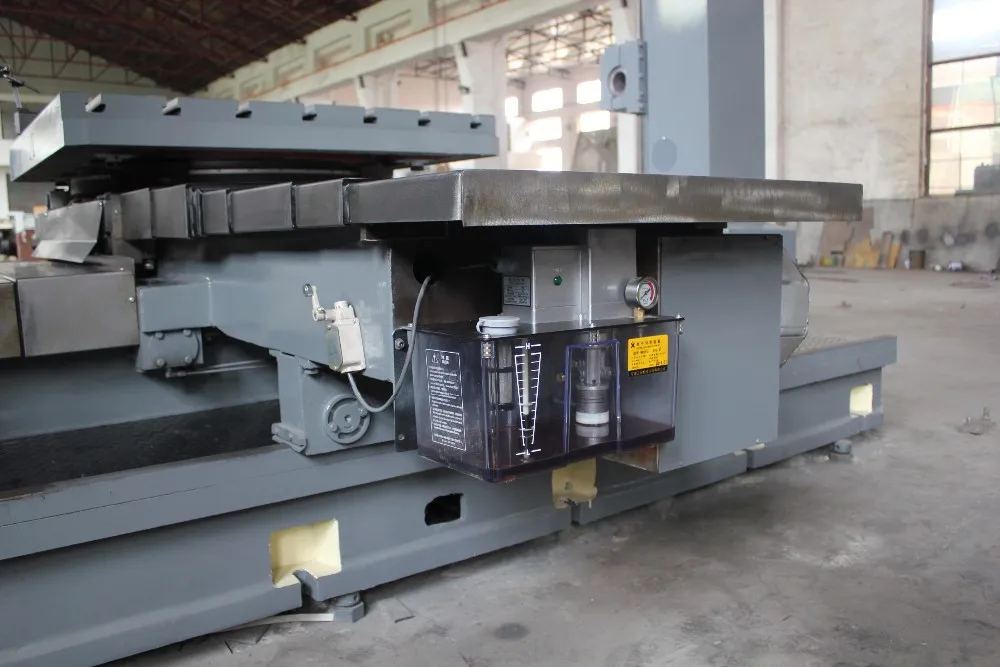

Worktable

Worktable after quenching, and after fine machining and grinding, It will give fine producing for workpiece, besides, the T-Slots quantities can be customized according to customers request.

Our Service

Customer Visits

* Russian, Saudi Arabia, Middle-Asia customers visits.
* Sample testing support for free.
* Placing order on site will get big discounts.

Business Card

* 24x7 all day service.
* Good pre and after sale-service all the time.
* Your professional consultant in Metal Working Machinery.

Packing & Delivery
Packaging
Size
4910*2554*2850mm
Weight
12000kg
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
