TPX6113 Good Looking High Quality Manual Type Boring and Milling Machine

FOB Reference Price:Get Latest Price
$91,530.00 - $100,000.00 / Sets | 1 Set/Sets Boring Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
Normal
Production Capacity:
40
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC
Model Number:
TPX6113
Voltage:
380V, 50HZ
Power(W):
30KW
Dimension(L*W*H):
6903*4265*3400mm
Weight:
24.3t
Certification:
ISO9001 & CE
Product type:
Boring Machine
Spindle diameter:
130mm
Spindle taper hole:
ISO50 7:24
Spindle max. torque:
3136N.m
Grade of spindle rotate speed:
24
Spindle rotate speed range:
4-800r/min
Main motor power:
30kw
Facing head diameter:
800mm
COLOR:
Meet Customer's Requirement
Name:
Horizontal Boring Machine
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
40 Set/Sets per Month Boring Machine
Packaging & Delivery
Packaging Details
Plastic cloth for the first layer,
canvas for the second layer and packing with wooden case at last,
together with pallet on the bottom of woode box for TPX6111 cylinder boring machine
Port
Dalian Port
Lead Time :
2.5 months after received advance payment
Product Description

Product Application

TPX series of Horizontal Boring Machine in the basis of the traditional boring to optimize the design, machine tool can be widely used in the Box Body, Shell, Engine Base… large parts processing Drilling, Boring , Broaching, Reaming, Spot-facing, Milling flat, Turning thread cutting , etc. Especially suitable for large medium-sized of box parts and rough boring, Finished boring, milling and other machining process.

SPECIFICATIONS FOR TPX6113 HORIZONTAL BORING MACHINE





TPX6113
Spindle diameter
mm
Φ130mm
Spindle taper
--
ISO50 7:24
Spindle max. torque
Nm
3136N.m
Spindle max force
N
31360N
Spindle rotate speed
--
24
Spindle rotate speed range
mm
4-800r/min
Main motor power
mm
15 kW





FACING HEAD
Facing head max. torque
N.m
4900N.m
Facing head diameter
800
800mm
Facing head rotate speed range
r/min
2.5-125r/mm
Grade of facing head rotate speed
--
18
Worktable size
mm
1400*1600mm
Max. weight on the workbench
kg
7000kg






WORK RANGE
X axis travel(Worktable Longitudinal travel)
mm
2000mm
Y axis travel (Spindle Vertical travel)
mm
1800mm
Z axis travel(Worktable Cross travel)
mm
1500mm
W axis travel(spindle travel)
mm
900mm
U axis travel(Facing head slide stroke)
mm
250mm
Worktable rotary angle

360°
Worktable rotary speed range
r/min
0.01-1.5r/min
Rapid travel (X/Y/Z)
mm/min
2500mm/min


    Motor Power
Fast box drive motor
kw
5.5kw
Spindle Box lubrication motor
kw
0.75kw
Worktable hydraulic pump motor
kw
0.75kw

      Machine size
Overall dimension
mm
6903*4265*3400mm
Machine net weight
kgs
24300kgs

Main Features

1) Machine tools for general layout is single column, Side bin, Fixed Facing Head. Worktable on the Machine bed guideway make longitudinal & crosswise movement, can archive 360°rotary movement. The casting structure has good rigidity

2) Spindle support by three points, realize the spindle rigidity good & accuracy stable good.

3) Machine tools main drive system consists of a single speed of 15 kw AC motor drive, through the hydraulic primary four variable speed rotary valve control cylinder , promote four groups of sliding gears and achieve 4-800r/min, 24 step.

4) Spindle up and down movement, worktable Longitudinal & Crosswise movement controlled by Electromagnetic clutch, Clamping loosen the hydraulic control, After clamping with mechanical self-locking Clamping reliably , reduce the operator labor intensity , improves the automation of machine tools.

5) The clamping of spindle up and down movement, worktable Longitudinal & Crosswise movement and worktable rotary movement adopt LingXingKuai clamping mechanism, safe and reliable automatic control.

Detailed Images



Spindle Box Motor
For spindle box motor, standard motor from Dandong which is the best motor brand in China, which has large torque, Good heat dissipation, according to customers requests, siemens motor can be added.

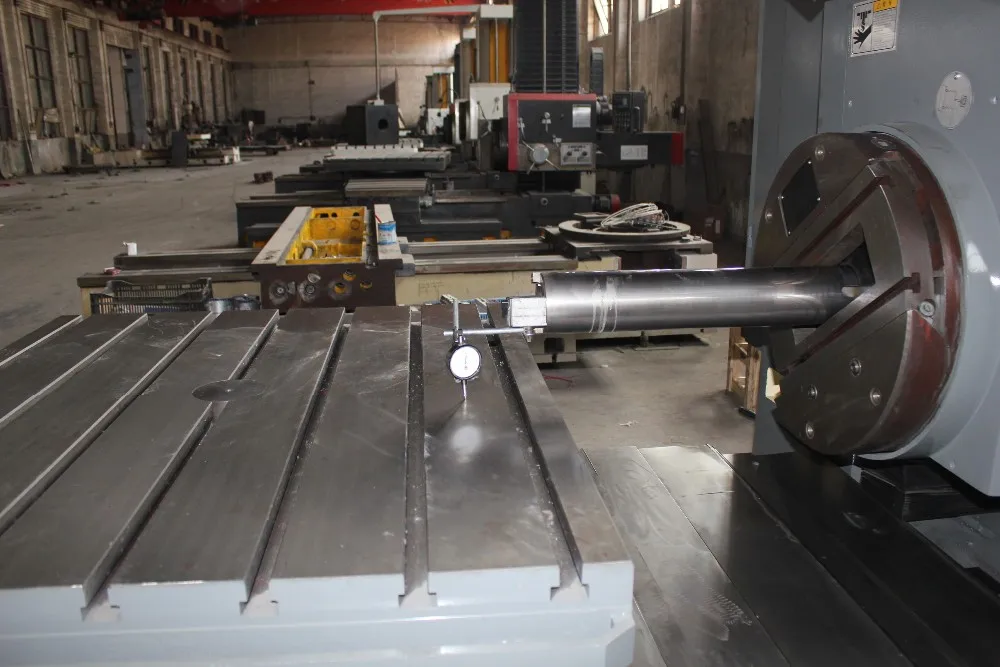

Machine Spindle

Herewith two options for spindle, one is 110mm, the other one is 130mm, face plate will be a standard accessory for special machining requests.




DRO and Assemebled Button Station
Operational panel and DRO assembled on one board, with beautiful appearance, Lubrication Button, Water Pump Button, Emergency Button etc all together which help users quick and accurate to operate





Machine Worktable

Worktable after quenching, and after fine machining and grinding, It will give fine producing for workpiece, besides, the T-Slots quantities can be customized according to customers request.
