JRT60 Chinese Small Portable Boring Machine

FOB Reference Price:Get Latest Price
$1,746.00 - $9,550.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
JRT60
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
Normal
Production Capacity:
50-100 Sets/month
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC
Voltage:
220V
Dimension(L*W*H):
750X770X490mm
Weight:
240KG
Certification:
CE ISO9001
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Warranty:
1 Year
Product type:
Chinese Small Portable Boring Machine
Functions:
Boring
Bore diameter:
65-500
Max. machining travel:
300
Maximum infeed depth:
Single side 3mm (A3 steel)
Surface Roughness:
Ra3.2
Hole roundness error:
≤0.02
Color:
Light Yellow
Application:
Tractors
Power(W):
1.5kw
Supply Ability
Supply Ability:
40 Set/Sets per Month Portable Boring Machine
Packaging & Delivery
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Port
Dalian
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Product Description

Product Application

Construction machinery boring machine is mainly for the construction machinery site maintenance and development of a portable processing equipment;
Mainly used for small pipe bore, concentric spacing hole processing;
Widely used in excavators, cranes, loaders, cranes and other construction machinery.
The main application areas:
A variety of engineering machinery structure on the rotary hole, hinge hole, shaft pin hole after welding processing, or after the hole after the installation of hole sets; excavators, loaders, presses, cranes and other concentric holes Repair and processing, porous side by side, the porous one-time positioning processing to ensure that the porous coaxial.

SPECIFICATIONS FOR JRT60

Engine
Boring bar length
mm
2500
Boring diameter
mm
65-500
Max. machining travel
mm
300

Main performance parameters
Maximum infeed depth
mm
Single side 3mm (A3 steel)
Power
V
220
Surface Roughness
Ra3.2

Specification
Hole roundness error
0.02
Total Weight
KG
240
Motor Power
Kw
1.5

Main Features

 Boring machine driver
Adopt servo motor, it has the characteristics of low speed high torque, the machine can achieve smooth cutting, superior performance.
The axial movement and no vibration in cutting process.
 Feeding and processing can realize the infinite speed, feeding travel can be set according to the need, can be automatically stopped machining after maching to limit switch position.
Boring bar with high strength alloy structural steel, high hardness, high precision, high toughness and good wear resistance.
Within the effective stroke, head can be fixed in the boring bar any position.
Can remove alone boring bar, convenient installation.
 Motor controller is equipped with dynamic delay braking procedure, avoid vibration when parking.

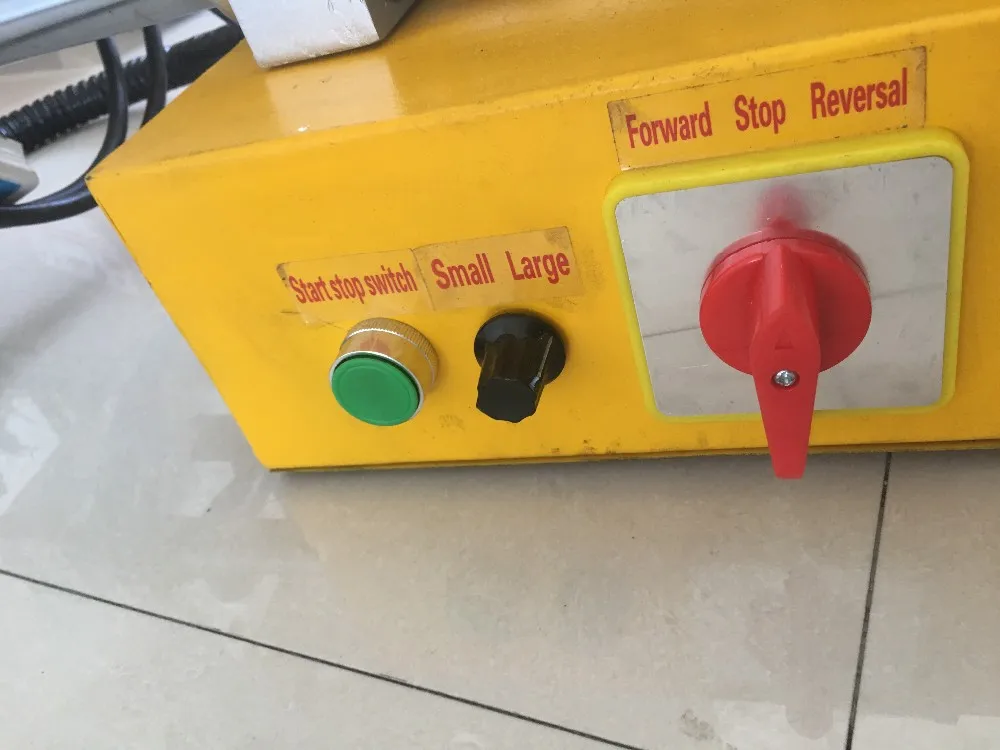

Control box at the bottom of the host, use of safety operation.

Certifications
Detailed Images

Machine Parts

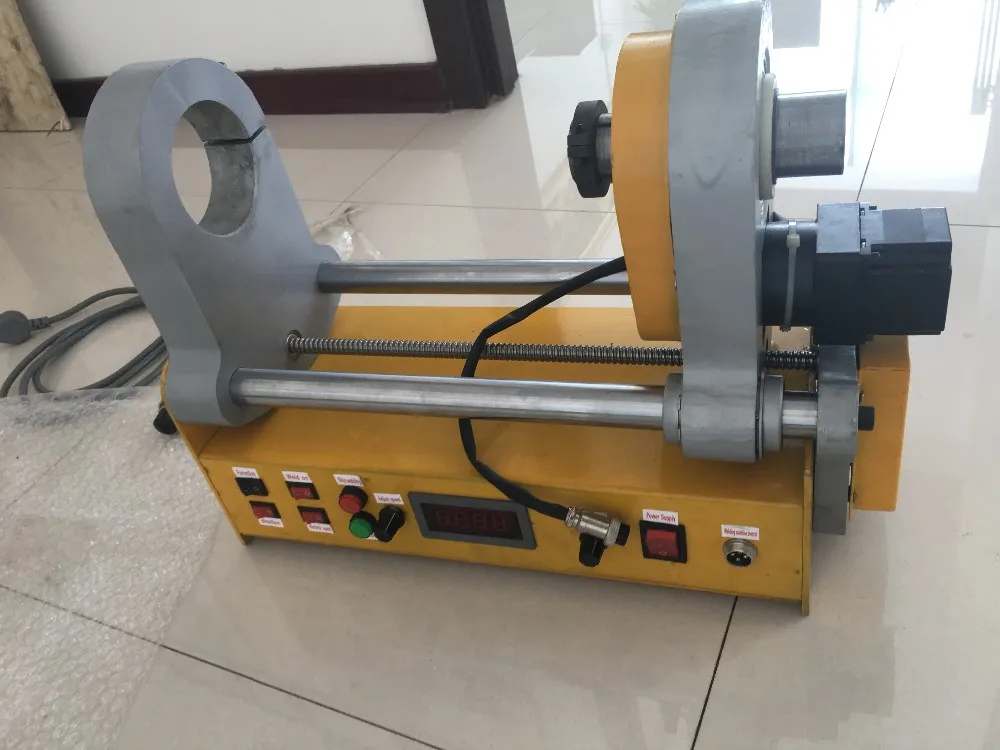

Name: Main Machine

Brand: DMTC

Original: China


Main Features

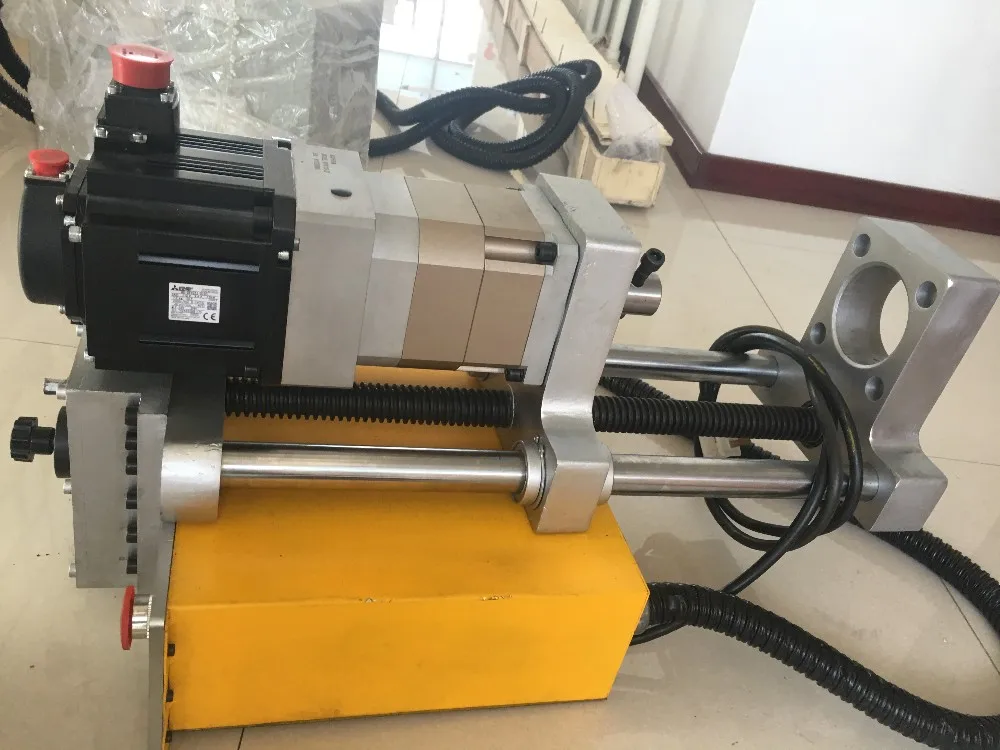

Name: Portable line boring machine
Brand: DMTC
Original: China

Machine Parts

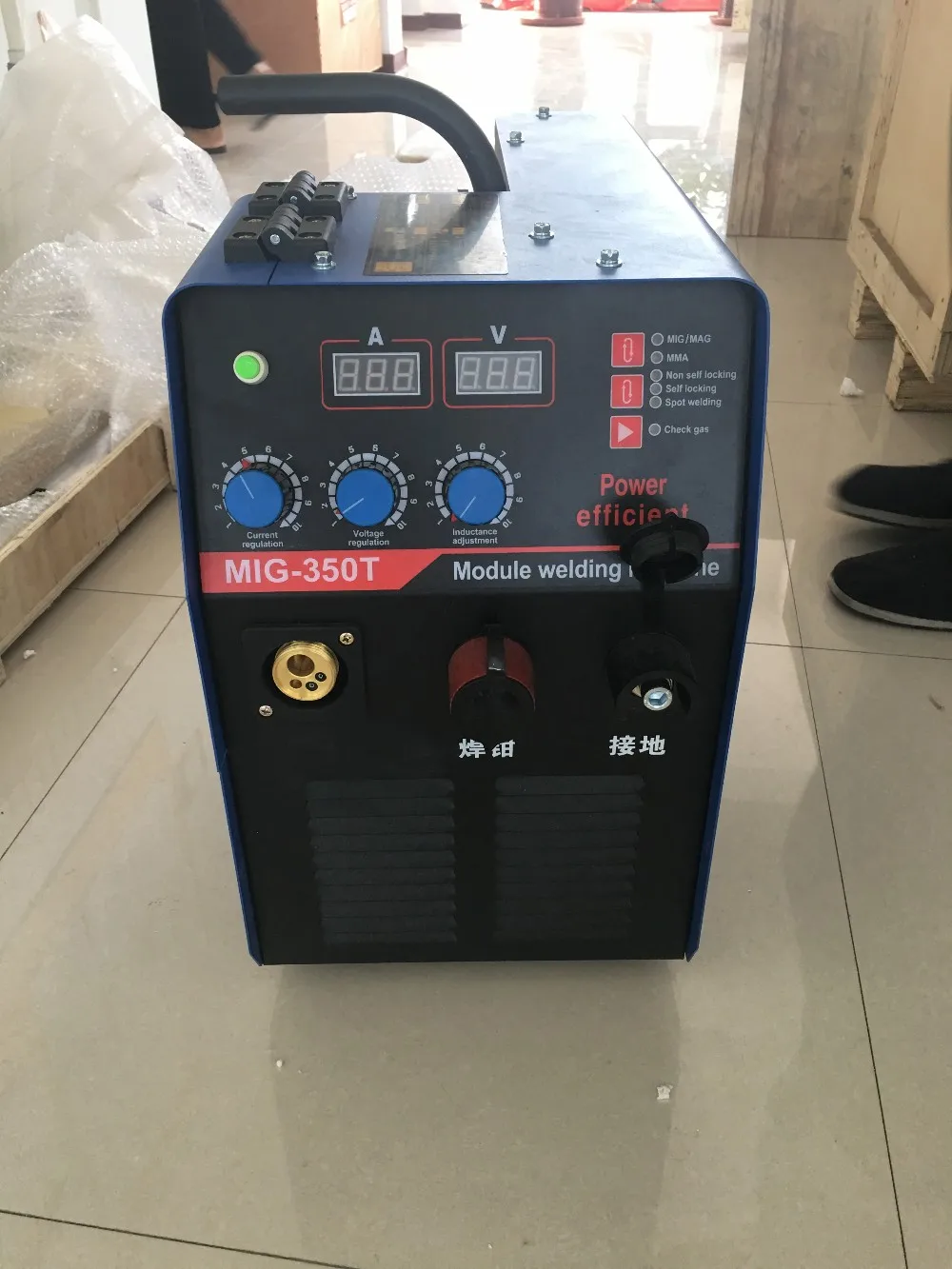

Name: Welding equipment
Brand: DMTC
Original: China
The welding equipments are optional accessories.



Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

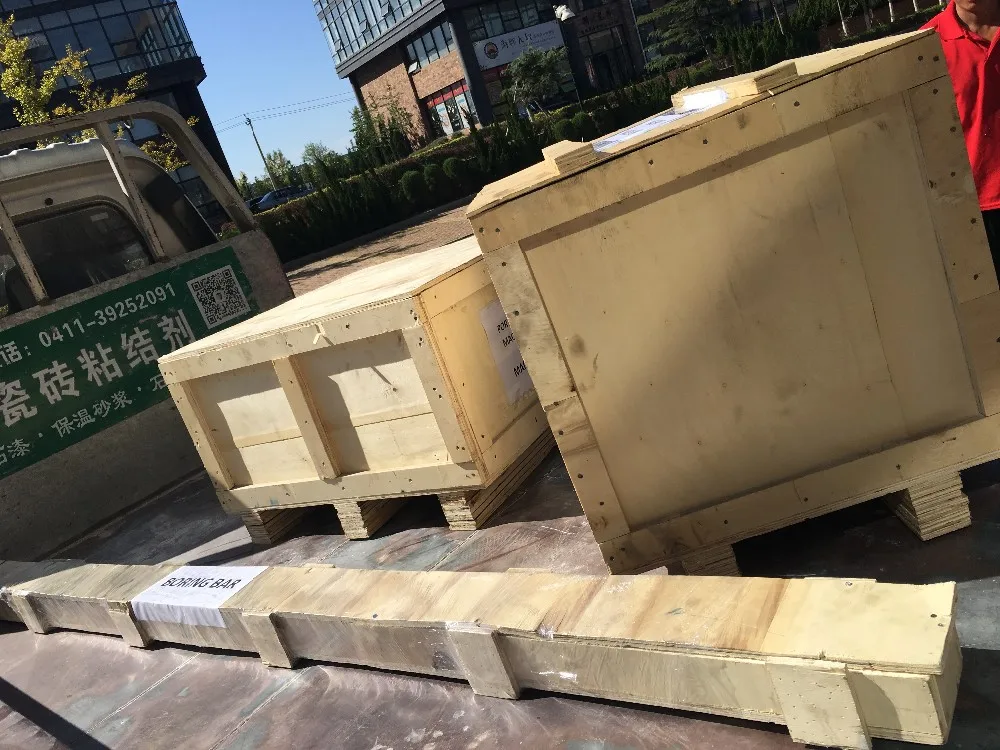

Packaging
Size
750 (L) * 770 (W) * 490 (H)
Weight
190KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
590(L) * 50 (W) * 640 (H)
Weight
50KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
