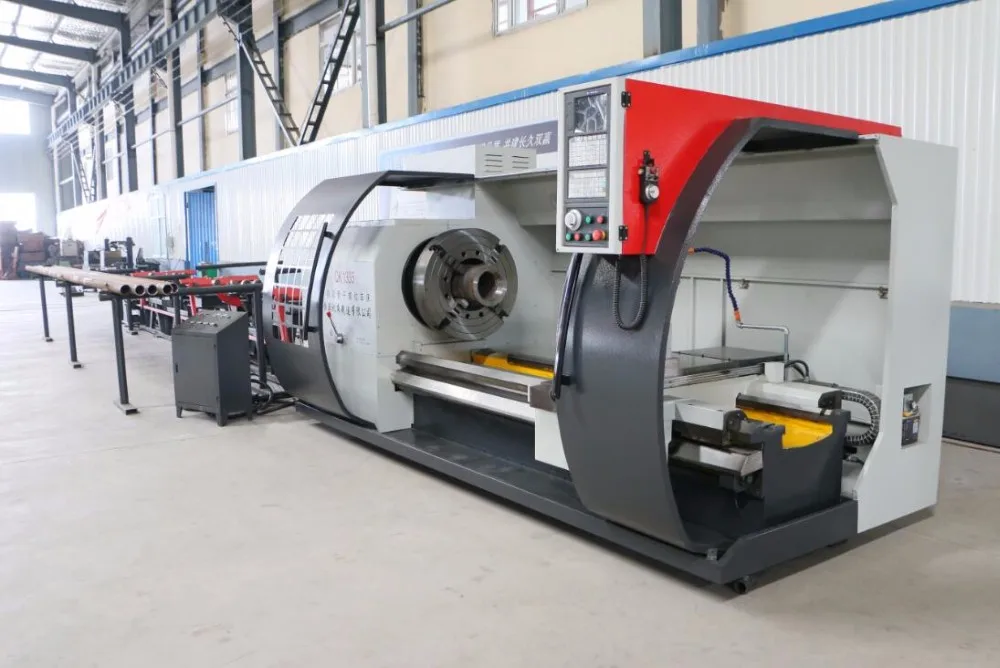

QK1335 Heavy Duty Large diameter CNC Pipe Threading Machine China Suppliers
-
1 - 1 Sets
US $87900.00
-
>=2 Sets
US $6970.00
- Model Number:
- QK1335
- Condition:
-
New
- Type:
-
Horizontal
- CNC or Not:
-
CNC
- Automatic Grade:
-
Automatic
- Place of Origin:
-
Liaoning, China (Mainland)
- Brand Name:
-
DMTC
- Voltage:
-
3 Phase 380V 50HZ
- Power(W):
-
22KW
- Dimension(L*W*H):
-
5000*2100*2100mm
- Weight:
-
12000kg, 12T
- Certification:
-
CE SGS
- After-sales Service Provided:
-
Online support, Engineers available to service machinery overseas
- Warranty:
-
1 Year, 12 Months
- Max. Swing Diameter:
-
1000mm
- Machine Type:
-
Pipe Threading Machine
- Spindle bore:
-
360mm

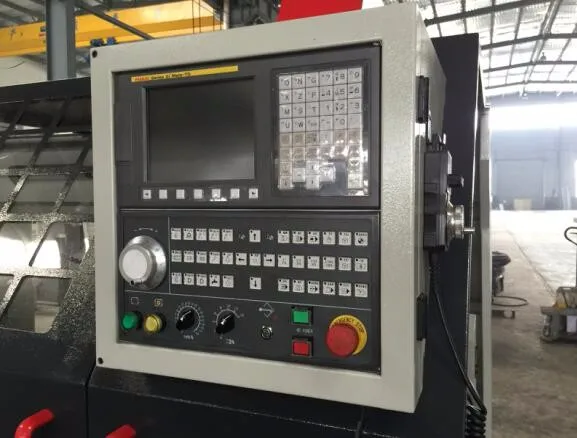

- Control system:
-
Fanuc system
- Width of bed:
-
755mm
- Motor power:
-
22kw
- Chuck:
-

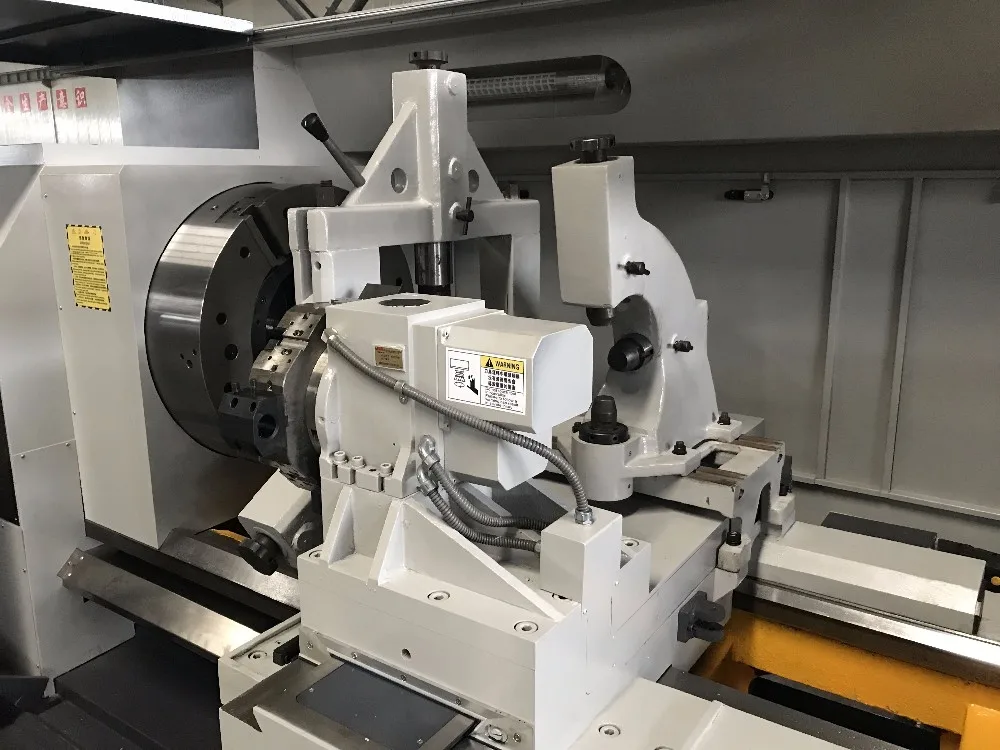

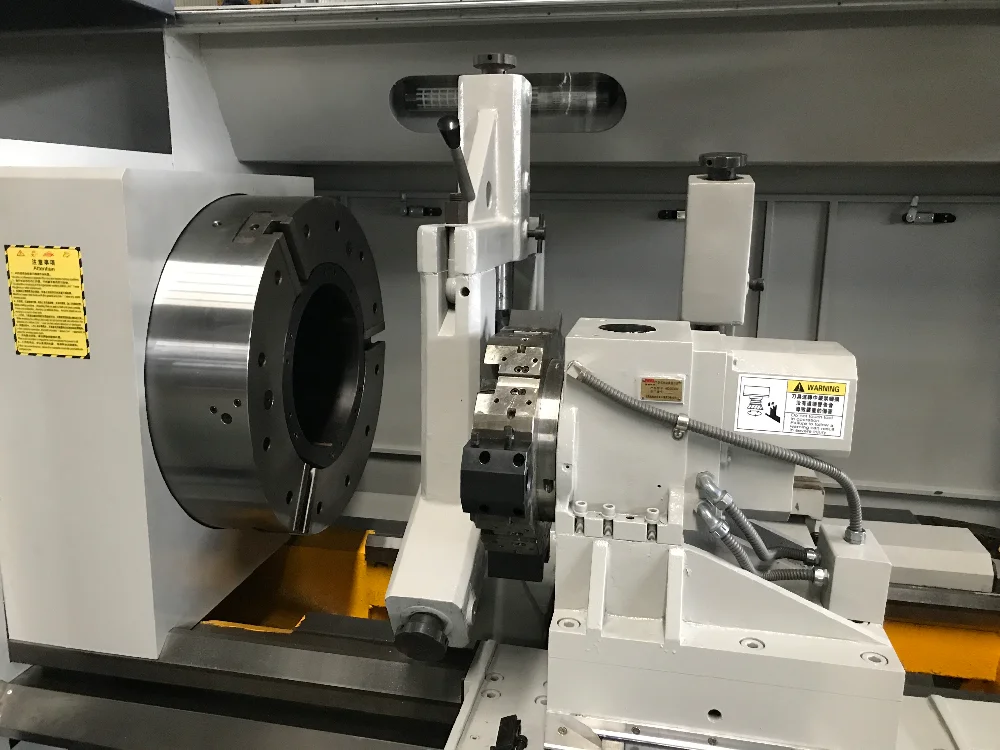

four jaw electric chuck
- Tool post:
-

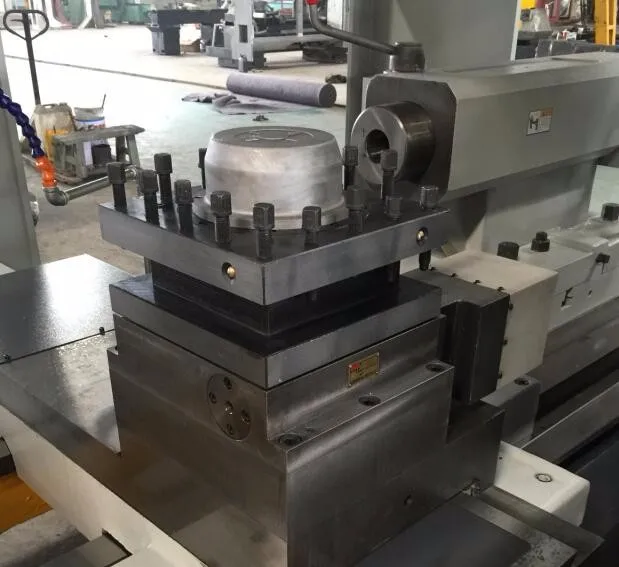

Vertical four-station
- Supply Ability:
- 30 Set/Sets per Month Pipe Threading Machine
- Packaging Details
- wooden case suitable for long time shipping
- Port
- DALIAN PORT
- Lead Time :
-
Quantity(Sets) 1 - 1 2 - 2 >2 Est. Time(day) 60 60 To be negotiated
Product Application
QK series pipe threading lathe is economical, practical, professional CNC pipe threading lathe coexist.Mainly used for processing, pipe thread turning metric and imperial cylindrical tapered pipe thread.In addition, the lathe a take on ordinary CNC lathe work, such as: turning circular cone, common thread, such as various types of shaft, disk type of artifacts.Apply to the oil sector, department of metallurgical, chemical department, etc.

Main Features
1) Large diameter, high rigidity spindle
2) Lathe rail surface after ultra-audio quenching, durable wear. Bed saddle guide with wear-resistant structure.
3) Bed width increases, greatly improving the rigidity of the lathe. Can carry out heavy-duty cutting of high-strength materials
4) Equipped with automatic lubrication system to facilitate maintenance
Item | QK1313 | QK1322 | QK1330 | QK1335 | QK1353 |
CNC System | Standard:GSK980TDC Optional: FANUC 0i Mate Td;FANUC 0i Td ; SIMENS 808D; KND K1000Ti | ||||
Max dia. swing over bed | 630mm | 670mm | 800mm | 1000mm | 1250mm |
Max dia. swing over cross slide | 340mm | 380mm | 480mm | 610mm | 900mm |
Width of bed | 550mm | 755mm | |||
Spindle bore | 135mm | 225mm | 305mm | 360mm | 540mm |
Power of spindle motor | 11kw | 15kw | 22kw | 28kw | |
Chuck | three jaw electric chuck | four jaw electric chuck | |||
Positioning accuracy | 0.020 | ||||
Repositioning accuracy | 0.01 | ||||
Overall dimensions(L*W*H) | 3657*1755*1880mm | 4600*2100*2100mm | 5000*2100*2100mm | 6500*2100*2100mm | |
Machine weight | 4T | 4.6T | 9.5T | 12T | 17T |
More parameters, please feel free to contact me.
