CKA6163A Flat Bed CNC Lathe with 4 Position Electric Turret

  • 1 - 2 Sets
    $15,462.00
  • >=3 Sets
    $14,265.00
Model Number:
CKA6150
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Automatic Grade:
Automatic
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC
Voltage:
380V50HZ
Dimension(L*W*H):
-
Certification:
ISO9001 CE BV
product type:
Flat Bed CNC Lathe
max work piece turning diameter over bed:
500mm
tool station:
vertical 4 or horizontal 6
Max swing diameter over knife rest:
280mm
Spindle bore diameter:
82mm
tool post repeat location accuracy:
0.008
time of changing tool:
2.4
sleeve diameter:
75mm
After-sales Service Provided:
Overseas service center available
Max. Swing Diameter:
630
Power(W):
7.5kw
Weight:
-
Supply Ability
Supply Ability:
40 Set/Sets per Month Flat Bed CNC Lathe
Packaging & Delivery
Packaging Details
Plastic cloth for the first layer, canvas for the second layer, and packing with wooden case at last, together with pallet on the bottom of wooden box.
Port
DALIAN
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Product Features

1. The machine is designed with horizontal type, good sealing and safety standards. The basic parts like bed and leg of the machine adopts resin sand casting, artificial aging dealing which ensure the good stability
2. The machine works in high precision and longtime service by international highfrequencyquench.
3. Through famous CNC system, the machine has nice function, high precision and reliability.
4. By finite-element analysis, the headstock has developed &reasonable structure and strong pertinence. The supporting spindle use bearing and has the features of fast speed, high rigidity, nice accuracy, steady movement and low noise.
5. By designing with the ergonomics, the operating box can be set in rotating style, which makes it easier to operate for worker.
6. The machine can be lubricated by the centralizing system under scheduled time and quantity.

item
unit
CKA6163
Max work piece turning diameter over bed
mm
Φ630
Max work piece turning diameter over knife rest
mm
Φ320
Max work piece length
mm
1000/ 1500/ 2000 /3000/4000/5000
Spindle center height
mm
315
Max. weight of workpiece (use chuck)
KG
1000kg
Main spindle nose type
-
C11
Main spindle through-hole diameter
mm
Φ100
Spindle speed range
r/min
7.5~1000
Spindle tapper
mm
C11
The spindle bore taper
mm
Φ120
Tailstock sleeve diameter
mm
Φ100
Tailstock sleeve travel
mm
240
Tailstock sleeve taper
-
Morse 6
Max toolpost travel of X axis
mm
320
Rapid speed of X axis
m/min
4
Rapid speed of Z axis
m/min
3.5~7.5
Positioning accuracy (X axis)
mm
0.018
Accuracy of the workpiece
-
IT6~IT7
Roughness of the workpiece
-
Ra1.6
Tool holder section
mm
32*25
Repeatability positioning accuracy of toolpost
mm
0.008
Tool changing time (Single-step)
s
2.9
Numerical control system
-
FANUC
Power type
-
380V±10%, 50Hz±2Hz
Coolant pump flow
L/min
25
Products Show

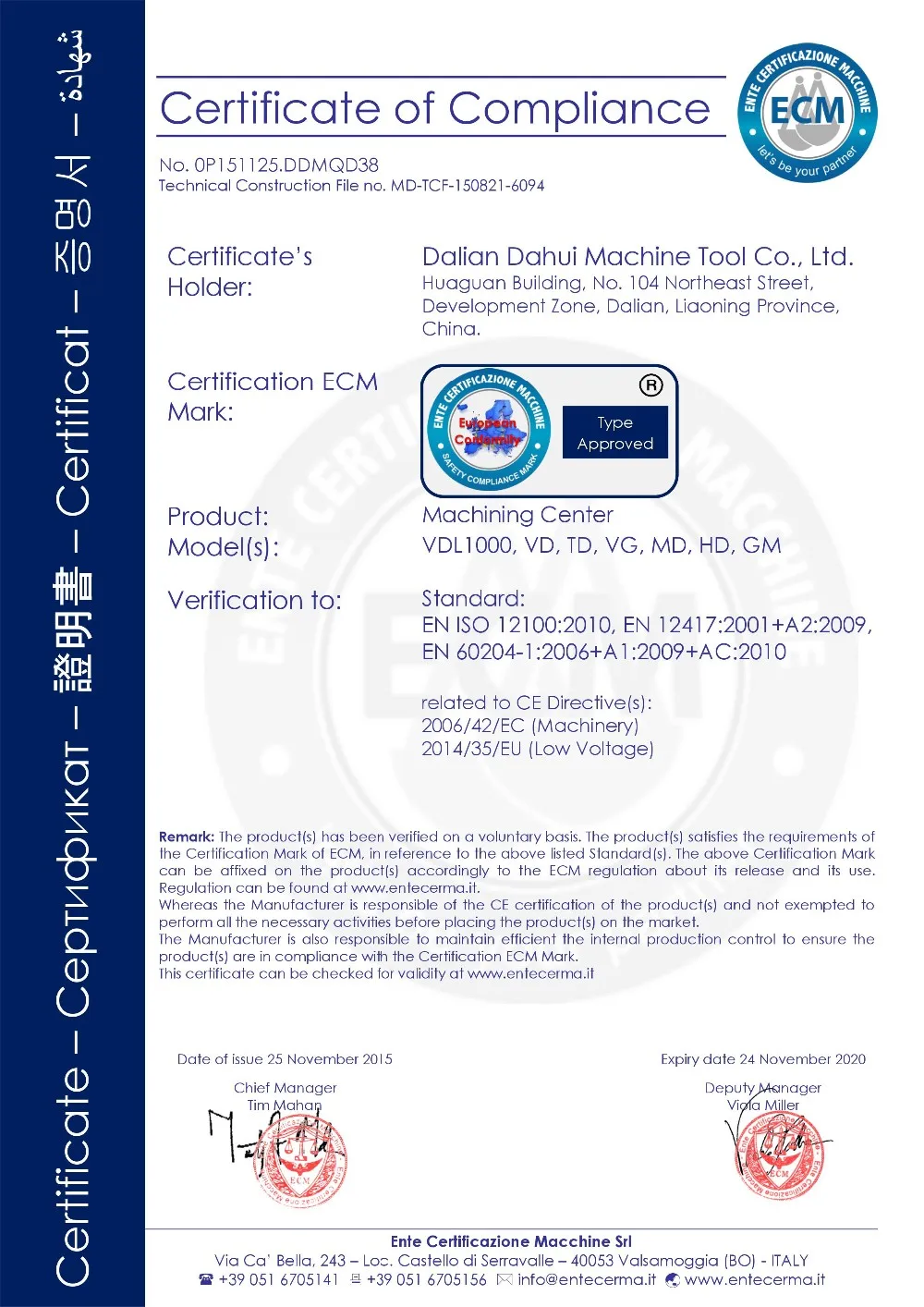

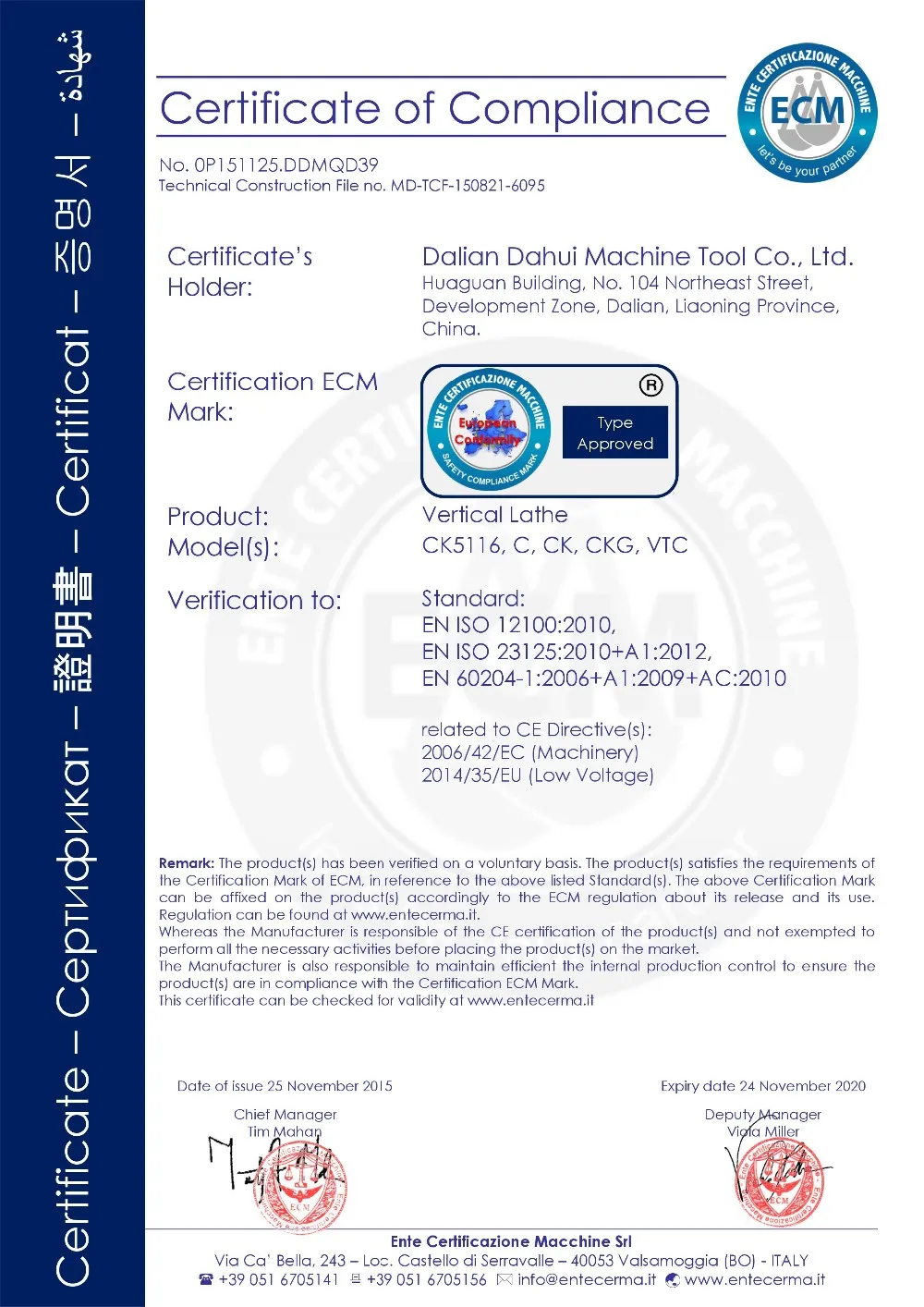

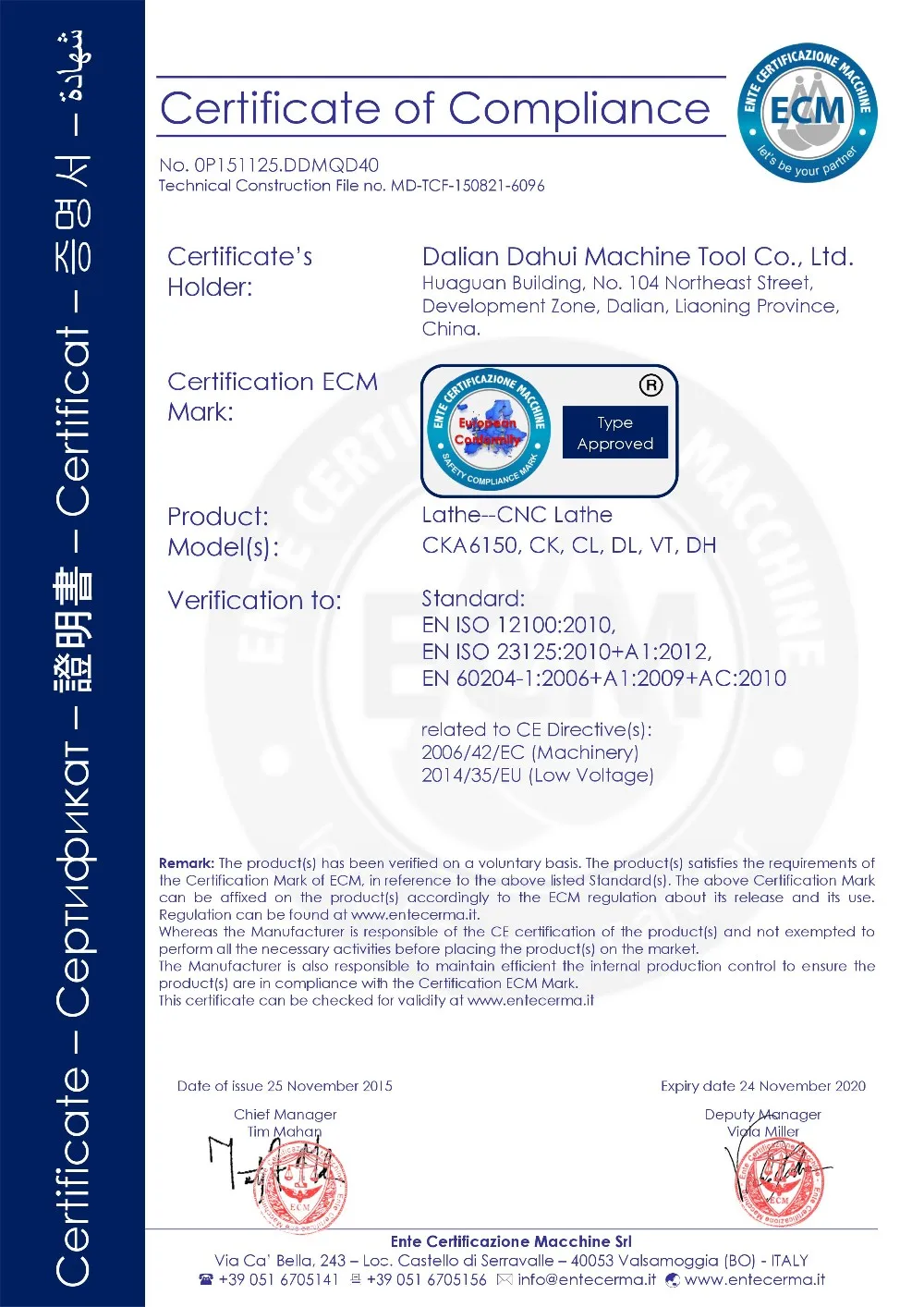

Our Certifications
Customer Visit
Machine Detailed

Packging:

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
