C5126 Large Worktable Single Column Manual Vertical Lathe Machine

FOB Reference Price:Get Latest Price
$56,000.00 - $59,200.00 / Sets | 1 Set/Sets Manual Vertical Lathe Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vertical
CNC or Not:
Normal
Automatic Grade:
Manual
Place of Origin:
Liaoning, China
Brand Name:
DMTC
Model Number:
C5126
Voltage:
380V,50HZ,3PH
Dimension(L*W*H):
3360mm*3010mm*3908mm
Certification:
ISO9001&CE
Product tpye:
Large Worktable Vertical Lathe
Workbench:
Hydrostatic guideway
Guide sliding surface:
Pastes plastic
C axis:
Can add accordng to your needs
Control system:
Fanuc, Simens and others
Technology documents:
English Version
Max. height of the workpiece:
1350mm
Weight:
19500kg
After-sales Service Provided:
Overseas service center available
Power(W):
18.5KW
Max. Swing Diameter:
mm
Supply Ability
Supply Ability:
40 Set/Sets per Month Manual Vertical Lathe Machine
Packaging & Delivery
Packaging Details
Suitable for long distance shipping.
Port
Dalian Port, China
Lead Time :
60 days after receiving 30% down payment
Product Description

Product Application

The machine is based on motors, valves, pumps, bearings, automotive and other industries need and design of professional products. This machine is suitable for high speed steel and alloy cutting tools, hardware for ferrous metal, nonferrous metal and some non-metallic parts inside and outside the cylinder, end, grooving of rough, finish machining, etc.

SPECIFICATIONS FOR C5126 SINGLE COLUMN VERTICAL LATHE MACHINE
Max. cutting diameter of the vertical slide
mm
2600
Max. Workbench diameter
mm
 2300
Max. weight of the workpiece
t
8
Max. height of the workpiece

mm
1350
Max cutting force vert. Tool
KN
22
Max. Torque
Kn.m
42
Workbench speed range

r/min
2.5-80
Speed step Series
step
16
Beam Travel
mm
1000

Machine Features:

1. Hydrostatic Worktable which helps running smoothly.
2. All of the keyparts are adopted with Schnedier parts.
3. Turning tool have two optional: 5 angle tool turret, square tool turret.
4. Heavy duty worktable base provide large capacity worktable.
Detailed Pictures
Detailed Images

Machine Parts

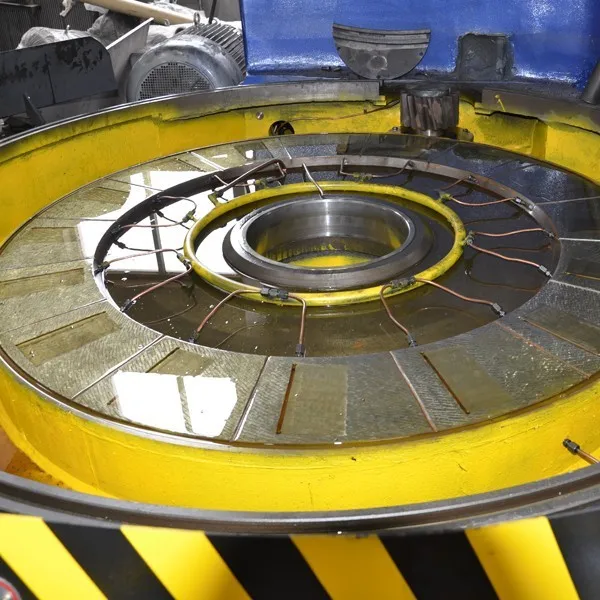

Name: Worktable

Original: Liao Ning, China

The workbench institutions composed of the workbench, the workbench base, spindle unit. Workbench with began, stop, inching and variable speed function. The workbench to withstand vertical load. Machine tool under the condition of environment temperature 0 - 40 degrees can work normally.

Machine Parts

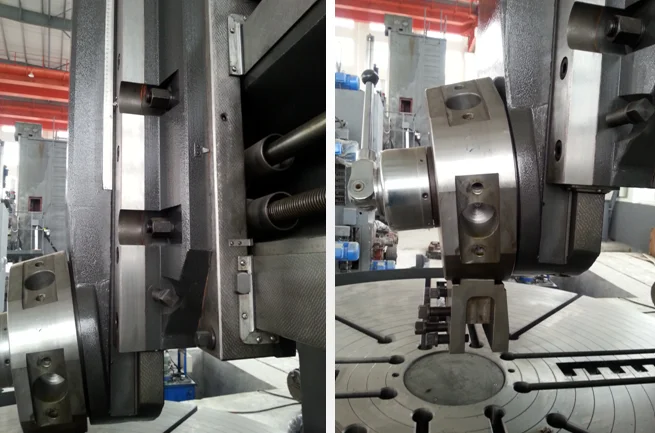

Name: Beam
Original: Liao Ning, Dalian
Beam in front of columns, make the beams on the columns for vertical movement, have lifting box in the upper portion of the columns, driven by AC motor, by worm pair and screw making beams along the column guide rail for lifting. The big adopt high strength, low stress cast iron HT250 material, after aging treatment, eliminating stress to ensure the accuracy of machine tools, have enough resistance to stress and rigidity.

Machine Parts

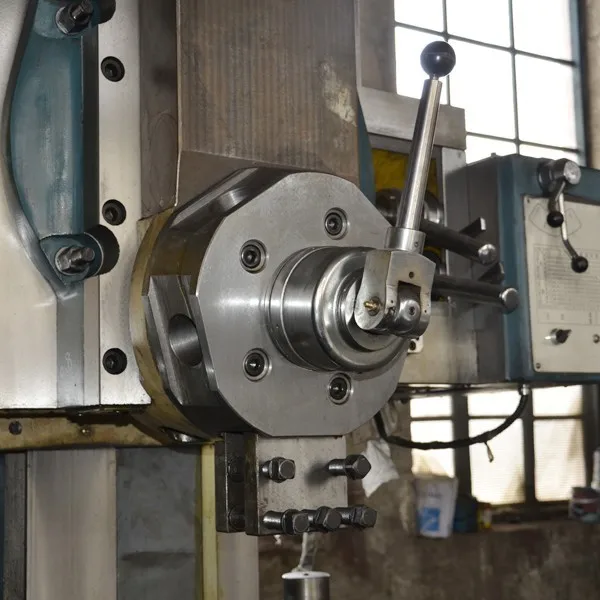

Name: Five Angle Turret
Original: Liao Ning, China
Vertical Tool Rest composed of beam slide, rotary seat, square RAM and hydraulic mechanism. Adopt T-Type RAM, material for HT250, after tempering treatment, guide rail surface hardening treatment, after rough machining and fine grinding with high precision guide rail grinding machine, with high accuracy, good stability, deformation characteristics, precision ram pressure plate adopts closed clamp, increase the stability of its structure, RAM are quick function, mobile head ram with hydraulic balance device, to balance the slippery pillow part weight, make the ram to the smooth movement.

Machine Parts

Name: Square ram tool post
Original:Liao Ning, China
Other than FIVE ANGLE TUREET, we can also provide Square Ram Tool Rest, which suitable for deep hole.

Our Service

Customer visits

* Russian, Saudi Arabia, Middle-Asia customers visits.
* Sample testing support for free.
* Placing order on site will get big discounts.

Business Card

* 24x7 all day service.
* Good pre and after sale-service all the time.
* Your professional consultant in Metal Working Machine.

Packing & Contact us
Packaging
Size(mm)
3360*3010*3908mm
Weight
20T



Packaging Details
The normal package is wooden box(Size: 3360*3010*3908mm). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
