VDL1000 Long Life Vertical CNC Machining Center From Dalian

FOB Reference Price:Get Latest Price
$50,000.00 - $70,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vertical
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC
Model Number:
VDL1000
Voltage:
380V
Power(W):
11/15kw
Dimension(L*W*H):
2800mm*2651mm*2650mm
Weight:
7000kg
Certification:
ISO9001 CE
Machine Type:
Vertical Machining Center
Worktable size (L*W):
1150*560 mm
Max weight capacity of worktable:
750 kg
X travel:
1040 mm
Y travel:
580 mm
Z travel:
620 mm
Spindle taper:
No.40 (7:24 )
The spindle speed range:
45-8000r/min
Max tool weight:
8kg
Machine weight:
7000kg
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
20 Set/Sets per Month For your reference
Packaging & Delivery
Packaging Details
Suitable for long distance shipping.
Port
Dalian Port, China
Lead Time :
60 days after receiving 30% down payment
Product Description

Product Application

VDL1000 vertical machining center is a new generation of CNC machine tools produced by DRC Machinery. The machine is unique and stable and rigid structure. Through the repeated simulation and calculation of engineering mechanics, To achieve a rigid multiplier and streamlined engineering needs. Fully hardened mobile slide, with precision grinding processing, the combination of a satisfactory quality of precision. Not only for plate, disk, shell, precision parts of the processing, but also for mold processing.

SPECIFICATIONS FOR VDL1000
Workable size
mm
1120x560
Max loading capacity
kg
750
X/Y/Z axis travel
mm
1040/560/620
The spindle center line to the front of the column distance
mm
629
The spindle end to the table on the plane distance
mm
125-745
X, Y, Z Cutting speed
mm/min
0-10000
X, Y, Z Rapid traverse rate
m/min
24/24/18
The spindle speed range
r/min
8000
Max tool weight
kg
8
The knife capacity
kg
20 or 24
Machine size
mm
2800x2651x2650
Machine weight
kg
7000

Main Features

1. Highly rigid and stable machine structure
2. High precision slideways on all three-axis
3. High speed, high precision spindle
4. Fast and reliable tool changing mechanism
5. Cooling system
6. Multi-functional CNC control system

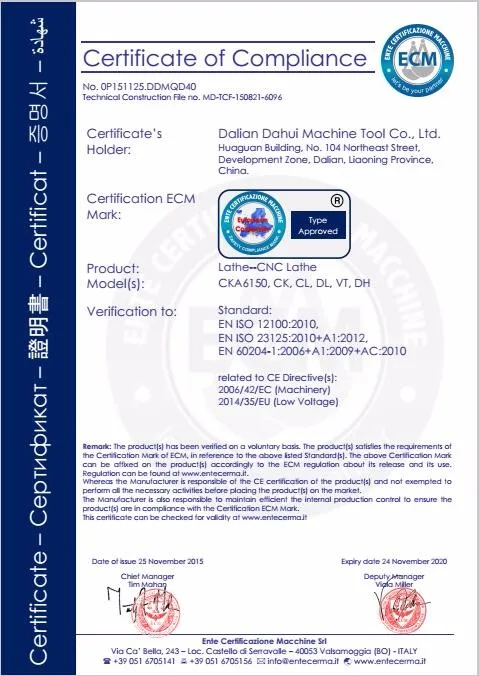

Certifications
Detailed Images

Machine Bed

Machine bed is made of high-strength cast iron, casting structure through the machine dynamics analysis and finite element analysis

Spindle

High-speed, high-precision spindle: through the high torque synchronous toothed belt drive, do not slip, and can significantly reduce the transmission noise and heat generated.

Guide

X, Y, Z axis feed are imported plastic hard rail structure, with high-precision ball screw, the ball screw after stretching, greatly increasing the transmission stiffness .

Workable Bench

The machine tool table is made of high strength cast iron, and the casting structure is subjected to machine tool dynamic analysis and finite element analysis, with reasonable reinforcement.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

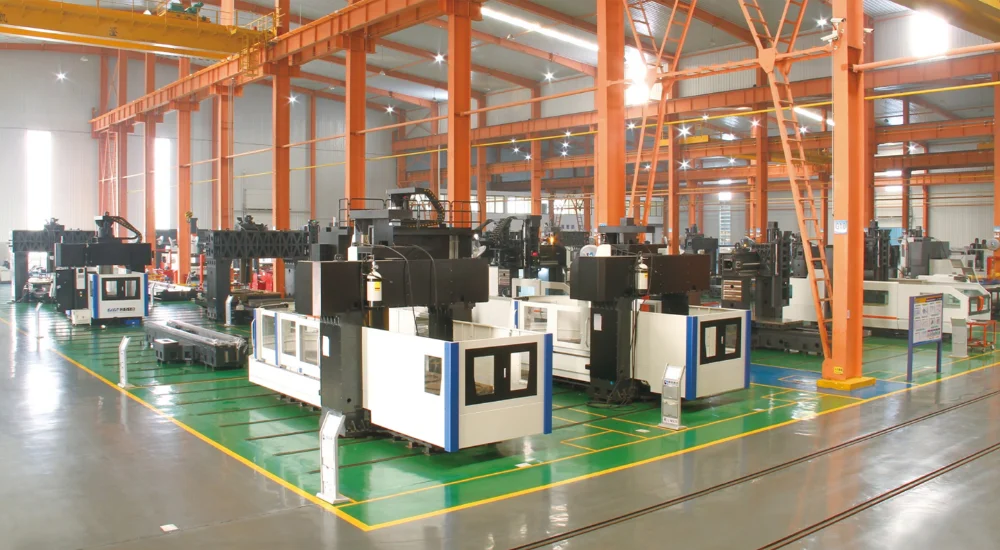

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

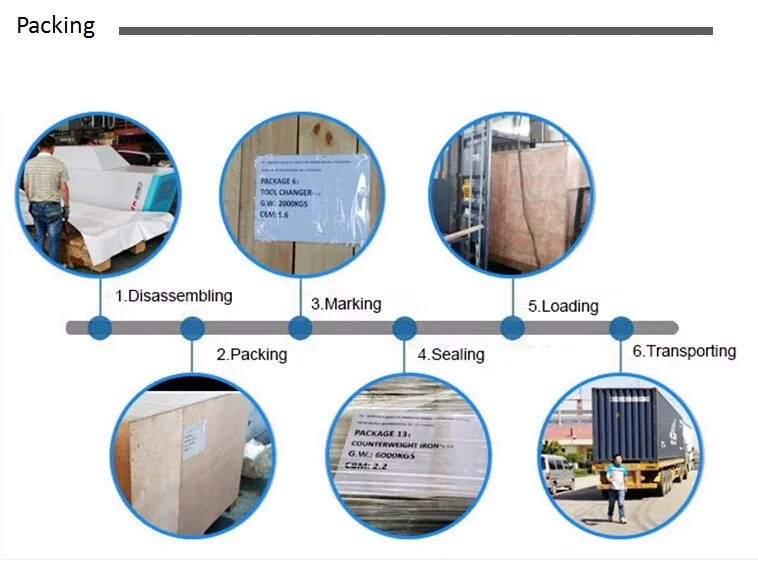

Packing & Delivery
