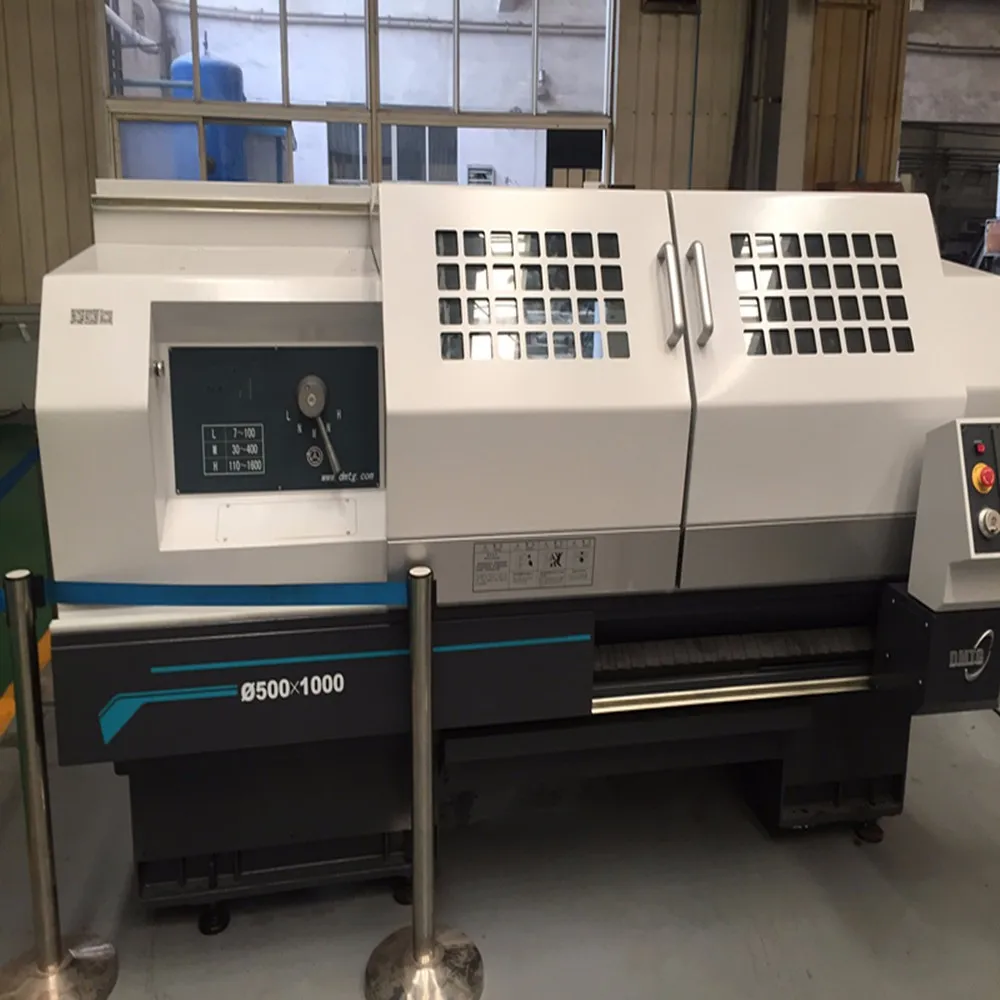

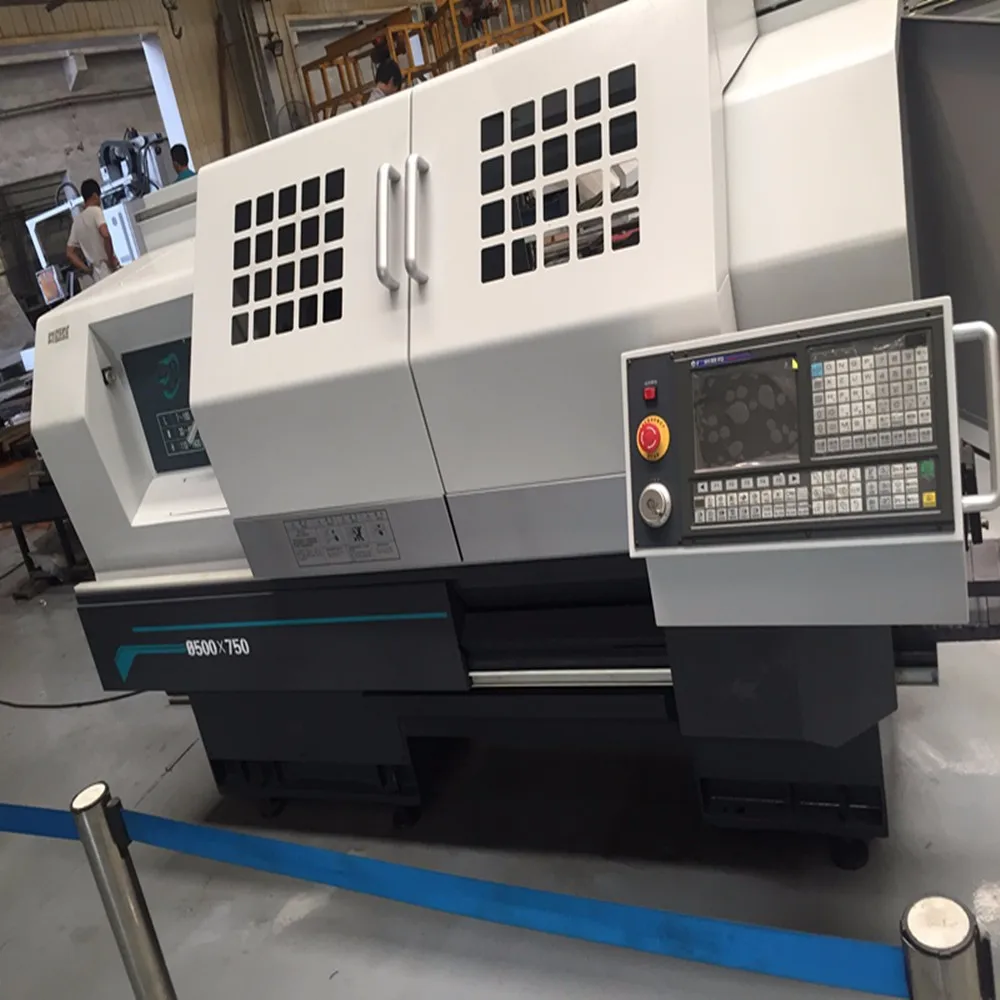

CKA6150i China Cheap CNC Lathe Machine for sale

FOB Reference Price:Get Latest Price
$15,250.00 - $18,160.00 / Sets | 1 Set/Sets (Min. Order)
Max. Swing Diameter (mm):
500mm
Spindle bore:
82mm
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Max. Spindle Speed (r.p.m):
30-3000
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Automatic Grade:
Automatic
Year:
2017
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC
Model Number:
CKA6150i
Voltage:
380V, 50HZ, 3PH
Power(W):
9.5kw
Dimension(L*W*H):
2830*1750*1620mm
Weight:
2600kg
Certification:
CE Certificate
After-sales Service Provided:
Online support, Video technical support
Warranty:
1 Year
Max. Swing Diameter:
500mm
Machine Type:
Horizontal CNC Lathe Machine
Function:
Maching cylindrical, conical surface
Max. swing over bed:
500mm
Max. length of work piece:
1000mm
Spindle bore diameter:
82mm
CNC System and sevo motor:
Fanuc and so on
Main motor power:
9.5kw
Spindle speed range:
30~3000r/min
The width of the guideway:
400mm
Tailstock sleeve diameter:
75mm
Supply Ability
Supply Ability:
30 Set/Sets per Month For your reference
Packaging & Delivery
Packaging Details
Suitable for long distance shipping.
Port
Dalian Port, China
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 90 To be negotiated
Product Description

Product Application

The machine for the vertical (Z), horizontal (X) two coordinates control CNC horizontal lathe.

It can finish machining of inner and outer cylindrical surface, conical surface, circular surface, end face, slotting and chamfering of various shafts and disc parts, and can cut metric straight thread, end thread and inch straight thread and Taper thread and other turning.

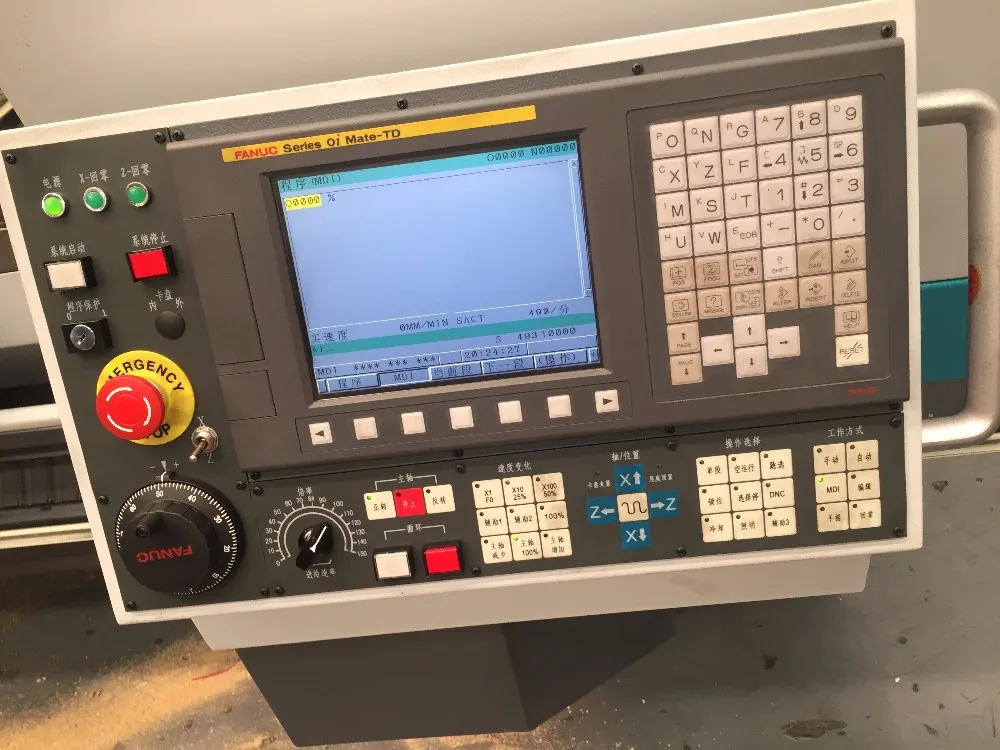

CKA6150i use FANUC, Siemens, Guangzhou NC, Central China Star and other well-known domestic and foreign companies CNC system, the workpiece can be repeated repeated cycle processing.

Suitable for multi-species, small and medium-volume production of products, complex, high-precision parts can show superiority.

INDEX
UNIT
CKA6150i
Max work piece turning diameter over bed
mm
Φ500
Max work piece turning diameter over knife rest
mm
Φ280
Max work piece length
mm
750/1000
Max machining length
mm
680/930
Spindle center height
(distance from machine bed guide way)
mm
250
The width of the guideway
mm
400
The max weight of workpiece
kg
400
Main motor power
kw
9.5
Main spindle through-hole diameter
mm
Φ82
The spindle front bearing inner dia.
mm
Φ130
Spindle speed range
r/min
30~3000
Main spindle nose type

A2-8
Tailstock sleeve diameter
mm
Φ75
Tailstock sleeve travel Manual

mm
150
Tailstock sleeve taper

Morse 5
X axis max toolpost travel
mm
280
Z axis max toolpost travel
mm
685/935
X axis screw pitch*diameter
mm
Φ20*4
Z axis screw pitch*diameter
mm
Φ40*6
X axis cutting force
N
2500
Z axis cutting force
N
5000
Horizontal rapid feed
mm/min
4000
Vertical rapid feed
mm/min
8000
Horizontal Maximum cutting speed
Mm/min
2000
Vertical Maximum cutting speed
Mm/min
4000
Positioning accuracy (X axis)
mm
X: 0.018
Positioning accuracy (Z axis)
mm
Z: 0.021/0.024
Repeatability positioning accuracy (X axis)
mm
0.006
Repeatability positioning accuracy (Z axis)
mm
0.008/0.011
Processing accuracy of the workpiece

IT6~IT7
Roughness of the workpiece surface

Ra1.6
Water tank volume
L
35
Motor power of the coolant pump
W
200
Coolant pump flow
L/min
25

Main Features

1) Bed with resin sand casting, artificial aging treatment, therefore, have good rigidity and shock absorption, can ensure high precision machining

2) The appearance of the machine protection design in accordance with international trends, unique modeling, waterproof, anti-chip, easy maintenance; reflects the characteristics of the times.

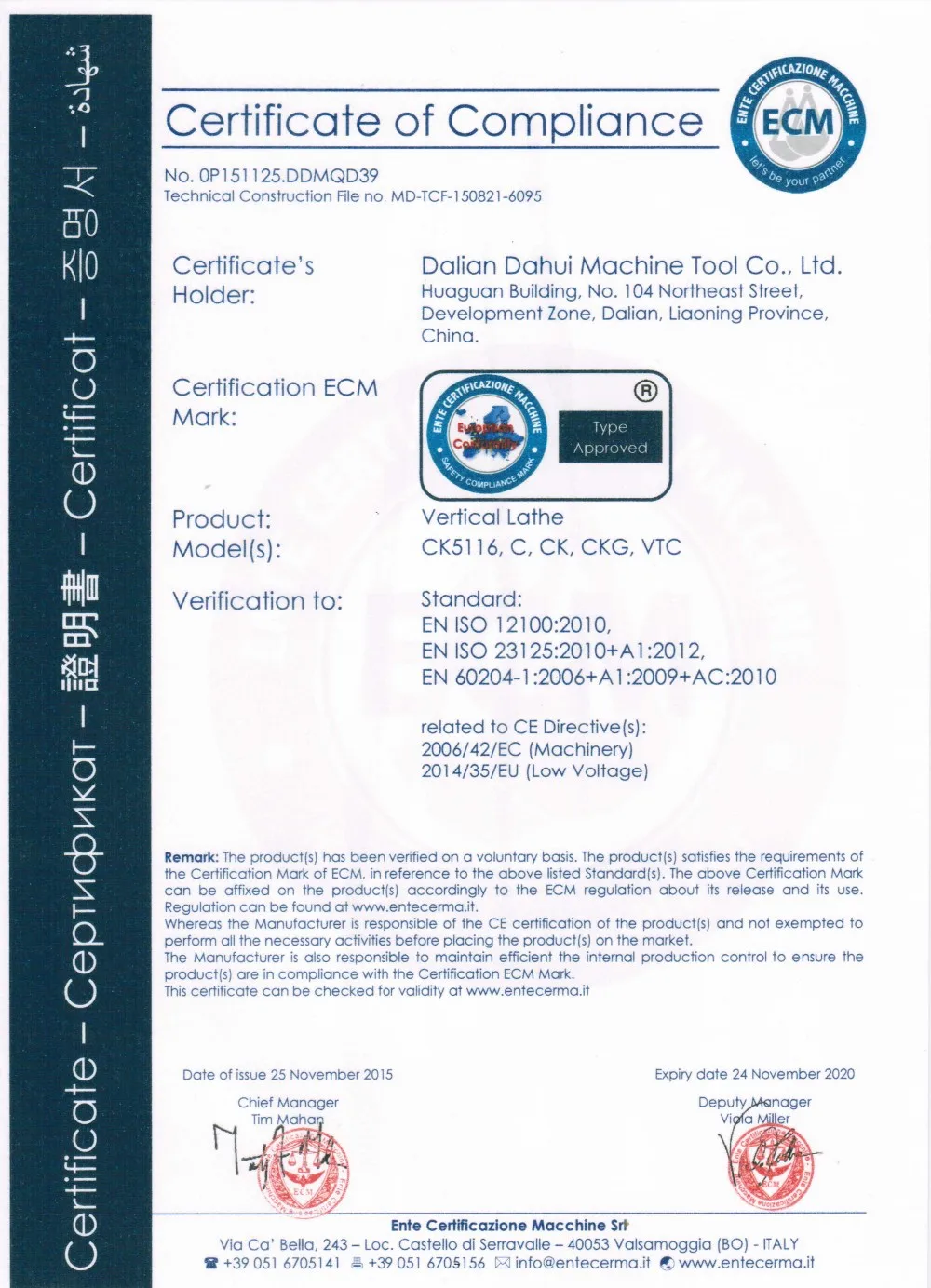

Certifications
EXPORTED MACHINE

EXPORTED TO BOLIVIA IN 2017

Name: CKA6136i--750MM

Brand: DMTC

Original: China


EXPORTED TO MEXICO

Name: CKA6150
Brand: DMTC
Original: CHINA

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Contact us

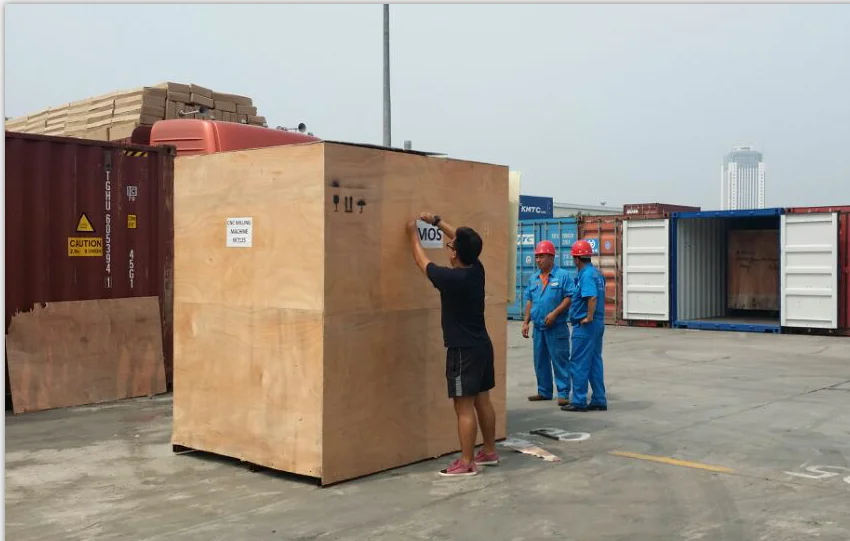

Packaging
Size
3010(L) * 1910 (W) * 2180(D)
Weight
3.1T

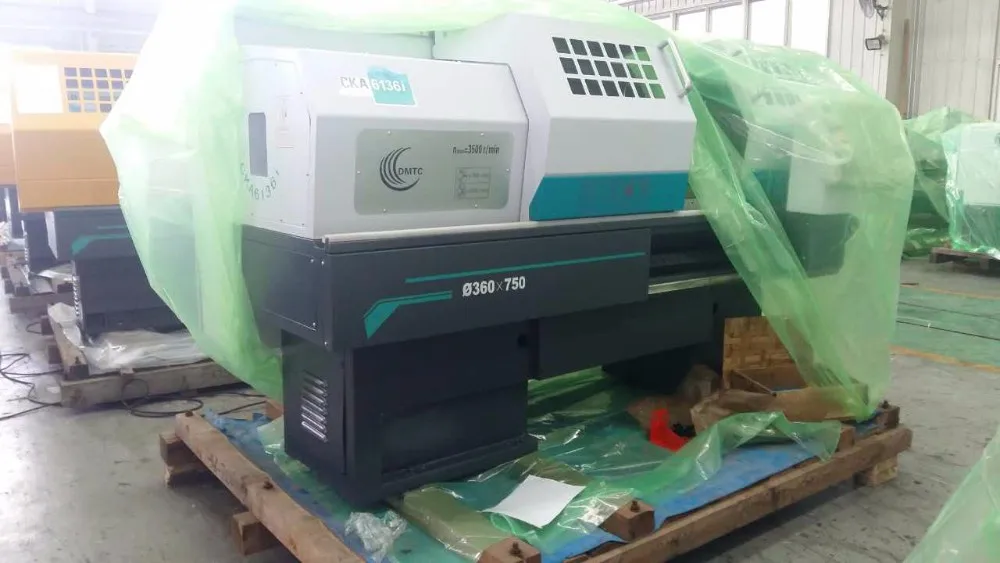

Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
