VDL1400A High Precision Vertical Machining Center On Sale

FOB Reference Price:Get Latest Price
$50,000.00 - $52,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
VDL1400A
Condition:
New
Type:
Vertical
Place of Origin:
Liaoning, China
Brand Name:
DMTC
Voltage:
Customer's Requirement
Dimension(L*W*H):
3590x2700x2903mm
Certification:
ISO9001
Machine Type:
CNC Vertical Machining Center
Worktable Size:
1450x620mm
Max Loading Capacity:
1200kg
X Axis Travel:
1420mm
Y Axis Travel:
620mm
Z Axis Travel:
685mm
Spindle taper:
No.50
Machine Weight:
8700kg
Spindle speed range:
25-6000r/min
Overall Dimensions:
3590x2700x2903mm
Weight:
8700kg
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Power(W):
11/15kw
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Suitable for long distance shipping.
Port
Dalian Port
Lead Time :
60days after receiving 30% down payment
Product Description

Product Application

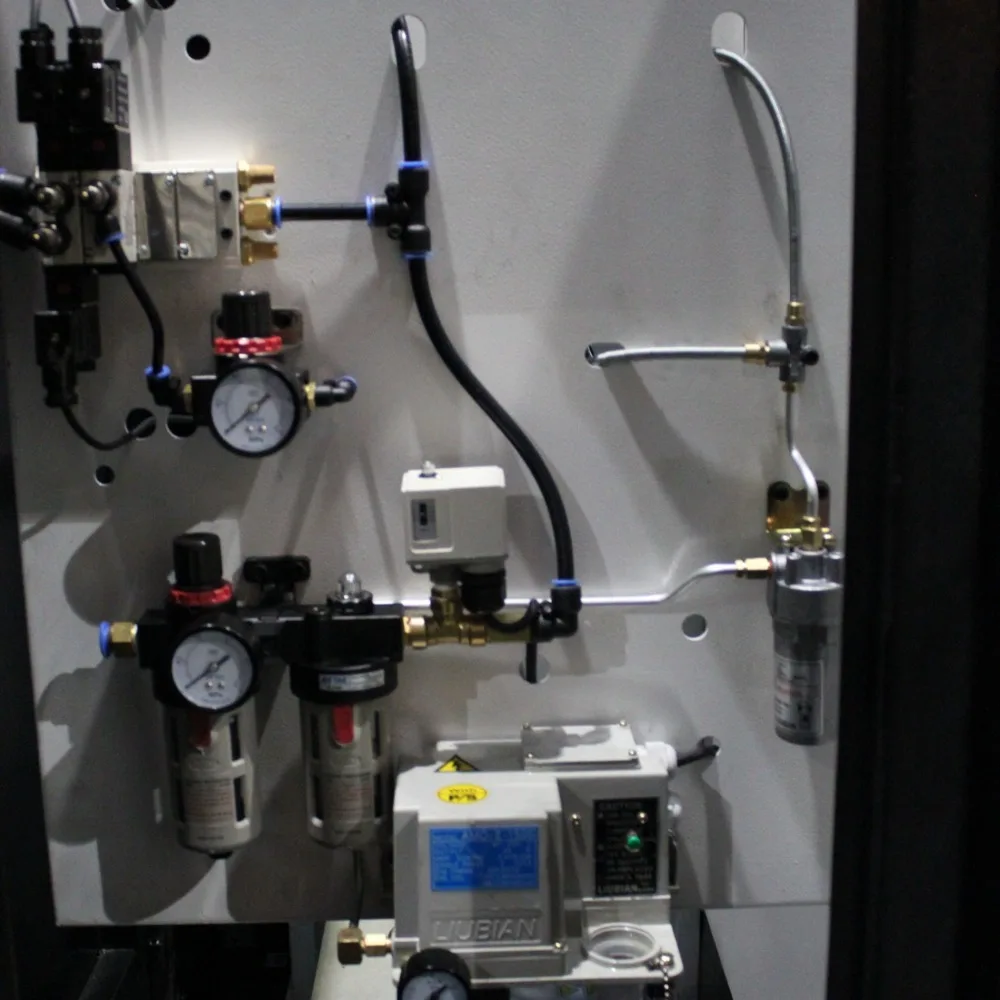

VDL – 1400A vertical machining center is a new generation of cnc machine tool, the machine tool's unique linear rolling guide vice (X, Y) and deputy quenching hardened rail pasting model of guide rail (the Z axis) design, not only applies to the plate, plate, shell, precision parts processing, and is suitable for mould processing.Machine tool with ATC switching device, the entire cover, automatic lubrication system, cooling liquid spray system, automatic chip removal device, manual spray gun and portable manual device (MPG).Parts can be finished after a clamping milling, boring, drilling, expansion, reaming, tapping process, with a high degree of automation, reliability, simple operation, convenient, pleasant, overall modelling elegant appearance, high mechanical and electrical integration
SPECIFICATIONS FOR VDL1400A
Worktable specification
mm
1450x620
Max weight capacity of worktable
kg
1200
X/Y/Z axis travel
mm
1420/620/685
X/Y/Z cutting speed
mm/min
0-10000
Spindle taper
--

No.50
Spindle turn speed range
r/min
25-6000
Spindle power
kw
7.5/11
Tool holder
--

BT50
Detailed Pictures


Worktable

Machine table high strength cast iron casting, casting structure after machine tool dynamics analysis and finite element analysis, tie-in and reasonable reinforcement, in the cross slide under the condition of full load support to ensure that the process of heavy load capacity. Ensure the basis a high rigidity.


Spindle

High speed, high precision spindle: through high torque synchronous toothed belt drive, don't slip, and can greatly reduce heat transmission noise and produced. Main shaft adopts precision level Angle ball bearing, the standard speed of up to 6000 r/min.

Ball Screw.

Machine tool of X, Y, Z three coordinates screw all adopt the high precision ball screw pair, USES the lead screw bearing, two fixed way, after the first 3 and for double nut and tighten, so as to strengthen the rigidity, more stable precision.Ball screw after to stretch, greatly increases the transmission stiffness and eliminating the fast movement during hot deformation, and three axis are made pitch compensation dual-frequency laser interferometer, and ensure the positioning precision of the machine tool and repeat positioning accuracy.

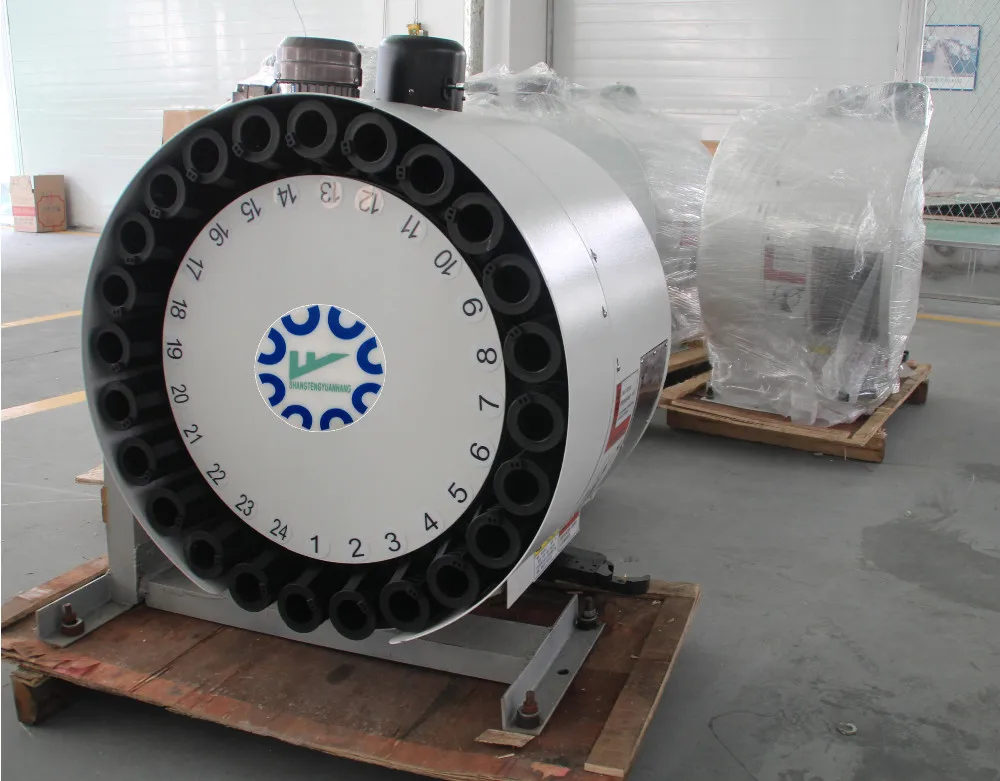

Tool Magazine

Tool changer with rapid change knife manipulator library choose library (24) the cutting tool, the knife dish nearby choose knife, tool change for pneumatic and electric control, no pollution, easy to maintain, tool exchange fast and reliable.


Our Service

Customer Visits

* Russian, Saudi Arabia, Middle-Asia customers visits.
* Sample testing support for free.
* Placing order on site will get big discounts.

Business Card

* 24x7 all day service.
* Good pre and after sale-service all the time.
* Your professional consultant in Metal Working Machinery.
Packing & Delivery

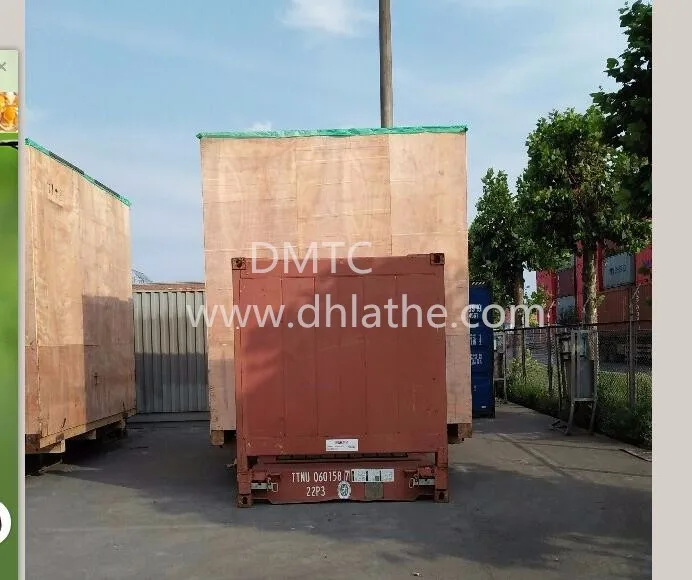

Packaging
Size
3400(L)*2505(W)*2394(H)
Weight
5.3T



Packaging Details
The normal package is wooden box(Size: 3400x2505x2394mm). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
