TPX6111B High Precision Horizontal Boring Machine on Sale

FOB Reference Price:Get Latest Price
$49,231.00 - $50,660.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
TPX6111B
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 100 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
Normal
Production Capacity:
10 Sets / Month
Place of Origin:
Liaoning, China
Brand Name:
DMTC
Voltage:
380V/50Hz/3Ph
Dimension(L*W*H):
4910*2454*2950mm
Weight:
11500kg
Certification:
CE, ISO9001
After-sales Service Provided:
Field maintenance and repair service
Warranty:
1 Year
Spindle diameter:
110mm
Spindle taper:
MORSE NO.6
Max spindle torque:
1225Nm
Max. axial force of spindle:
12250N
Spindle speed series:
22
Main motor power:
7.5kw
Facing head speed range:
4-200r/min
Max worktable load:
5000kg
XYZ travel:
900/900/1400mm
Worktable travel:
1000x900mm
Power(W):
7.5KW
Supply Ability
Supply Ability:
20 Set/Sets per Month For your reference
Packaging & Delivery
Packaging Details
Suitable for long distance shipping.
Port
Tianjin/Dalian port, China
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 100 To be negotiated
Product Description

Product Application

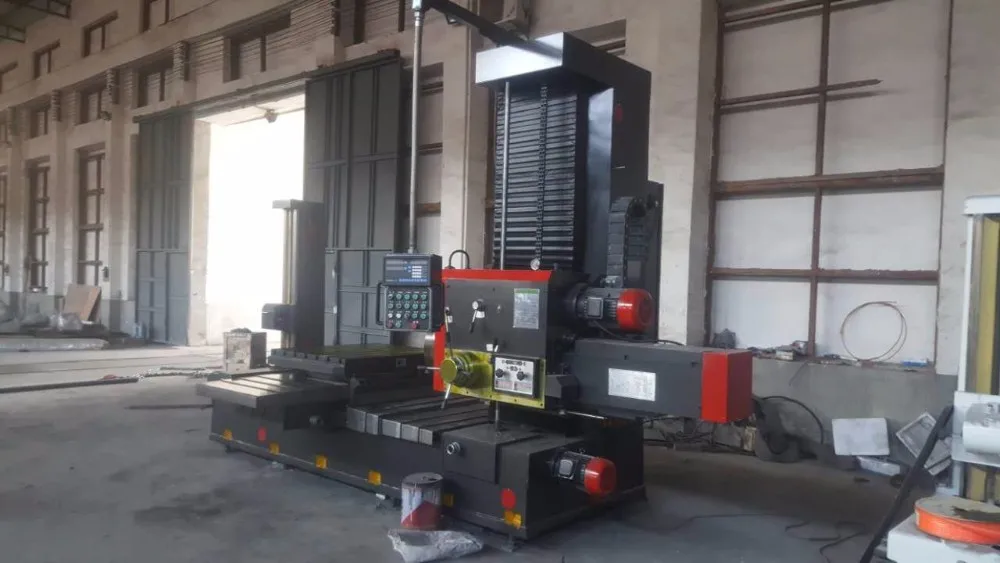

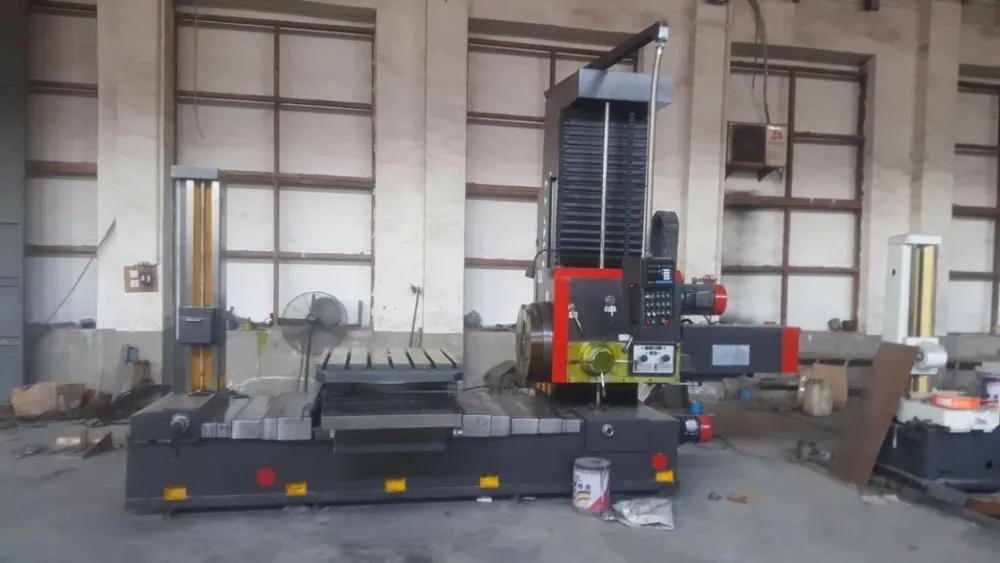

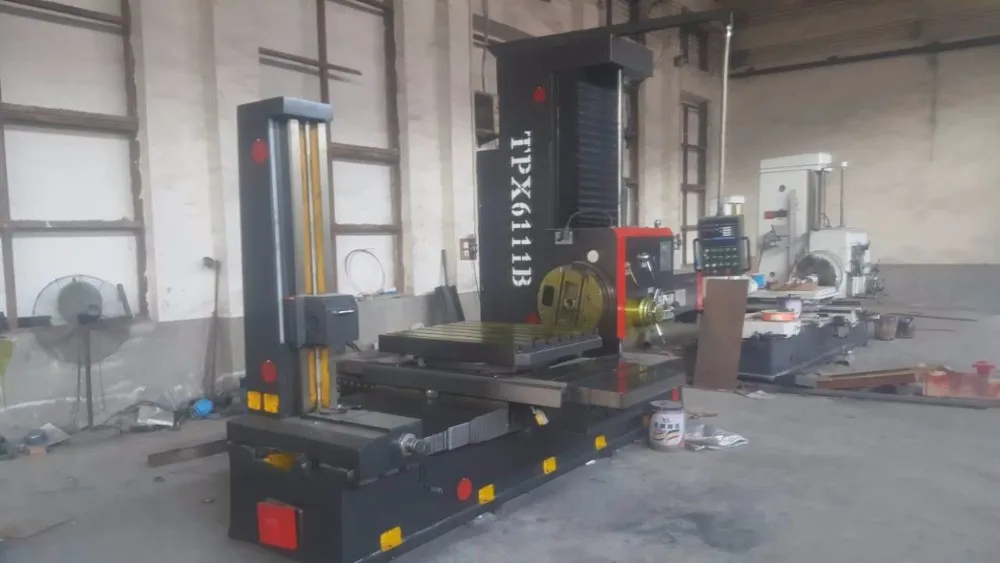

TPX series of Horizontal Boring Machine in the basis of the traditional boring to optimize the design, machine tool can be widely used in the Box Body, Shell, Engine Base... large parts processing Drilling, Boring , Broaching, Reaming, Spot-facing, Milling flat, Turning thread cutting , etc. Especially suitable for large medium-sized of box parts and rough boring, Finished boring, milling and other machining process.

ITEM
UNIT
TPX6111B
Spindle diameter
mm
Φ110
Spindle taper

MORSE NO.6
Max spindle torque
Nm
1225
Max. axial force of spindle
N
12250
Spindle speed series

22
Spindle speed range
r/min
8-1000
Main motor power
KW
7.5
Max torque for facing head
Nm
1960
Facing head diameter
mm
Φ600
Facing head speed range
r/min
4-200
Facing head speed series

18
Worktable size
mm
1100*960
Max worktable load
kg
5000
T slot size
mm
22
T slot quantity

7
X Axis Travel
mm
900
Y Axis Travel
mm
900
Z Axis Travel
mm
1400
W Axis Travel ( Spindle travel )
mm
600
B Axis rotation angle
°
360
Quick speed
mm/min
X/Y/Z/W : 2500
Machine Size
mm
4910*2454*2750
Machine weight
kg
11500
Voltage

3 Phase 380V 50HZ
Accuracy of DRO
mm
0.005

Main Features

1) Casting material more than HT250, guide rails after high frequency quenching hardness 45 to 50 degrees;

2) X, Y, and coordinates with homemade grating digital display measuring device, high resolution, to 0.005 mm;

3)  Lathe bed and guide slide block adopts fully enclosed stainless steel protection plate, protect the guide rail, pleasant appearance.

4)  Main parts of lathe bed, column, spindle are wear-resisting measures were taken, improve the service life;

5)  All moving parts clamping adopts hydraulic - diamond subdivision strengthening mechanism, clamping force, clamping and reliable;

6) Table 4 x 90 degrees by optical sight, high positioning accuracy;

7) Spindle box lifting, worktable cross, horizontal movement and rotary movement distribution and clamping use Button station centralized control, interlock and time saving, energy saving, convenient and reliable operation;

8) Spindle speed, feed adopts hydraulic pre-selection, Easy operation, energy saving, high efficiency; To improve the degree of automation;

9) Spindle for three layers of structure, good rigidity, stable cutting performance, wide speed range;

10)Machine tool have high rigidity, to improve the machining accuracy is extremely beneficial.

Main structure

This series the machine has the following advantages:

1) Machine tools for general layout is single column, Side bin, Fixed Facing Head. Worktable on the Machine bed guideway make longitudinal & crosswise movement, can archive 360°rotary movement. The casting structure has good rigidity

2) Spindle support by three points, realize the spindle rigidity good & accuracy stable good.

3) Machine tools main drive system consists of a single speed of 7.5 kw AC motor drive, through the hydraulic primary four variable speed rotary valve control cylinder , promote four groups of sliding gears and achieve 8-1000r/min, 22 step.

4) Spindle up and down movement, worktable Longitudinal & Crosswise movement controlled by Electromagnetic clutch, Clamping loosen the hydraulic control, After clamping with mechanical self-locking Clamping reliably , reduce the operator labor intensity , improves the automation of machine tools.

5) The clamping of spindle up and down movement, worktable Longitudinal & Crosswise movement and worktable rotary movement adopt LingXingKuai clamping mechanism, safe and reliable automatic control.

6) Worktable 4×90°rotary positioning, By optical target , high positioning accuracy Ensure that there is a higher switching boring accuracy.

7)Bedway slide rail adopts fully enclosed stainless steel board protection , prolongthe service life of guide rail.

8) The spindle box of internal gear and bearing lubrication oil pump from the tail box' gear pump.

9) The moving parts of the machine have an electric - liquid interlock relationship, only one moving part is allowed to move, while other parts are automatically clamped.

10) Machine tool electrical control adopts PLC programmable controller , reliable in performance.

11) Central lubrication is used in the upper, sliding seat, inside of the rotary table and in all the guides (excluding the rear column), which is provided by the quantitative lubricating pump installed behind the sliding seat.

12 ) Spindle taper ISO50 7:24 (Optional Accessory) with automatic loading and unloading knife device not only shortens the auxiliary time of loading and unloading knives, but also reduces the labor intensity of workers. It has the function of automatic clamping of cutter and hydraulic loosening, and the operation is extremely convenient, which avoids the damage of the spindle precision caused by traditional hammering.

Working Condition:

 Power supply : 380V/3PH/50HZ
 Supply voltage allowed fluctuation values : ±10%
 Power frequency allowed fluctuation values: ±1%
 Machine tools must be conducted with a separate cable safety grounding , grounding resistance less than 4Ω
 Workshop environment temperature range: 10~40℃
 Relative humidity: 40~75%
 atmospheric pressure: 86~106Kpa
 Dust concentration in the air ≤10mg/m3

Warranty

Since the Bill of Lading date, our company implements the products' After-sale service. The warranty period is 12 months. During the warranty period, our company provides free replacement parts if these parts or damages are out of machine itself quality problems. Meantime, the machine should be under normal operation according to the Operational Manual provided by the sellers. (Except for improper operation or man-made damage by the buyers).

Our Service

Business card

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Packing
Packaging
Size(mm)
 5800(L) * 3000 (W) * 3000(H)
Weight
1.3T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
