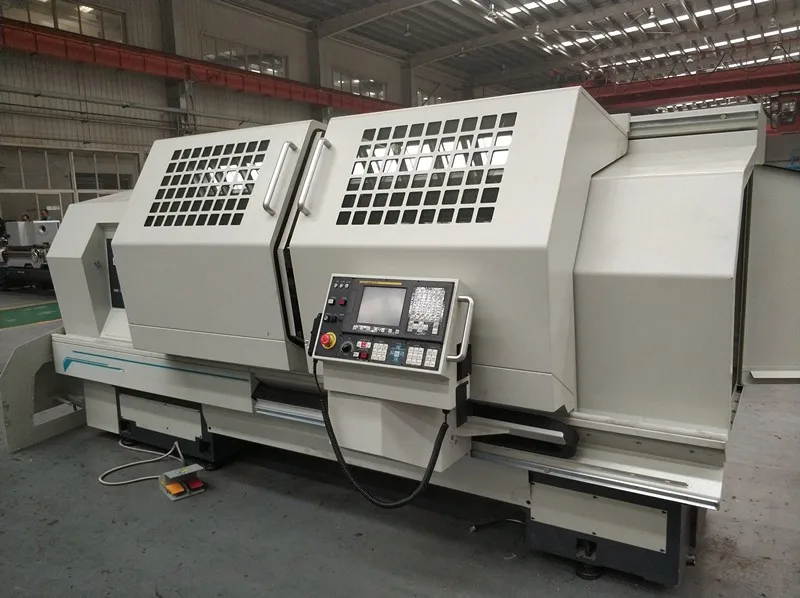

CKA6140 Lathe Machine CNC

FOB Reference Price:Get Latest Price
$980.00 - $13,000.00 / Sets | 1 Set/Sets (Min. Order)
Max. Swing Diameter (mm):
400
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 60 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Automatic Grade:
Automatic
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTG
Model Number:
CKA6140
Voltage:
380V, 50HZ, 3PH
Dimension(L*W*H):
2413*2451*2549mm
Certification:
ISO9001, CE
After-sales Service Provided:
Online support
Warranty:
1 Year
Swing over bed:
400mm
Max.swing over carriage:
290mm
Max. turning diameter:
500mm
Height of centers:
1130mm
Max.length of workpiece:
1000/1500/2000/3000mm
Gap length (from spindle nose):
280mm
Distance between centers:
1000mm
Spindle nose:
D8 or C8
Taper of spindle bore:
90 mm / 1:20
Spindle bore:
82mm
Power(W):
25kW
Weight:
4600kg
Max. Swing Diameter:
400mm
Supply Ability
Supply Ability:
40 Set/Sets per Month Horizontal Lathe Machine
Packaging & Delivery
Packaging Details
Suitable for long distance shipping.
Port
Dalian Port, China
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 60 60 To be negotiated
Product Description

INTRODUCTION OF CKA6140

CKA6140 is vertical (Z), horizontal (X) two coordinates of the CNC horizontal lathe control. It can finish the machining of internal and external cylindrical surface, conical surface, circular arc surface, end surface, grooving and chamfering etc. on all kinds of shaft and disc parts, as well as turning metric straight thread, end thread and inch straight thread and Taper thread and other turning. Suitable for multi-species, small and medium batch production, complex, high-precision parts especially show superiority.


ITEMS
UNIT
CKA6140
Max work piece turning diameter over bed
mm
Φ400
Max work piece turning diameter over tool post
mm
Φ200
Max work piece length
mm
750/1000
Max machining length
mm
580/830
Max turning diameter (vertical 4station tool post)
mm
360
Spindle center height
mm
200
The width of the guide rail
mm
300
Main motor power (variable frequency motor)
kW
3/4.5 5.5
Spindle bore diameter
mm
Φ48/52
Numerical control system
FANUC
Voltage
380V±10%, 50Hz±2Hz
Power capacity
KVA
16
Water tank volume
L
20
Motor power of the coolant pump
W
200
Coolant pump flow
L/min
25




Detailed Images

Big bore high speed spindle system

B type is 82mm,C type is 105mm spindle bore.B type lathe three support high rigidity system.




A clutch of spindle box

Spindle box USES mechanical friction piece of clutch: by manipulating, and don't have to change the speed of the motor and stop the motor can realize of spindle speed, stop, reversing.Can also be equipped with electromagnetic clutch and the spindle box of electromagnetic brake.

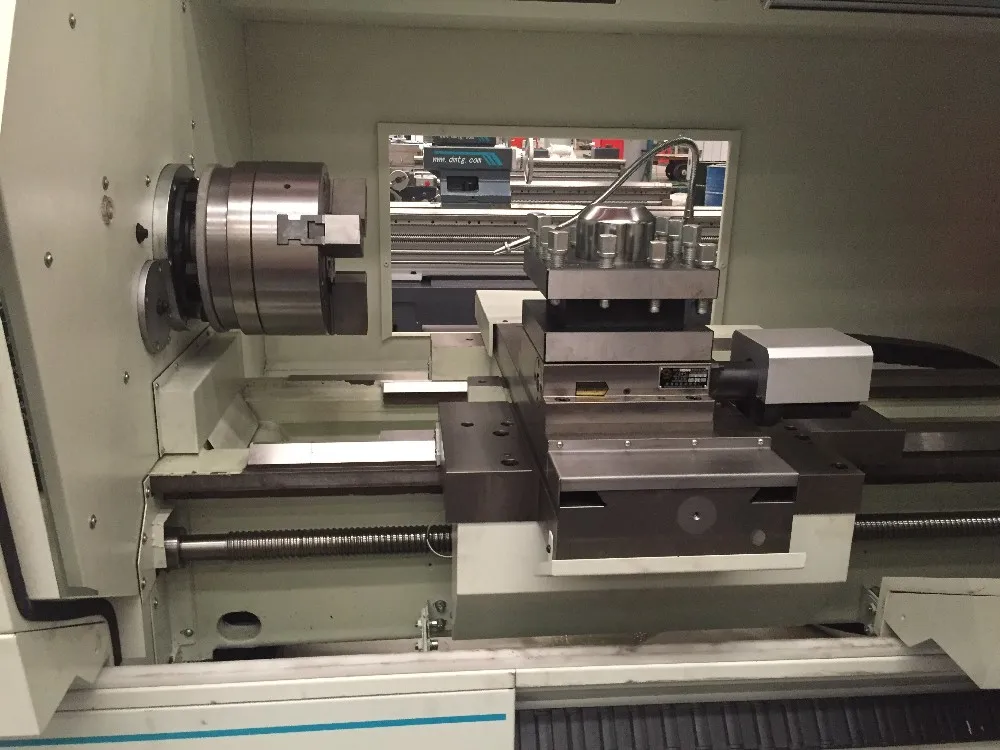

A typical slip board box structure

Slip board box is equipped with fast moving device of the machine tool, a overload safety protection device; Longitudinal and cross control handle, the handle half nuts.

The fashion simple calibration rings is unique.

Our Service

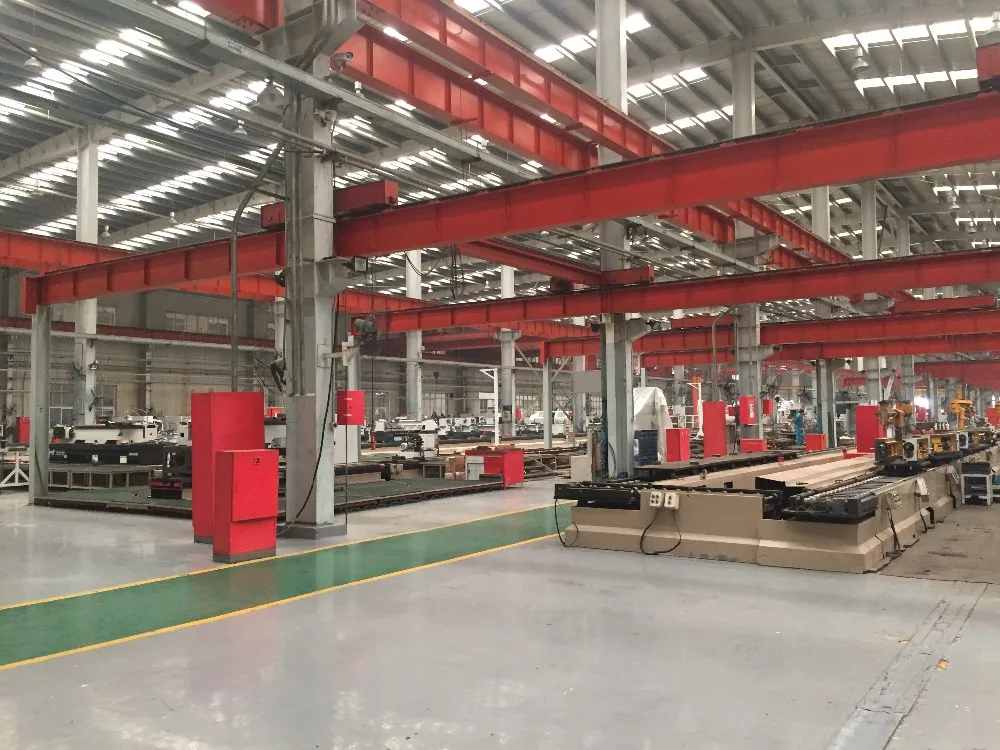

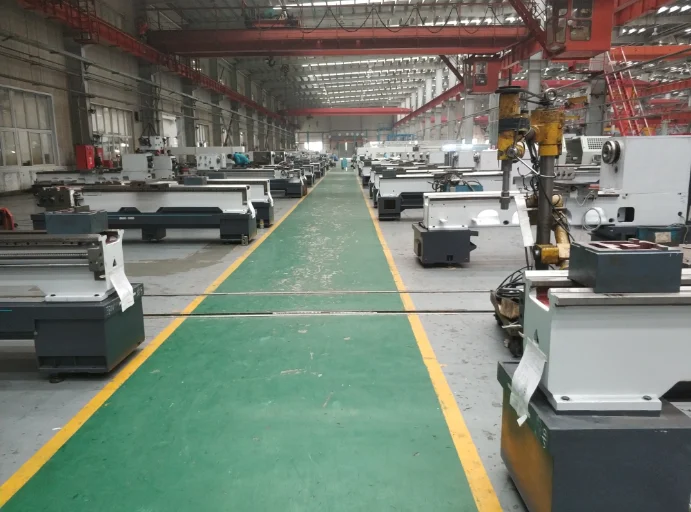

Factory
CNC Lathe

*CKA6150
*Fanuc Controller
*Max swing dia. :500mm
*Max workpiece length: 2000mm
*Spindle bore : Φ82

97.8% Response Rate

*CKA6180
*Fanuc Controller
*Max swing dia. :800mm
*Max workpiece length: 4000mm
*Spindle bore : Φ110

98.8% Response Rate

*CKA6136
*Fanuc Controller
*Max swing dia. :360mm
*Max workpiece length: 1000mm
*Spindle bore : Φ48/Φ52

91.8% Response Rate

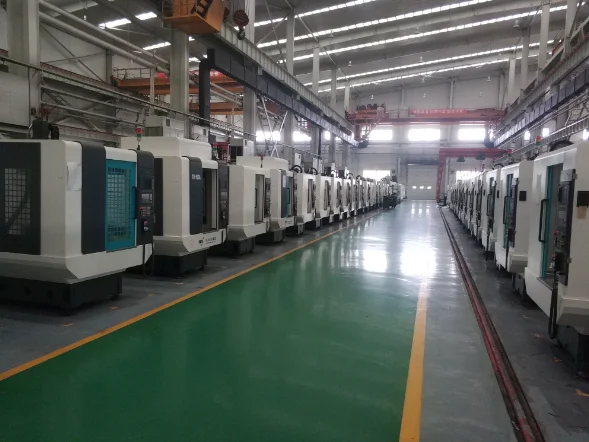

CNC Machine Center

*VDL600A Machine Center

*Worktable size (L*W):800*420mm

*Max worktable load :500kg

*X Travel : 620mm

*Y Travel: 440mm

*Z Travel: 540mm

*VDL1000 Machine Center
*Worktable size (L*W):1120×560mm
*Max worktable load :750kg
*X Travel : 1270mm
*Y Travel: 560mm
*Z Travel: 620mm

*VDL1300 Machine Center
*Worktable size (L*W):1300*560mm
*Max worktable load :750kg
*X Travel : 1290mm
*Y Travel: 580mm

*Z Travel: 620mm

Vertical Lathe

*C5112 vertical lathe

*Max cutting dia. :1250mm
*Max workpiece height: 1000mm
*Worktable diameter : 1000mm
*Max worktable load: 3.2t

*C5116 vertical lathe

*Max cutting dia. :1600mm
*Max workpiece height: 1200mm
*Worktable diameter : 1400mm
*Max worktable load: 5t

*C5120 vertical lathe

*Max cutting dia. :2000mm
*Max workpiece height: 1250mm
*Worktable diameter : 1800mm
*Max worktable load: 8t

Radial Drilling

*Z3040*11 Radial Drilling Machine

*Max drilling dia. : 40mm
*Distance from spindle center to column surface : 330/1050
*Distance from spindle nose to table surface : 170/ 1100mm
*Spindle travel : 260mm

*Z3050*16 Radial Drilling Machine

*Max drilling dia. : 50mm
*Distance from spindle center to column surface : 350/1600
*Distance from spindle nose to table surface : 370/ 1270mm
*Spindle travel : 315mm

*Z3080*25 Radial Drilling Machine

*Max drilling dia. : 80mm
*Distance from spindle center to column surface : 530/2530
*Distance from spindle nose to table surface : 600/ 2050mm
*Spindle travel : 450mm
