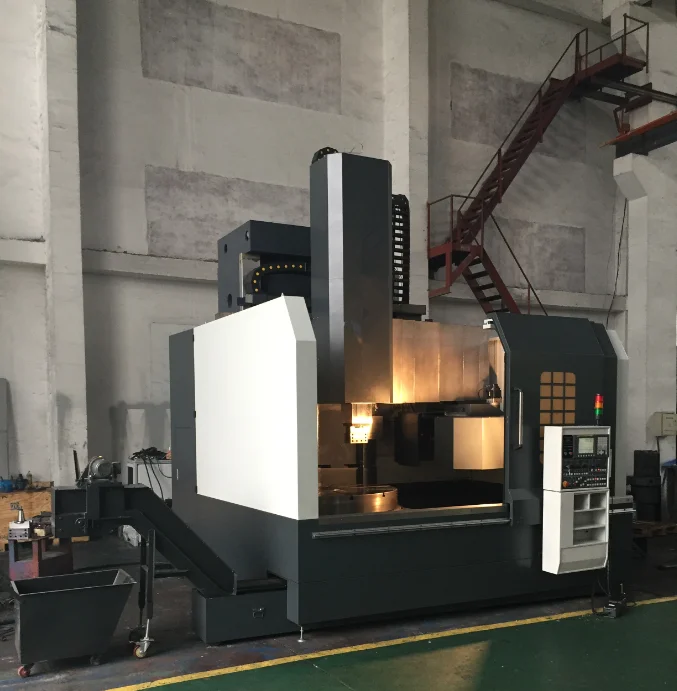

VTC120 High Speed CNC Vertical Turning Lathe/Vertical Turning Center

FOB Reference Price:Get Latest Price
US $50,000-65,000 / Sets | 1 Set/Sets (Min. Order)
Max. Swing Diameter (mm):
1400
Spindle bore:
no
Report Suspicious Activity
Overview
Quick Details
Max. Spindle Speed (r.p.m):
8-318
Condition:
New
Type:
Vertical
CNC or Not:
CNC
Automatic Grade:
Automatic
Year:
New
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC
Model Number:
VTC120
Voltage:
3 Phase 380V 50HZ
Power(W):
30kw
Dimension(L*W*H):
3500*3210*2560mm
Weight:
16t
Certification:
ISO9001:2008 CE
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Overseas service center available
Warranty:
1 Year, 12 Months
Max. Swing Diameter:
1400mm
Machine Type:
CNC Vertical Lathe
Max. height of the workpiece:
1200mm
Worktable diameter:
1000--1250mm
Max. turning diameter:
1400mm
Max. Swing diameter:
1500mm
Beam travel:
750mm
Precision:
High Precision Machine
Function:
Machining Metal
Supply Ability
Supply Ability:
30 Set/Sets per Month CNC Vertical Lathe
Packaging & Delivery
Packaging Details
Suitable package for long-distance shipping.
Port
Dalian Port
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(day) 60 75 To be negotiated
Product Description

Product Application

The lathe is widely used in wind power, metallurgy, bearing, petrochemical, military industry, aerospace and other industries. Can take advantage of the carbide or composite cutting tool machining nonferrous, ferrous metals, state of quenched and tempered or quenched material plane, inner hole, cylindrical, end face, circular arc surface, various shape, etc

SPECIFICATIONS FOR VTC120 CNC VERTICAL LATHE
VTC120
Worktable diameter
mm
1000/1250
Max. turning diameter
mm
1400
Max. Swing diameter
mm
1500
Max. weight of the workpiece
t
5 (Worktable speed ≤125r/min)
Max. height of the workpiece
mm
1200
Section of tool shank
mm
30*40
Vertical tool post maximum cutting force
KN
20
Total cutting force
KN
20
Max torque of Worktable
KN.m
10
Worktable speed range
r/min
8~315
Rail head feeding series
stepless
Rail head feeding range
mm/min
0.1-500
Toolpost fast moving speed
mm/min
6000
Beam travel
mm
750
The speed of beam lifting
mm/min
440
Main motor power
Kw
B40
Beam lifting motor power
kw
3
CNC Controller
FANUC
Toolpost
ATC Toolpost --12 station
Time of change tool
s
45
Machine weight
t
16
Voltage and frequency
380V±10%, 50Hz±2Hz

Main Features

1) FANUC controller. The function is all ready, stable and reliable operation.

2) High rigidity, accuracy stable for a long time

3) Large diameter ball screw, movement smooth, high precision

4) Direction of circular symmetrical arrangement table base, thermal deformation is symmetrical, good thermal stability.

5) The workbench speed 8-315 r/min. Y, Z axis speed of 6 m/min.

Detailed Images

Machine Parts

Machine Bed, Column, Worktable, Beam, Saddle, Spindle Box are Adopt high quality resin sand molding, high strength and high quality cast iron (HT250), make the precision of machine tools with high rigidity and stability for a long time.

Main Features

3. Beam and RAM of Z-Axis are use TSF pasting model of guide rail+ Sliding guide rail structure, With powerful automatic lubrication system, Exposure to high rigidity, can withstand the large turning torque, can in the case of strong interrupted cutting work steadily. Z-Axis use Square RAM structure.

Machine Parts

Reliable lubrication system: X/Z axis respectively equipped with two independent lubrication unit lubrication, ensure uniform lubricating oil can reach each lubrication point. Spindle bearings have independent oil lubricating oil road.

Main Features

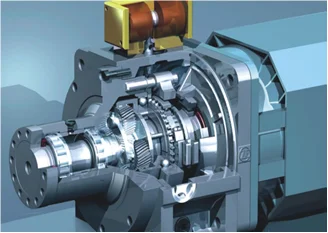

4. Main transmission adopts the German original ZF secondary mechanical gearbox + FANUC wide-area spindle servo motor stepless speed regulation; obtain a wide range of constant power in the infinitely variable speed, fast and convenient to change gear. Germany's ZF transmission excellent performance makes the machine table run more smoothly and less noise.

You may concerned

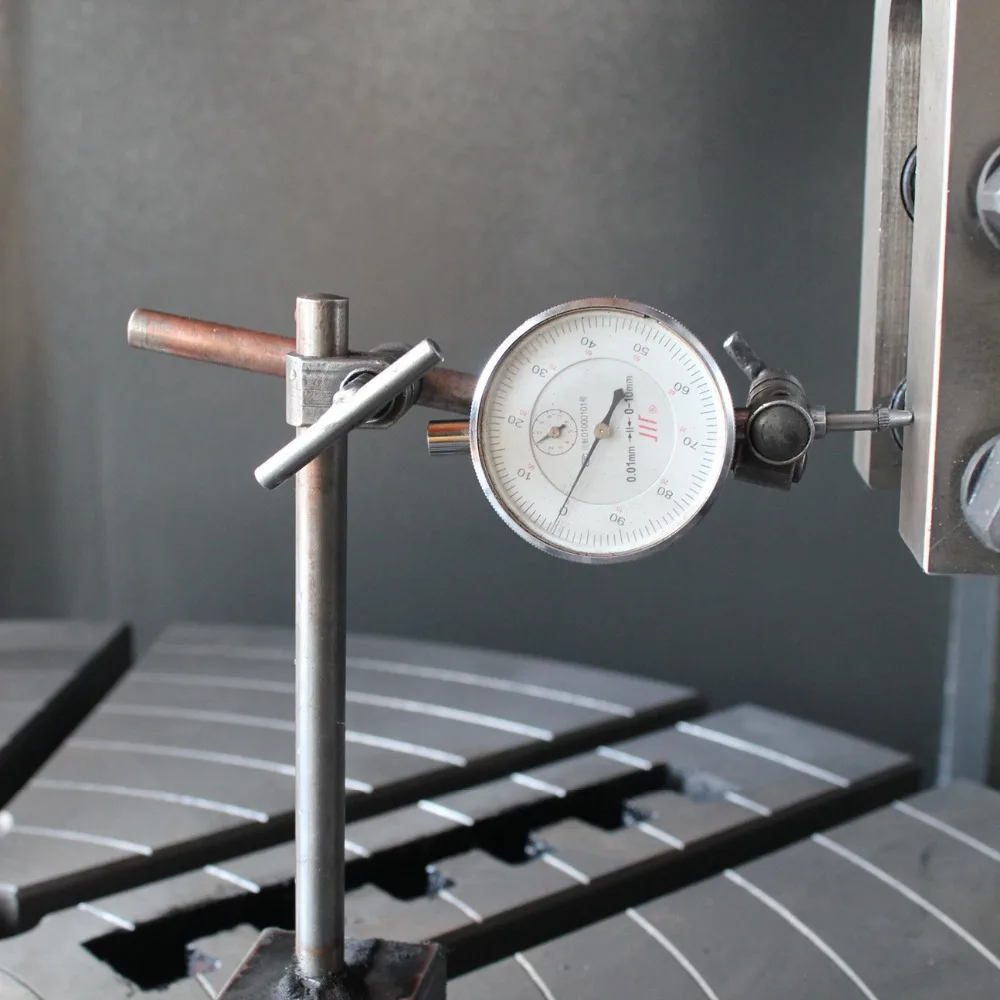

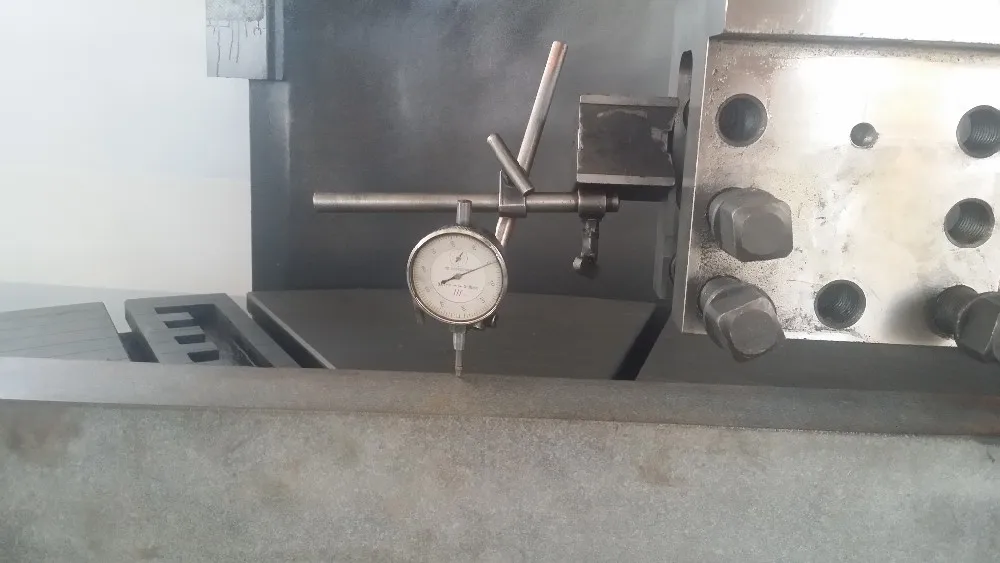

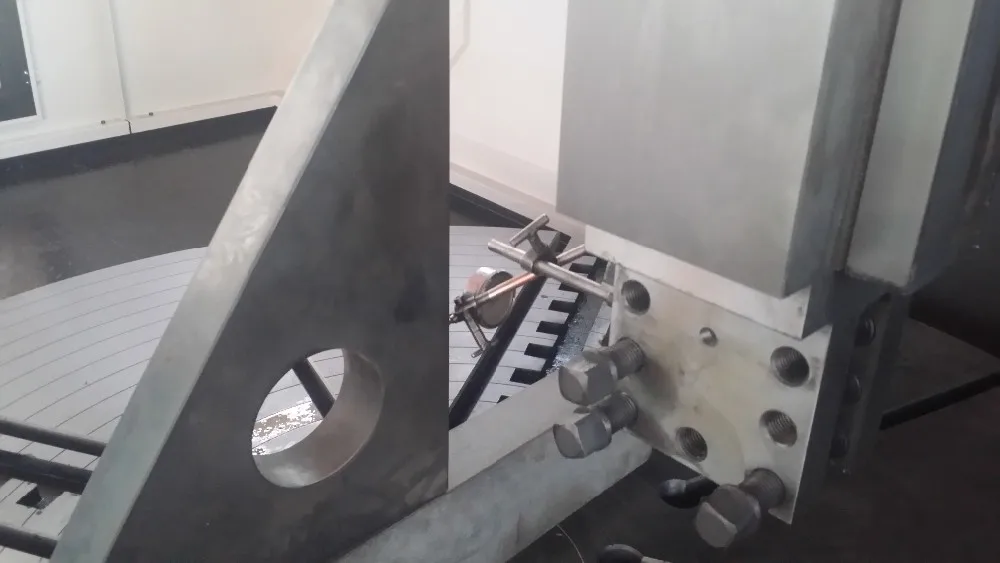

Before packaging, we will do strict accuracy test on worktable, tool turret to make sure our machine with execellent performance, meanwhil, testing report will be sent with other operation manual.
(Your saitisfaciton is our ultima goal )

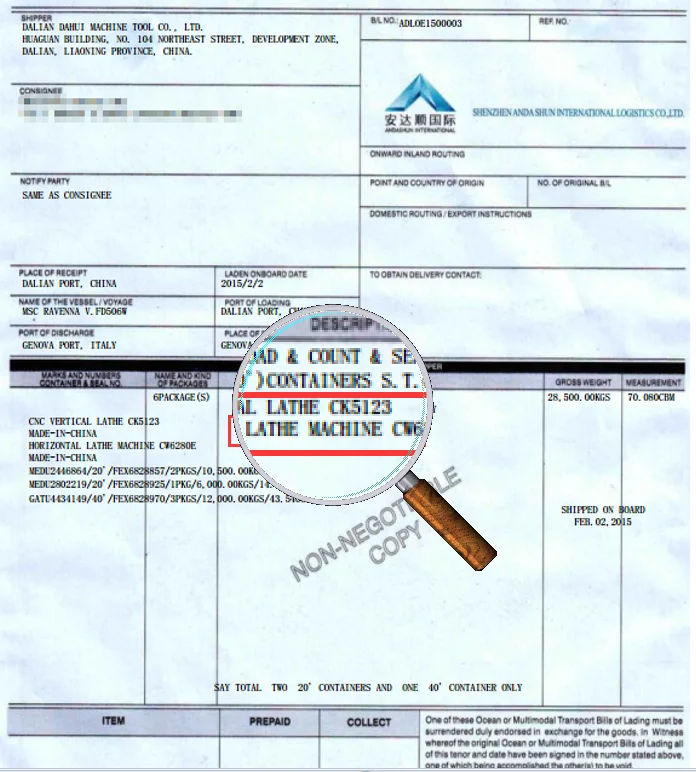

Order Model
CK5123
CNC Single Column VTL
Order Country
Italy
Order Date
2014.05.12
Payment term
L/C
Trade Term
CFR ALGHERO
Main parmeters
Max Cutting Dia: 2300mm
Max weight of workpiece:8ton

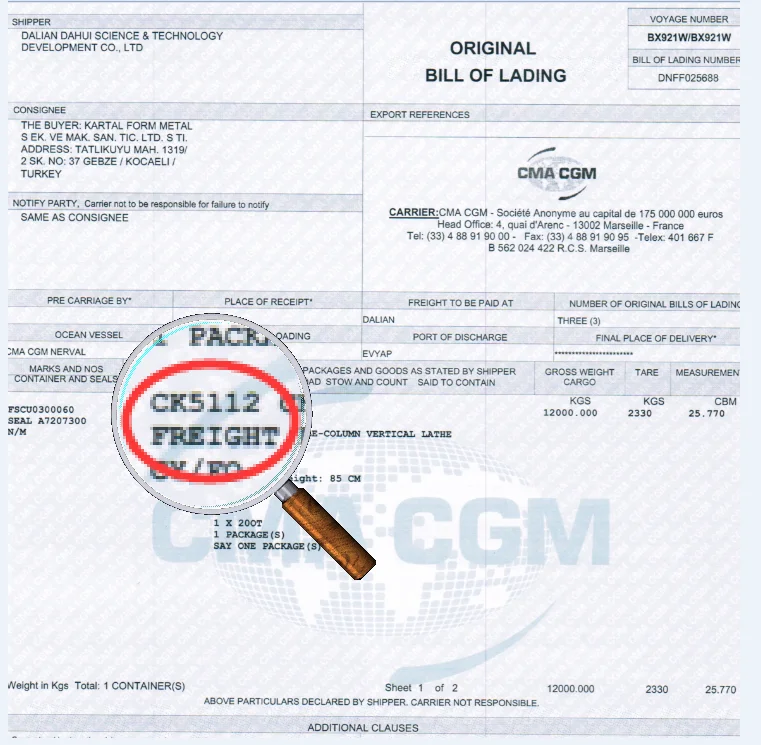

Order Model
CK5112
Order Country
Turkey
Order Date
2017.11.12
Payment term
L/C
Trade Term
CIF Izmir
Main parmeters
Max cutting diamter: 1250mm
Max weight of workpeice: 5ton
Our Service

Customer Visit


Business Card

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
16T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
