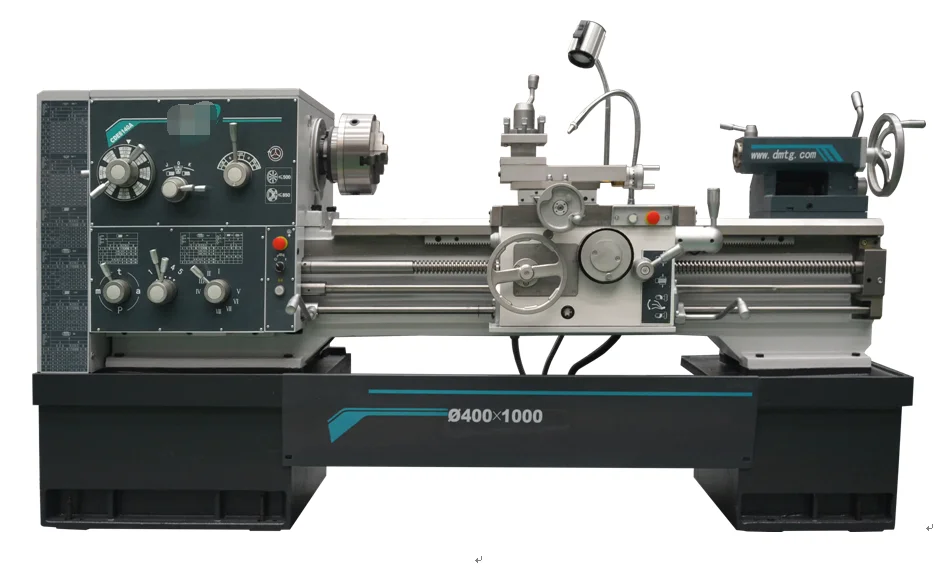

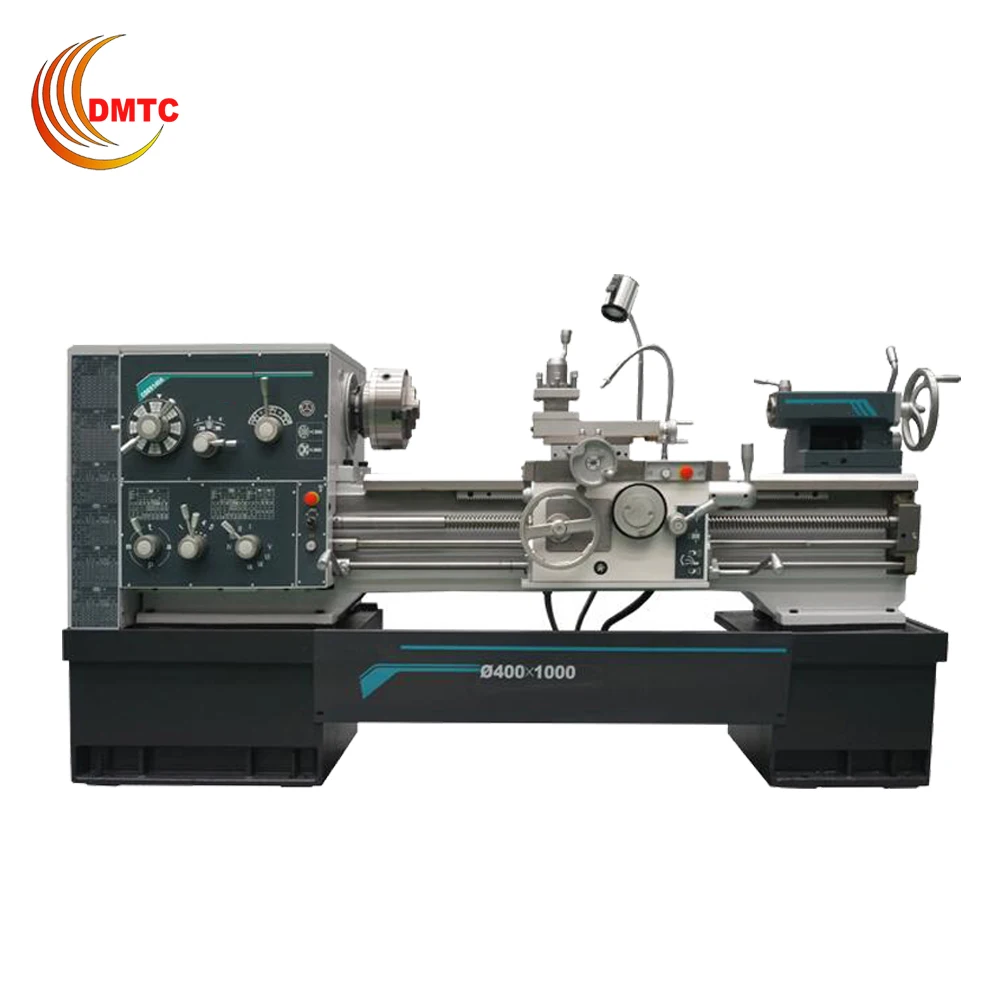

CDE6140A Superior Performance Universal Lathe For Cutting Metal
-
1 - 4 Sets
US $8955.00
-
>=5 Sets
US $8900.00
- Model Number:
- CDE6140A
- Condition:
-
New
- Type:
-
Horizontal
- CNC or Not:
-
Normal
- Automatic Grade:
-
manual
- Place of Origin:
-
Liaoning, China (Mainland)
- Brand Name:
-
DMTC
- Voltage:
-
380V,50HZ,3PH
- Power(W):
-
7.5kw
- Dimension(L*W*H):
-
4850*1110*1985mm
- Weight:
-
2410kg
- Certification:
-
ISO9001 & CE
- Max. Swing Diameter:
-
400mm
- Max. swing over bed:
-
400mm
- Max. diameter swing over carriage:
-
220mm
- Max work piece length:
-
750/1000/1500/2000/3000mm
- Max. turning length:
-
700/950/1450/1950/2950mm
- Diameter of spindle bore:
-
52mm
- 3-jaw chuck:
-
250mm
- Tool rest:
-
4 station tool rest
- Spindle bearings:
-
ZWZ OR KAITELE; SKF(OPTIONAL ACCESSORY )
- Main motor power:
-
7.5kw
- The spindle torque:
-
1586NM
- After-sales Service Provided:
-
Engineers available to service machinery overseas
- Supply Ability:
- 30 Set/Sets per Month For your reference
- Packaging Details
- Suitable for long distance shipping.
- Port
- Dalian Port, China
- Lead Time :
-
Quantity(Sets) 1 - 5 >5 Est. Time(day) 75 To be negotiated
Product Application
Turning workpiece on the machine can be cylindrical parts, inner hole and end face, and can drilling, reaming, process all kinds of the metric threads, the inch thread, modulus, diametric pitch, users put forward special orders can also pitch screw thread processing, this machine is particularly suitable for small batch production and processing workshop and machine repair workshop use.
The machine can processing steel, cast iron, non-ferrous metals, non-metallic materials, etc.
In the dimensional accuracy of parts on the machine can achieve IT7 level, the surface roughness can reach 1.6.
SPECIFICATIONS FOR CDE6140A | |||
Max. swing over bed | mm | 400 | |
Max. diameter swing over carriage | mm | 220 | |
Max work piece length | mm | 750/1000/1500/2000/3000 | |
Max. turning length | mm | 700/950/1450/1950/2950 | |
Distance from spindle center to bed guiderail surface | mm | 220 | |
Diameter of spindle bore | mm | 52 | |
The maximum size of the tool bar | 25x25 | ||
Max travel of top knife rest | 150 | ||
A taper sleeve top cone hole | Morse 5 | ||
Spindle speed range | rpm | 11-1400rpm/22speeds | |
The spindle torque | nm | 1586 | |
Main motor power | kw | 7.5 |





Main Features
1) In the dimensional accuracy of parts on the machine can achieve IT7 level, the surface roughness can reach 1.6.
2) It can have good rigidity and shock absorption, can guarantee the high precision machining..
3)Belt cover and other safety protection and safety warning signs and chuck protection, head protection and protection.

Machine Parts
Name: High rigidity structure design
Feature:
The adoption of integral casting, lathe bed lathe bed guide rail adopts yamagata and plane layout, have larger bearing section, therefore, have good rigidity and shock absorption, can guarantee the high precision machining.
Machine Parts
Name: Spindle box
Features:
It will is the main task of the main motor of the rotation after a series of variable speed institutions make main shaft gets the different rotating speed of the positive and negative two turn, at the same time the spindle box gives impetus to the movement into the box


Machine Parts
Name: High reliability of Tool rest
Features:
High rigid mechanical tool carrier, has high reliability and high repeat positioning accuracy.
Machine Parts

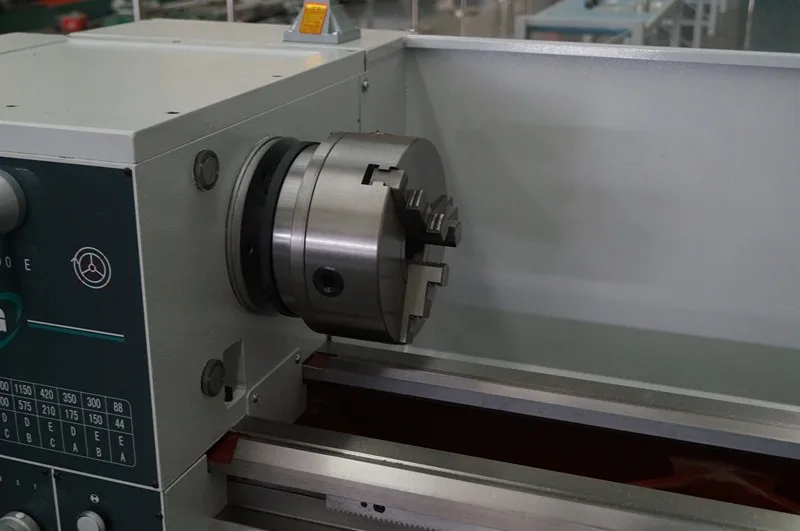

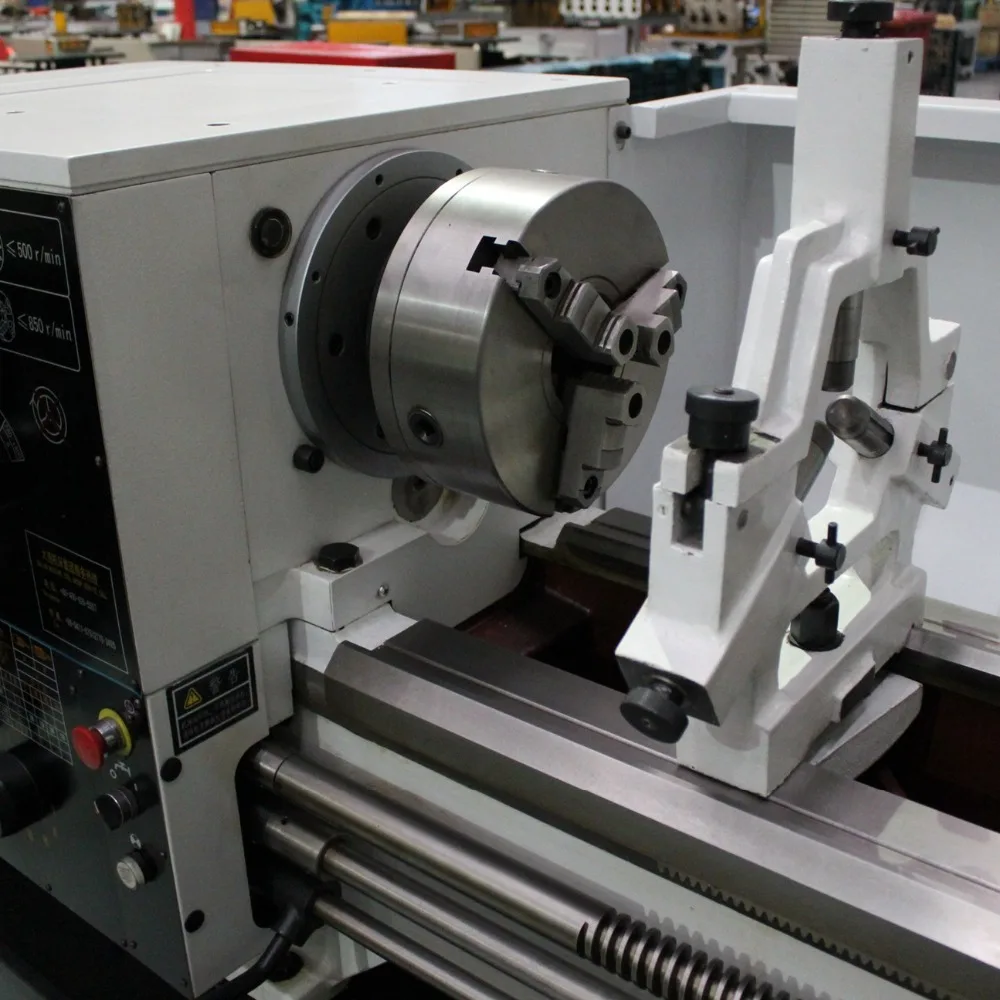

Name:3 jaw chuck
Features:
"Chuck" is a mechanical device used to clamp the workpiece on a machine tool. The three-jaw chuck is made up of a large bevel gear, three small bevel gears and three talons.



Customer VIsIt
Business Card

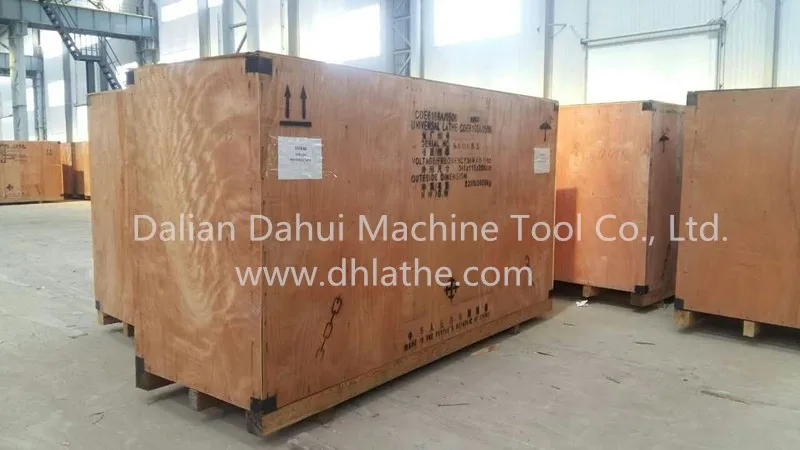

Packaging(For your reference) | |
Size | 4910(L) * 1150(W) *1700 (H) |
Weight | 3095kg |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
