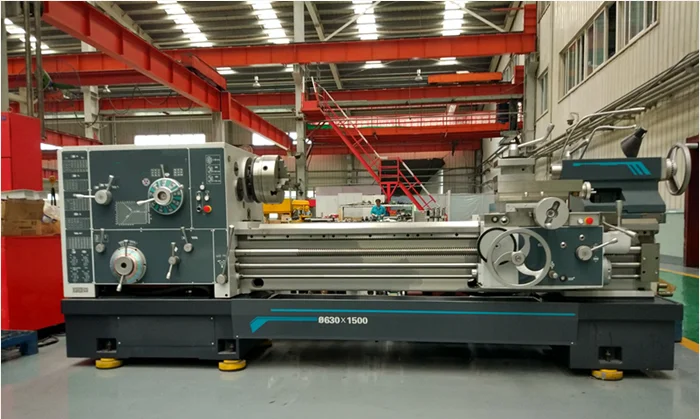

CW6263E Universal Horizontal Lathe with CE/Center Lathe/Torno

FOB Reference Price:Get Latest Price
$20,000.00 - $40,000.00 / Sets | 1 Set/Sets (Min. Order)
Max. Swing Diameter (mm):
630
Spindle bore:
105
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 50 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant
Range of Spindle Speed(r.p.m):
7.5-1000
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Automatic Grade:
Manual
Year:
new
Place of Origin:
Liaoning, China
Brand Name:
DMTC
Model Number:
CW6263E
Voltage:
3 Phase 380V 50HZ
Dimension(L*W*H):
according to workpiece length
Certification:
CE ISO
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Overseas service center available
Weight (KG):
6650
Warranty:
1 Year
Key Selling Points:
Competitive Price
Machine Type:
Universal Horizontal Lathe with CE/Center Lathe
Max swing over bed:
630mm
Max swing over carriage:
350mm
Spindle speed:
(18 speeds)7.5-1000rpm
Main motor power:
11KW
certificate:
ISO&CE
machine type:
horizontal
machine weight:
6450kg
Weight:
according to workpiece length
Max. Swing Diameter:
630MM
Width of bed:
550
Power(W):
11KW
Supply Ability
Supply Ability:
50 Set/Sets per Month Horizontal Lathe
Packaging & Delivery
Packaging Details
Suitable for long sea transport
Port
DALIAN
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 50 60 To be negotiated
Product Description

Product Application

The CW - E series engine lathe can undertake all kinds of turning works; it is mainly used for turning inside and outside the surface of the cylinder, cone surface and other rotating parts. Turning end face, cutting, cutting, drilling and cutting all kinds of commonly used metric, inch, module and diametric pitch screw, etc.

ITEM
UNIT
CW6263E
CW6280E
CW62100E
Max. swing over bed
mm
630
800
1000
Max. workpiece length
mm
1000/1500/2000/3000/4000/5000/6000/8000
Max. machining length
mm
850/1350 /1850/ 2850 /3850/ 4850 /5850/ 7850
Workpiece capacity
kg
2000
Max. swing over carriage
mm
350
Max swing diameter of the inner gap
mm
800
1000
1230
Effective using length between Gaps
mm
350
480
710
Bed width
mm
550
Distance from Spindle center to bed guide surface
mm
315
400
515
Spindle bore diameter
105
Spindle through bore diameter
104
Spindle taper
Metric 120 1:20
Center taper
Morse 6
Max spindle torque
Nm
2400

Main Features

 Cutting face and turning all the metric threads, the inch thread, the modulus and pitch screw thread.

 The machine can be processed steel, cast iron, non-ferrous metal materials, etc.

 Horizontal lathe with the main difference is the saddle lathe has a removable saddle lathe bed, expand the scope of machining diameter, very suitable for parts and deformed parts processing.

Detailed Images

Machine Parts

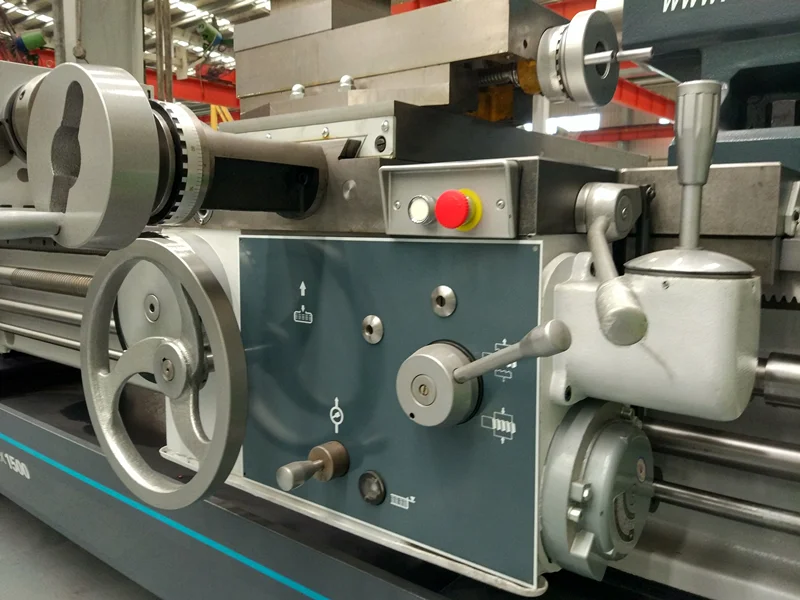

Name: THE STRUCTURE OF THE SLIP BOARD BOX

Machine slip board box is equipped with fast moving device, overload safety device, longitudinal and cross control lever handle half nuts.

Main Features

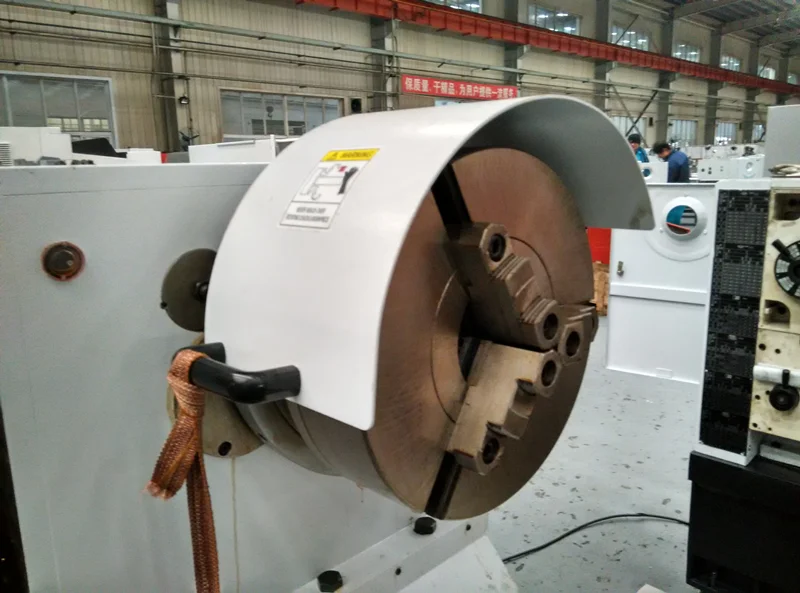

Name: COMPLETE SAFETY PROTECTION DEVICE
For users to choose...
Back Protection,
Chuck protection,
Faceplate protection
Three poles protection

Machine Parts

Name: THE STRUCTURE DESIGN
Lathe bed after surface hardening, grinding, quenching hardness HRC50;

Main Features

Name: SPINDLE HEAD TYPE
Machine tool spindle head form has two kinds of C11 and D11.

Under normal circumstances, provide C11 spindle.To provide D11 spindle inch machine tools and special orders.

Name: TAILSTOCK


You may concerned

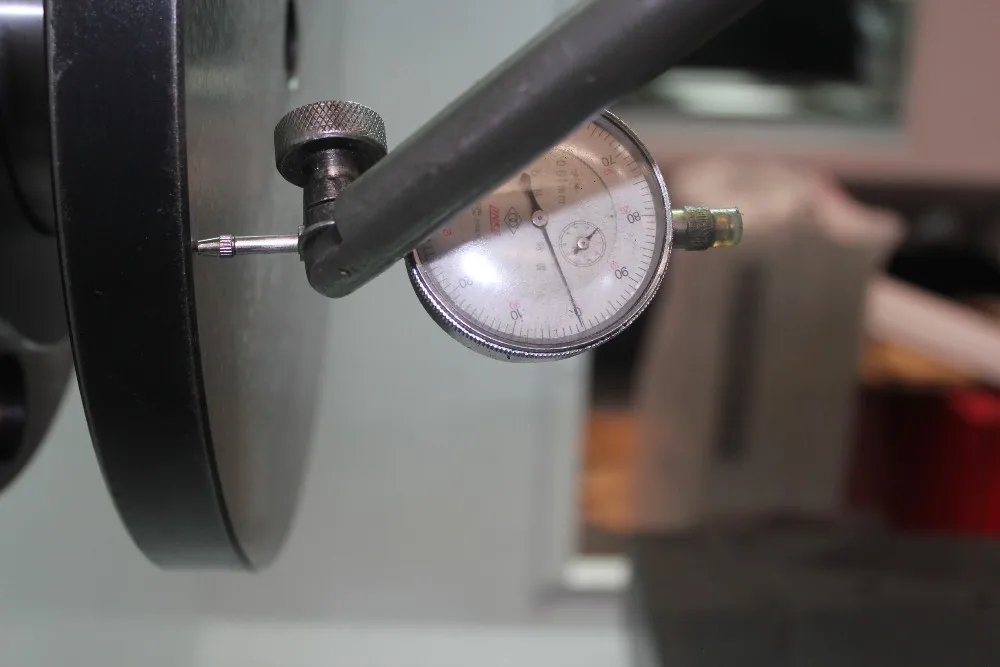

Before packaging, our professional technical team will test the spindle precision, guideway hardness, rapid moving speed strictly. We are dedicated to provide the best cost- performance machine in China to our respectful customer.
Our Belief: Your satisfaction is our ultimate goal

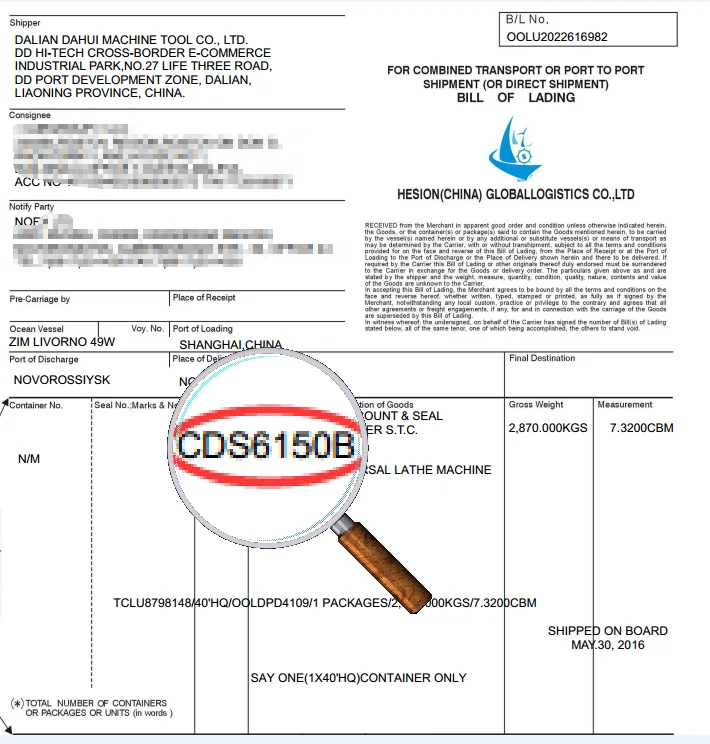

Order Model
CDS6150B
Universal Lathe Machine
Order Country
Russia
Order Date
2016.08.02
Payment Term
T/T (30% advanced payment, 70% before shipping)
Trade Term
FOB Shanghai
Main Parmeters of the Machine
Max Swing over bed: 500mm
Spindle Bore dia: 82mm
Workpiece Length: 1000-3000mm

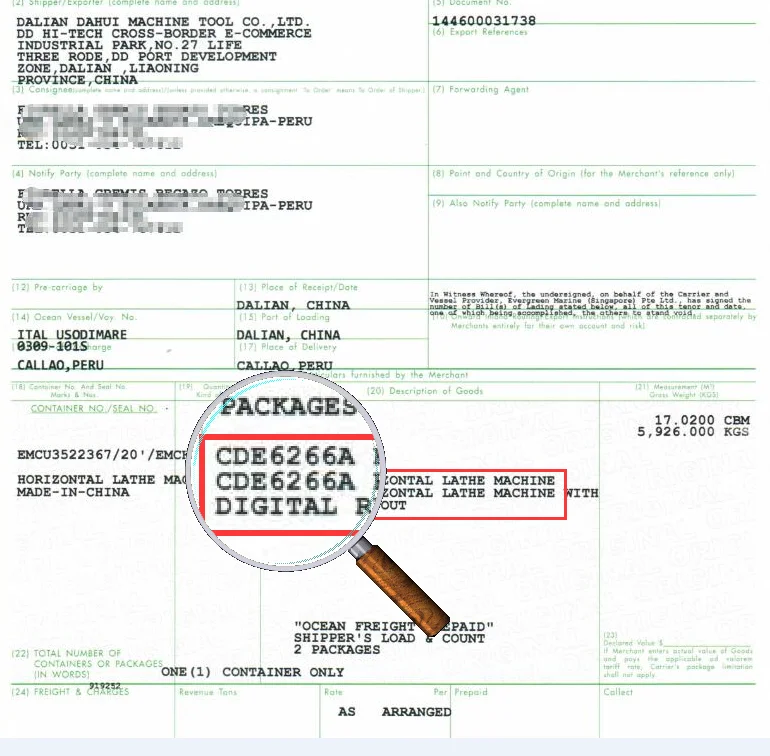

Order Model
CDE6266A x 2 sets
(Conventional lathe machine)
Order Country
Peru
Order Date
2015.02.02
Payment Term
T/T (30% advanced payment, 70% before shipping)
Trade Term
CFR Peru
Main Parmeters of the Machine
Max Swing over bed: 660mm
Spindle Bore dia: 52mm
Workpiece Length: 1000-3000mm

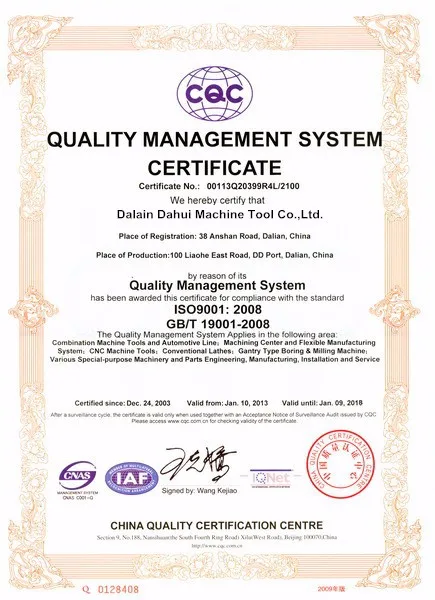

Certificate
Packing & Delivery
Packaging
Size
6040*1430*1880mm
Weight
6.5 T

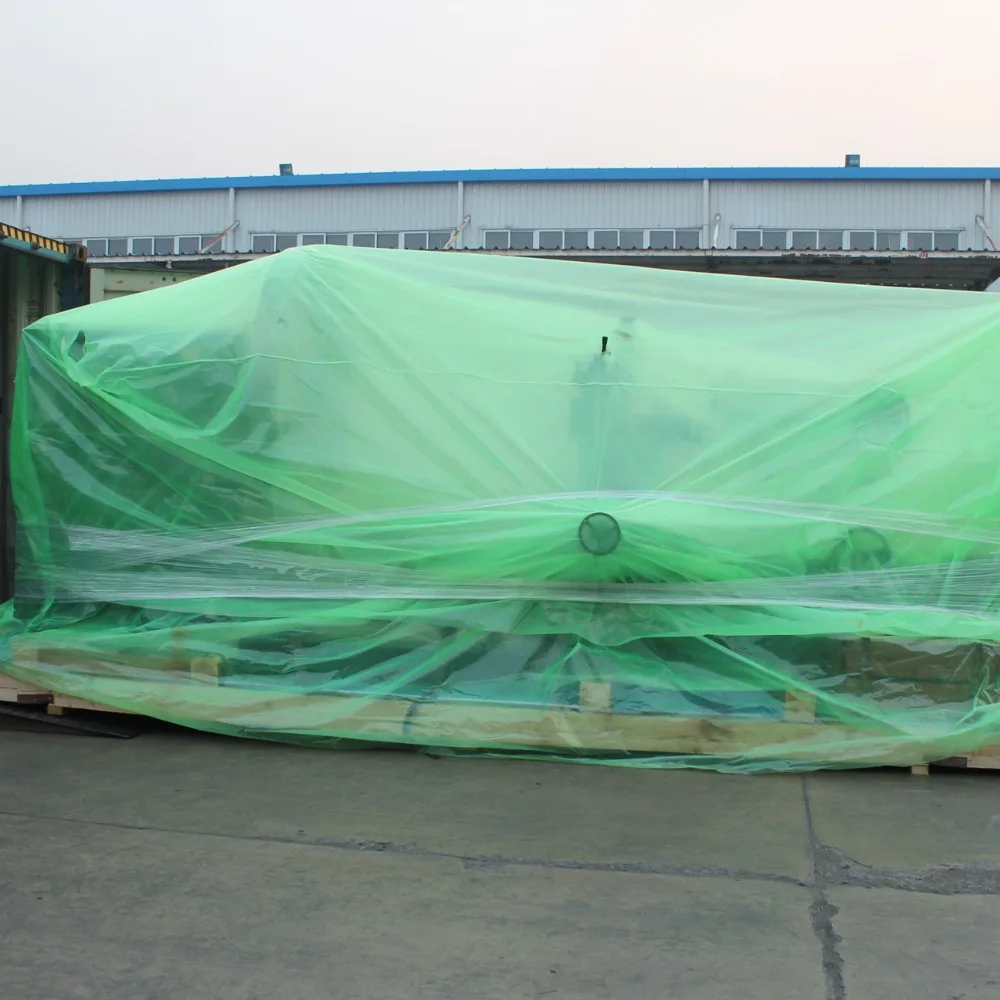

Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
