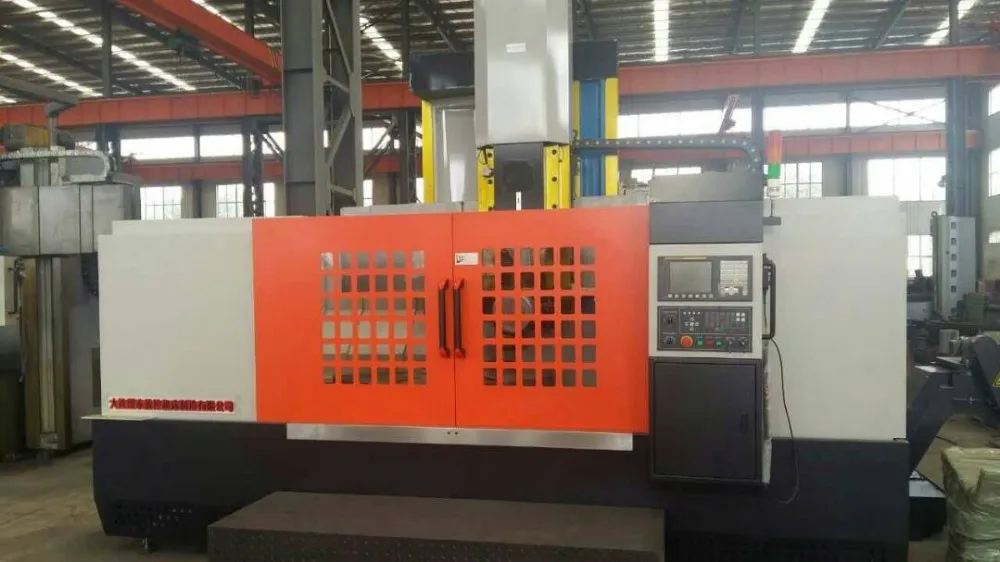

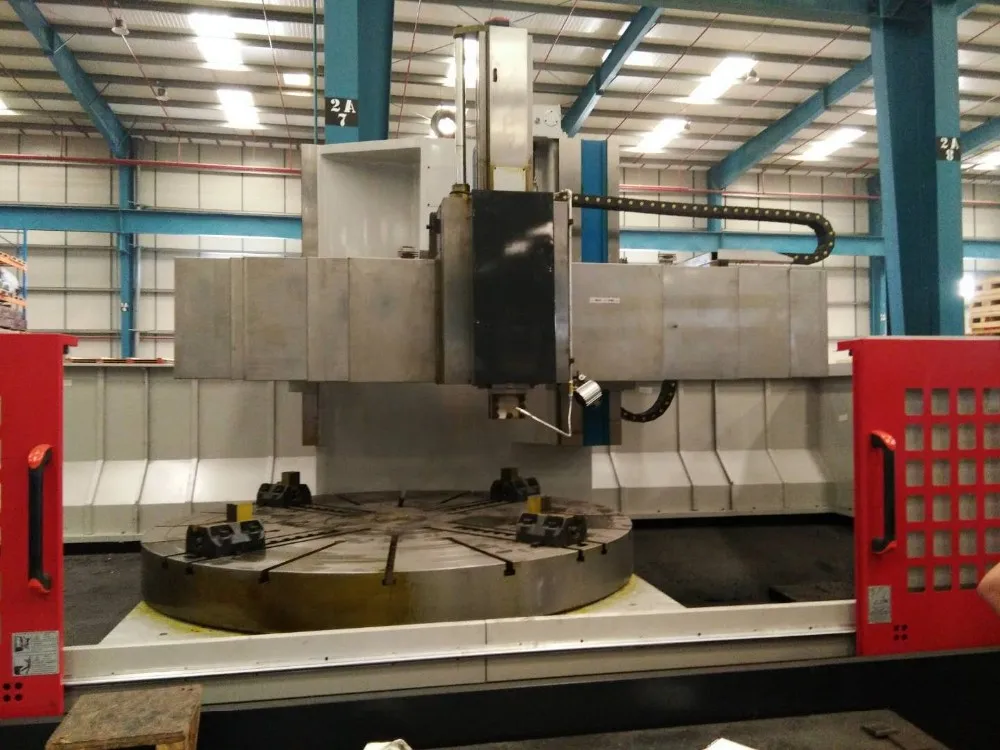

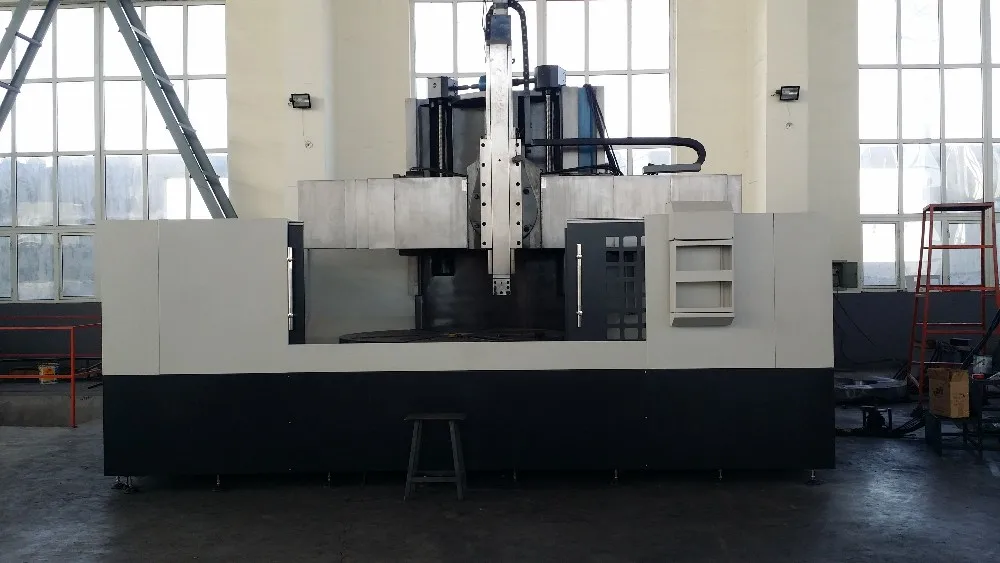

CK5116 CNC Vertical Lathe

  • 1 - 1 Sets
    $35,698.00
  • >=2 Sets
    $34,521.00
Max. Swing Diameter (mm):
1600
Spindle bore:
No
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 75 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Max. Spindle Speed (r.p.m):
work-table speed 5-160
Type:
Vertical
CNC or Not:
CNC
Automatic Grade:
Automatic
Year:
Order year
Place of Origin:
Liaoning, China
Brand Name:
DMTC
Model Number:
CK5116
Voltage:
380V 50HZ
Dimension(L*W*H):
2460*2380*3000mm
Certification:
ISO9001 & CE
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Machine Type:
CNC Vertical Lathe
Cutting diameter:
1600mm
Column type:
Single column
Systerm:
Fanuc or others
Power of main motor:
18.5-22.5kw
Material:
High grade cast iron
Warranty time:
One year
Power(W):
18.5KW
Weight:
13 T
Max. Swing Diameter:
1600mm
Supply Ability
Supply Ability:
40 Set/Sets per Month CNC Vertical Lathe
Packaging & Delivery
Packaging Details
Suitable for long distancesea transportation
Port
Dalian
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 75 To be negotiated
Video Description
Product Description

Product Application

The machine is suitable for high-speed steel cutting tools and carbide cutting tools for processing all kinds of non-ferrous metals, black metal and some non-metallic materials.

The following machining steps can be performed on the machine:
1. Turning inside and outside the cylindrical surface and a variety of curved surfaces;
2. Turning inside and outside the conical surface, grooving and cutting;
3. Turning thread and constant linear cutting

ITEM
PARAMETER
UNIT
Max. diameter of Cutting tool post
1600
mm
Worktable Diameter
1400
mm
Max. height of workpiece
1200
mm
Max. weight of the workpiece
5
t
Table speed range
5-160
r/min
Table speed series
16(Four shift stepless)
step
The workbench maximum torque
40
Kn/m
Tool post feeding series
stepless
step
Vertical tool rest maximum cutting force
22
KN
RAM (Horizontal stroke/Vertical travel)
920/800
mm
Beam travel
850
mm
Rest fast moving speed
2000
mm/min
Beam lifting speed
440
mm/min
Tool rod section size (length * width)
30×40
mm
Main motor power
30
kW
The system configuration
FANUC
Nc axes
X/Z two-axial continuous path control
Positioning accuracy
0.025
mm
Repeat positioning accuracy
0.01
mm
Processing dimensional accuracy
IT7
Gross Weight ((for your reference))
13.5
t
Packing size (for your reference)
3000*3000*3300
mm

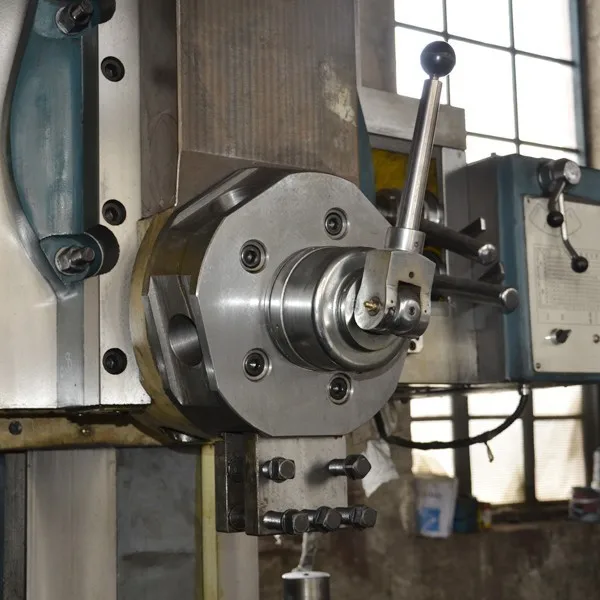

Detailed Images

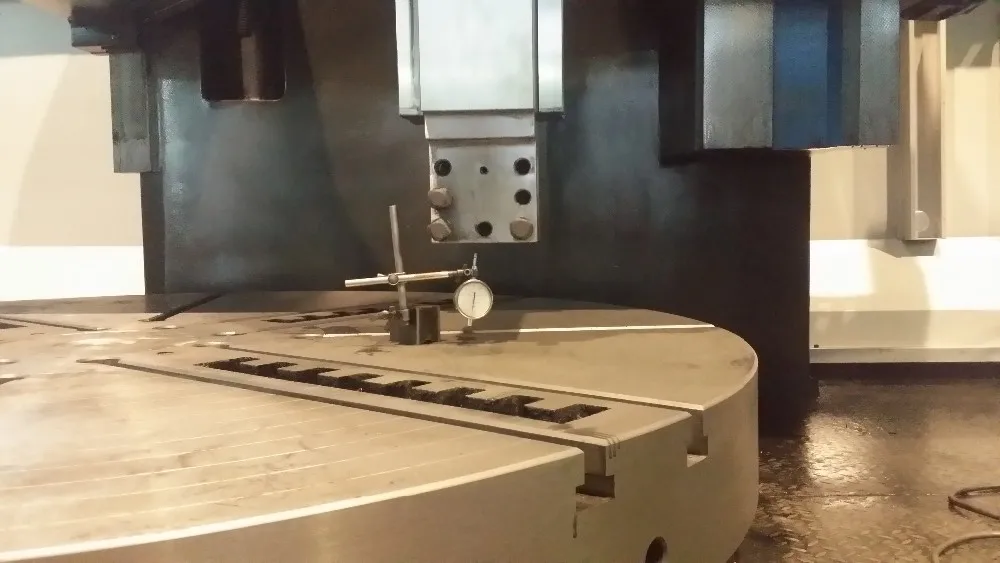

working table

Machine rotary table material for the HT250 material, the workpiece spindle material QT500 material, the base of the vibration-absorbing structure design, and the use of radial and ring-shaped ribs, arranged a reasonable optimization, so that the base has a high strength, stiffness and shock resistance.

machine bed

Bed using HT250 material, the artificial stress to stress treatment.
Processing accuracy of 0.01 / 1000mm, length 0.02mm.
The bed is placed behind the table base. With the bolt and the positioning pin and the base was firmly fixed.
Bed ribs are arranged rationally, the design is mature and stable, has enough steel and stability.

Main Features

Name: Bliwing Cylinder
Brand: FESTO
Original: Germany
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

You may concerned
Before packaging, we will do strict accuracy test on worktable, tool turret to make sure our machine with execellent performance, meanwhil, testing report will be sent with other operation manual.
(Your saitisfaciton is our ultima goal )
Order Model
CK5123
CNC Single Column VTL
Order Country
Italy
Order Date
2014.05.12
Payment term
L/C
Trade Term
CFR ALGHERO
Main parmeters
Max Cutting Dia: 2300mm
Max weight of workpiece:8ton
Order Model
CK5112
Order Country
Turkey
Order Date
2017.11.12
Payment term
L/C
Trade Term
CIF Izmir
Main parmeters
Max cutting diamter: 1250mm
Max weight of workpeice: 5ton
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

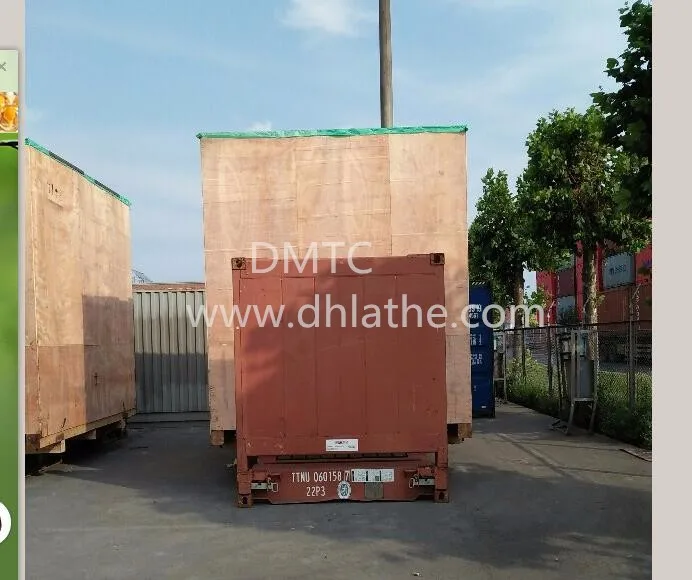

Packaging
Size
Main machine:3000*3000*3600mm
Machine Guard:4100*2200*2000mm
Weight
Main machine:12/13T
Machine Guard: 0.8/1.8T



Packaging Details



The normal package is wooden box. If export to european countries,the wooden box will be fumigated.
