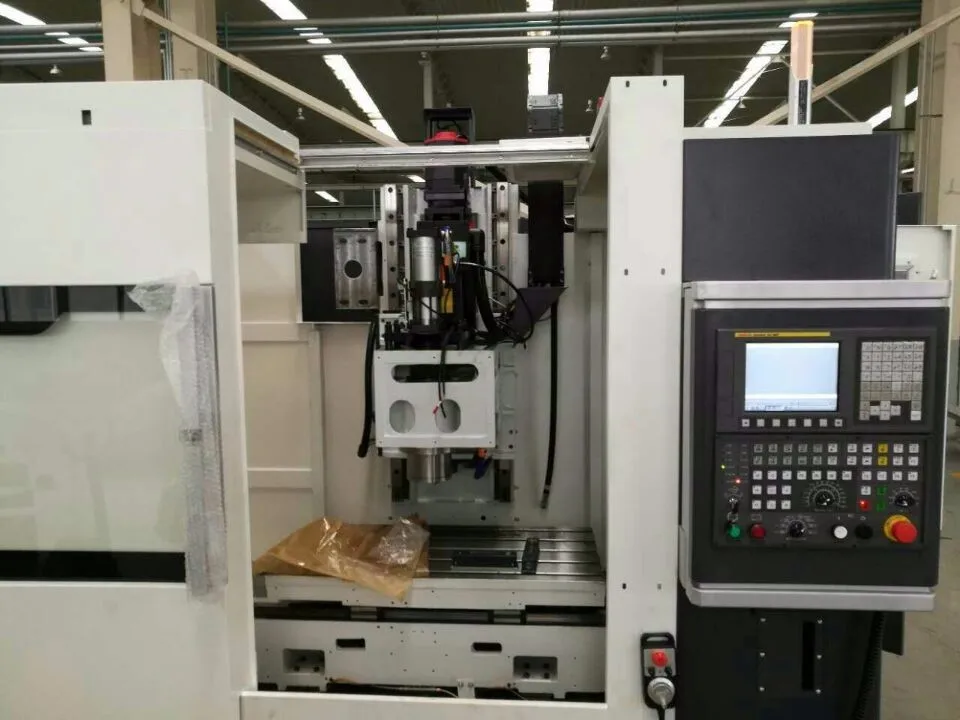

VDL600A High Precision Vertical Machining Center With CE

FOB Reference Price:Get Latest Price
US $32,000-40,000 / Sets | 1 Set/Sets For your reference (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vertical
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC
Model Number:
VDL600A
Voltage:
380V/50Hz/3PH
Power(W):
7/10KW
Dimension(L*W*H):
2413*2451*2549mm
Weight:
4600kg
Certification:
ISO9001 CE
Machine Type:
Vertical Machining Center
Worktable size (L*W):
800*420 mm
Max weight capacity of worktable:
500 kg
X travel:
620 mm
Y travel:
440 mm
Z travel:
540 mm
Tool storage:
Drum type 16
X,Y,Z cutting speed:
0-10000mm/min
Tool holder:
BT40-45 deg.
Time of changing tool:
6-8s
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
10 Set/Sets per Month For your reference
Packaging & Delivery
Packaging Details
Suitable for long distance shipping.
Port
Dalian Port, China
Product Description

Product Application

Unique high - speed linear rolling guide design.

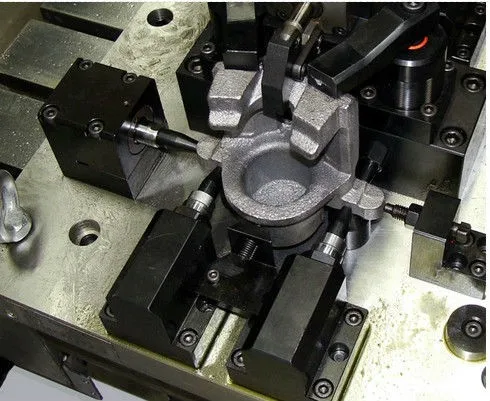

Widely used in military, automotive, mold, machinery manufacturing and other industries of the box parts, shell parts, disc parts processing.

SPECIFICATIONS FOR VDL600A
Max weight capacity of worktable
kg
500
Distance from spindle center line to stand rear face
mm
550
Distance from spindle end face to worktable face
mm
140-680
X,Y,Z cutting speed
mm/min
0-10000
X,Y,Z quick feed speed
m/min
60-8000
Spindle turn speed range
r/min
60-8000
Spindle taper

No.40(7:24)
Spindle power
kw
7.5/11 (35.8/70 Nm)
Tool holder

BT40-45 deg.

Main Features

1) Parts after a clamping can be completed milling, boring, drilling, expansion, hinge, tapping and other multi-process processing, with high precision, high automation, high reliability, high degree of mechanical and electrical integration, simple operation, the overall shape beautiful and so on.
2) The machine is equipped with automatic tool changer (ATC), automatic lubrication system, cooling system and portable manual operating device (MPG), with integral protective cover.

Detailed Pictures

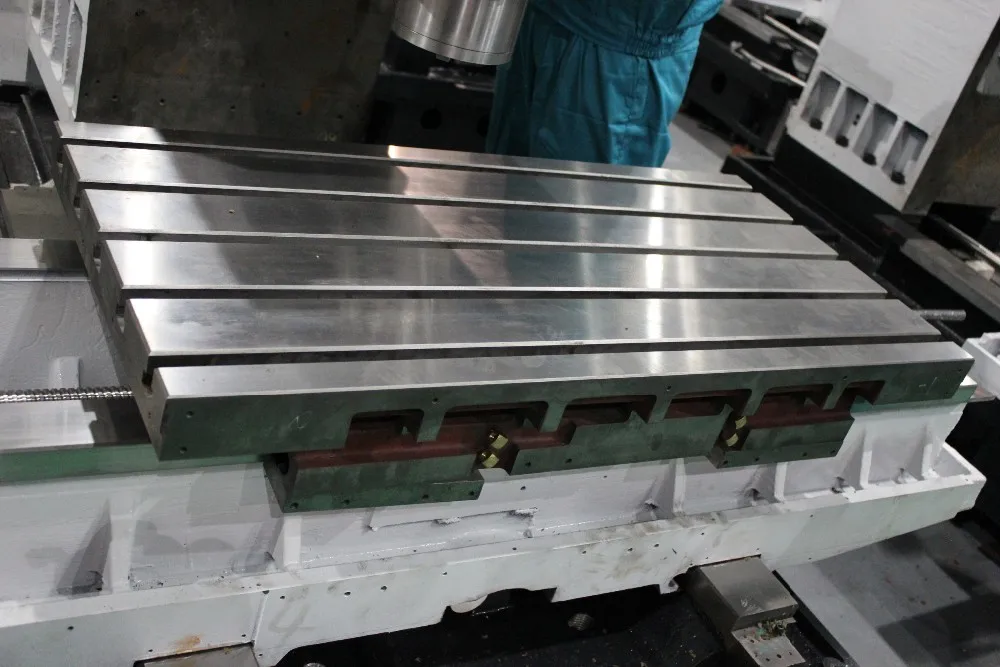

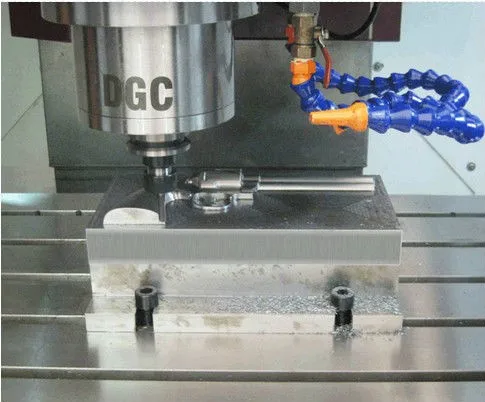

Machine worktable

Machine table high strength cast iron casting, casting structure after machine tool dynamics analysis and finite element analysis, tie-in and reasonable reinforcement, in the cross slide under the condition of full load support to ensure that the process of heavy load capacity. Ensure the basis a high rigidity.

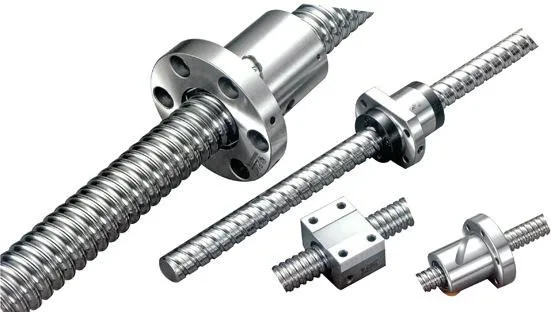

Ball Screw

Machine tool of X, Y, Z three coordinates screw all adopt the high precision ball screw pair, USES the lead screw bearing, two fixed way, after the first 3 and for double nut and tighten, so as to strengthen the rigidity, more stable precision.Ball screw after to stretch, greatly increases the transmission stiffness and eliminating the fast movement during hot deformation, and three axis are made pitch compensation dual-frequency laser interferometer, and ensure the positioning precision of the machine tool and repeat positioning accuracy.

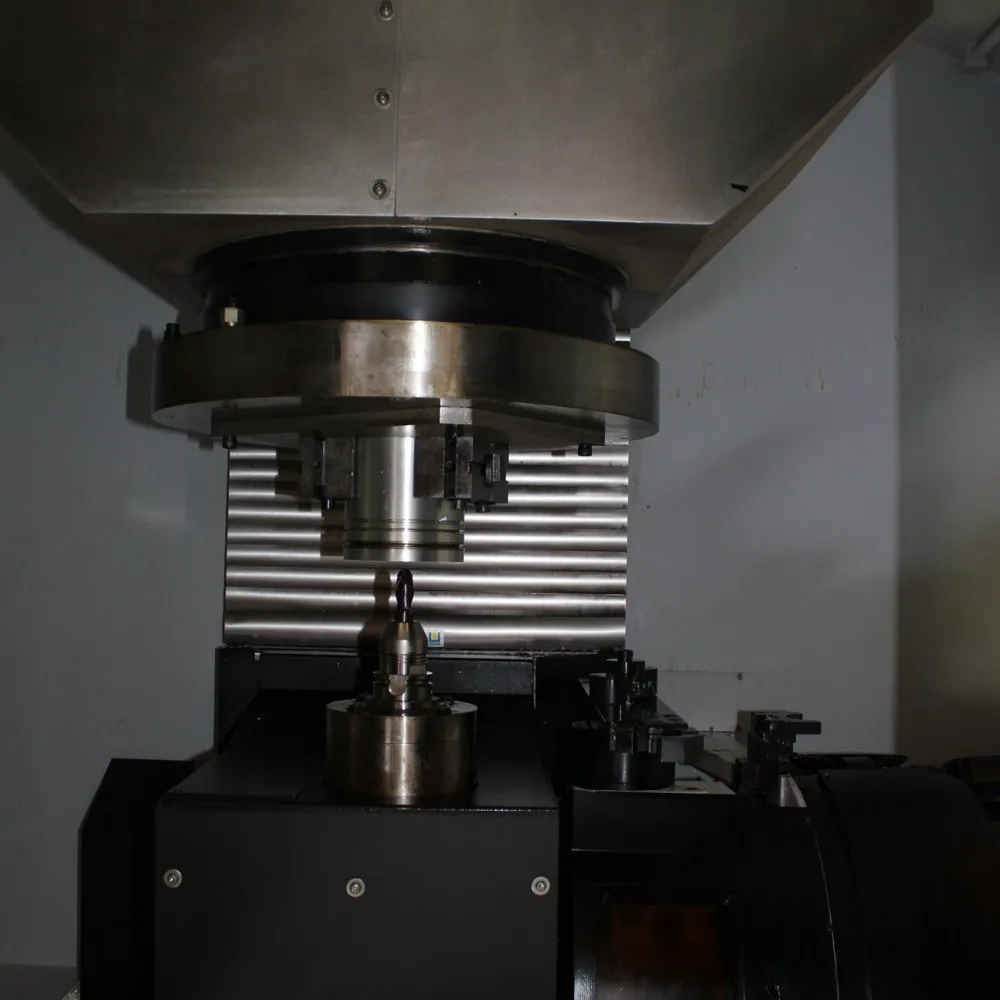

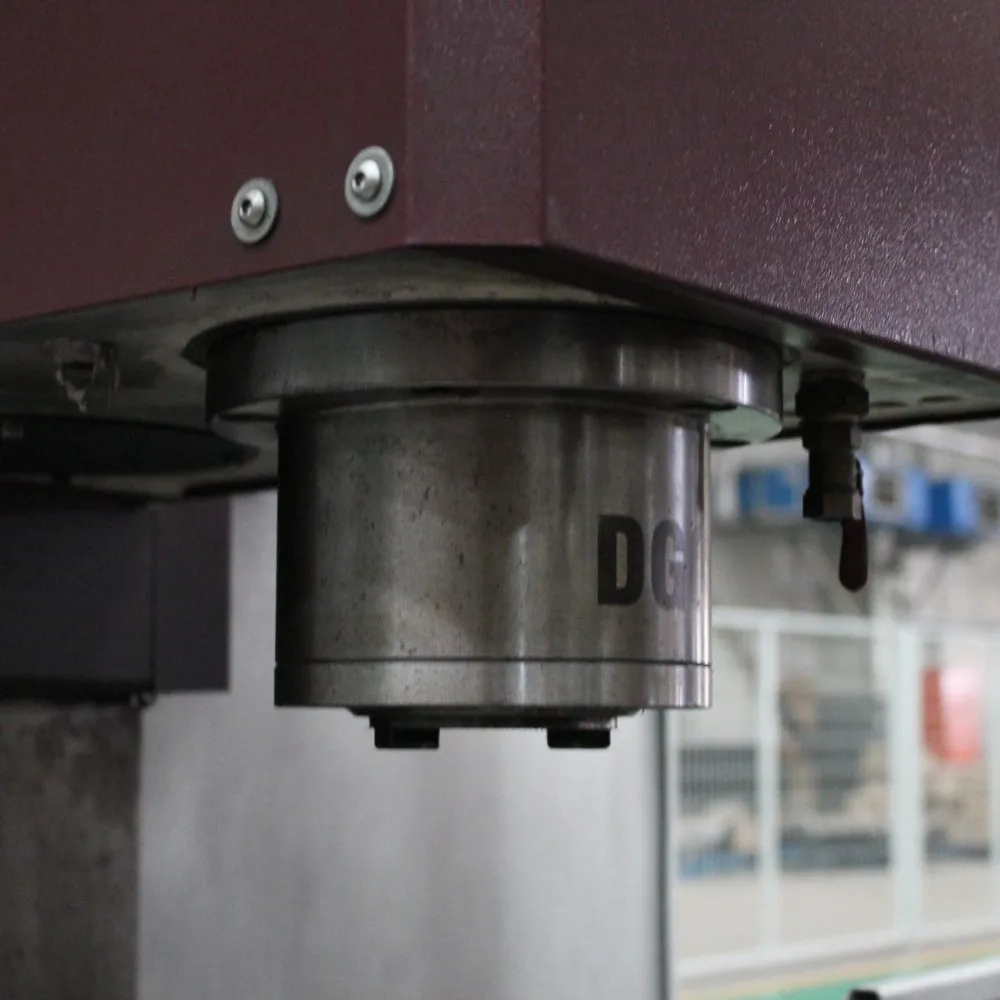

Spindle

High speed, high precision spindle: through high torque synchronous toothed belt drive, don't slip, and can greatly reduce heat transmission noise and produced. Main shaft adopts precision level Angle ball bearing, the standard speed of up to 6000 r/min



Tool Magazine

Tool changer with rapid change knife manipulator library choose library (16) the cutting tool, the knife dish nearby choose knife, tool change for pneumatic and electric control, no pollution, easy to maintain, tool exchange fast and reliable.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* 24x7 all day service.
* Good pre and after sale-service all the time.
* Your professional consultant in Metal Working Machinery.

Packing & Delivery
Packaging
Size
2413(L)*2451(W)*2549(H)
Weight
4.6T

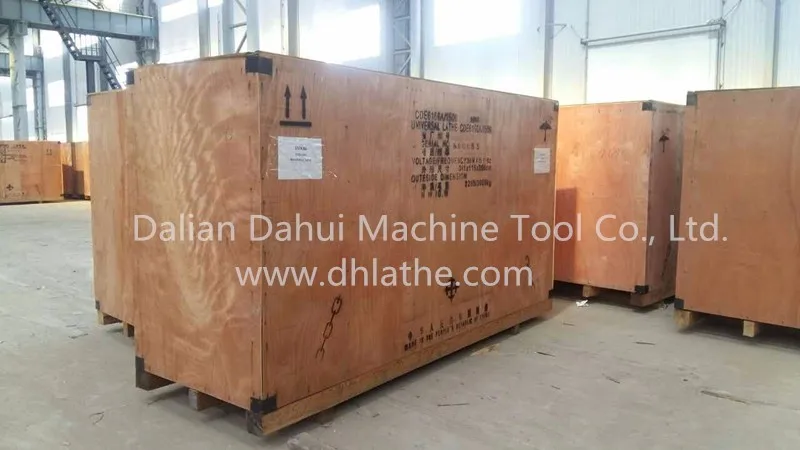

Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
