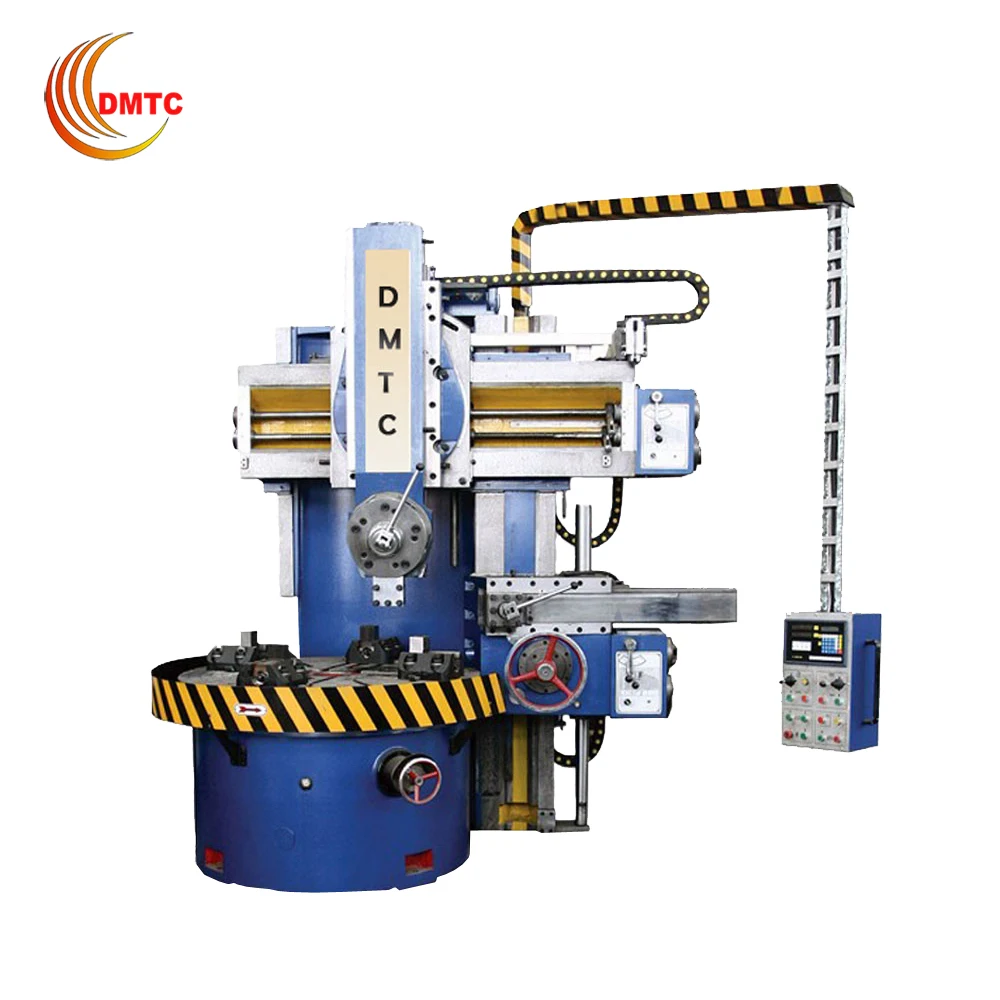

Hot Selling C5112 Single Column Vertical Lathe With Cheap Price

FOB Reference Price:Get Latest Price
US $28,420-56,780 / Sets | 1 Set/Sets For your reference (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vertical
CNC or Not:
Normal
Automatic Grade:
manual
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC
Model Number:
C5112
Voltage:
380V,50HZ,3PH
Power(W):
18.5KW
Dimension(L*W*H):
2460mm*2380mm*3000mm
Weight:
8000kg
Certification:
ISO9001&CE
Max. Swing Diameter:
1250mm
Product tpye:
Single Column Vertical Lathe
Workbench:

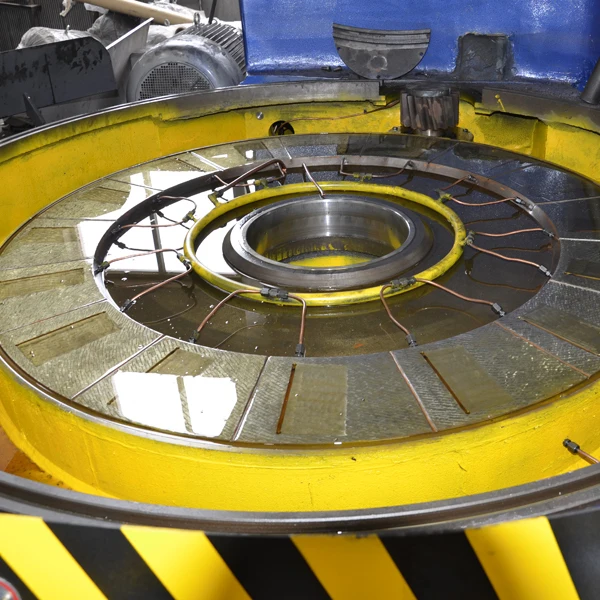

Hydrostatic guideway
Workbench diameter:
1000mm
Workbench speed range:
6.3-200r/min
Control system:
Fanuc, Simens and others
Technology documents:
English Version
Max. height of the workpiece:
1000mm
Main motor power:
18.5kw
Max. weight of the workpiece:
3.2t
Speed step Series:
16step
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
40 Set/Sets per Month For your reference
Packaging & Delivery
Packaging Details
Suitable for long distance shipping.
Port
Dalian Port, China
Lead Time :
60 days after receiving 30% down payment
Product Description

Product Application

The machine is based on motors, valves, pumps, bearings, automotive and other industries need and design of professional products.This machine is suitable for high speed steel and alloy cutting tools, hardware for ferrous metal, nonferrous metal and some non-metallic parts inside and outside the cylinder, end, grooving of rough finish machining, etc.

SPECIFICATIONS FOR C5112

Max. cutting diameter of the vertical slide

mm

1250
Max. Workbench diameter
mm
1000
Max. weight of the workpiece
t
3.2
Max. height of the workpiece

mm
1000
Workbench speed range
r/min
6.3-200
Workbench speed Series
step
16
Feeding serise
step
12
Feeding range
mm/min
0.8-86
Horizontal travel of the vertical slide
mm
700
Longitudinal l travel of the vertical slide
mm
630
Travel of the Beam
mm
650
Main motor power
kw
18.5
Weight of the lathe
kg
8000kg
Dimensions(L*W*H)
mm
2460*2380*3000

Main Features

1.2-shift stepless speed change
2. Hydrostatic guideway
3.Guideway with plastic
4. 5 station turret
5.With side tool post
6.Full operation panel
7.Accuracy 0.002/1000mm


Detailed Images

Machine Parts

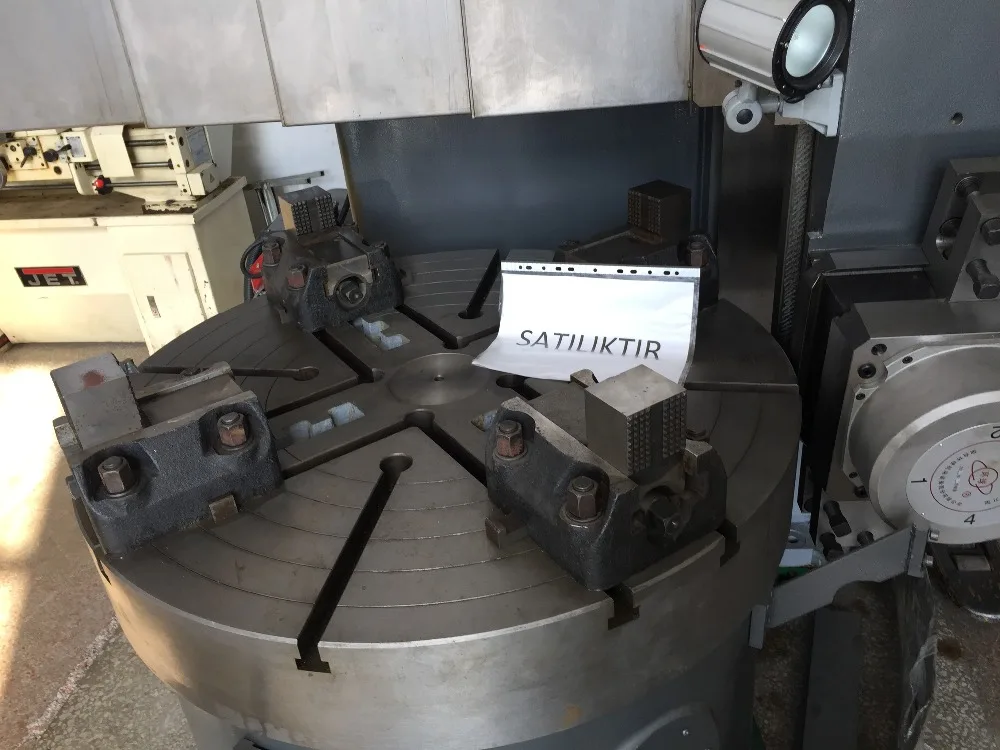

Name: Worktable

Original: Liao Ning, China

The workbench institutions composed of the workbench, the workbench base, spindle unit. Workbench with began, stop, inching and variable speed function. The workbench to withstand vertical load. Machine tool under the condition of environment temperature 0 - 40 degrees can work normally.

Machine Parts

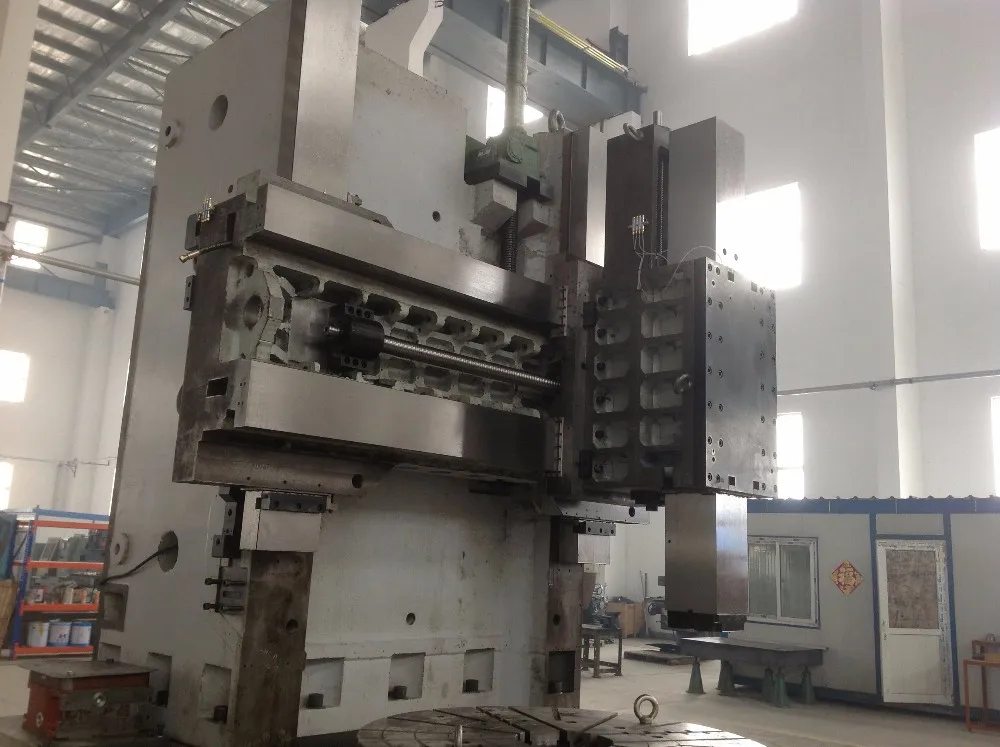

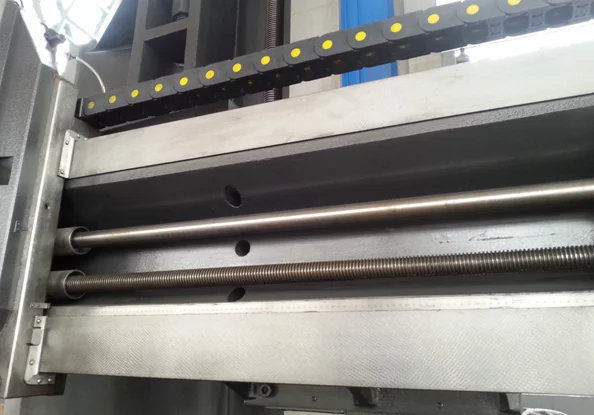

Name: Beam
Original: Liao Ning, Dalian
Beam in front of columns, make the beams on the columns for vertical movement, have lifting box in the upper portion of the columns, driven by AC motor, by worm pair and screw making beams along the column guide rail for lifting. The big adopt high strength, low stress cast iron HT250 material, after aging treatment, eliminating stress to ensure the accuracy of machine tools, have enough resistance to stress and rigidity.

Machine Parts

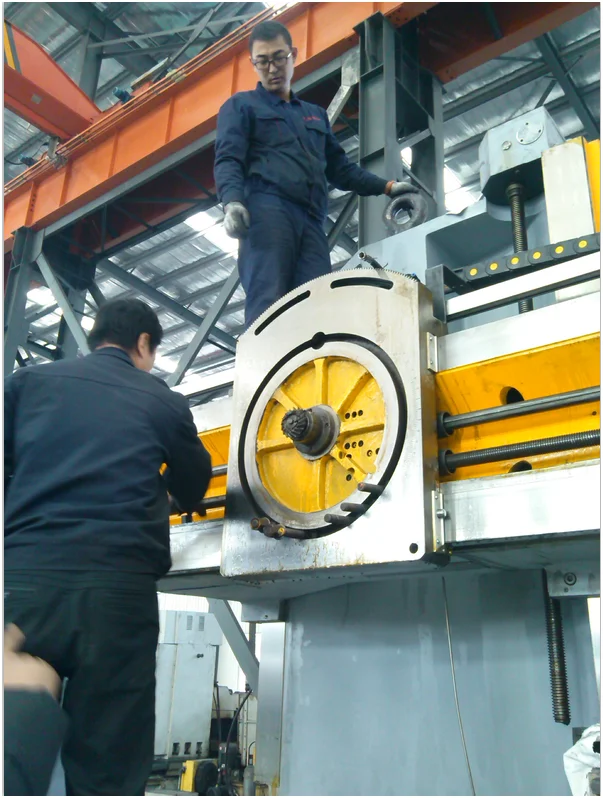

Name: Five Angle Turret
Original: Liao Ning, China
Vertical Tool Rest composed of beam slide, rotary seat, square RAM and hydraulic mechanism. Adopt T-Type RAM, material for HT250, after tempering treatment, guide rail surface hardening treatment, after rough machining and fine grinding with high precision guide rail grinding machine, with high accuracy, good stability, deformation characteristics, precision ram pressure plate adopts closed clamp, increase the stability of its structure, RAM are quick function, mobile head ram with hydraulic balance device, to balance the slippery pillow part weight, make the ram to the smooth movement.

Machine Parts

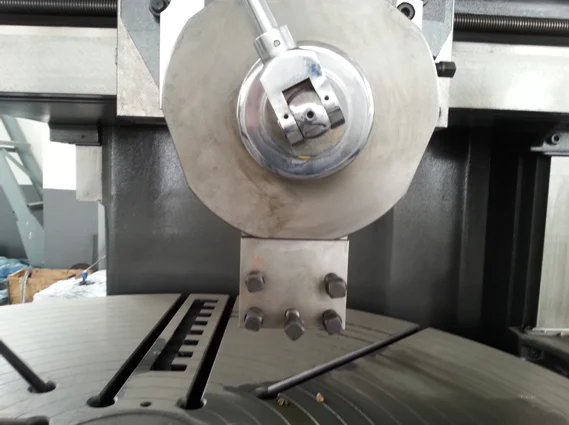

Name: Square ram tool post
Original:Liao Ning, China
Other than FIVE ANGLE TUREET, we can also provide Square Ram Tool Rest, which suitable for deep hole.
