VDL200 DMTG CNC Vertical Machining Center with Comprtitive price

FOB Reference Price:Get Latest Price
$59,680.00 - $60,040.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
VDL1200
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vertical
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC
Voltage:
380V
Power(W):
11-15kW
Dimension(L*W*H):
3080*2400*2780mm
Weight:
8000kgs
Certification:
CE&ISO9001
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
product type:
3 Axis CNC Vertical Machining Center
feature:
high precision,speed
Tool changer capacity:
24
control system:
fanuc, Simens and other
forth axis:
can add
design:
we have design team
X/Y/Z quick travel:
20/20/18m/min
Main spindle max speed:
6000/8000(op)rpm
X/Y/Z travel:
1200/ 600/ 675mm
Worktable size:
1220*620mm
Supply Ability
Supply Ability:
40 Set/Sets per Year CNC Machine Metal 3 Axis
Packaging & Delivery
Packaging Details
1.Suitable for sea transprt
2.Plastic cloth for the first layer, canvas for the second layer, and packing with wooden case at last, together with pallet on the bottom of wooden box.
Port
DALIAN PORT, CHINA
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 90 To be negotiated
Product Description

Product Application

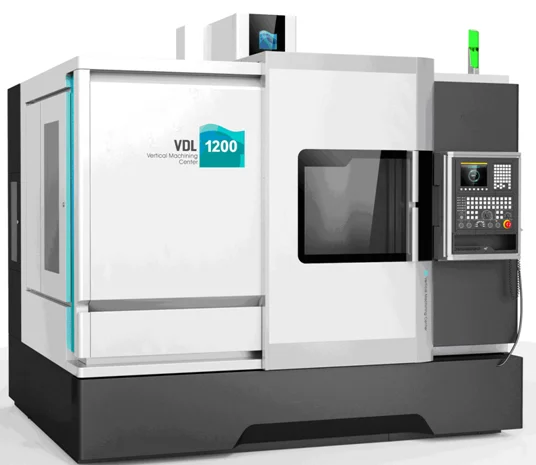

VDL-1200 vertical machining center is a new generation of CNC machine tools produced by Dalian Machine Tool Group Co., Ltd., which is designed with advanced technology. The unique linear guide rail pair (X, Y axis) and hardened hard rail profiled rail pair (Z axis) are designed. It is not only suitable for the processing of plates, discs, shells, precision parts, but also for mold processing. The machine is equipped with ATC exchange, full protective cover, automatic lubrication system, coolant spray system, automatic chip evacuation device, manual spray gun and portable manual operation device (MPG). After the parts are clamped, the milling, boring, drilling, expanding, reaming, tapping and other multi-step processing can be completed. It has high automation, high reliability, simple operation, convenient and pleasant, overall beautiful appearance and high degree of mechatronics. advantage.

ITEM
VDL1200
Table(L×W)(mm)
1220*620
Table load Max(kg)
1200
X/Y/Z travel(mm)
1220/620/685
The distance from spindle center line to column guideway surface(mm)
660
The distance from spindle nose end face to table upper surface(mm)
95-780
X/Y/Z turning speed (mm/min)
0-10000
X/Y/Z rapid traverse speed(m/min)
24/24/18
Spindle speed range(r/min)
45-6000
Spindle taper
NO.50
Capacity of Tool changer
24 bar(Arm type)
Tool shank/ Pull nail type
BT50/ BT50×45°
Max Tool weight (kg)
15
Max tool diameter(mm)
125/250 (Adjacent/empty)

Main Features

1. steady structure
The foundation, column, main spindle box, cross sliding table, worktable and other parts were designed with high strength casting technology. The inner metallographical structure is very steady.

2. high steel nature
The basic parts have high steel nature by collocating with the reinforcing rib. With the wide foundation, box-shaped cavity column, broaden & lengthening sliding base. CNC Vertical Machining Center

3.High speed and high precision spindle
With transmission of the high torsion tooth form leather belt, the electric machine works no slipping and escapes the emergence of noise and heat. CNC Vertical Machining Center

4. CE safety specification
According with the CE safety specification, the wirings in the electrical box can control the system without external disturbance. CNC Vertical Machining Center

5.high precision thread pitch
Designed with compensation, the location of the spindles can be made more accurate and the machine can work out high precision parts by high precision laser admeasuring apparatus.

Detailed Images

Name: Machine Bed

The machine is equipped with a fully enclosed protective cover, which is beautiful, safe, leakproof and protects the environment. Sealed rail guards are purchased from Sino-US joint venture Heiniger Taiwan brand-name manufacturers to effectively protect the guide rails and screw moving parts and extend their service life. The spiral automatic chip evacuation device is simple and environmentally friendly, and is suitable for the transportation of metal and non-metal chips. The machine is equipped with a manual air gun for easy removal of iron filings.

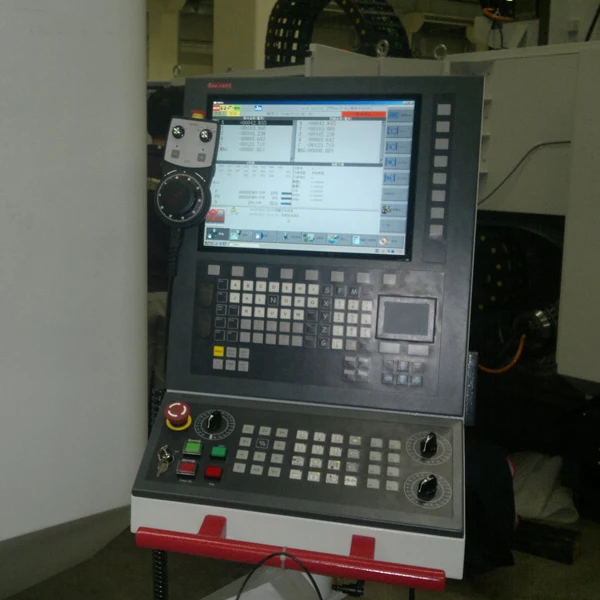

Name: CNC Control System

The CNC control system adopts FANUC 0i, and Dalian Gaojin CNC, Mitsubishi, Siemens and other digital AC servo systems. The software features rich functions and powerful functions. The CNC system can be equipped with a fourth axis interface, workpiece/tool measurement interface, standard RS-232. Interface and DNC operation interface, can be configured according to user requirements, the fourth axis (CNC turntable) to achieve four-axis linkage, Ethernet and other functions.

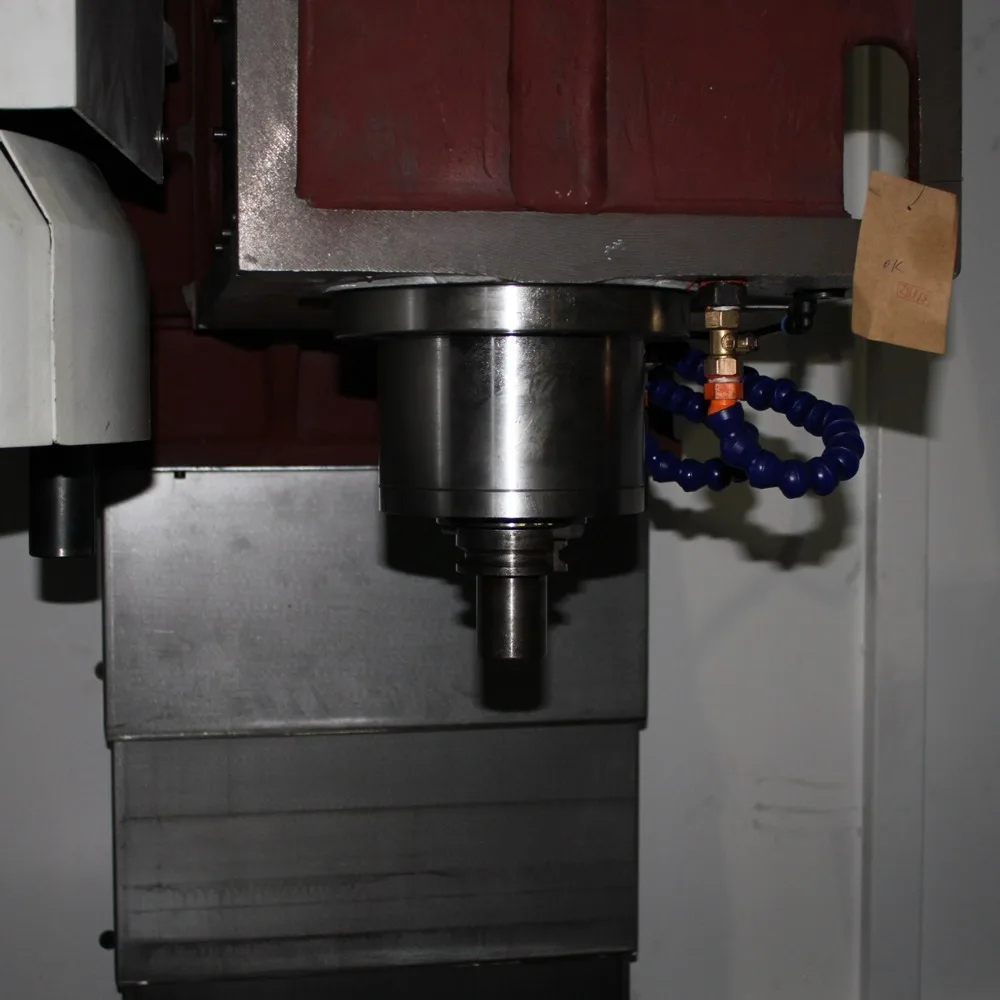

Name: Spindle

High-speed, high-precision spindle: Synchronous toothed belt drive through high torque, no slipping, and can greatly reduce transmission noise and heat generation. The spindle adopts precision grade bevel ball bearings with a standard speed of 6000r/min. High-performance grease-lubricated spindle bearings, economical spindle head cooling system, effectively control the spindle's high-speed temperature rise. The spindle uses the IRD dynamic balance correction device to directly correct the spindle dynamic balance, so that the spindle avoids resonance when it is running at high speed, ensuring the best machining accuracy.

Name: Worktable

The machine tool table is cast from high-strength cast iron. The structure of the casting is analyzed by machine dynamics and finite element analysis. With reasonable reinforcement, the heavy load capacity during processing is ensured under the condition of full load of the cross slide. The high rigidity of the base member is ensured.

You may concerned

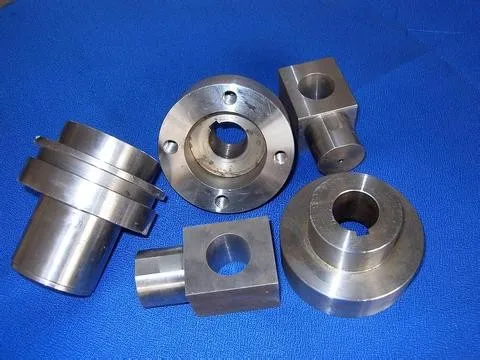

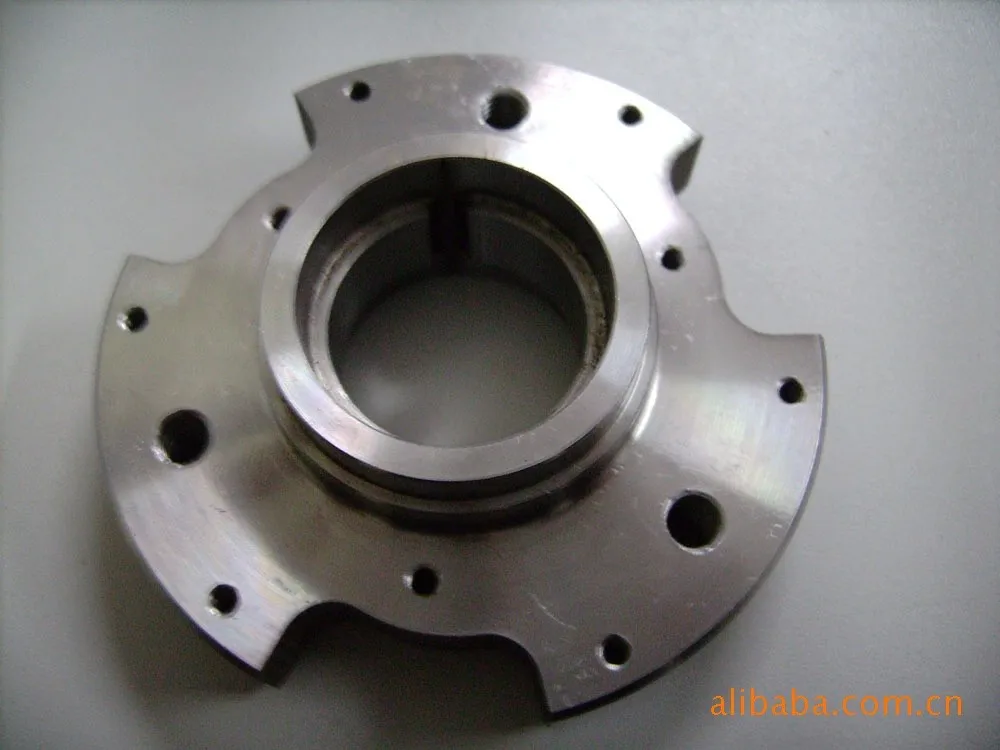

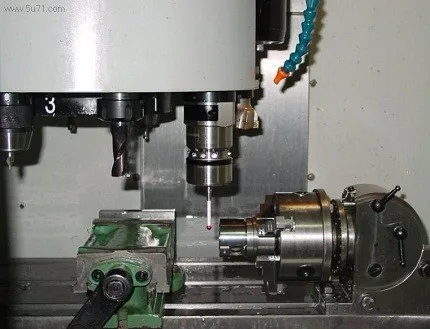

    Common Milling and  Drilling job

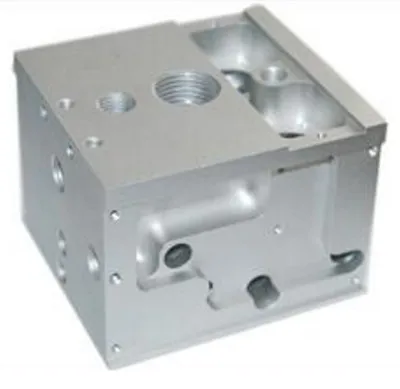

    Box type workpiece milling job

  Face milling and vertical milling job

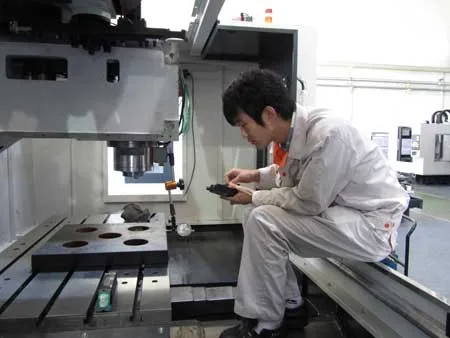

Before packaging, our professional technical team will test the spindle precision, worktable roughness, rapid moving speed strictly. We are dedicated to provide the best cost- performance machine in China to our respectful customer.
Our Belief: Your satisfaction is our ultimate goal

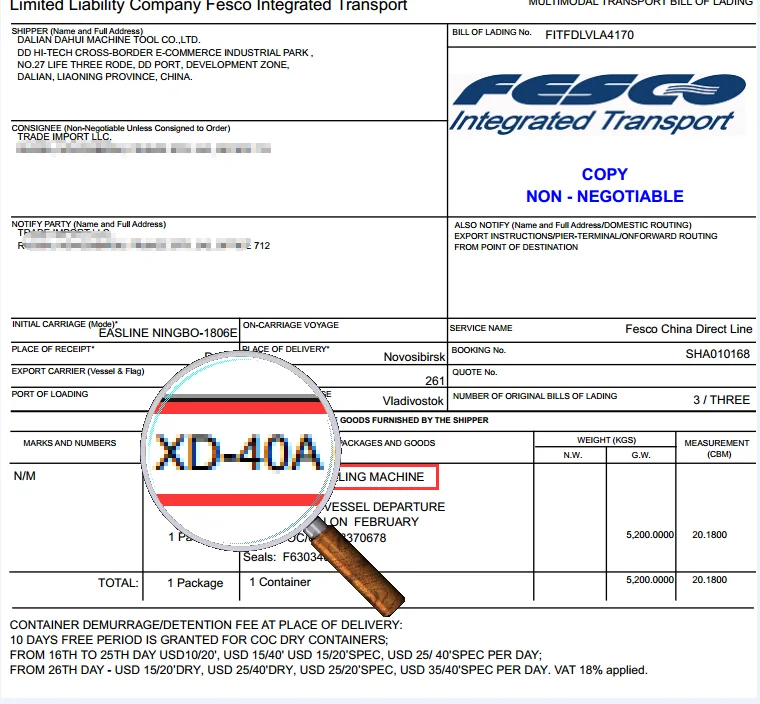

Order Model
XD-40A
CNC Vertical Milling Machine
Order Country
Russia
Order Date
2017.07.06
Payment Term
T/T (30% advanced payment, 70% before shipping)
Trade Term
CFR Novosibirsk
Main Parmeters of the Machine
X/Y/Z: 620/440/540mm
Controller: Fanuc
Spindle Speed:8000rpm

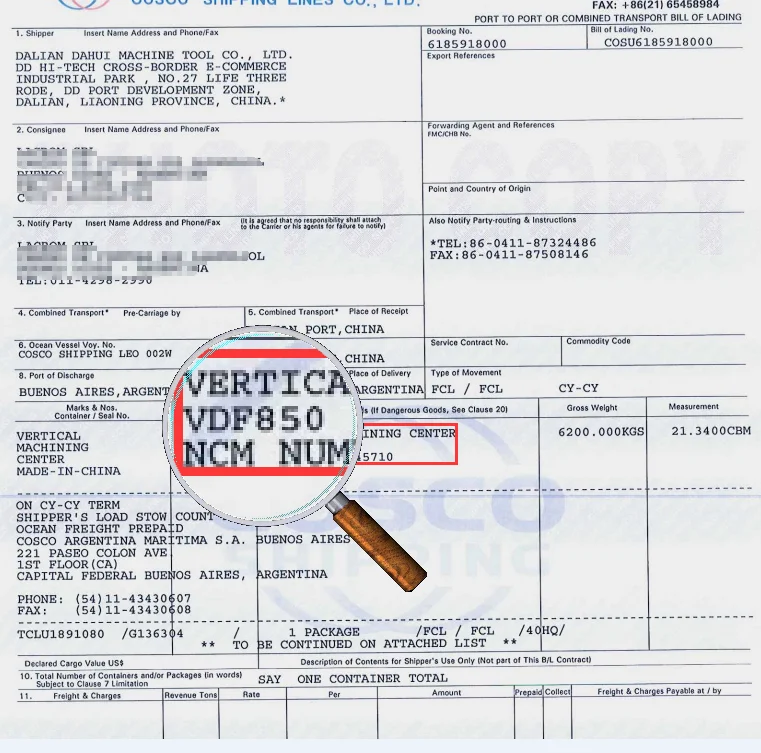

Order Model
VDF850A
(CNC Vertical Machining Center )
Order Country
Argentina
Order Date
2017.8.31
Payment Term
Alibaba Trade Assurance
(30% advanced payment, 70% before shipping)
Trade Term
CIF Buenos Aires
Main Parmeters of the Machine
X/Y/Z Travel: 860/510/560mm
Controller: Fanuc
Spindle Speed: Max 8000rpm
Certifications

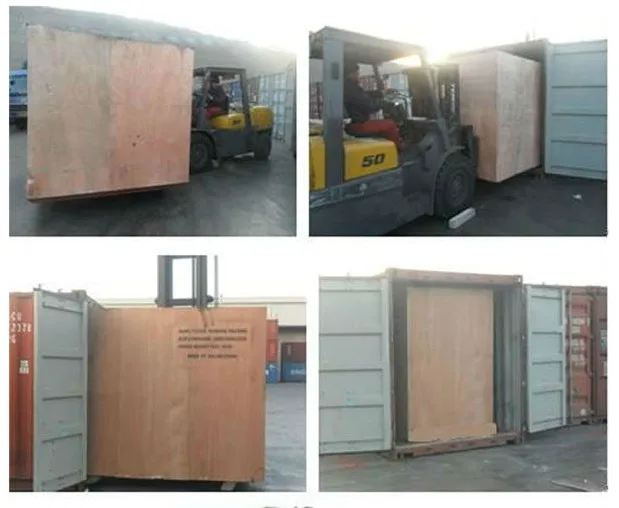

Packing & Delivery
Packaging
Size
3200×2803×3000mm
Weight
8.5 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
